Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

19 part groups · 2 illustrations

Illustrations

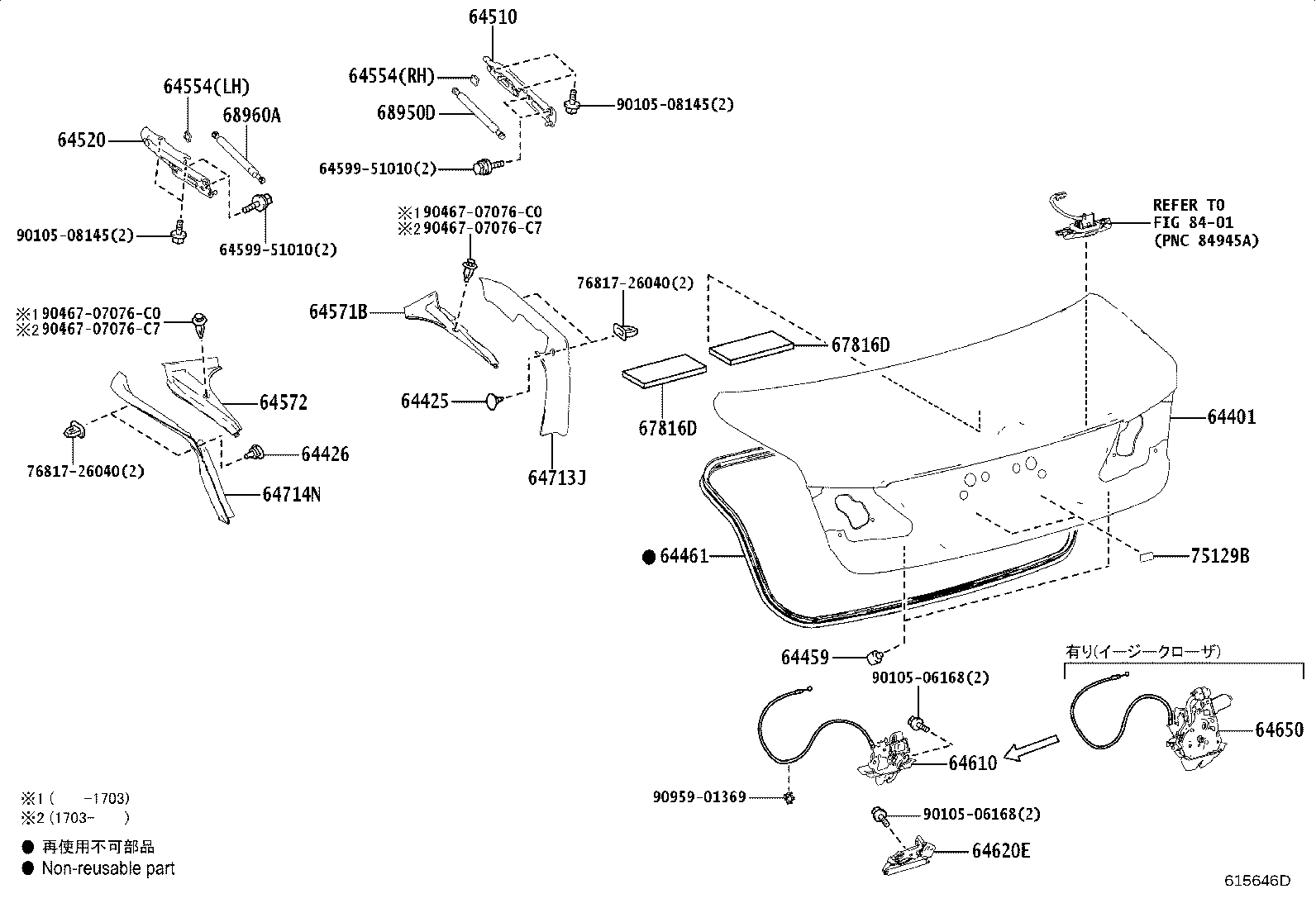

Figure 614538F 614538F 2012-12 → 2015-09 Figure 615646D 615646D 2015-09 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64425 Plug, Luggage Compartment Door, RH
64426 Plug, Luggage Compartment Door, LH
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64554 Stopper, Luggage Door Balancer
64571B Cover, Luggage Compartment Door Hinge, RH
64572 Cover, Luggage Compartment Door Hinge, LH
64610 Lock Assy, Luggage Compartment Door
64620E Striker Assy, Luggage Compartment Door
64650 Closer Assy, Luggage Door
64713J Cover, Luggage Compartment Upper, NO.1 RH
64714N Cover, Luggage Compartment Upper, NO.1 LH
67816D Sheet, Back Door Panel Silencer
68950D Stay Assy, Luggage Door, RH
68960A Stay Assy, Luggage Door, LH
75129B Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
