Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

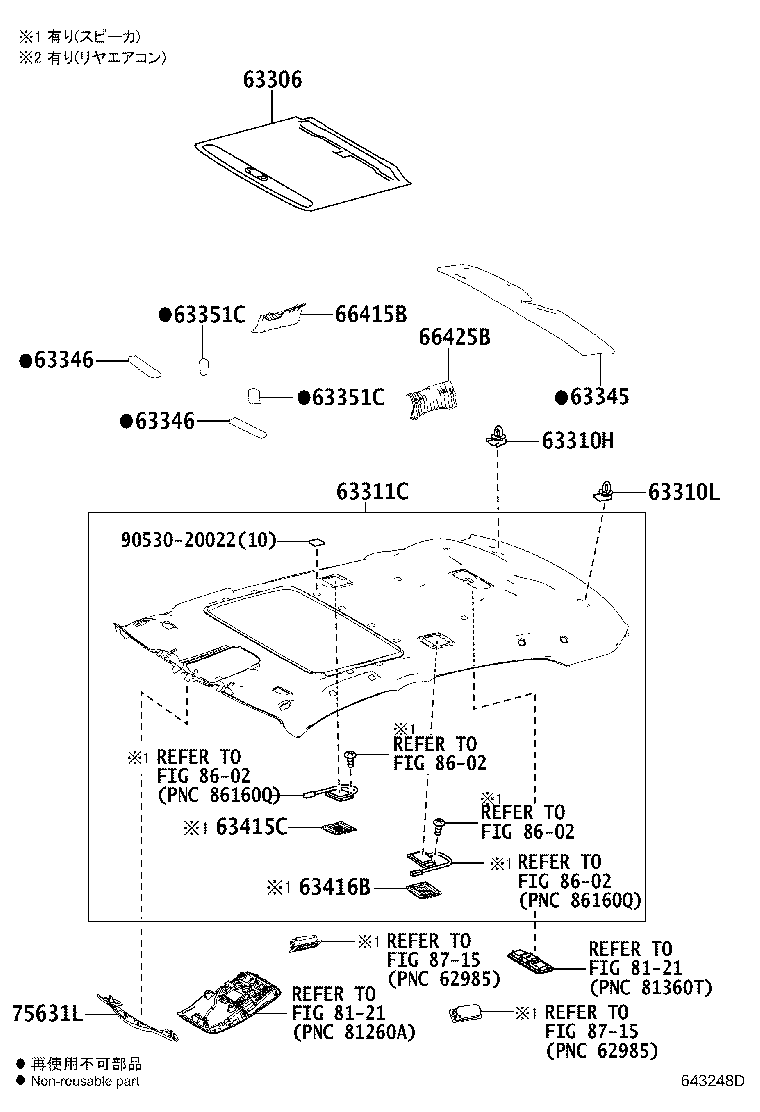

Figure 643247C 643247C 2012-12 → — Figure 643248D 643248D 2012-12 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310H Clip(FOR ROOF HEADLINING)
63310L Cap(FOR ROOF HEADLINING)
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63351C Pad, Roof Headlining
63415C Grille, Roof Speaker, RH
63416B Grille, Roof Speaker, LH
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
75631L Garnish, Roof Top, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
