Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

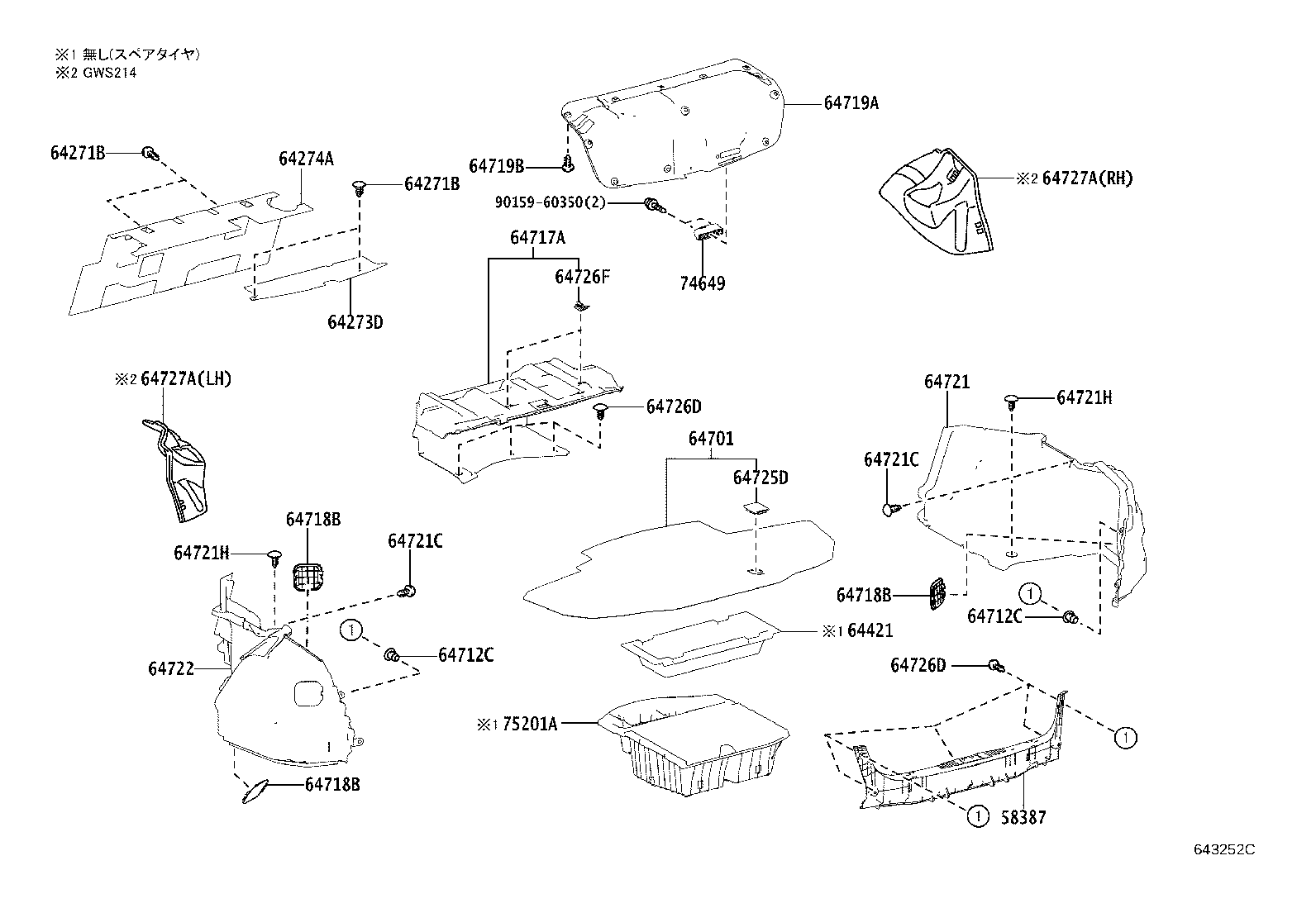

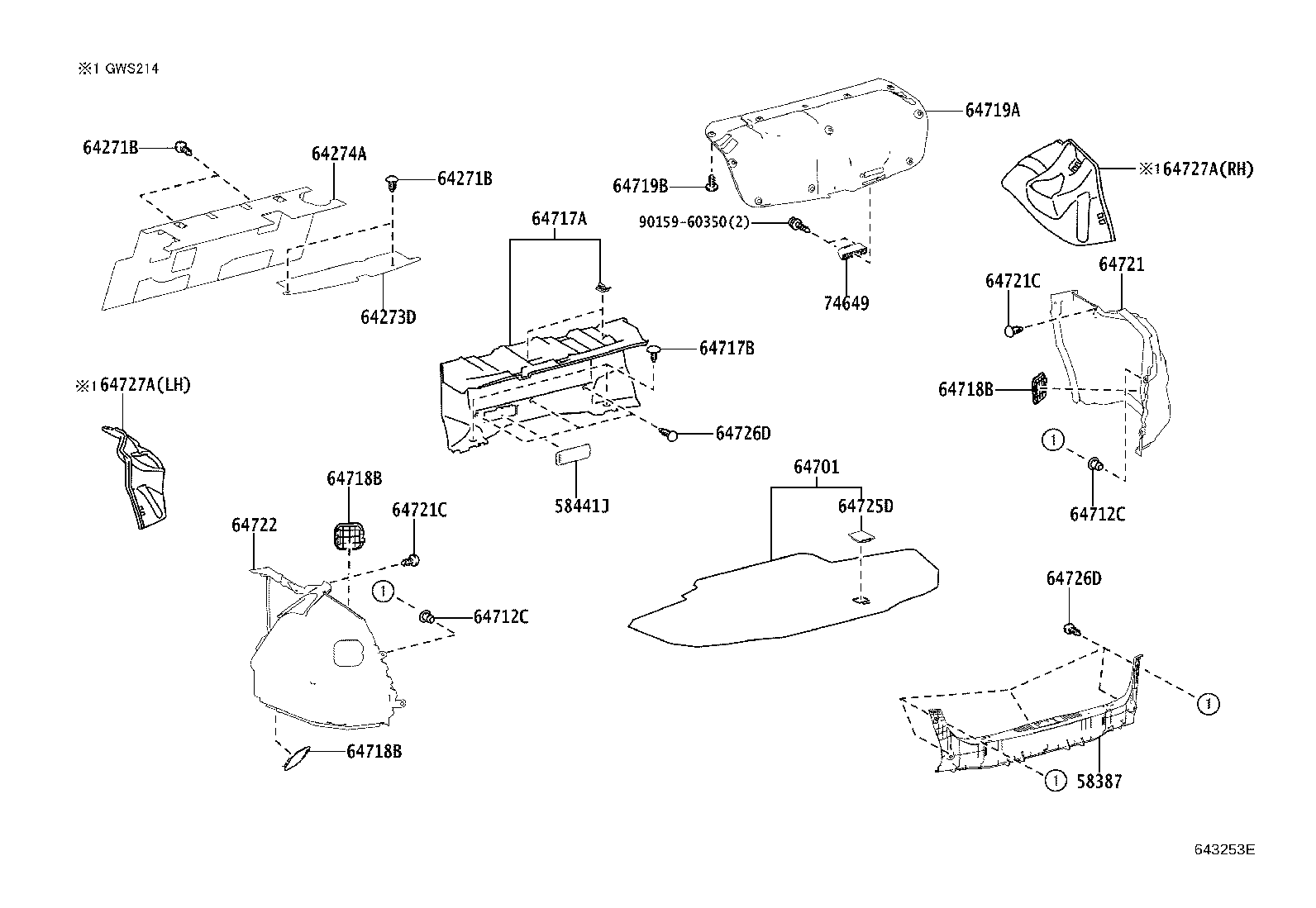

Package Tray Panel & Luggage Compartment Mat
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58441J | Cover, Battery Service Hole |
| 58470D | Handle Assy, Deck Board |
| 58477C | Protector, Deck Board, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64273D | Pad, Room Partition, NO.1 |
| 64274A | Pad, Room Partition, NO.2 |
| 64323E | Clamp, Package Tray Trim |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64334A | Pad, Package Tray Trim |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64374A | Support, Package Tray Trim |
| 64421 | Tray Sub-assy, Luggage Compartment |
| 64701 | Mat Sub-assy, Luggage Compartment |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726D | Clip, Luggage Trim, Rear |
| 64726F | Hook, Luggage Compartment Trim, NO.2 |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 71295 | Plate, Rear Seatback, Upper RH |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
