Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

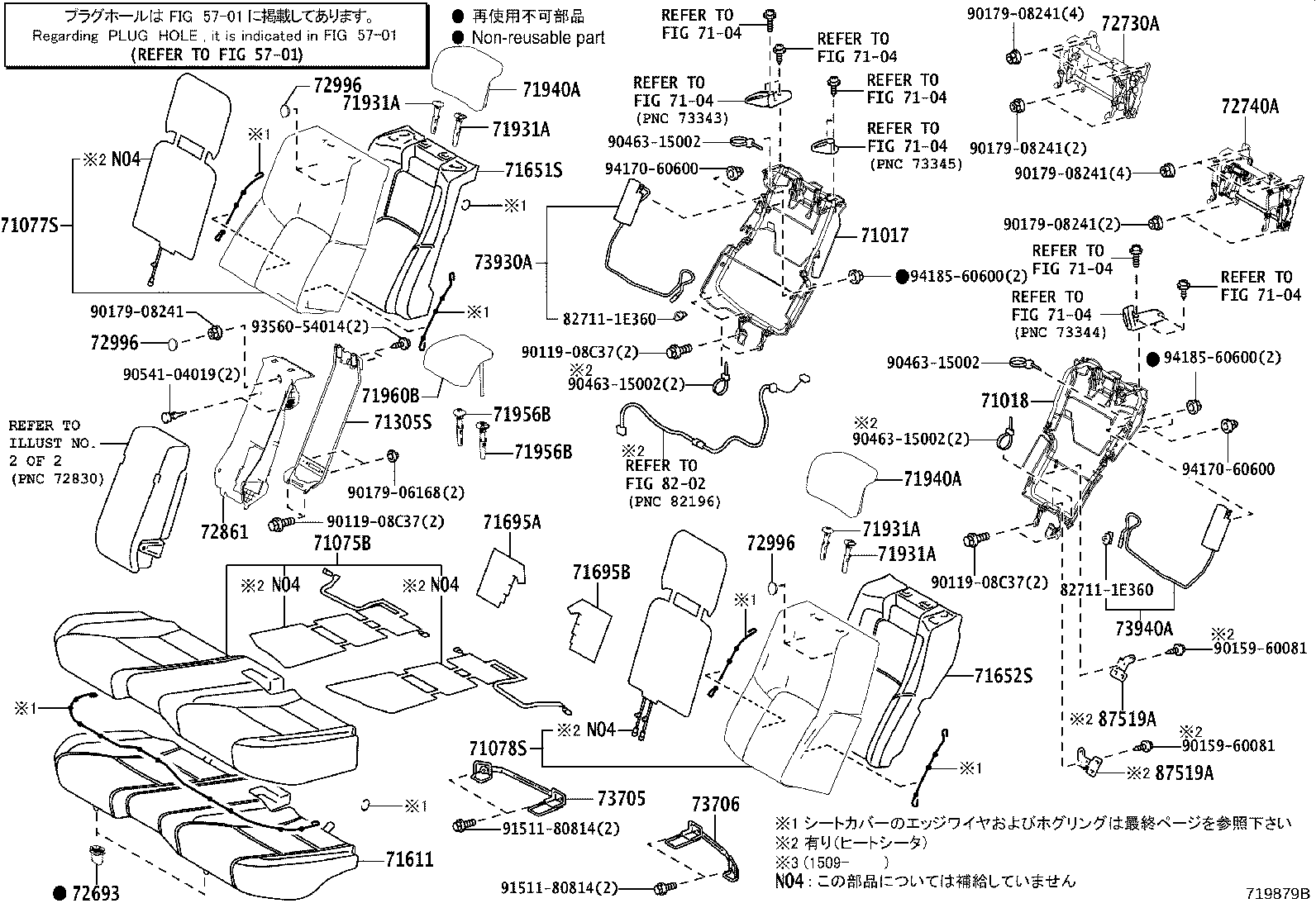

Rear Seat & Seat Track
45 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71266 | Gusset, Rear Seatback Frame |
| 71281A | Hinge, Rear Seat Center Armrest |
| 71305S | Frame Sub-assy, Center Seatback |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71695A | Protector, Rear Seat, NO.1 RH |
| 71695B | Protector, Rear Seat, NO.1 LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72802A | Hinge Sub-assy, Armrest Console |
| 72803D | Panel Sub-assy, Rear Seat Center Armrest |
| 72805B | Door Sub-assy, Rear Seat Center Armrest |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72806D | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72809 | Lock Sub-assy, Center Armrest |

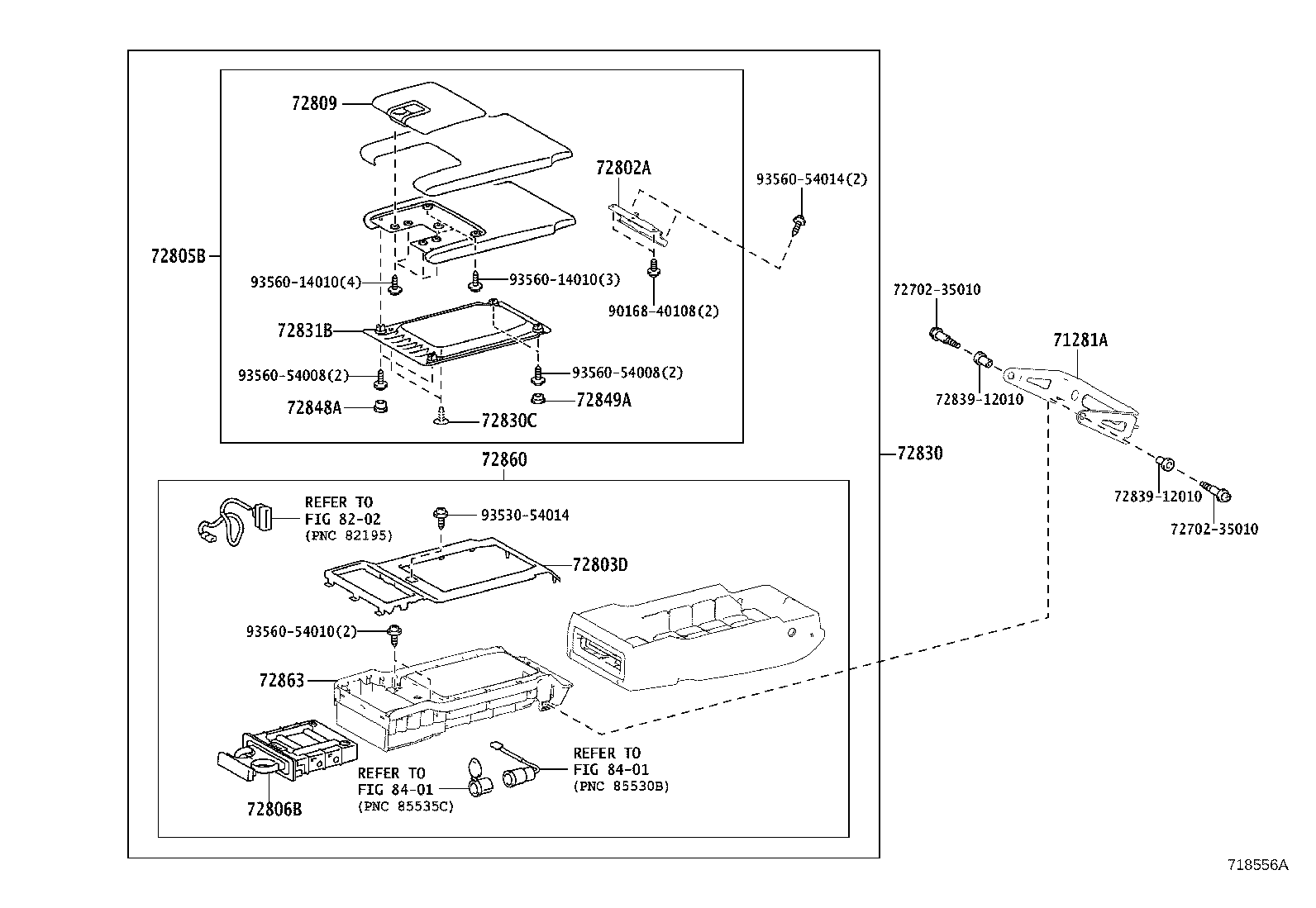

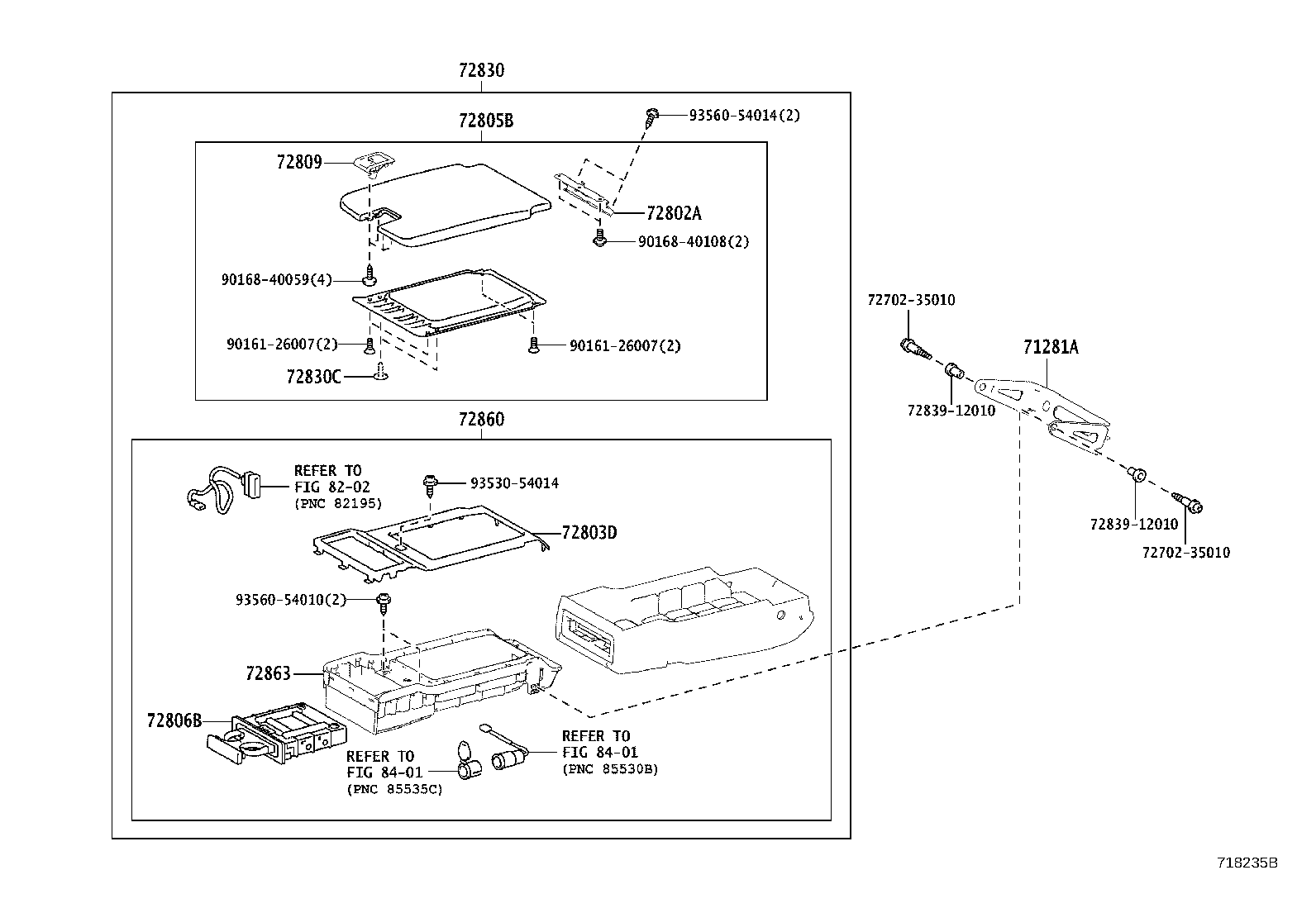

| 72830 | Armrest Assy, Rear Seat, Center |
| 72830C | Clip, Rear Seat Center Armrest |
| 72831B | Plate, Rear Seat Center Armrest, NO.1 |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72849A | Cap, Seat Armrest, NO.2 |
| 72860 | Box Assy, Rear Seat Center Armrest |
| 72861 | Trim, Center Armrest Corner |
| 72863 | Box, Rear Seat Center Armrest |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72869 | Cover, Center Armrest Hinge, LH |
| 72987 | Cover, Rear Seat Center Armrest |
| 72996 | Cover, Rear Seatback, RH |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
| 87519A | Bracket, Seat Heater Connector Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
