Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

26 part groups · 5 illustrations

Illustrations

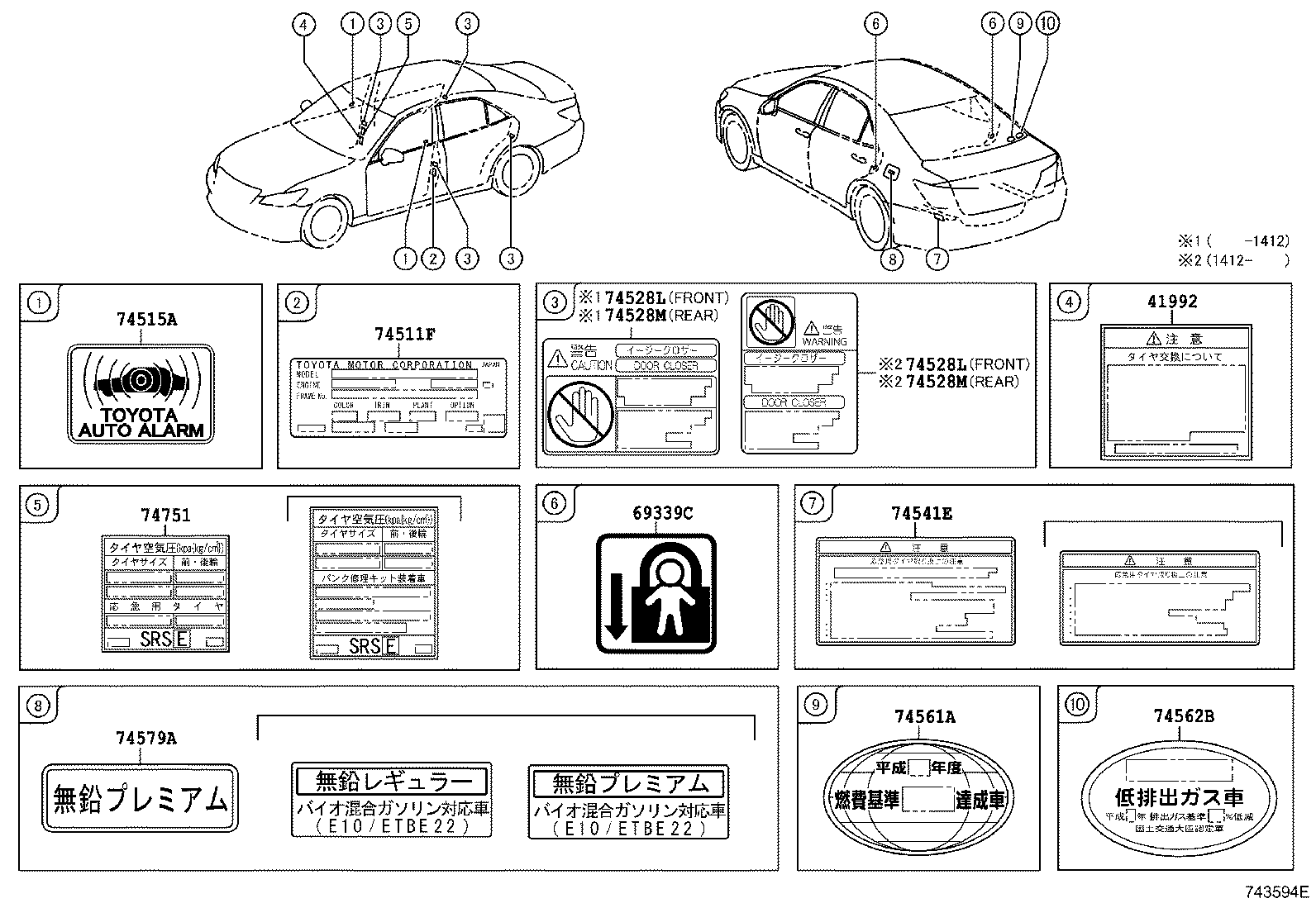

Figure 746053 746053 2012-12 → — Figure 744274C 744274C 2012-12 → — Figure 744273A 744273A 2012-12 → — Figure 743594E 743594E 2012-12 → — Figure 743595A 743595A 2012-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11286B Plate, Engine Specification
11293D Label, Engine Caution
11295B Label, Engine Service Notice, NO.1
11295C Label, Engine Service Notice, NO.2
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
45248A Label, Steering Actuator Caution
46275A Label, Parking Brake Release Information, NO.1
53464 Label, Pop UP Hood Caution, NO.1
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74528L Label, Door Closer Caution, Front
74528M Label, Door Closer Caution, Rear
74532A Plate, Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
