Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

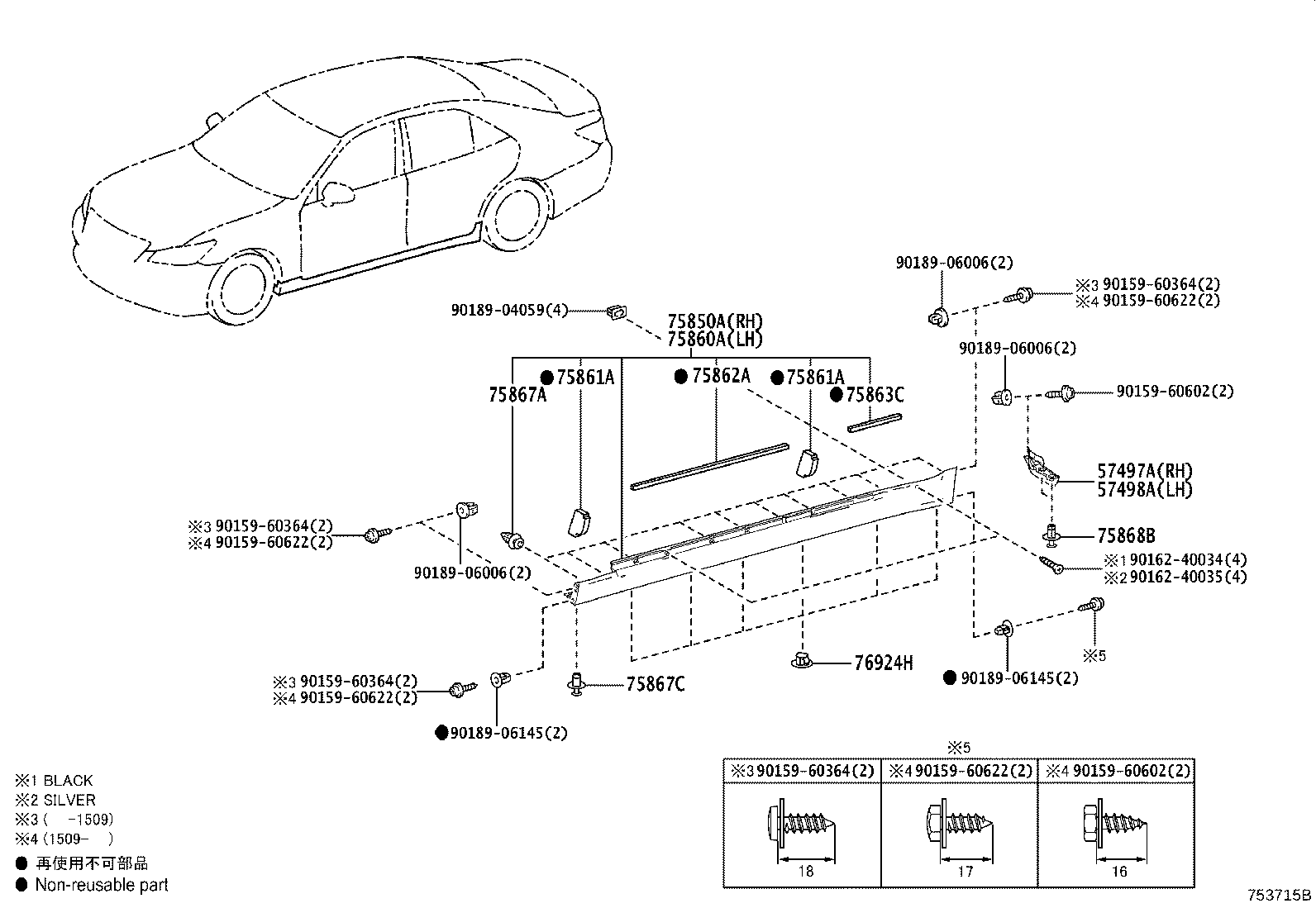

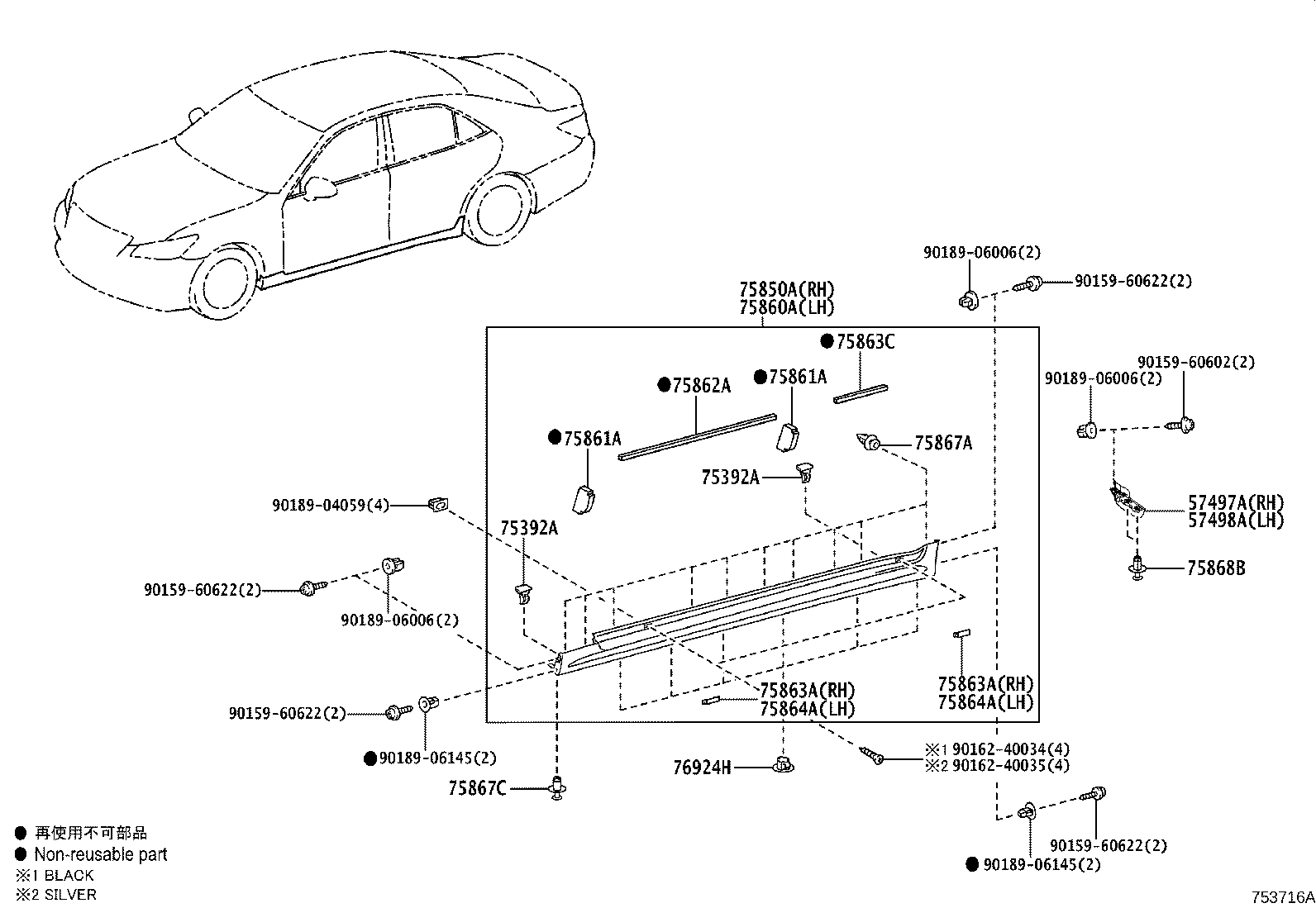

Side Moulding
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57497A | Shield, Rear Floor Housing |
| 57498A | Shield, Rear Floor Housing, NO.2 |
| 67495C | Cover, Front Door Front Lower Frame, Upper RH |
| 67496C | Cover, Front Door Front Lower Frame, Upper LH |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75707 | Moulding Sub-assy, Rear Door Window Frame, RH |
| 75708 | Moulding Sub-assy, Rear Door Window Frame, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75861A | Protector, Rocker Panel Moulding, NO.1 |
| 75862A | Protector, Rocker Panel Moulding, NO.2 |
| 75863A | Cover, Rocker Panel Moulding End, Rear RH |
| 75863C | Protector, Rocker Panel Moulding, NO.3 |
| 75864A | Cover, Rocker Panel Moulding End, Rear LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75868B | Clip, Rocker Panel Moulding, NO.2 |
| 76924H | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
