Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

9 part groups · 6 illustrations

Illustrations

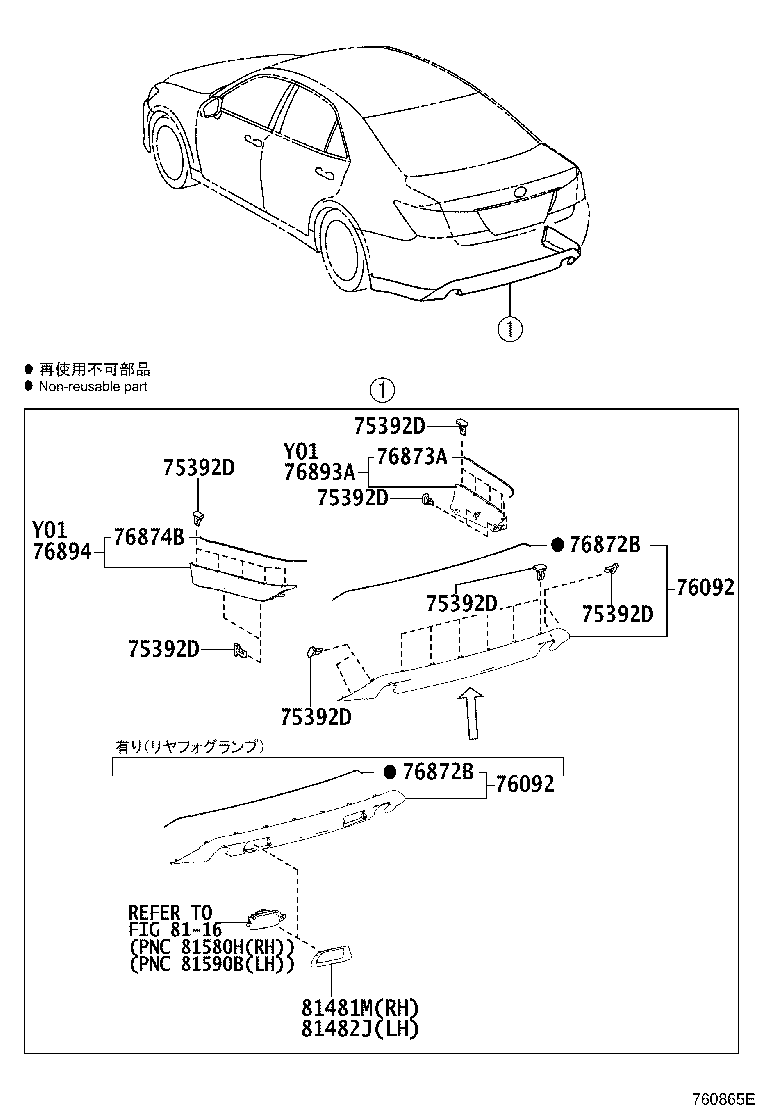

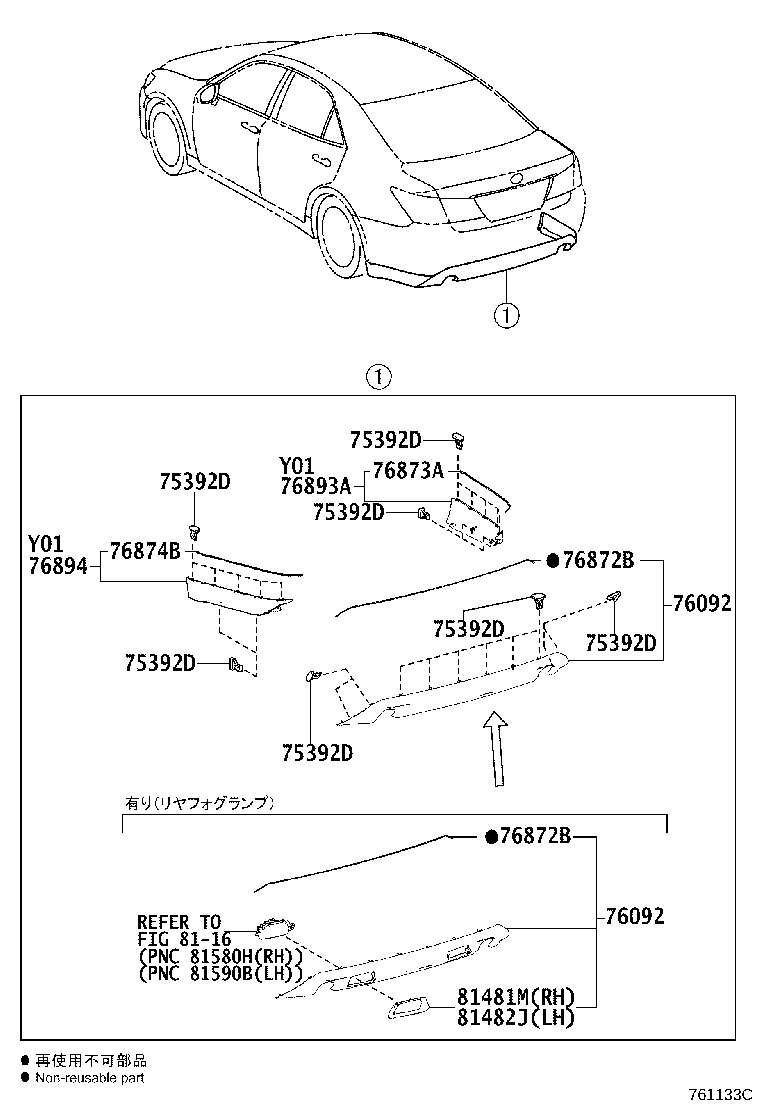

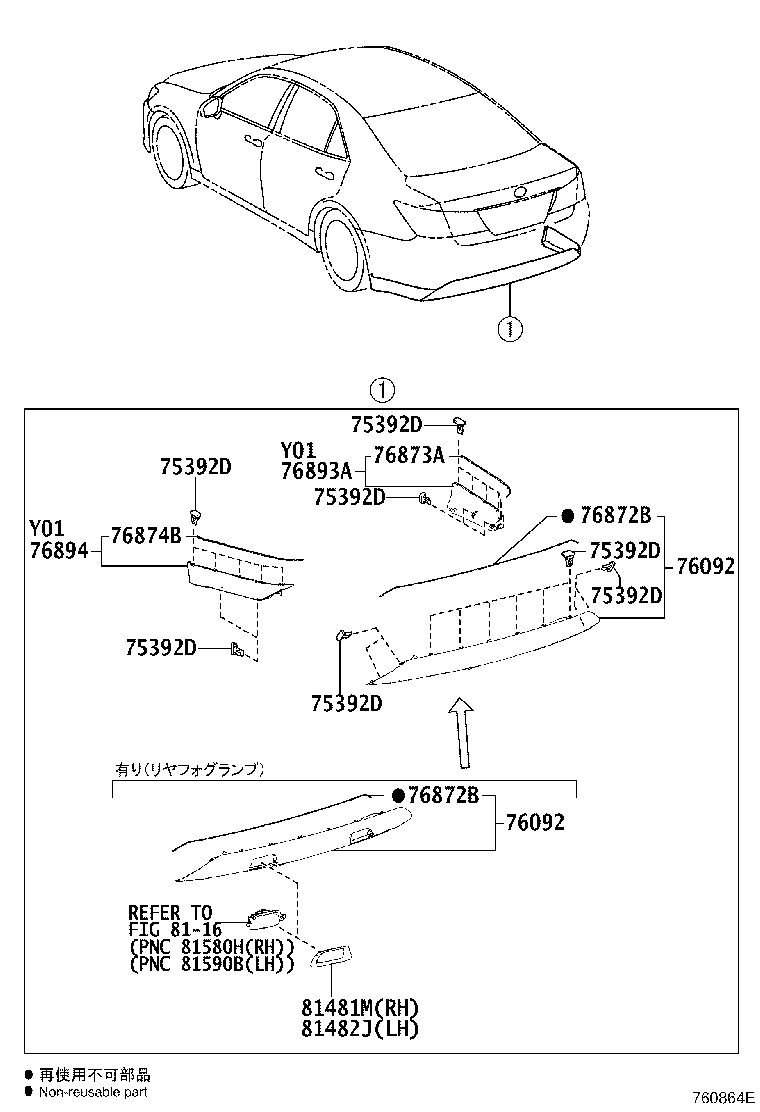

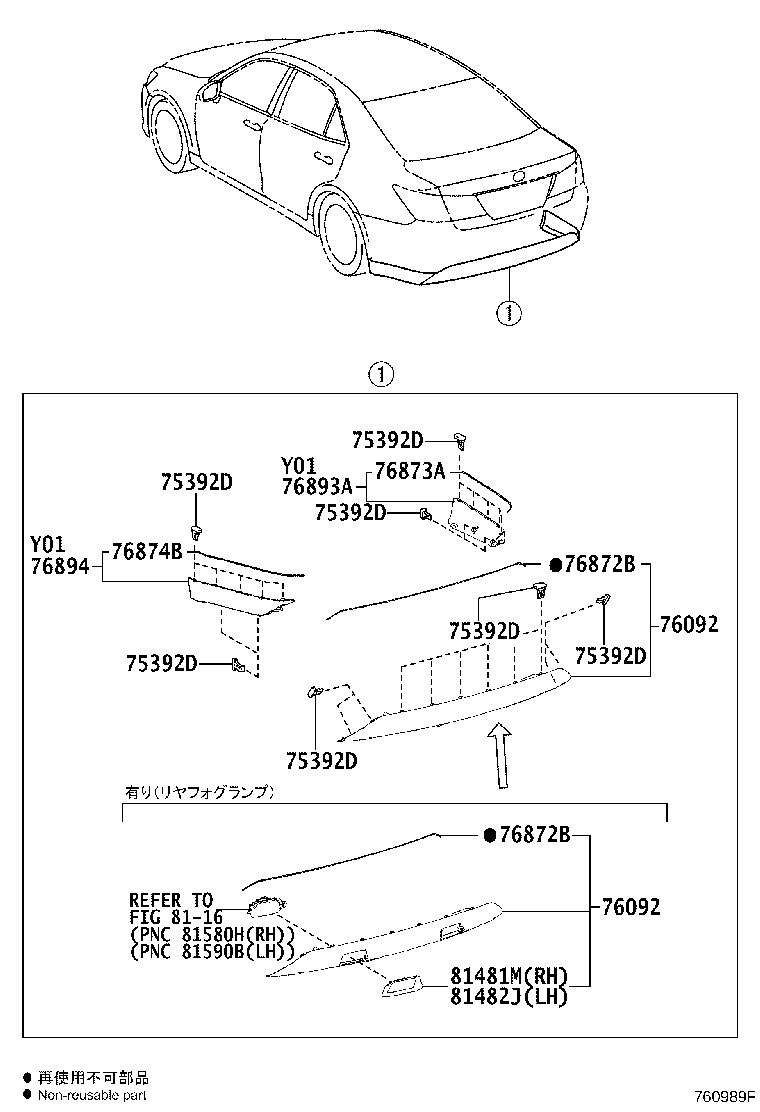

Figure 761053E 761053E 2012-12 → 2013-01 Figure 761053E 761053E 2013-01 → 2013-02 Figure 760864E 760864E 2013-01 → 2015-09 Figure 760865E 760865E 2012-12 → 2015-09 Figure 760989F 760989F 2015-09 → — Figure 761133C 761133C 2015-09 → —

Part groups

PNCDescription
75392D Retainer, Outside Moulding
76092 Spoiler Sub-assy, Rear Lower
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
81481M Cover, Fog Lamp, RH
81482J Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
