Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

34 part groups · 7 illustrations

Illustrations

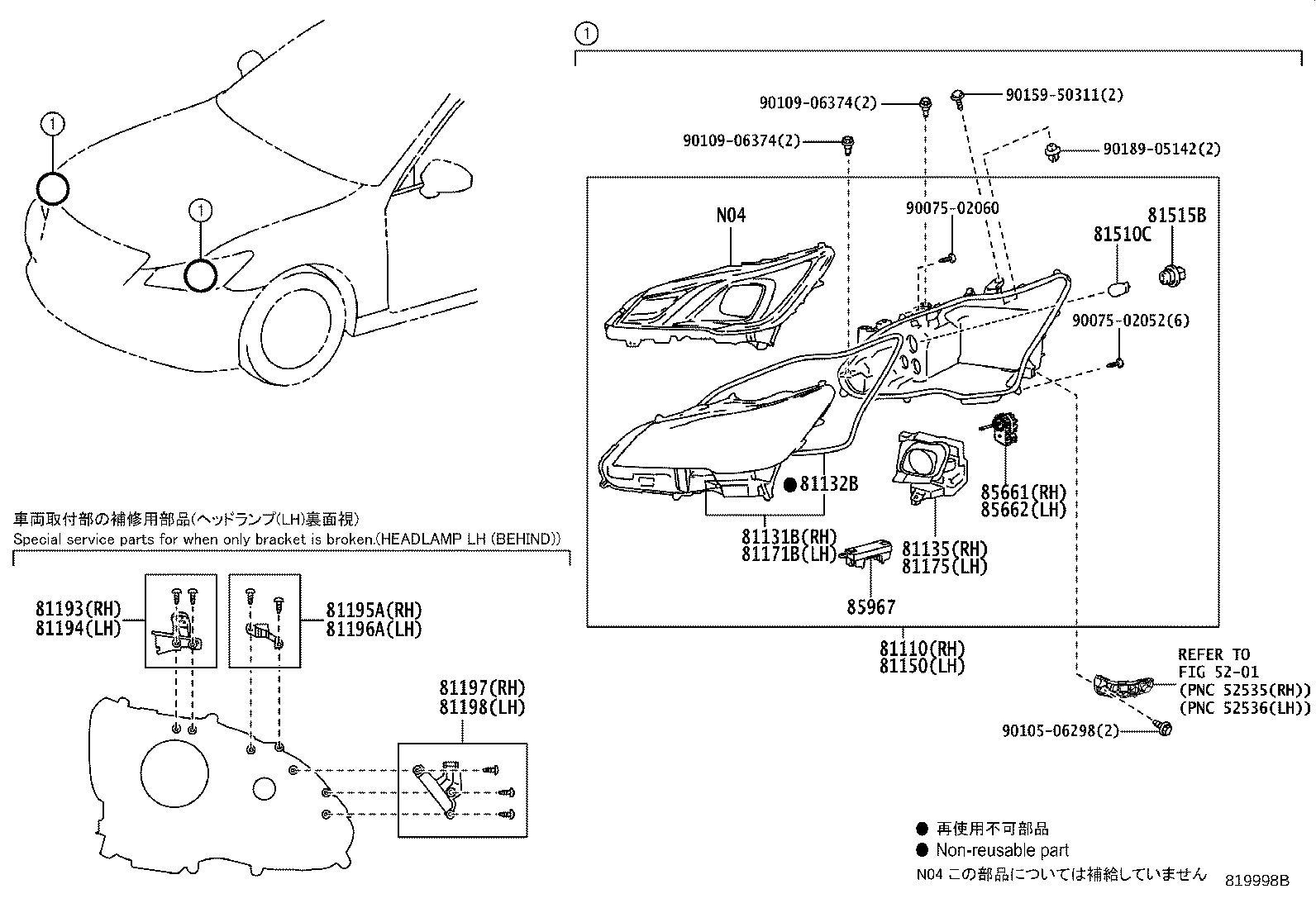

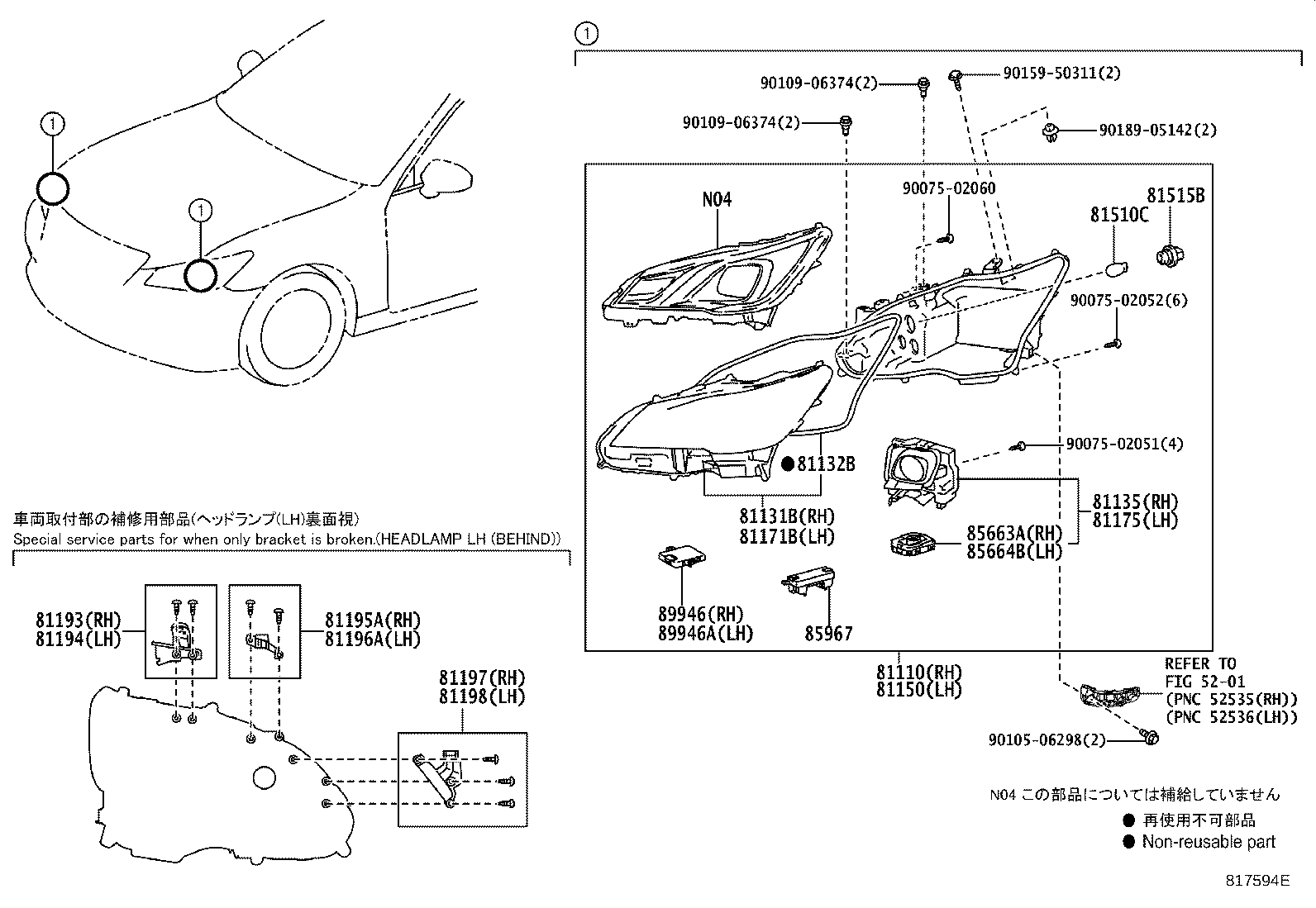

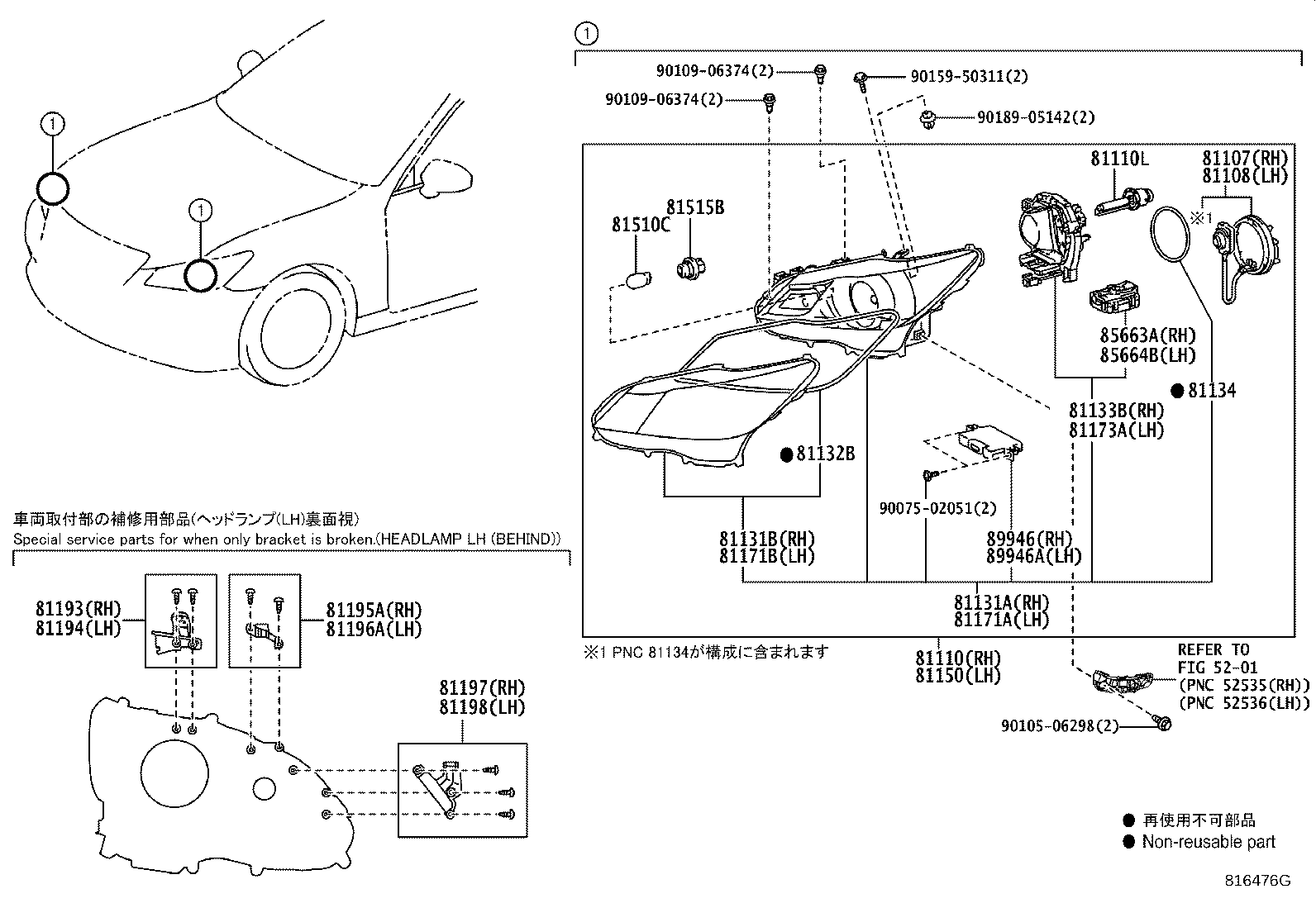

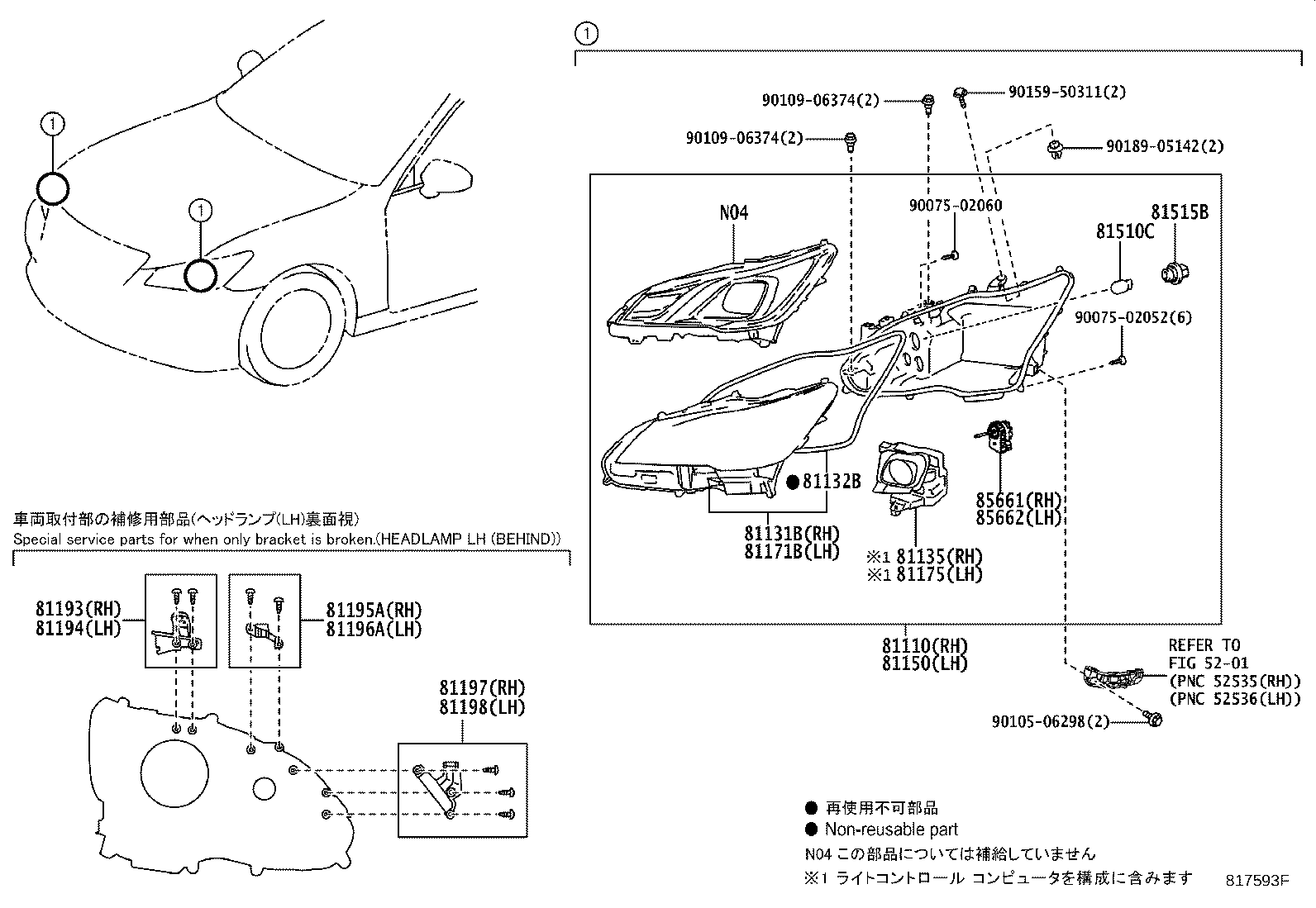

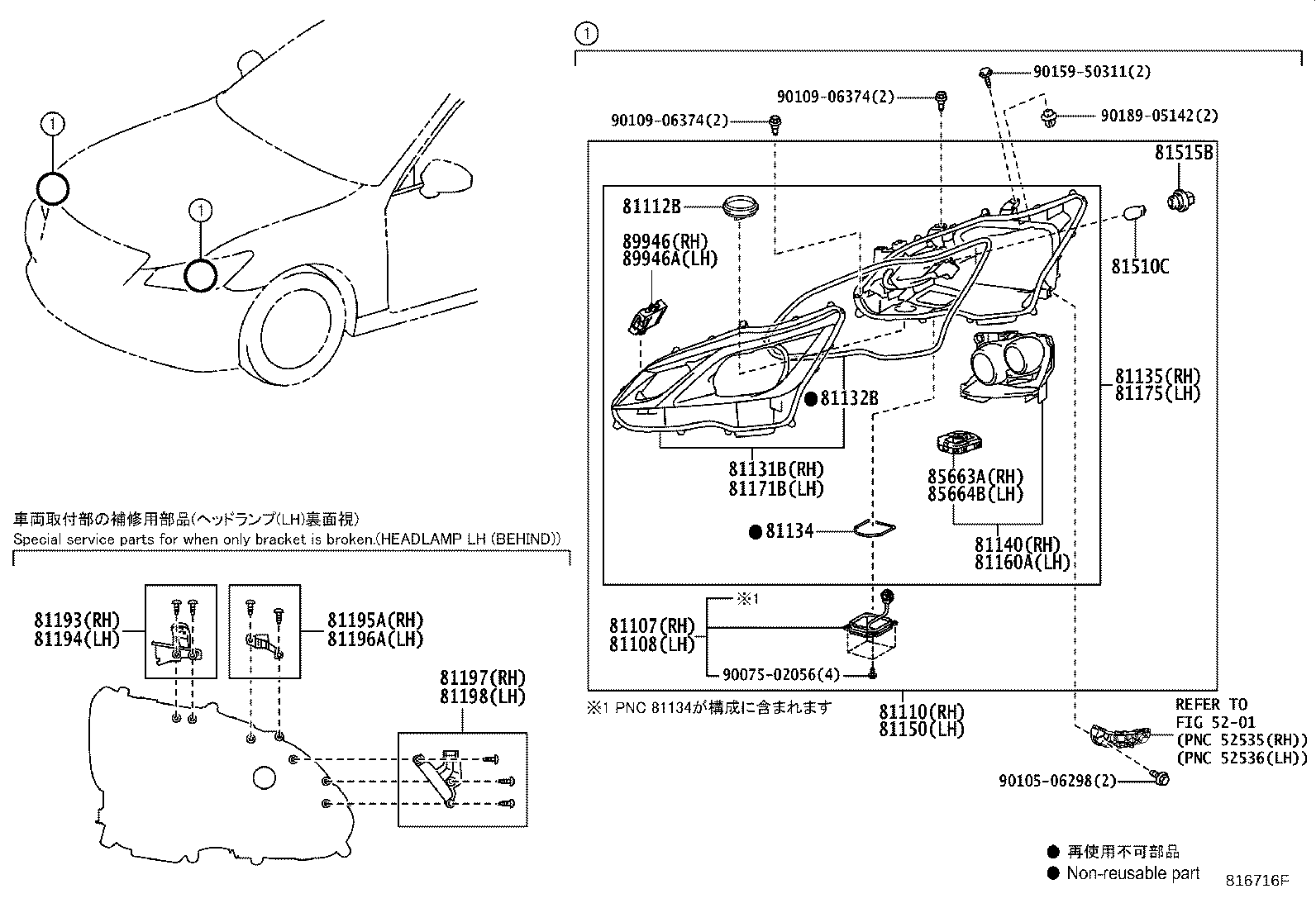

Figure 816507G 816507G 2012-12 → 2015-09 Figure 817593F 817593F 2015-09 → — Figure 819998B 819998B 2015-09 → — Figure 816476G 816476G 2012-12 → 2015-09 Figure 817594E 817594E 2015-09 → — Figure 816716F 816716F 2013-09 → — Figure 816716F 816716F 2015-09 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110L Bulb, Discharge Headlamp
81112B Ring, Cover
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81133B Body & Reflector, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81140 Unit Assy, Headlamp Led, RH
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81173A Body & Reflector, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85663A Motor, Headlamp Swivel, RH
85664B Motor, Headlamp Swivel, LH
85669 Packing, Headlamp Leveling Motor Base
85967 Computer, Light Control
89946 Computer, Headlamp Shade
89946A Computer, Headlamp Shade
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
