Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 5 illustrations

Illustrations

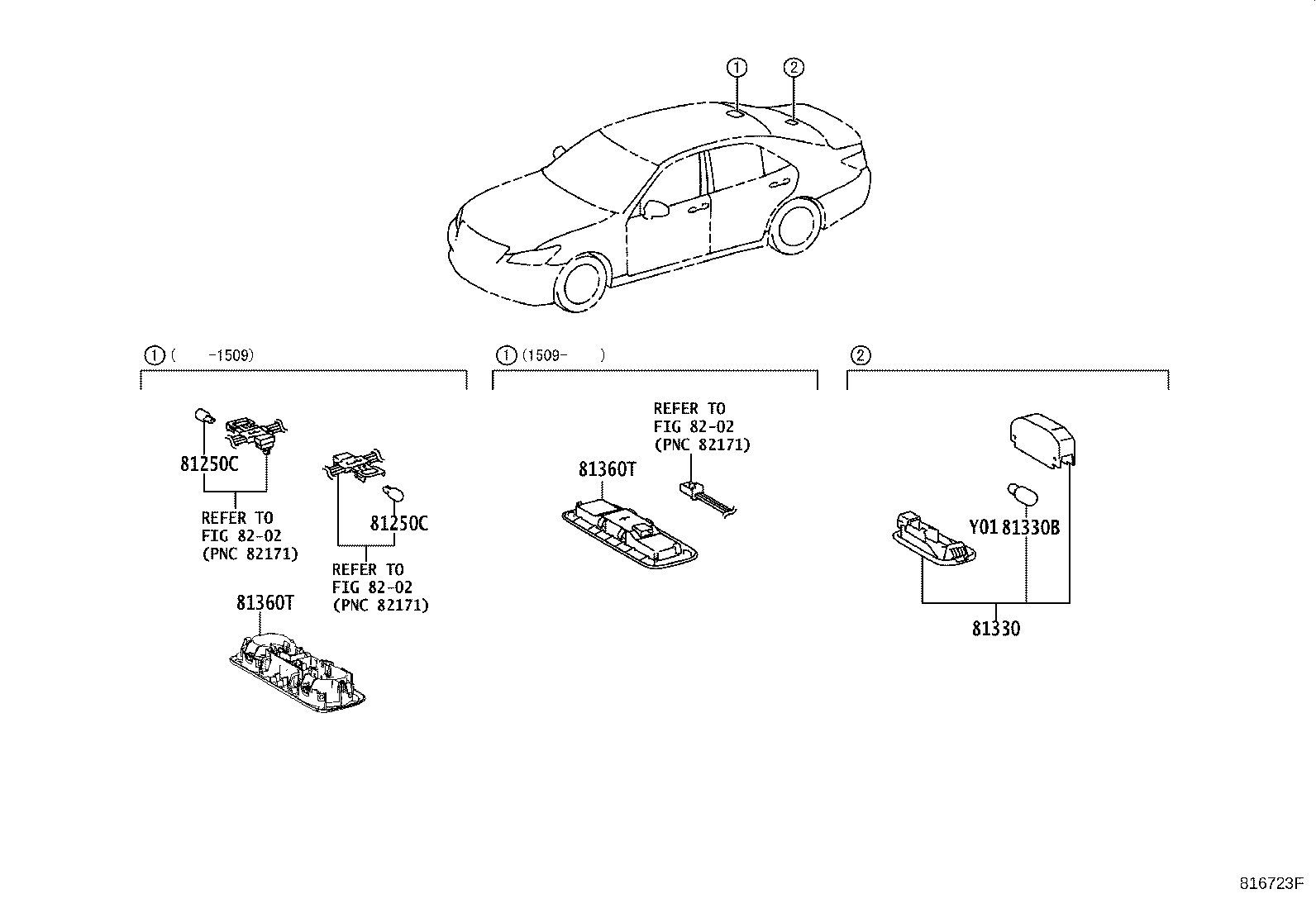

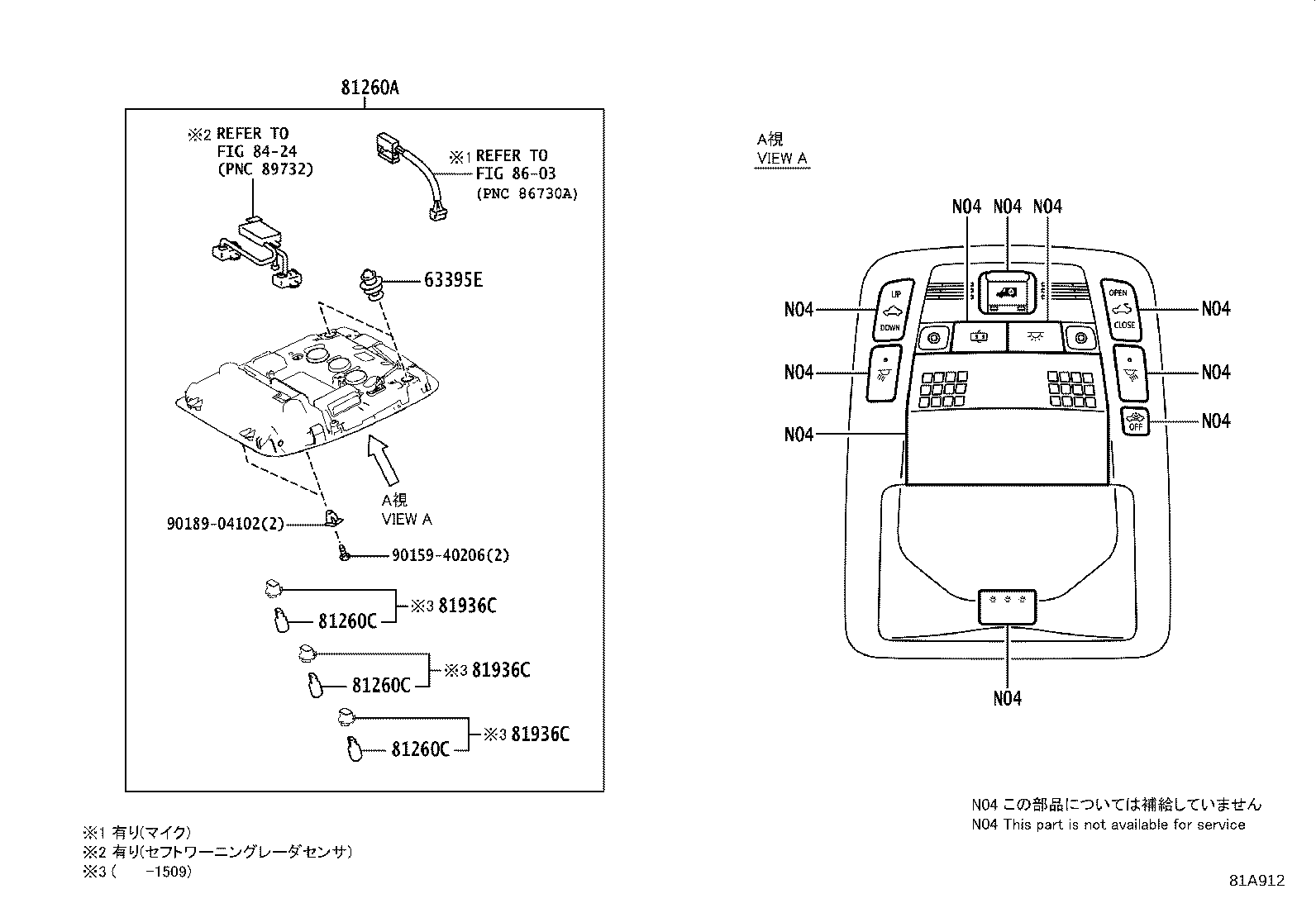

Figure 817571C 817571C 2012-12 → — Figure 817571C 817571C 2015-09 → — Figure 816723F 816723F 2012-12 → — Figure 816723F 816723F 2015-09 → — Figure 81A912 81A912 2012-12 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080J Lamp Assy, Interior Illumination, NO.1
81230B Bulb(FOR COURTESY LAMP)
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81230F Lamp Assy, Rear Door Courtesy, RH
81230G Lamp Assy, Rear Door Courtesy, LH
81250C Bulb, Spot Lamp
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
