Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

113 part groups · 27 illustrations

Illustrations

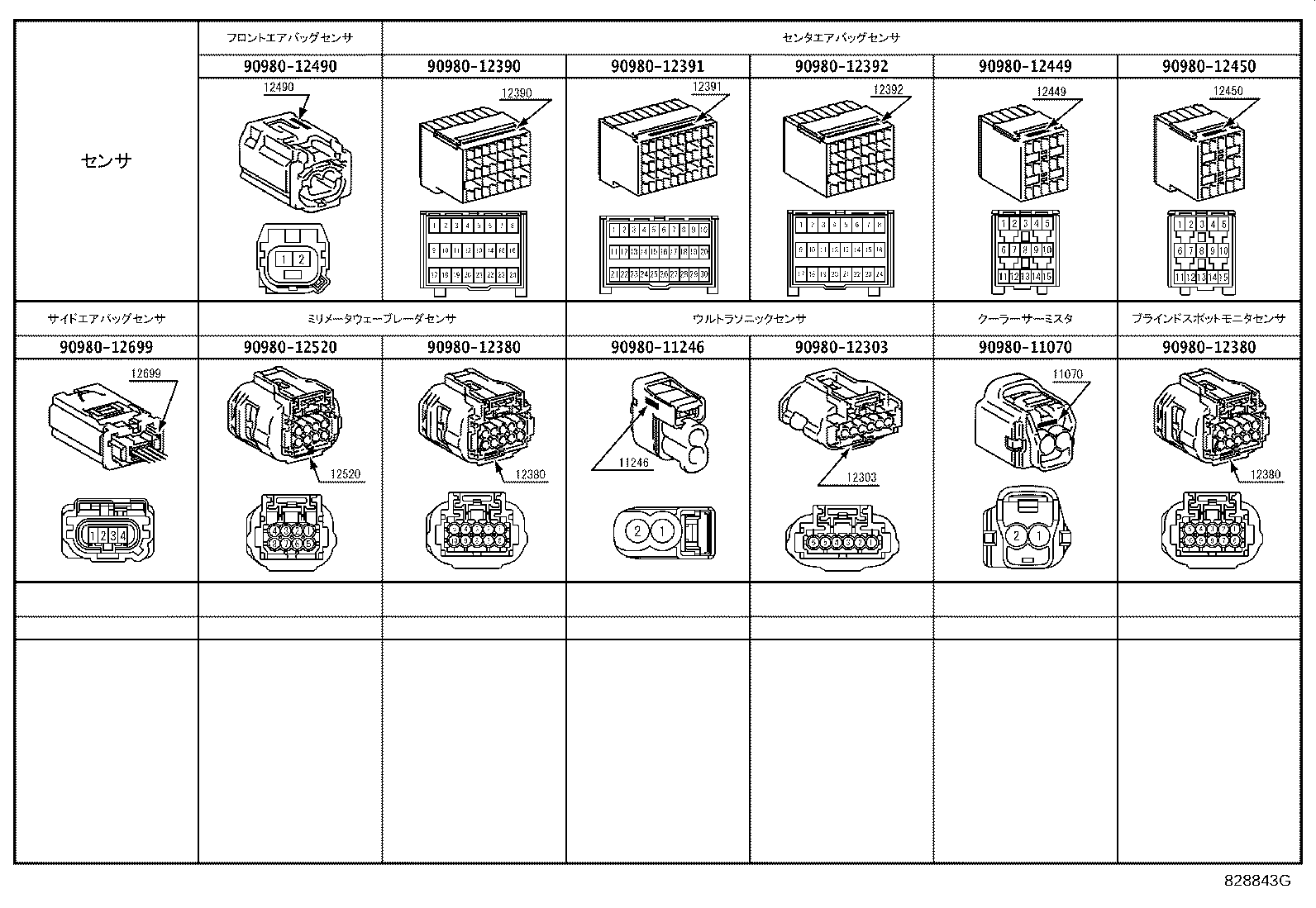

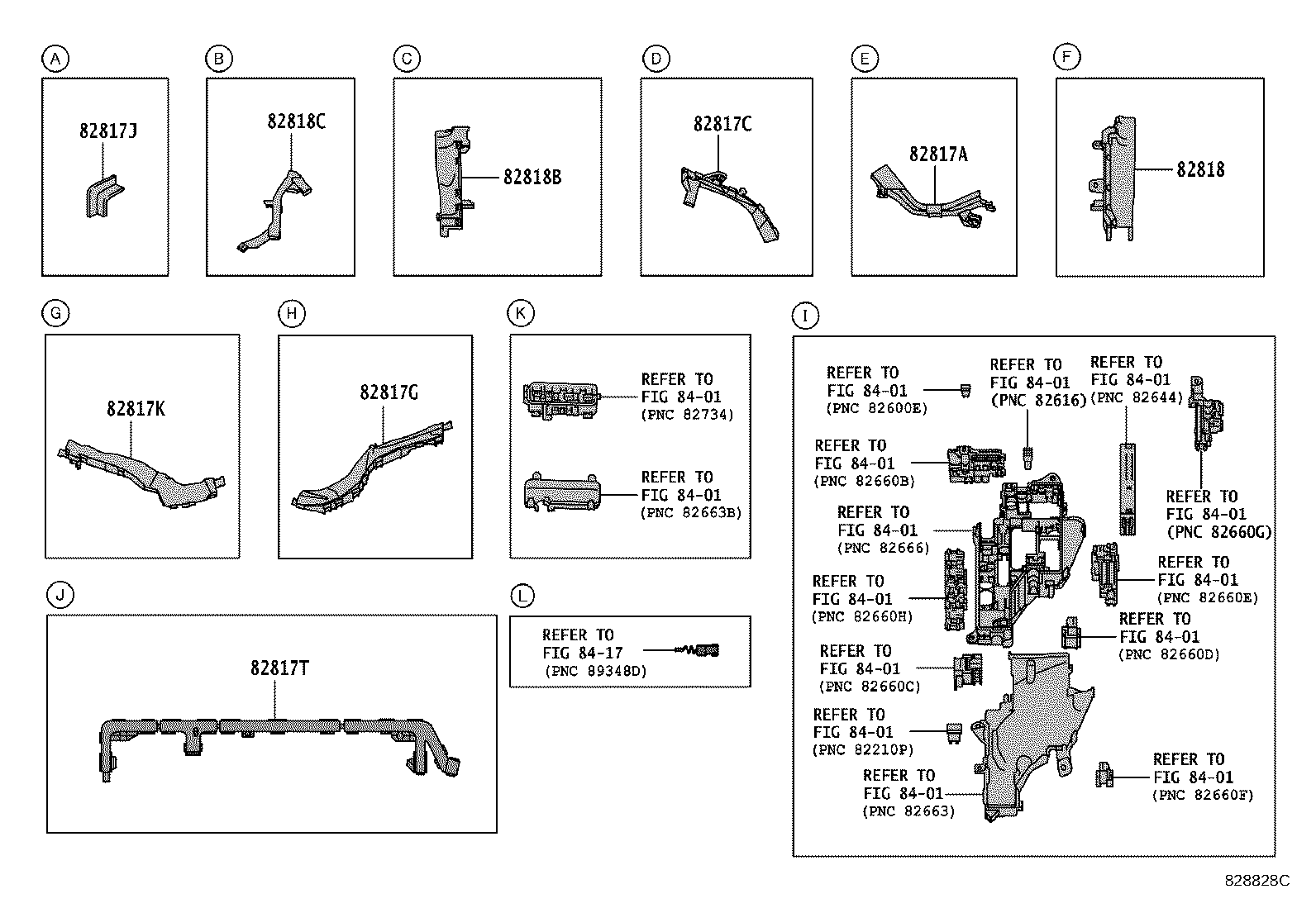

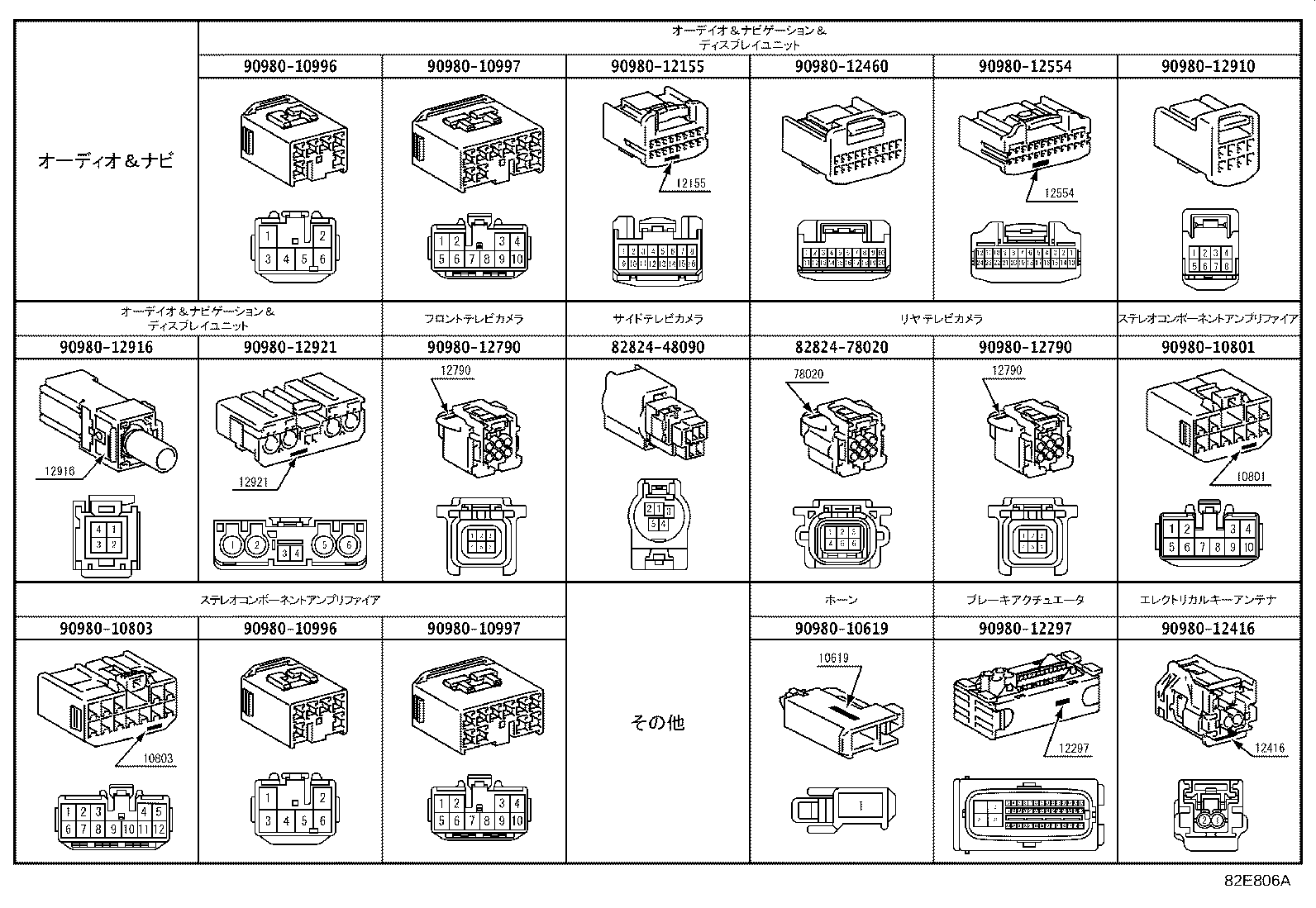

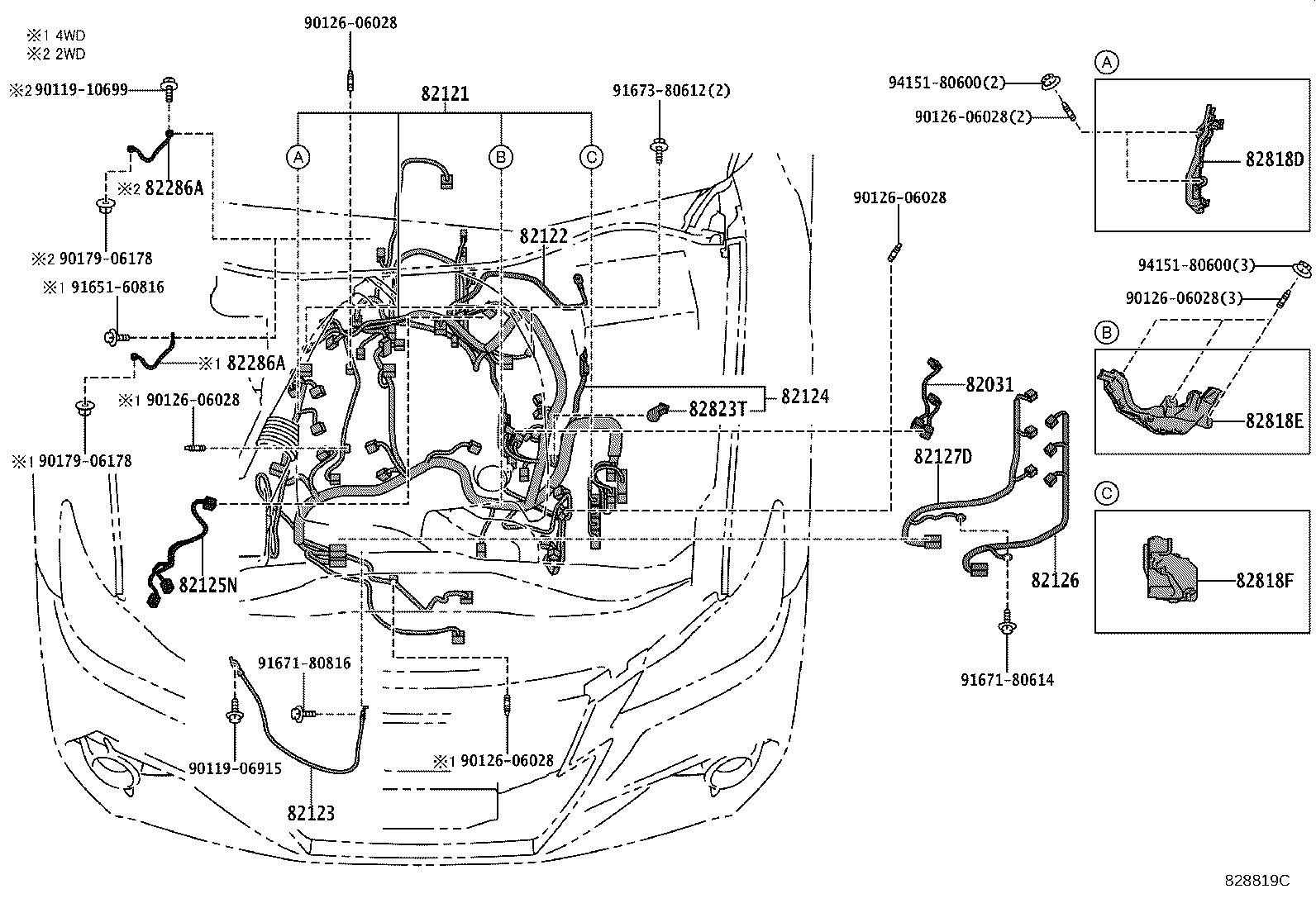

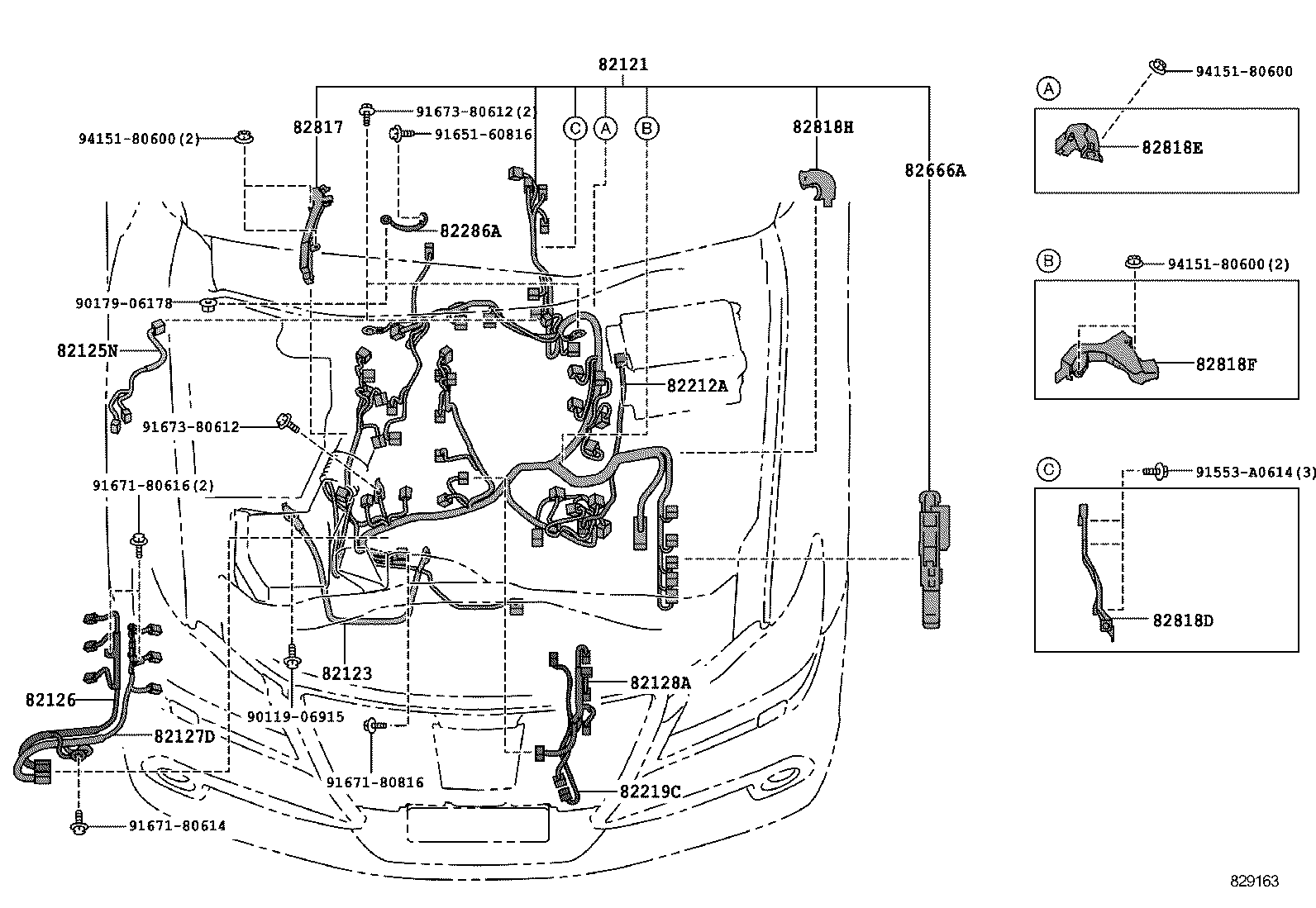

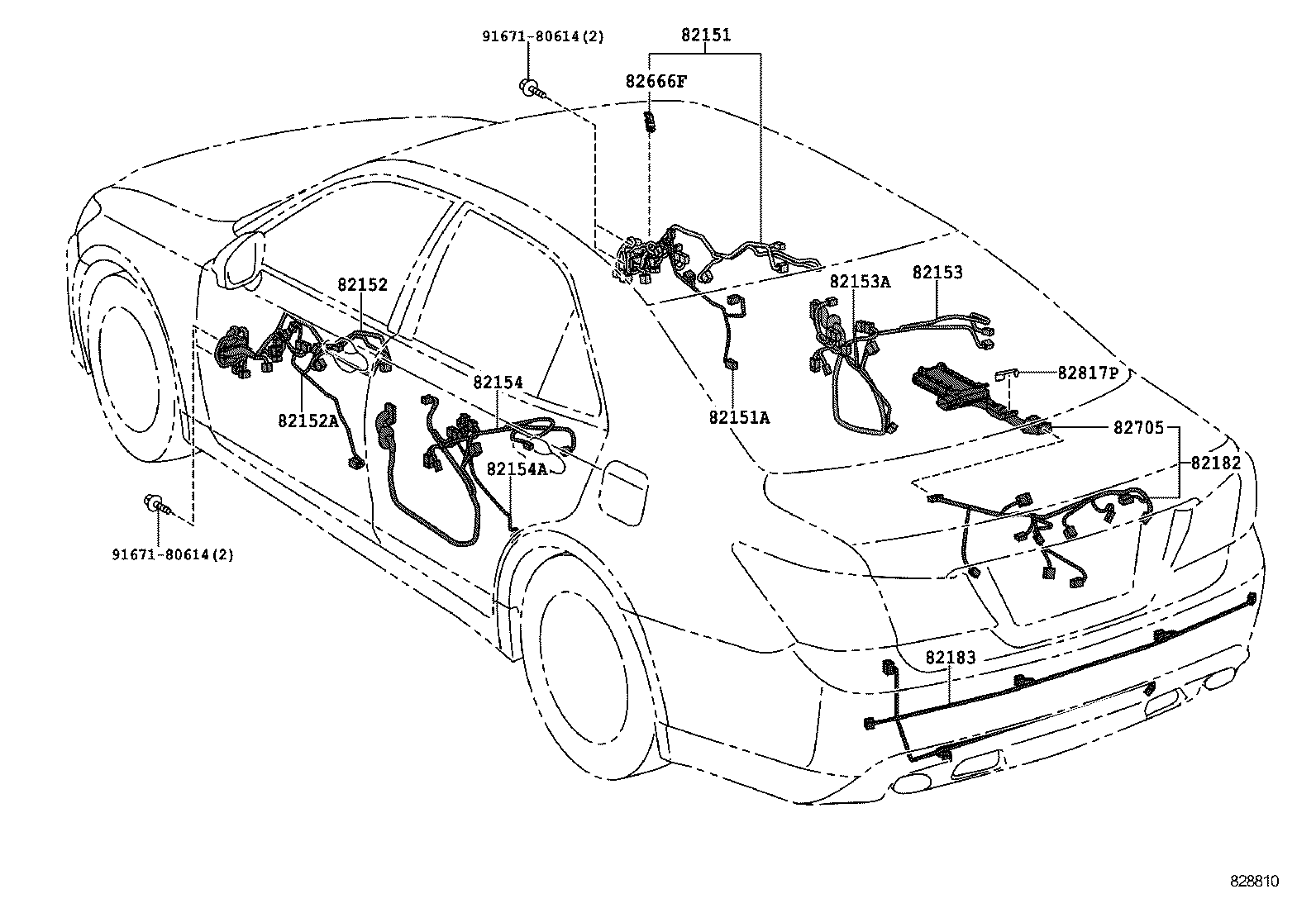

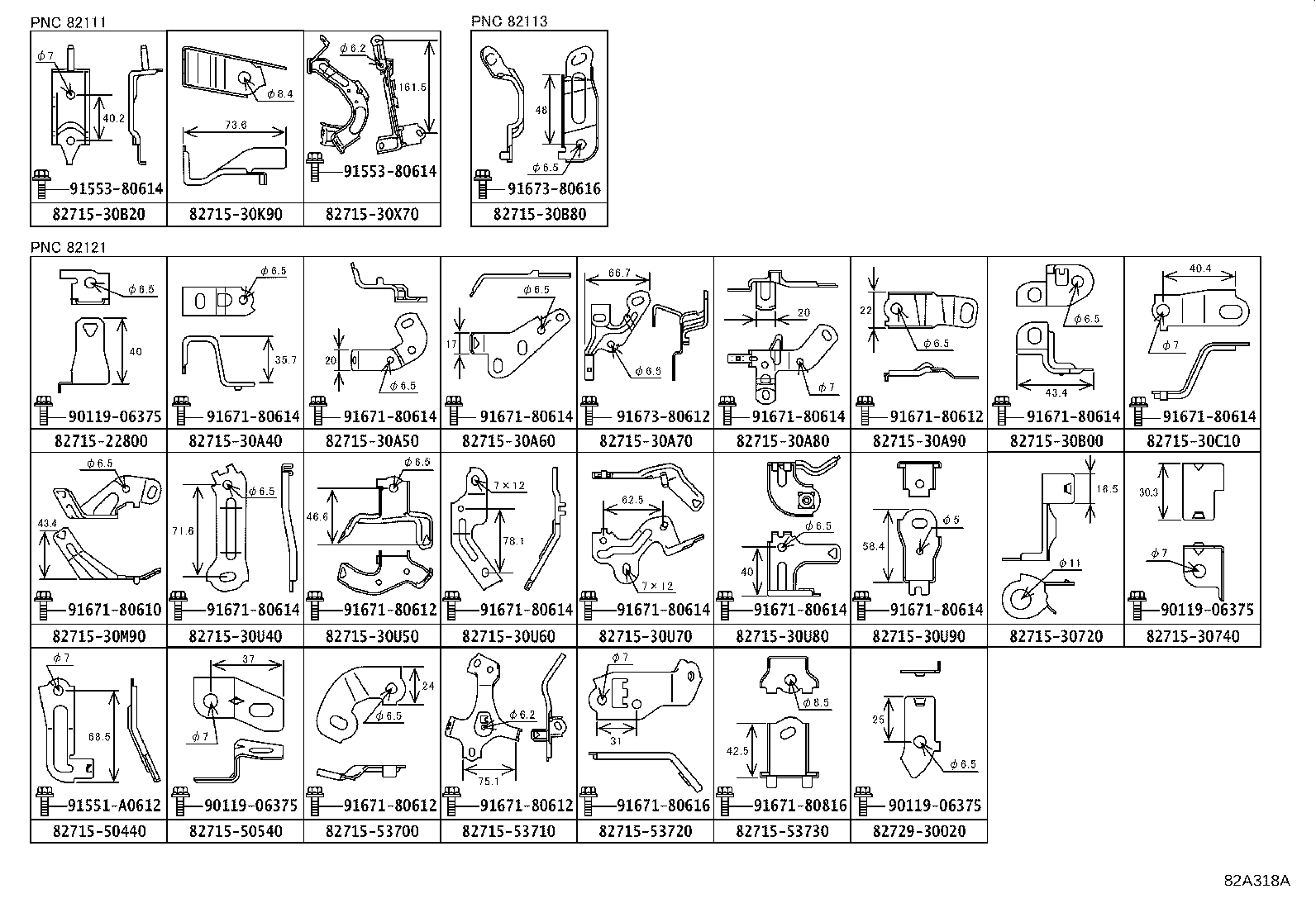

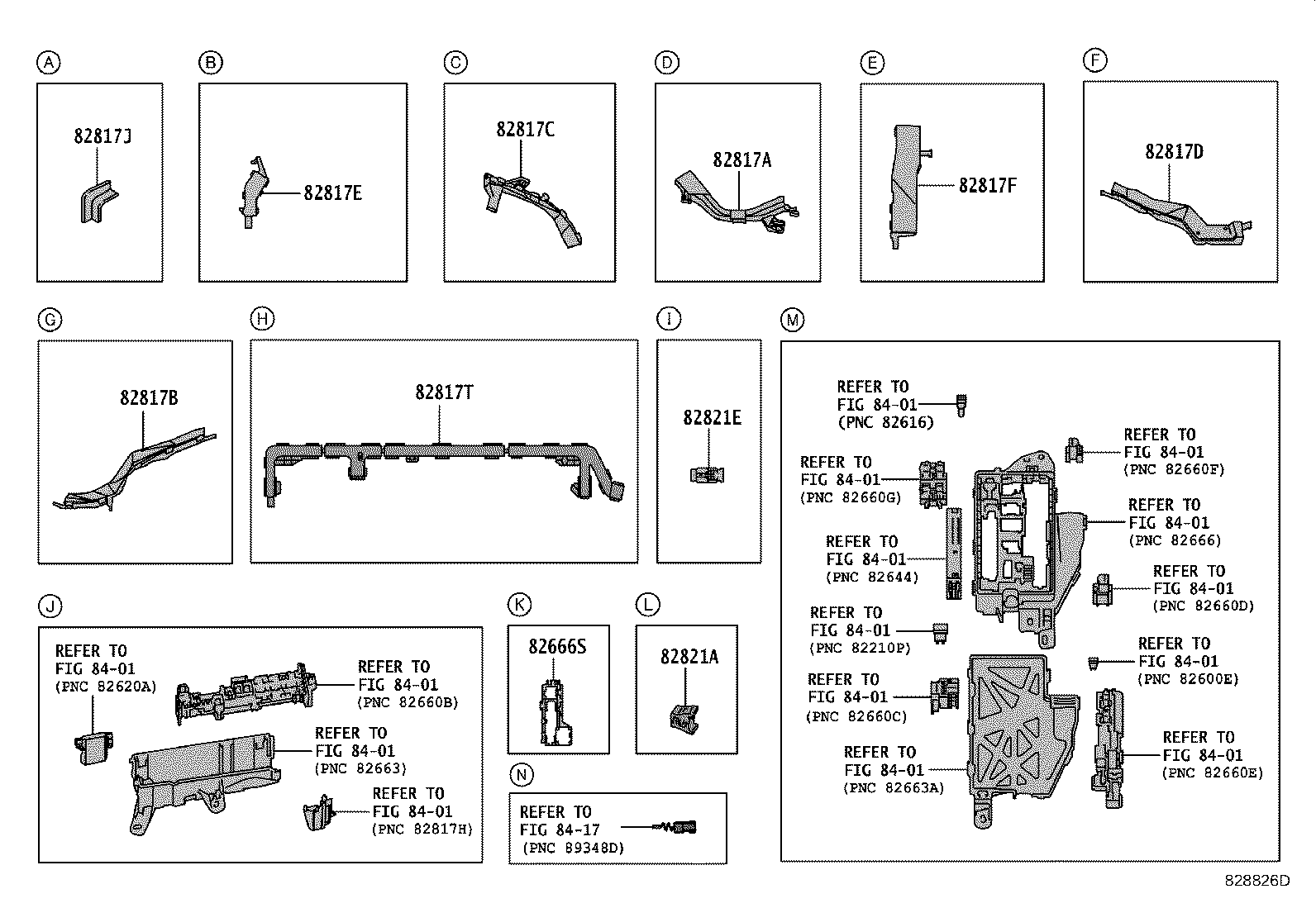

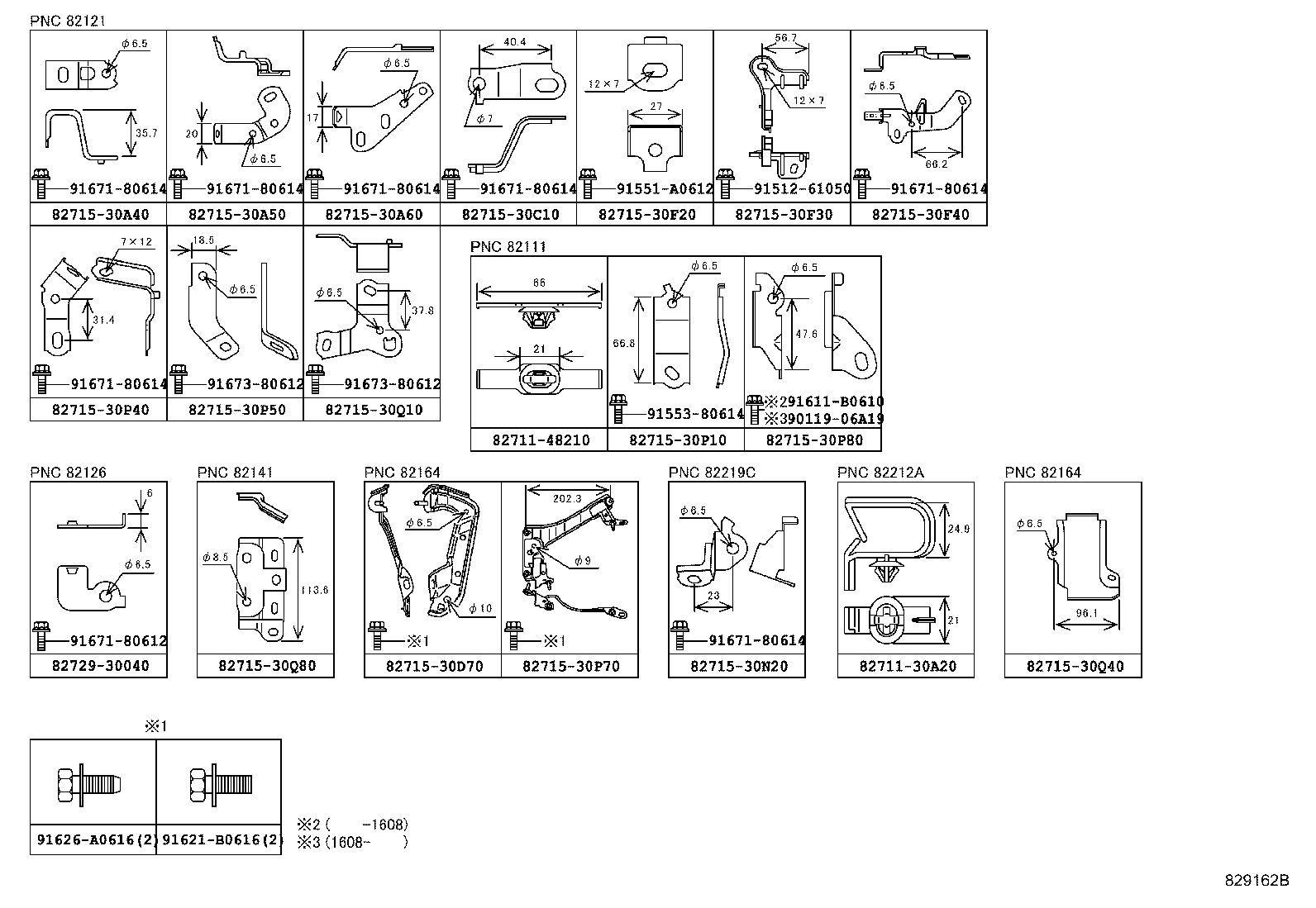

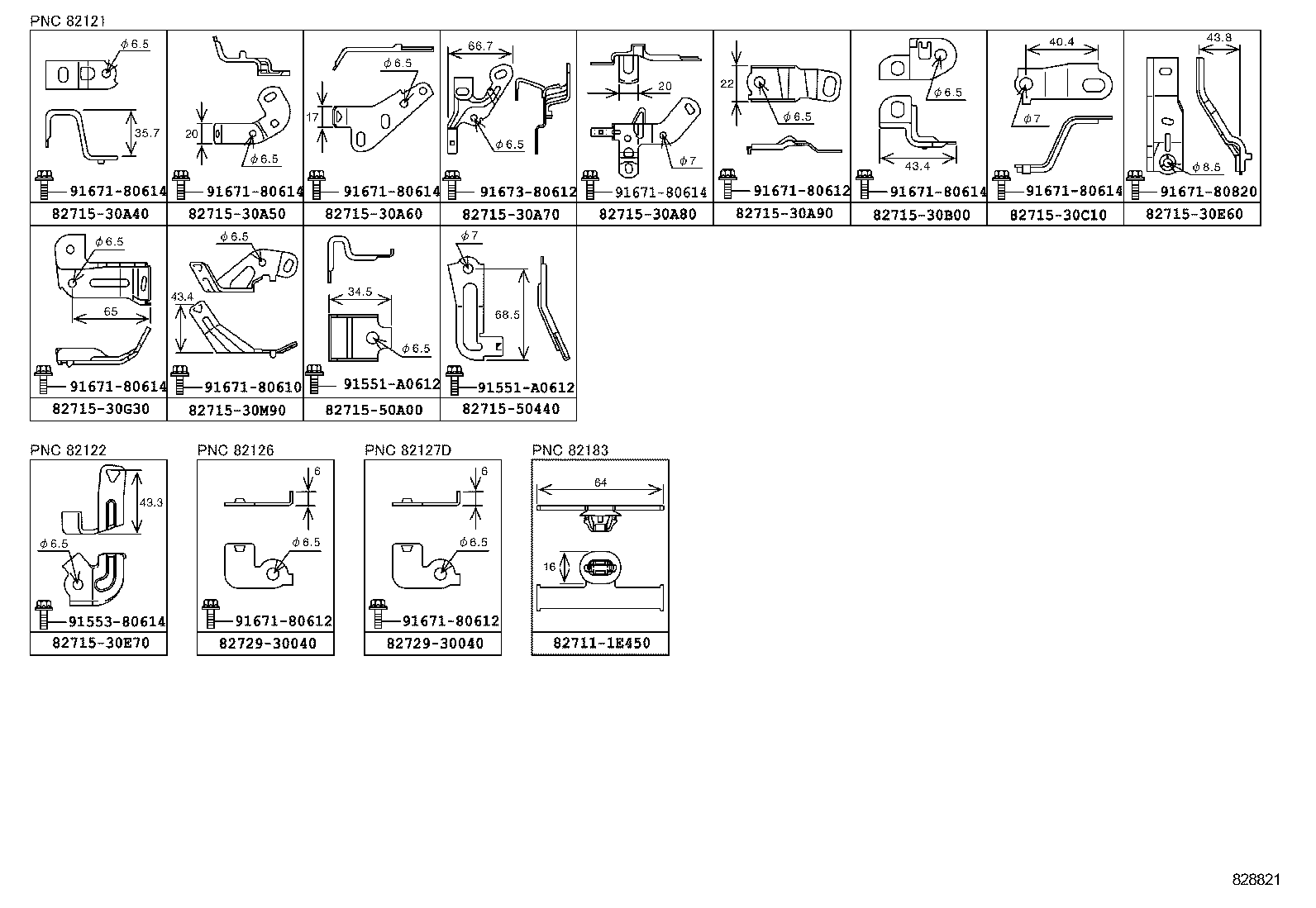

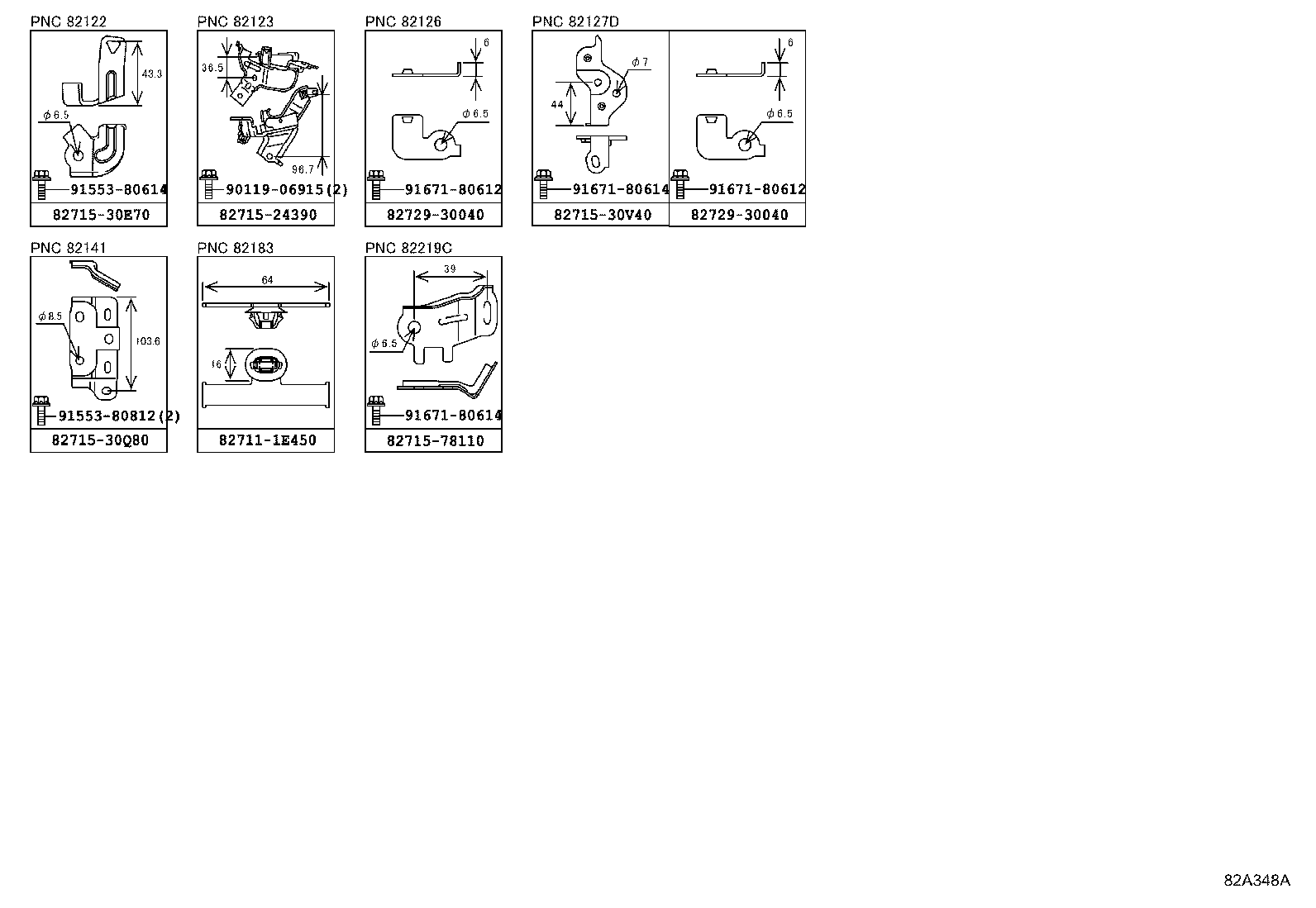

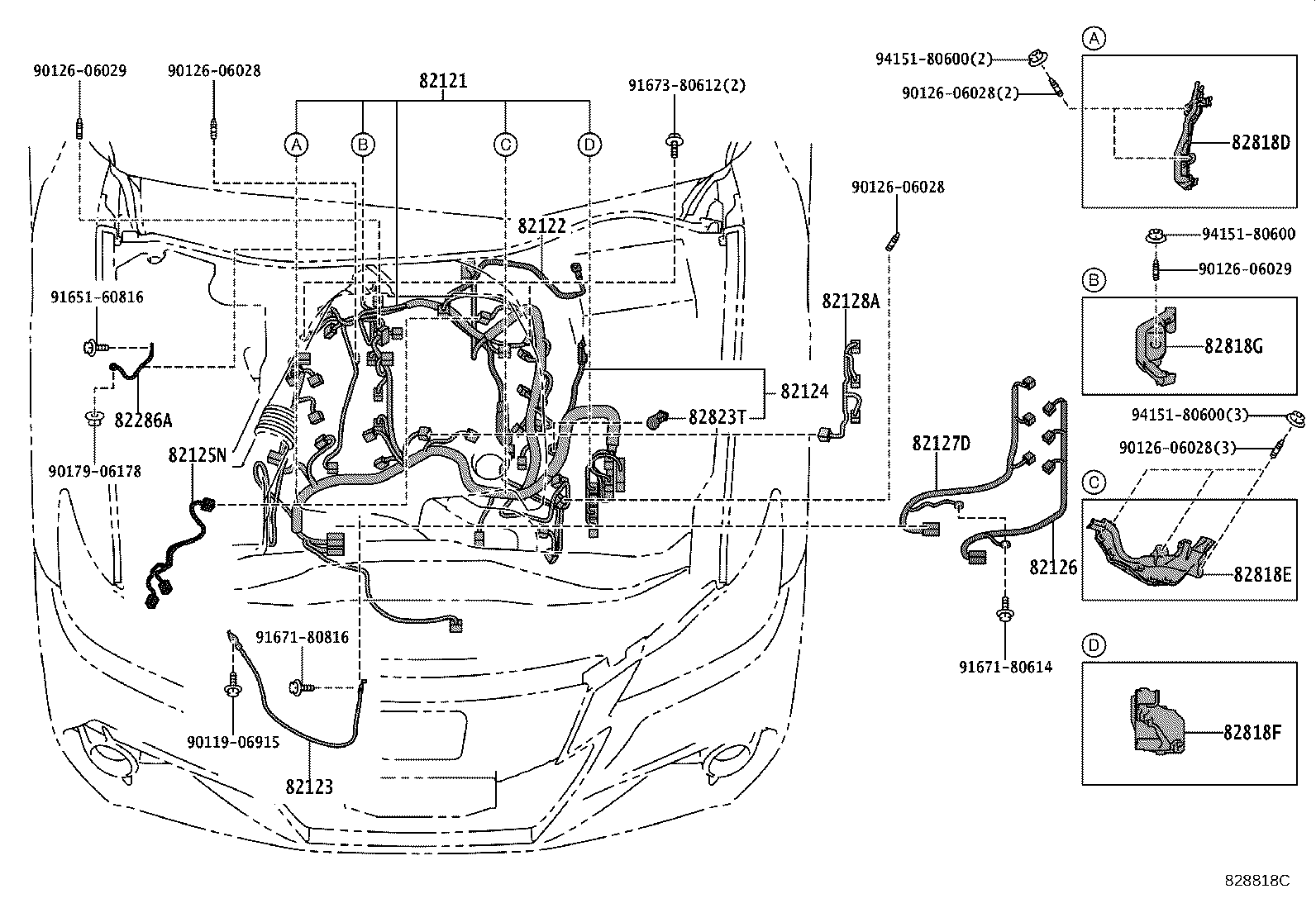

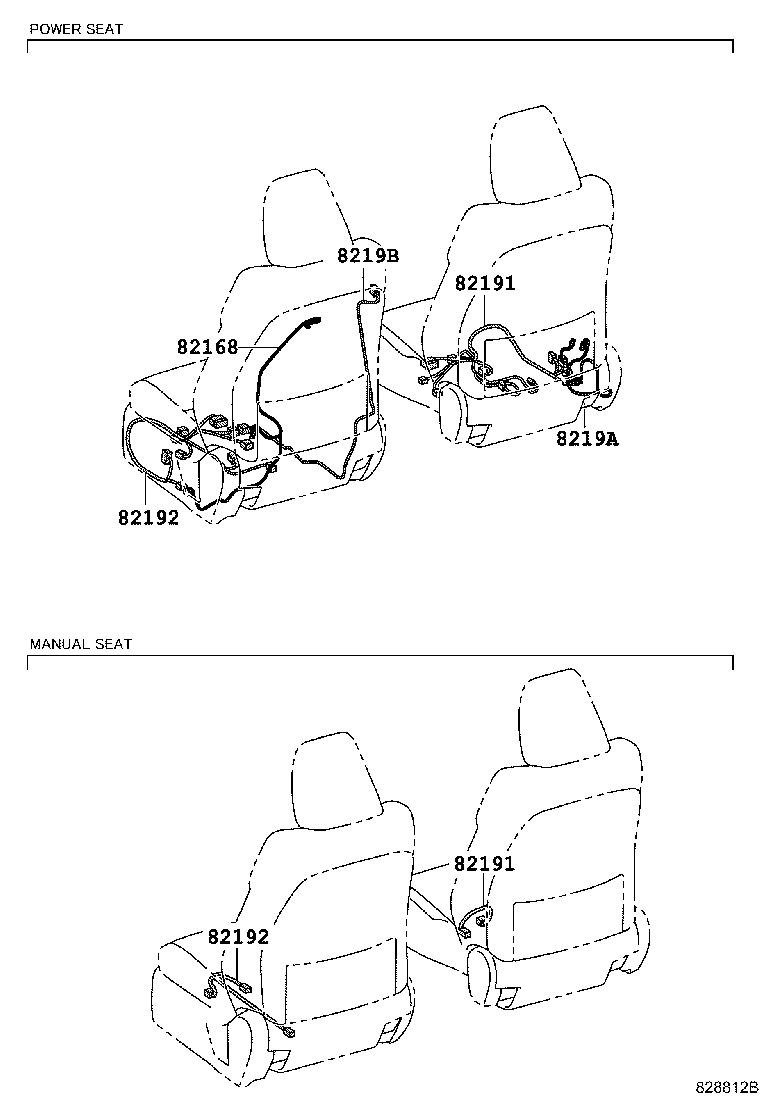

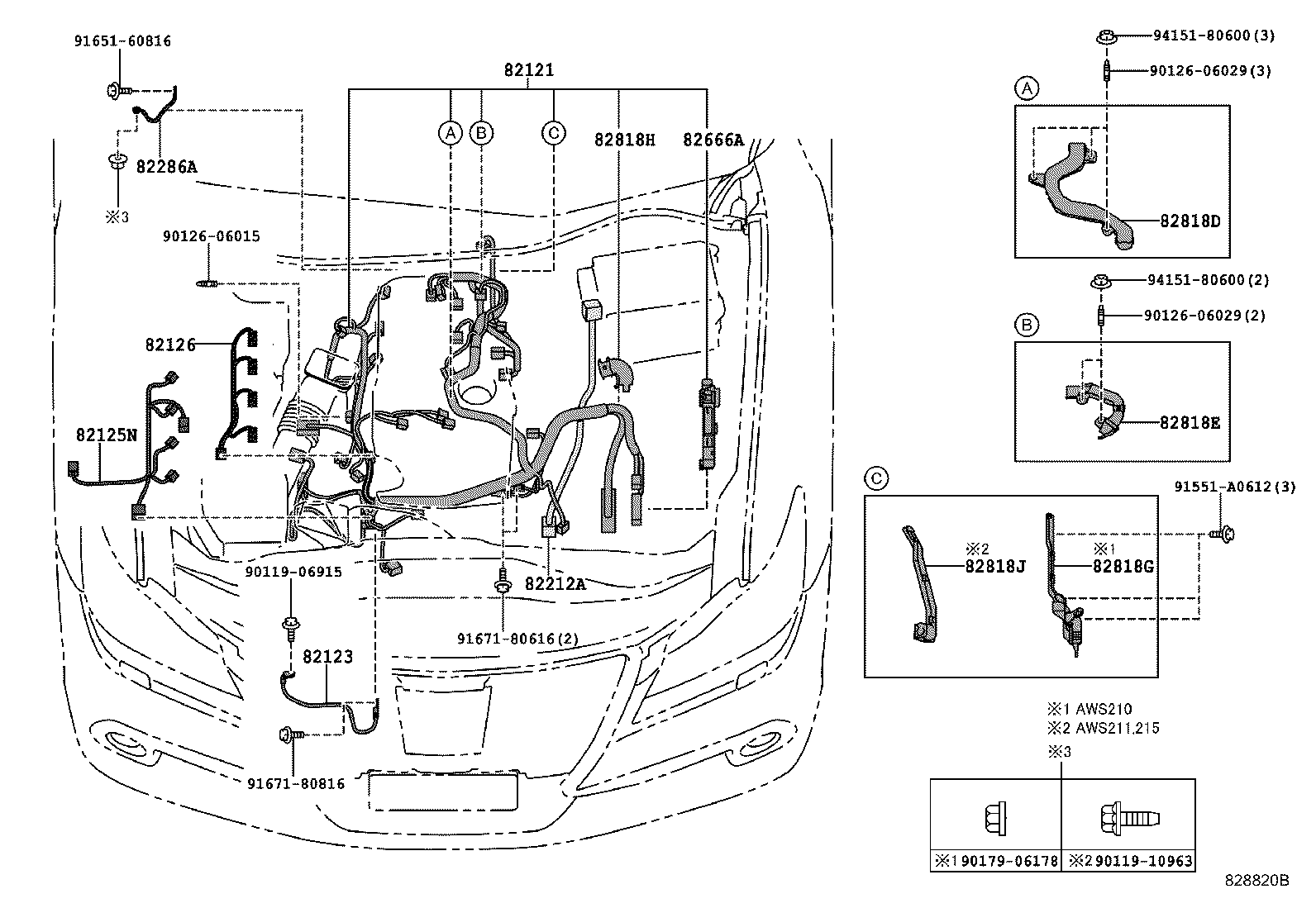

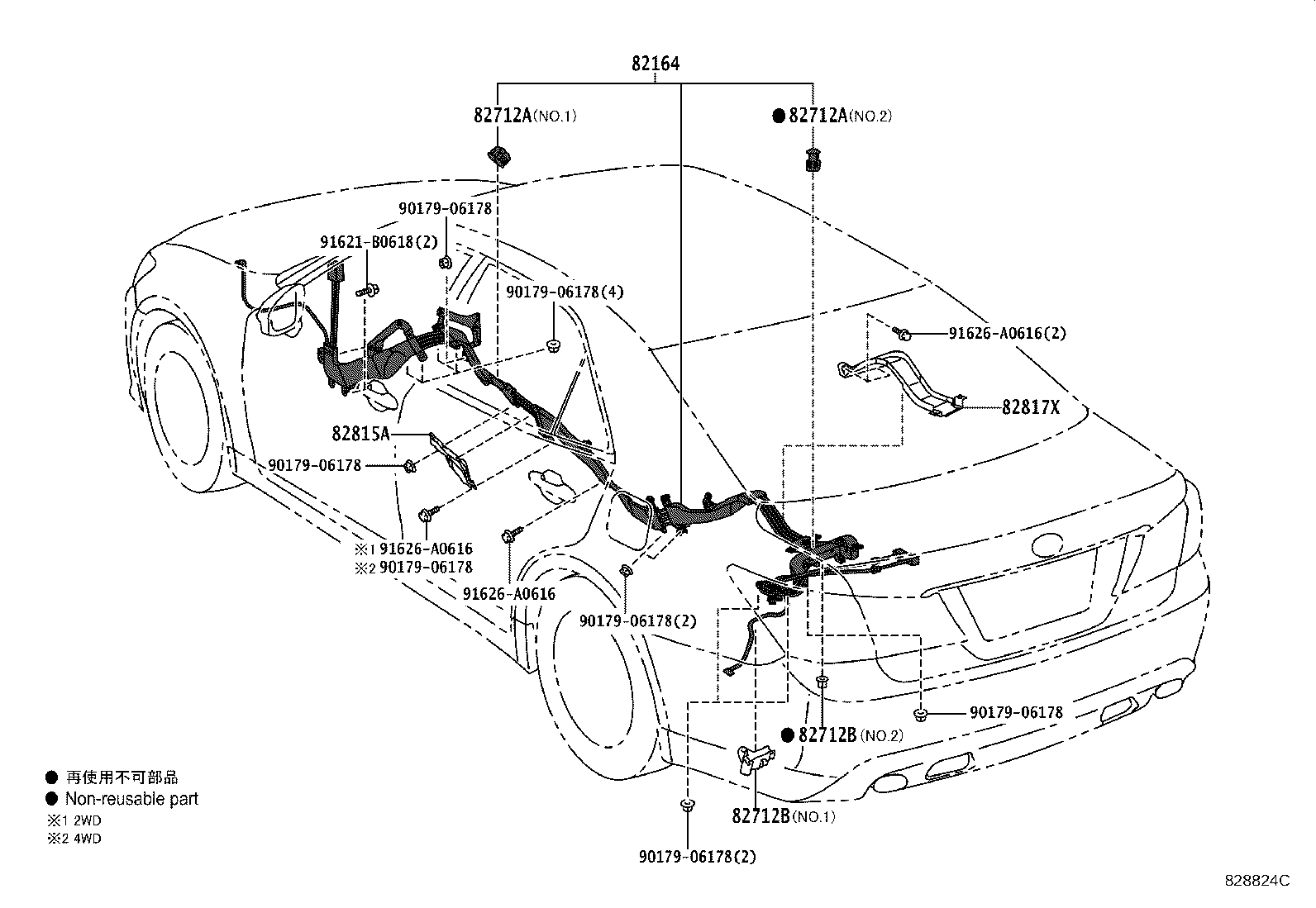

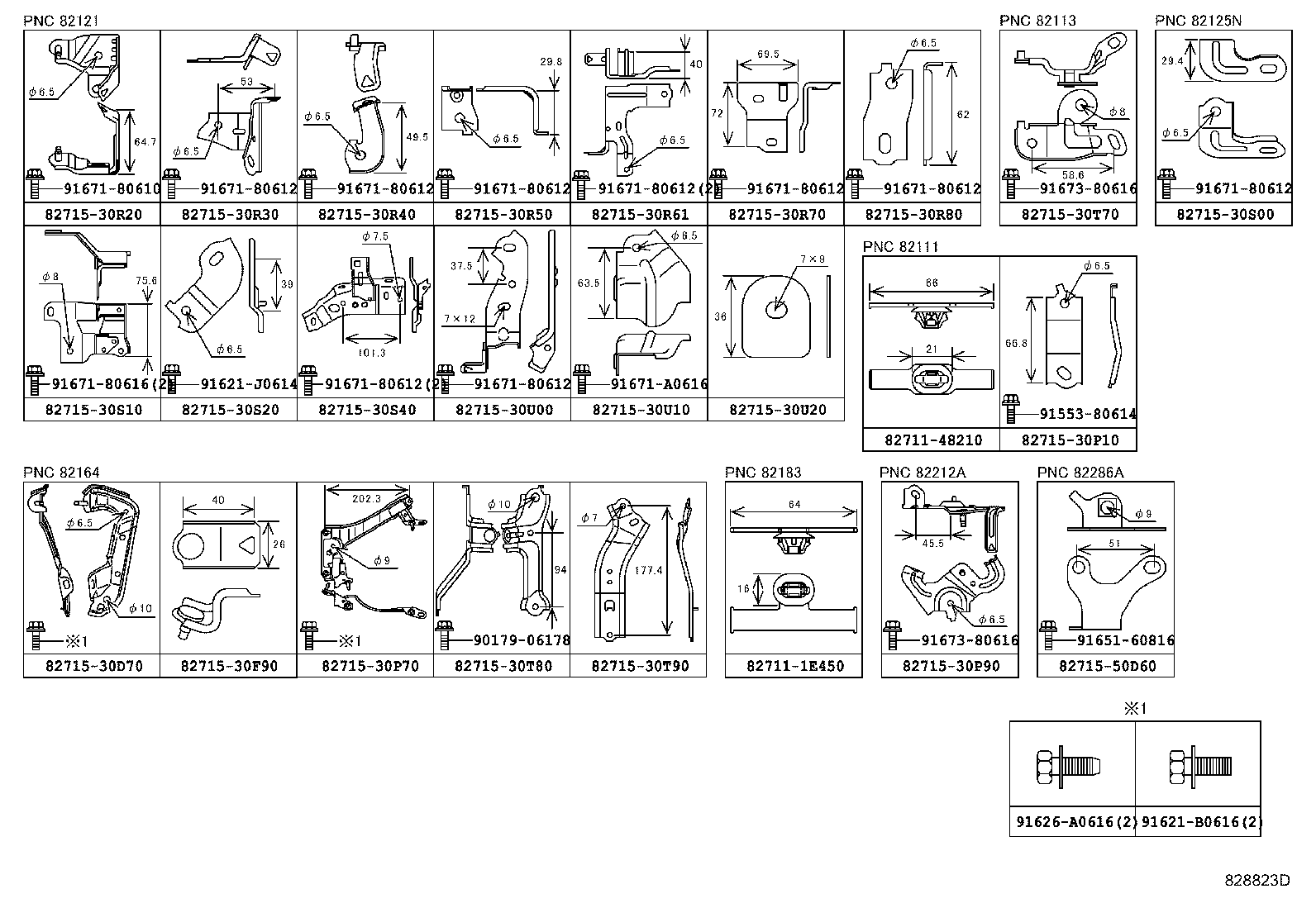

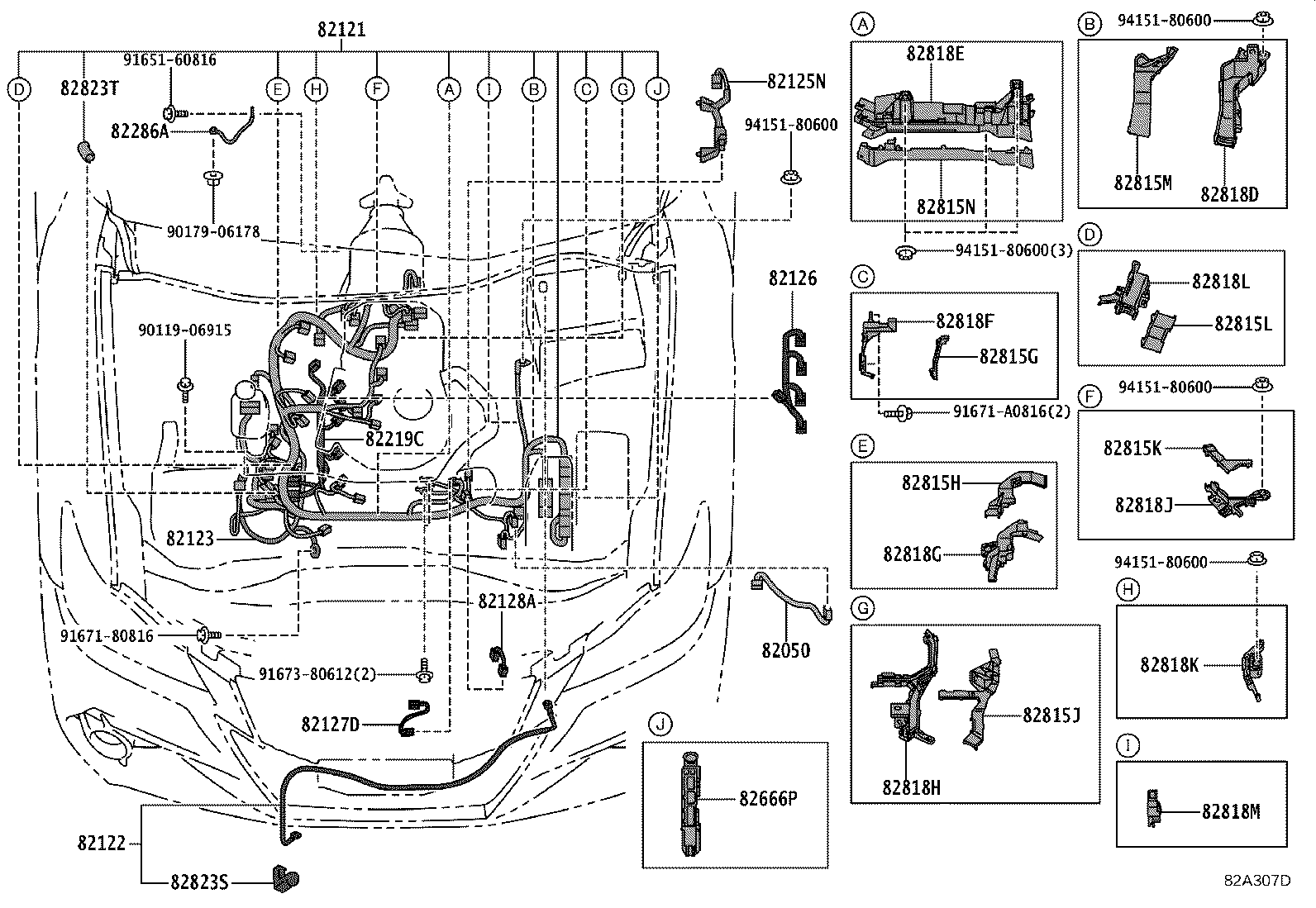

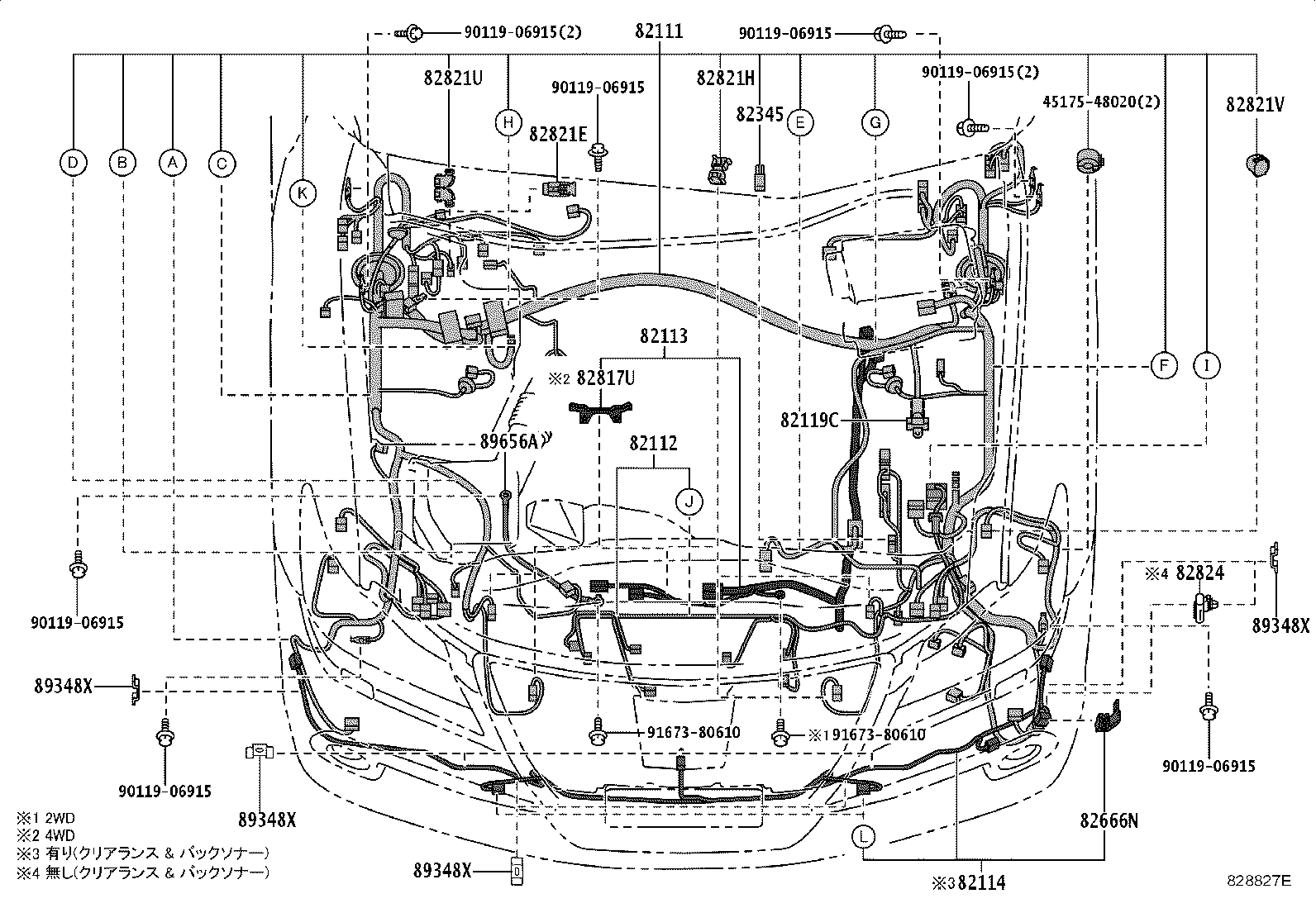

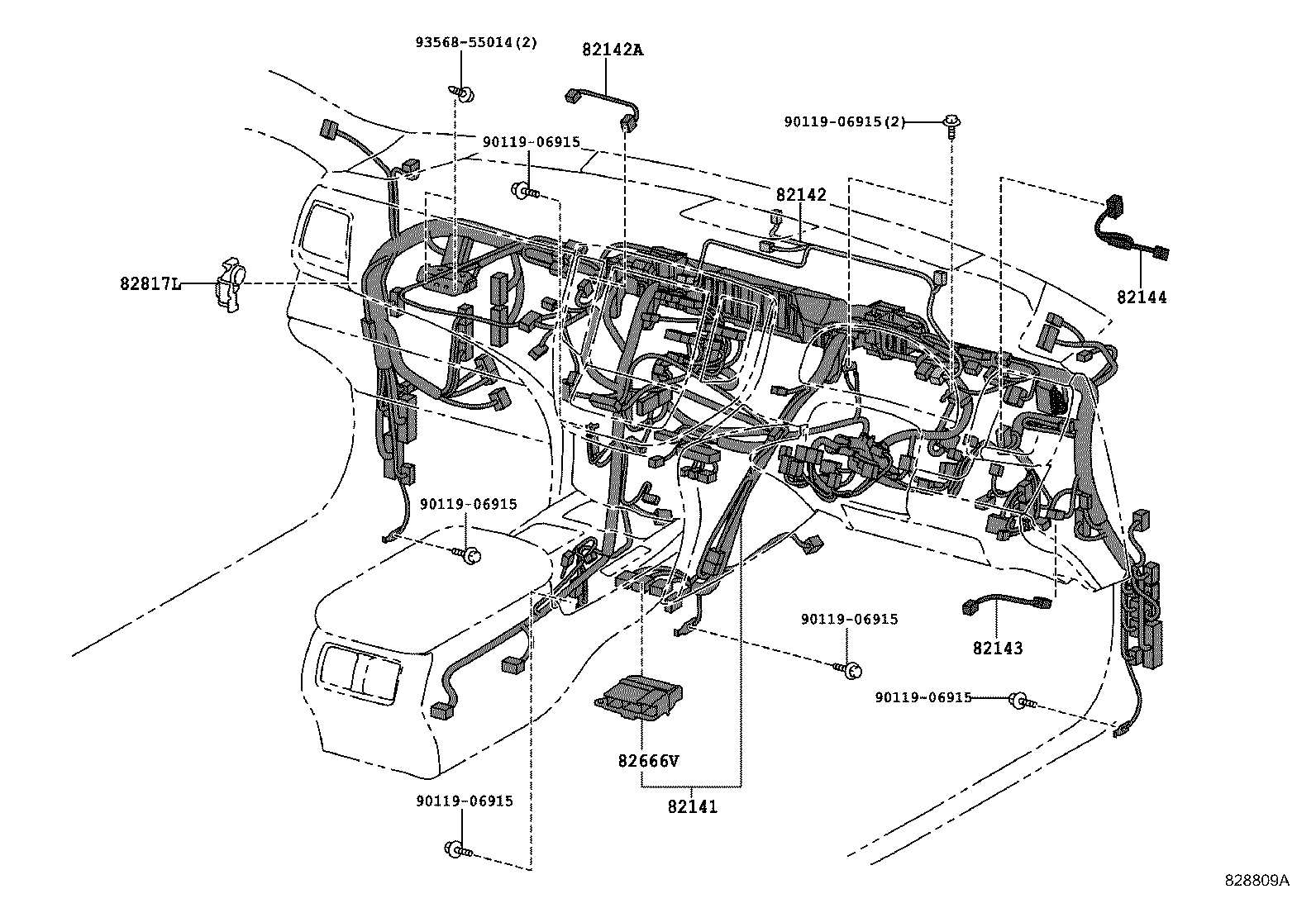

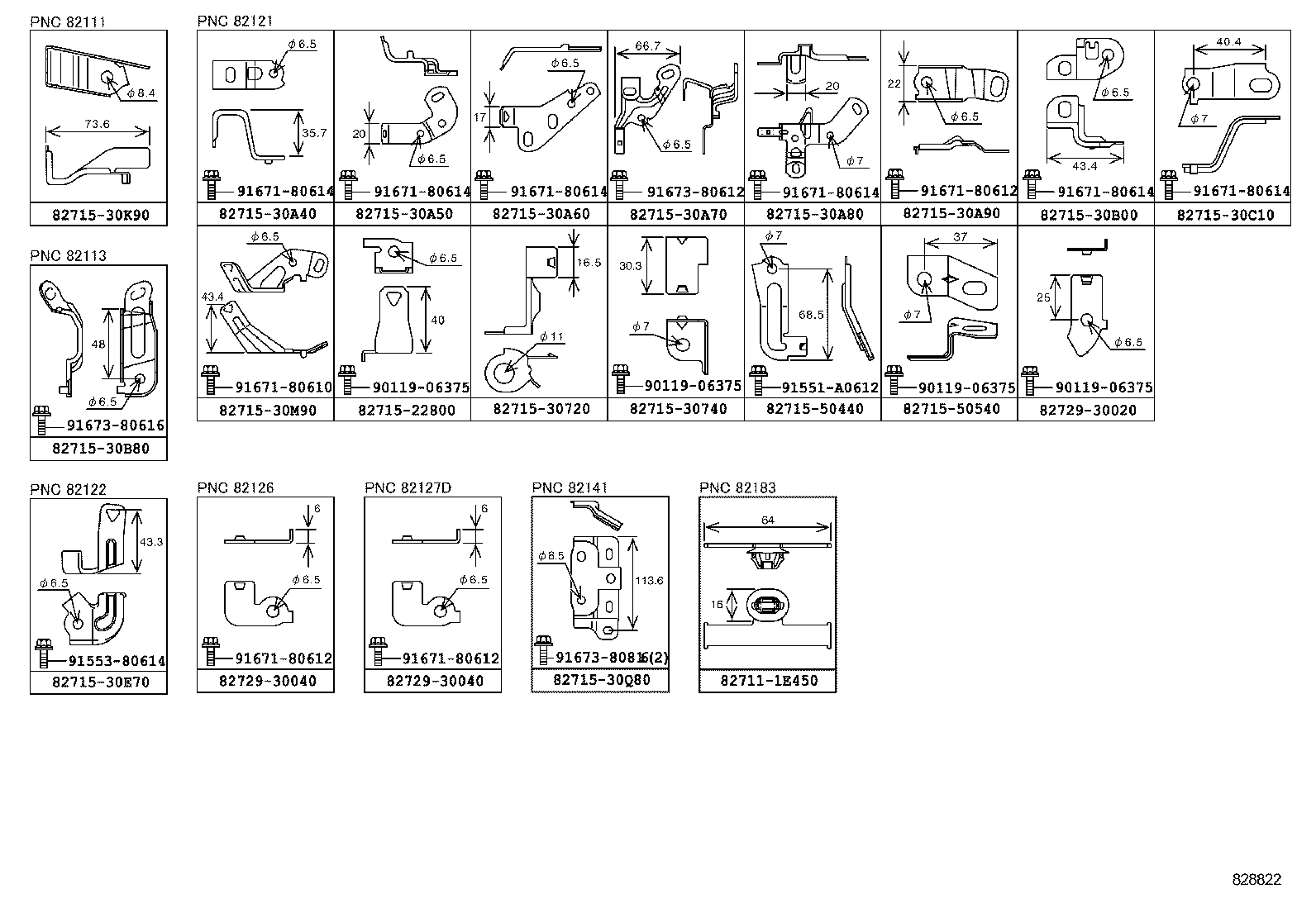

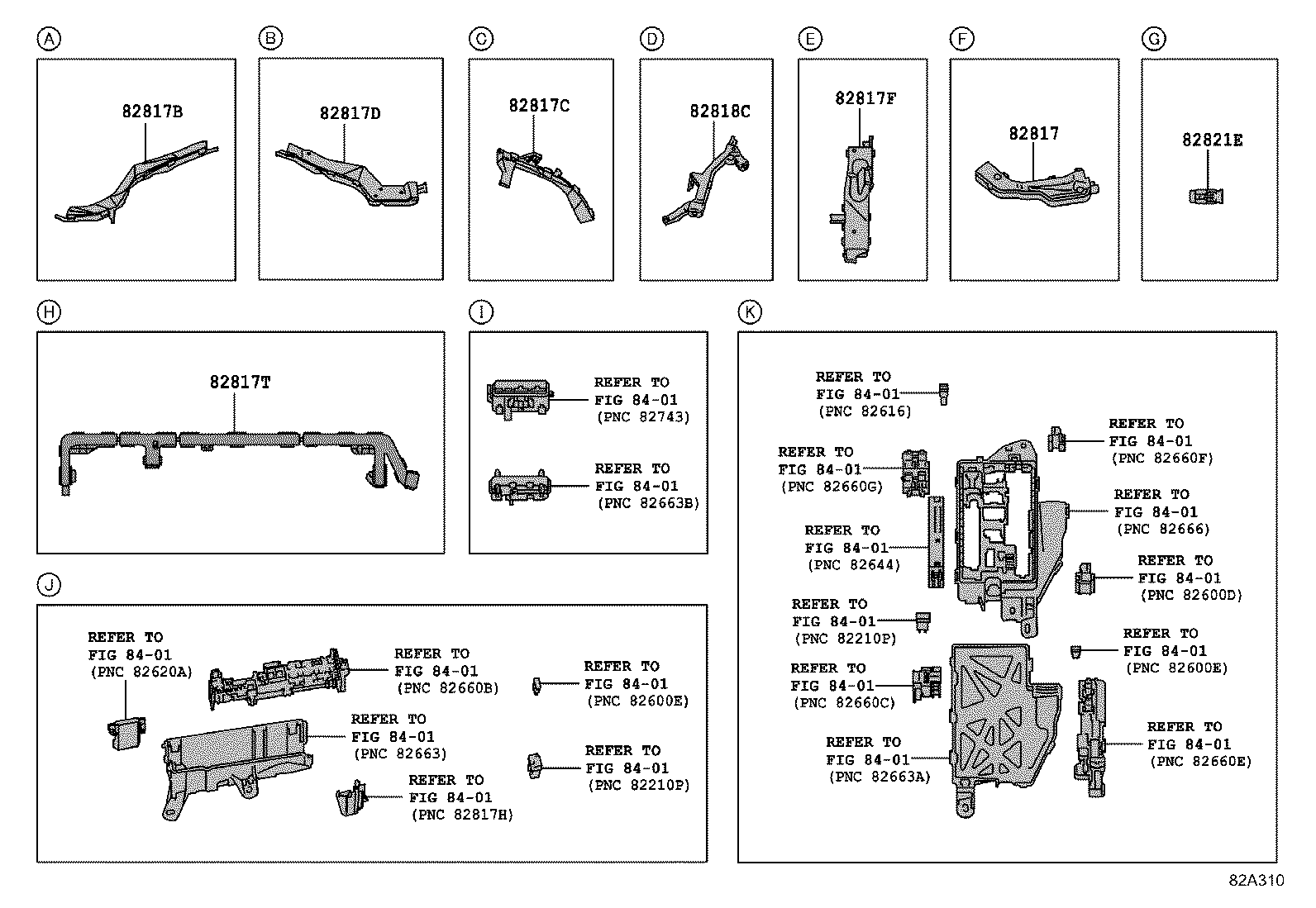

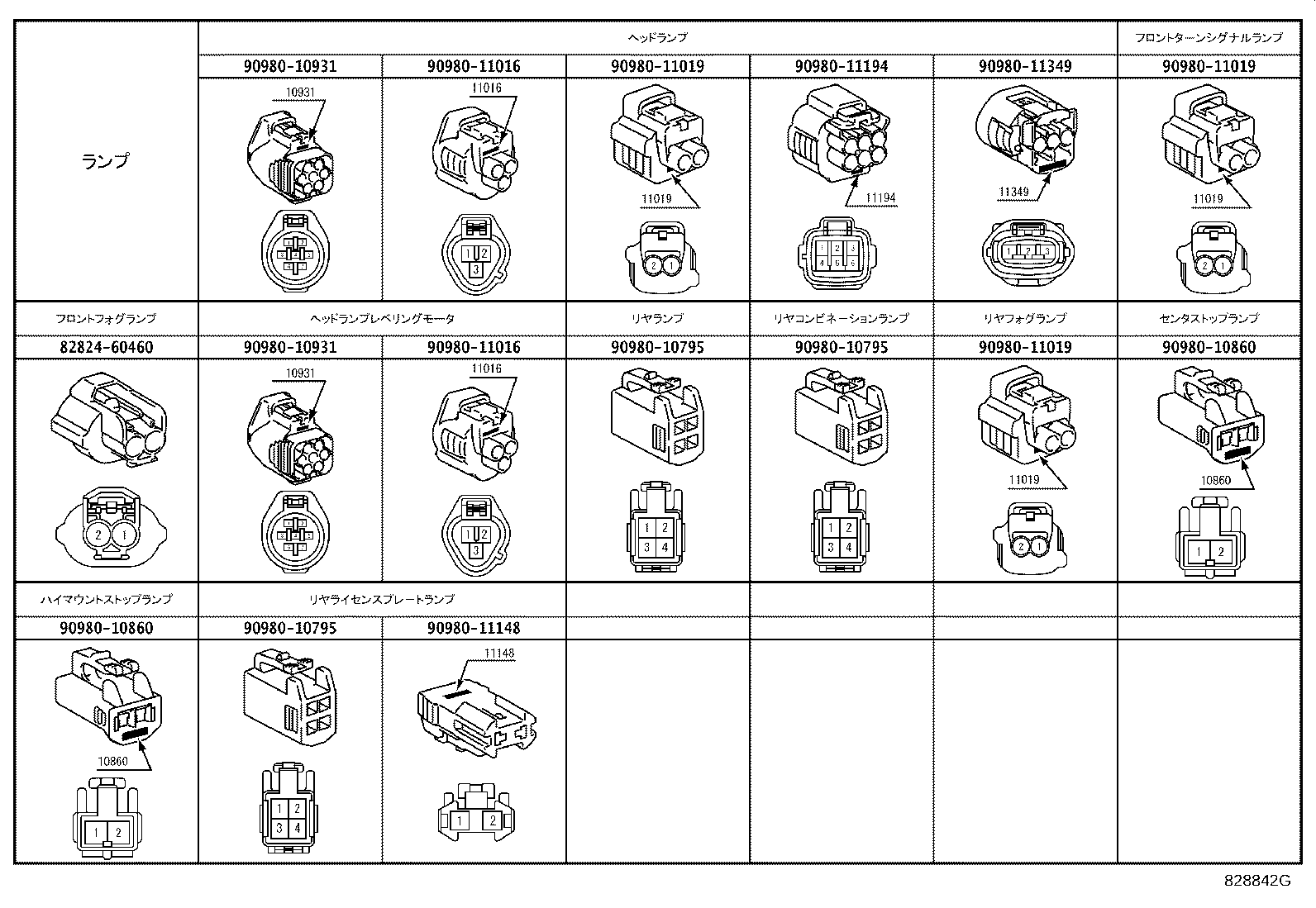

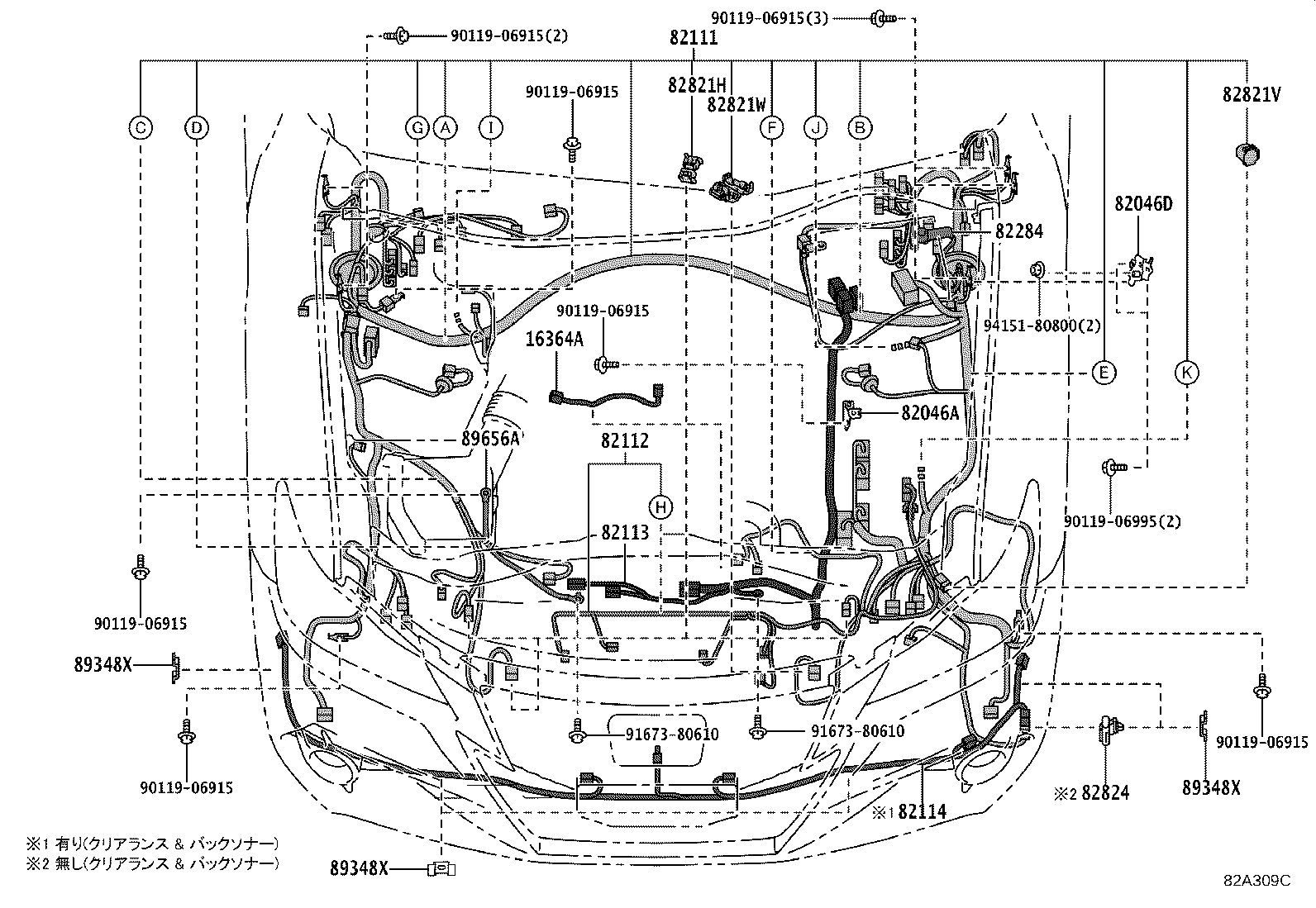

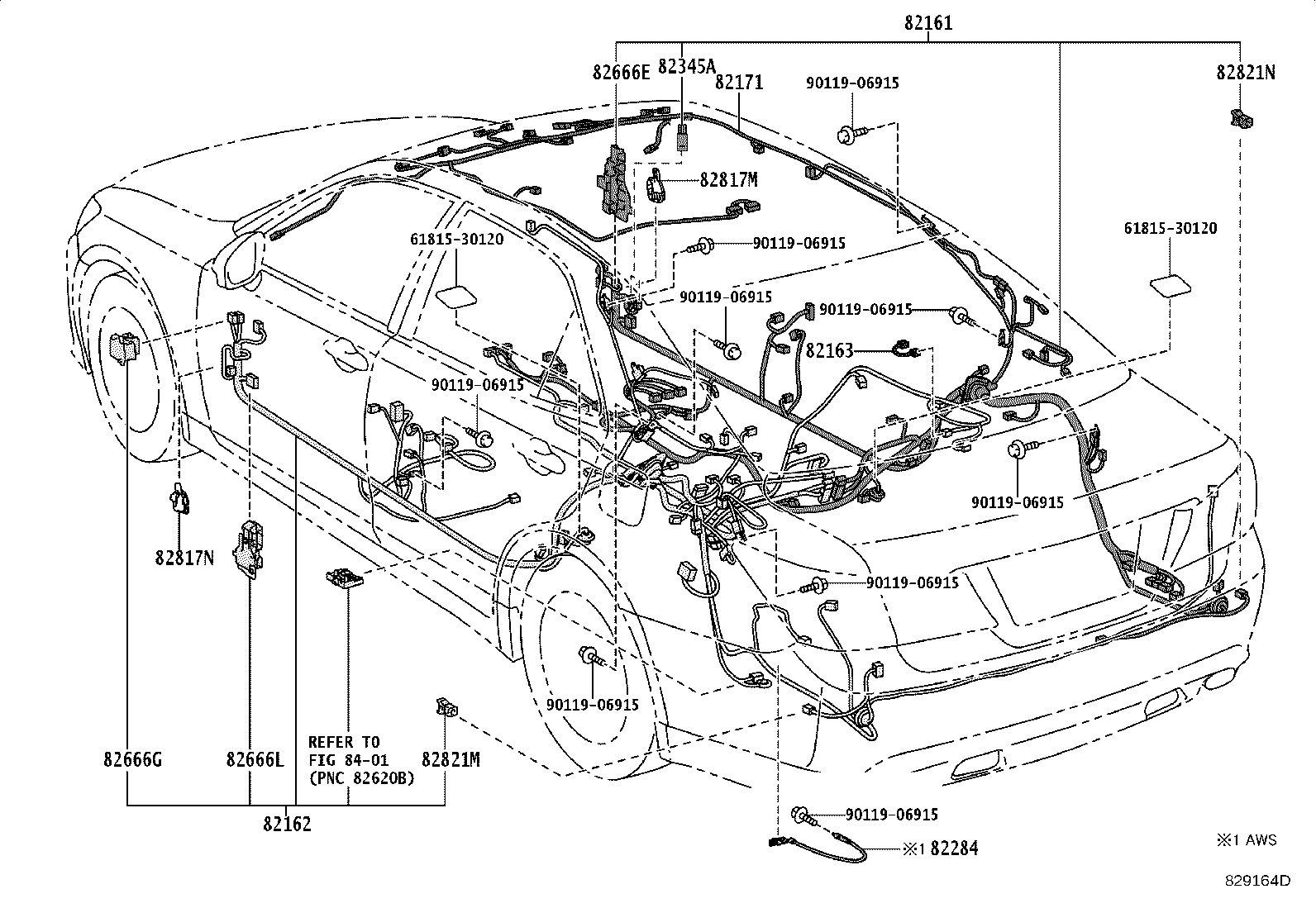

Figure 828825D 828825D 2012-12 → — Figure 828826D 828826D 2012-12 → — Figure 828827E 828827E 2013-01 → — Figure 828828C 828828C 2013-01 → — Figure 82A309C 82A309C 2015-09 → — Figure 82A310 82A310 2015-09 → — Figure 828818C 828818C 2012-12 → — Figure 828819C 828819C 2012-12 → — Figure 829163 829163 2013-09 → — Figure 828820B 828820B 2013-01 → — Figure 82A307D 82A307D 2015-09 → — Figure 828809A 828809A 2012-12 → — Figure 828809A 828809A 2015-09 → — Figure 828810 828810 2012-12 → — Figure 829164D 829164D 2012-12 → — Figure 828824C 828824C 2013-01 → — Figure 828812B 828812B 2012-12 → — Figure 828813 828813 2012-12 → — Figure 828821 828821 2012-12 → — Figure 828822 828822 2012-12 → — Figure 828823D 828823D 2013-01 → — Figure 829162B 829162B 2013-09 → — Figure 82A318A 82A318A 2015-09 → — Figure 82A348A 82A348A 2015-09 → — Figure 828842G 828842G 2012-12 → — Figure 828843G 828843G 2012-12 → — Figure 82E806A 82E806A 2012-12 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82031 Wire Sub-assy, Ignition Coil
82046A Wire Sub-assy, Body Ground, NO.1
82046D Wire, Body Ground
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82212A Harness, Air Conditioner
82219C Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666S Holder, Connector NO.13
82666V Holder, Connector NO.15
82705 Spool Sub-assy, Wiring Harness
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
89348X Clip, Ultrasonic Sensor, Front
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
