Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

142 part groups · 20 illustrations

Illustrations

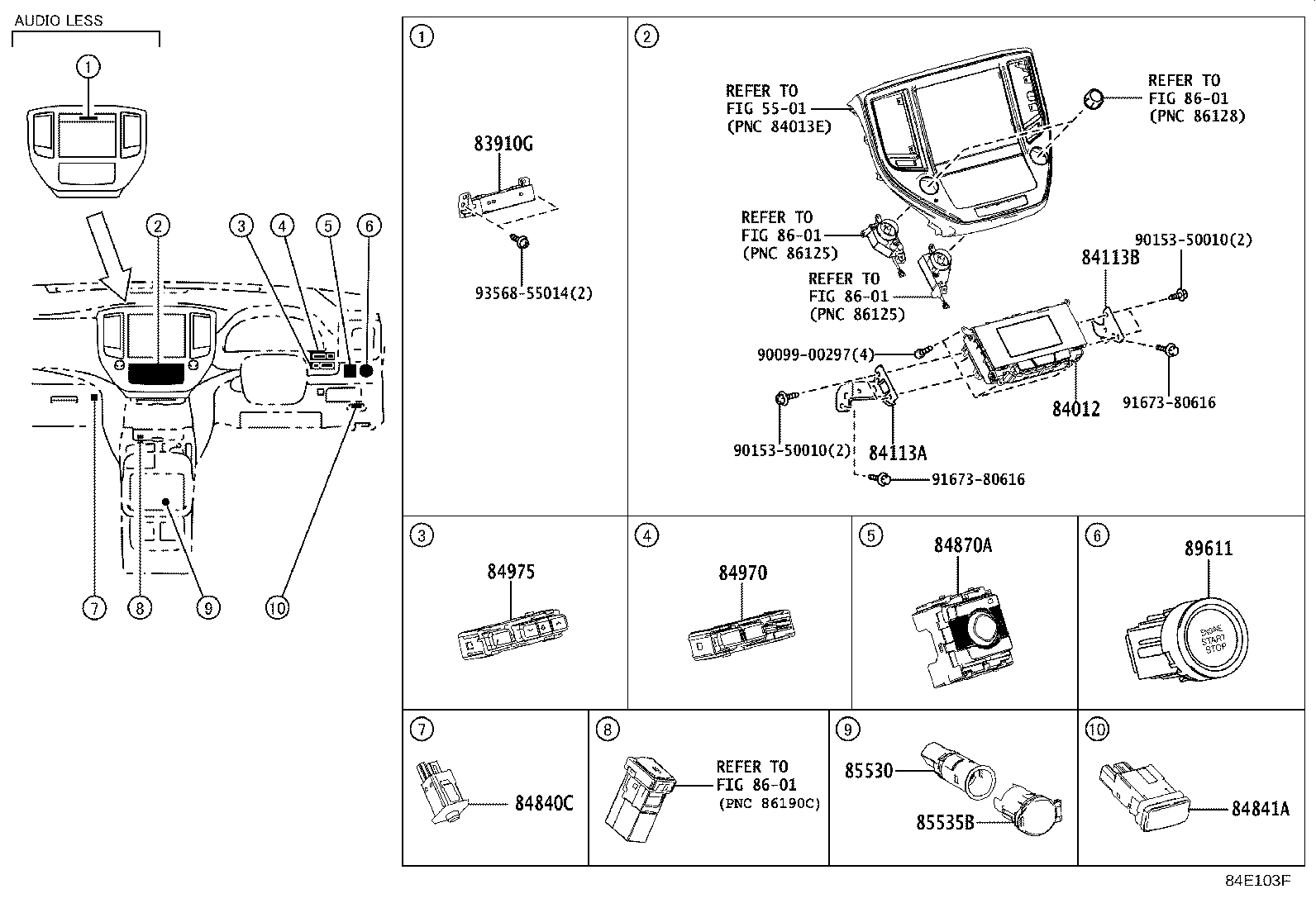

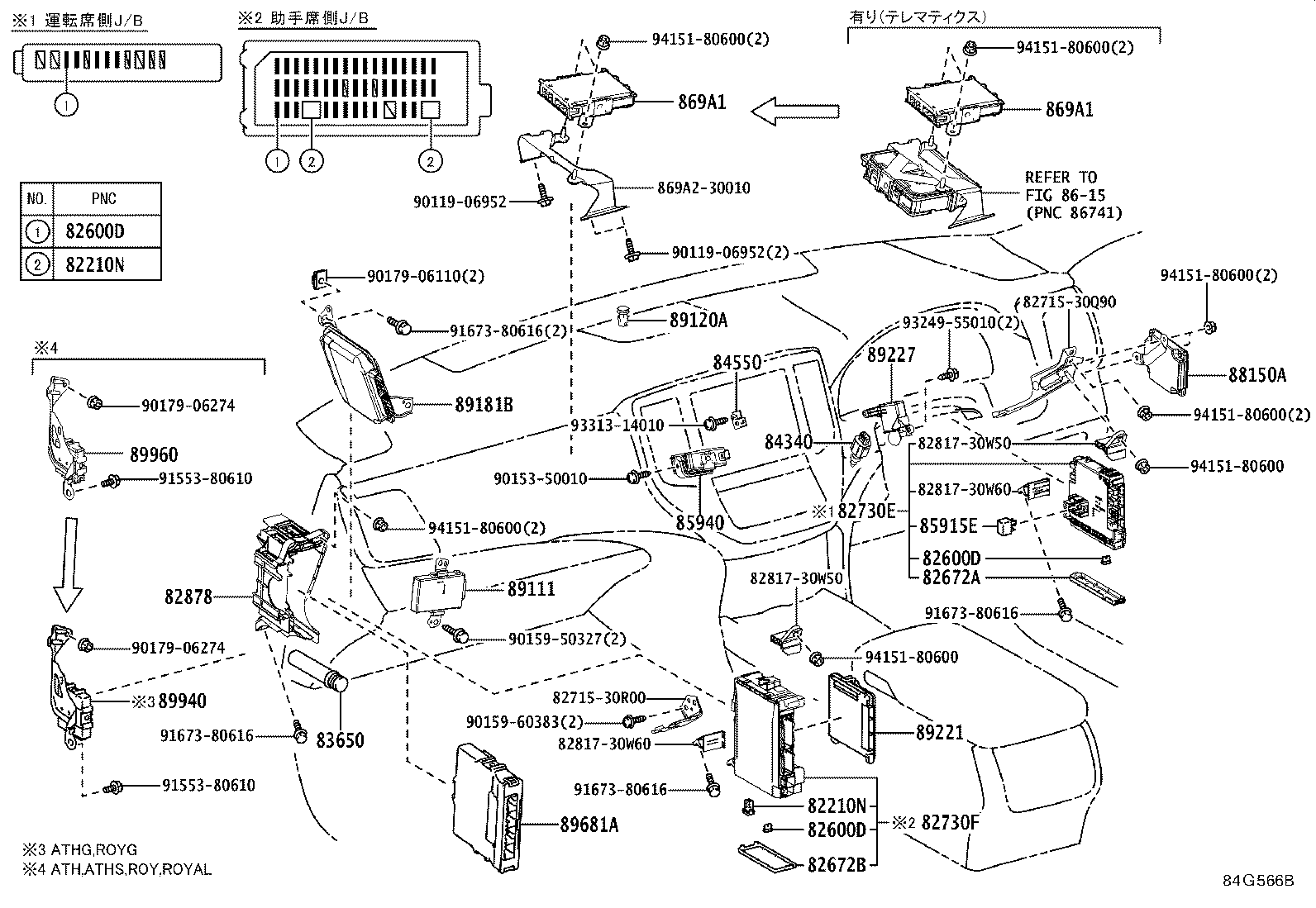

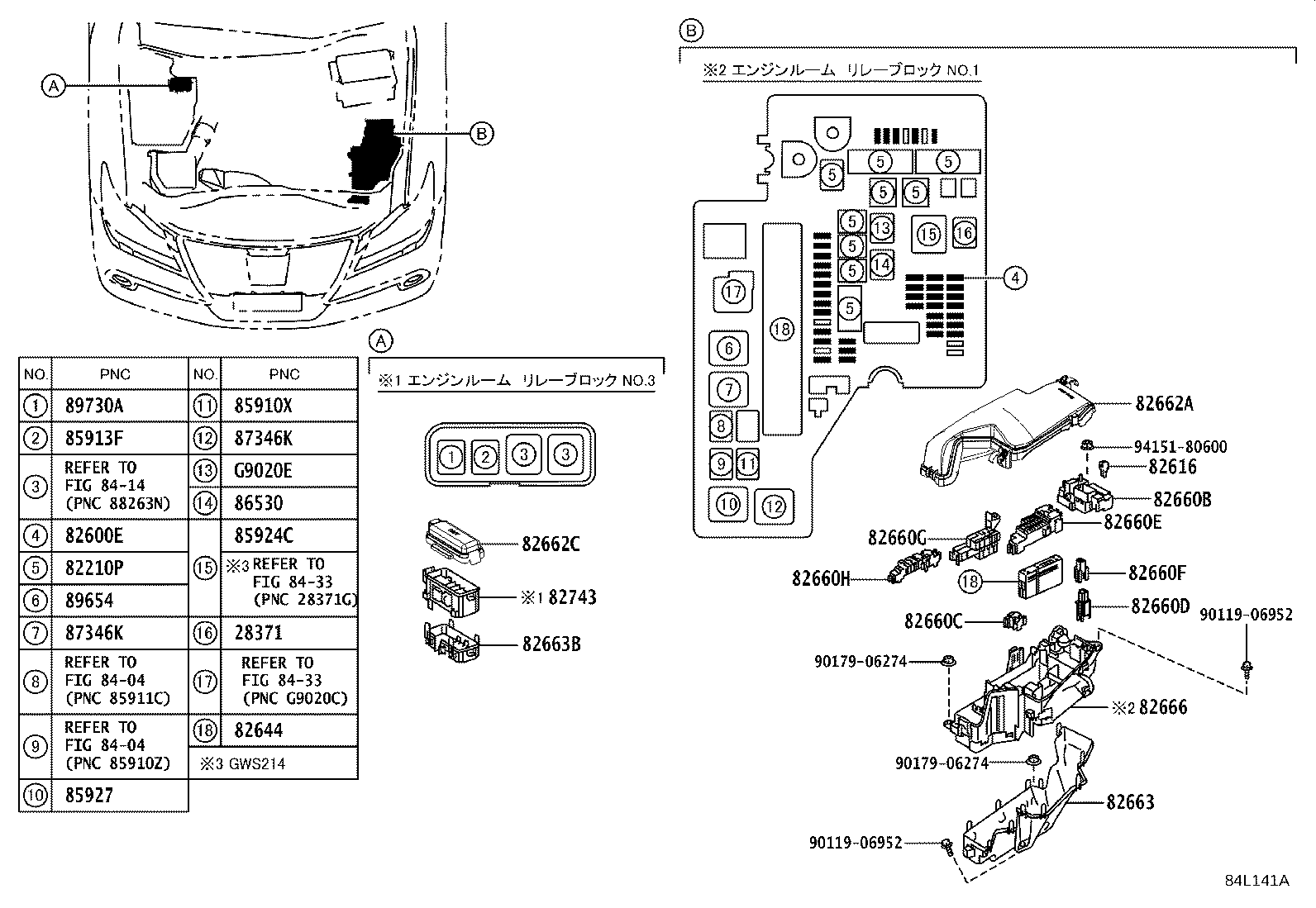

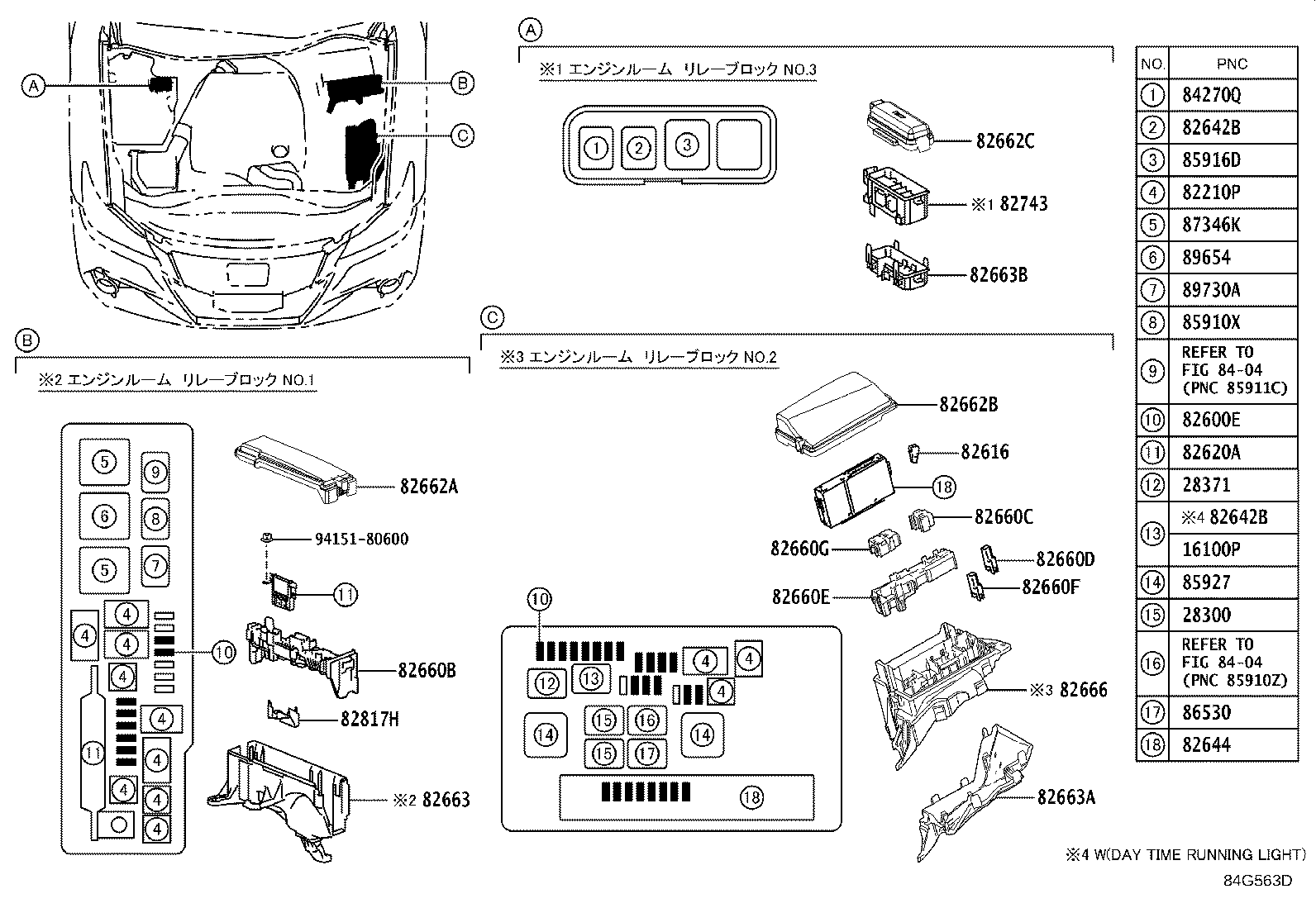

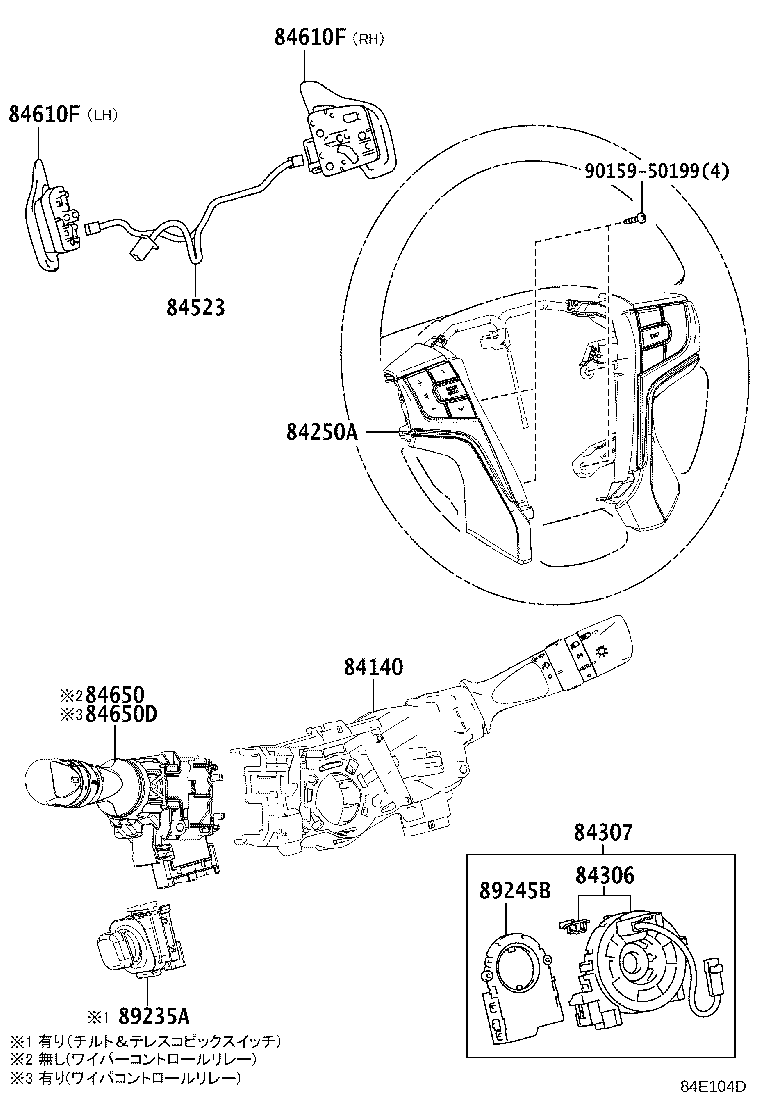

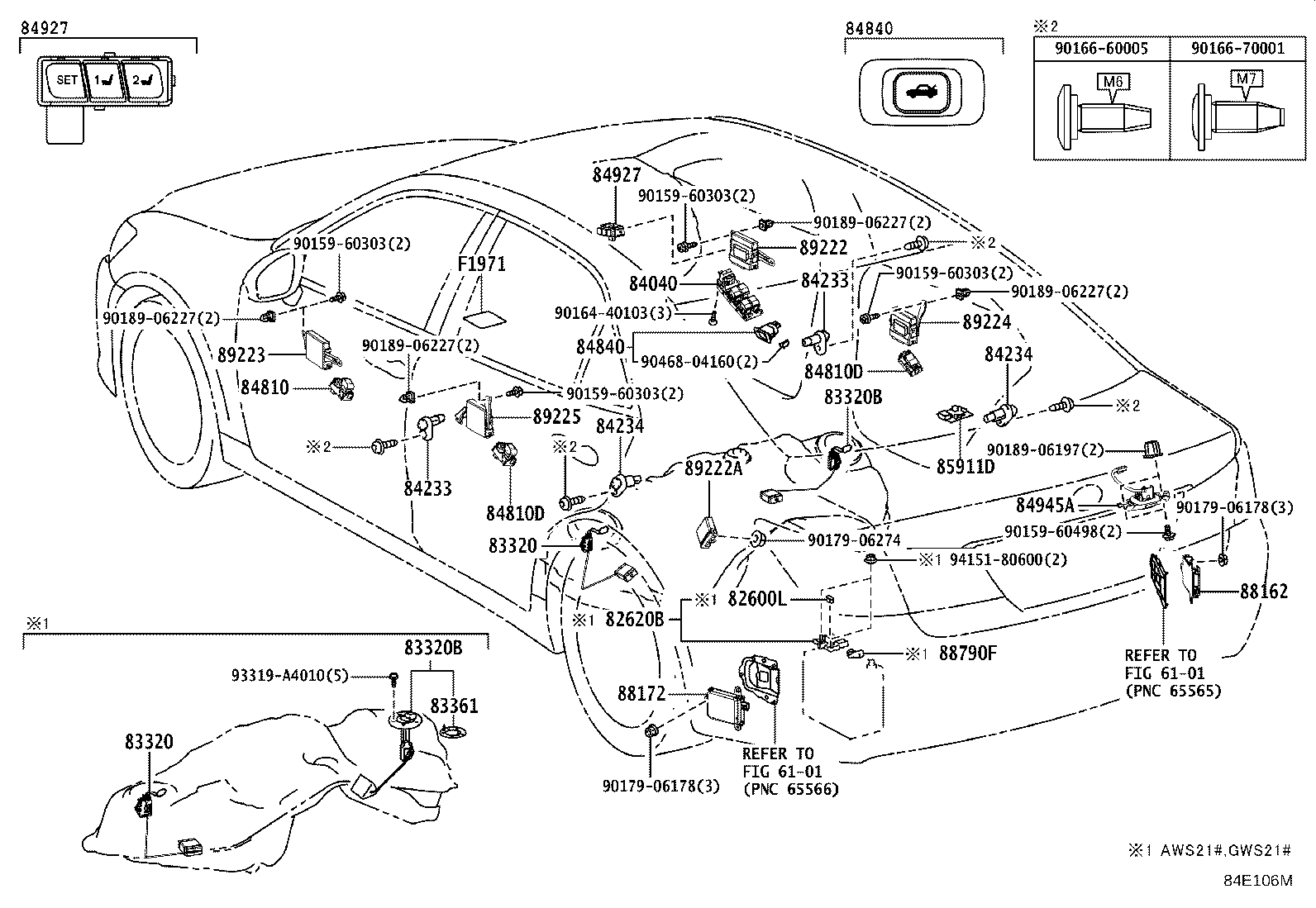

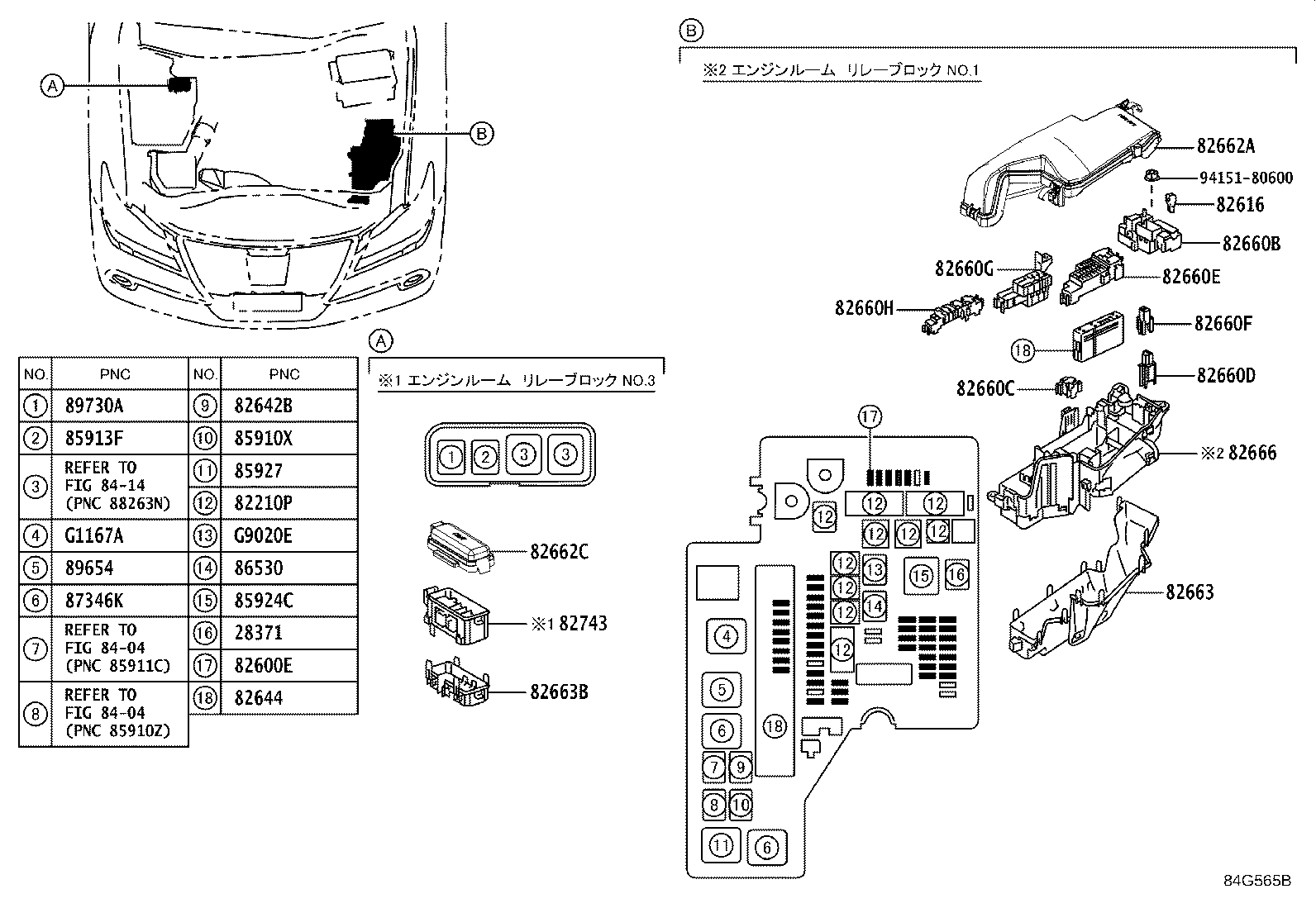

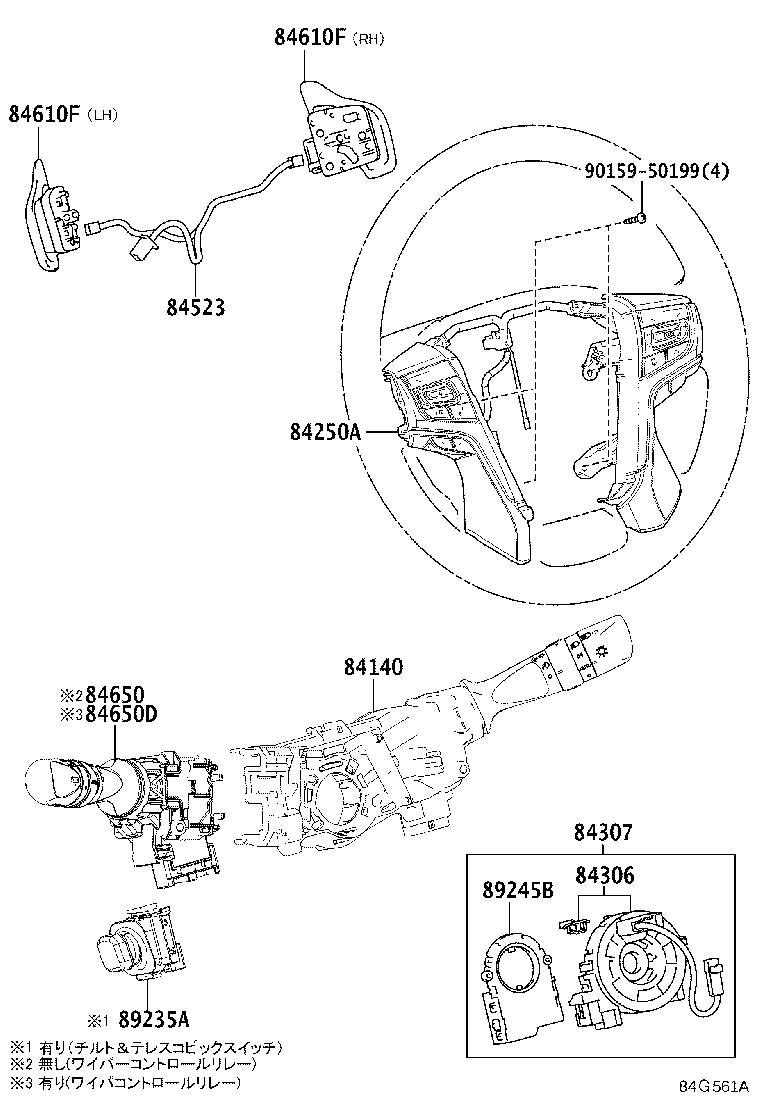

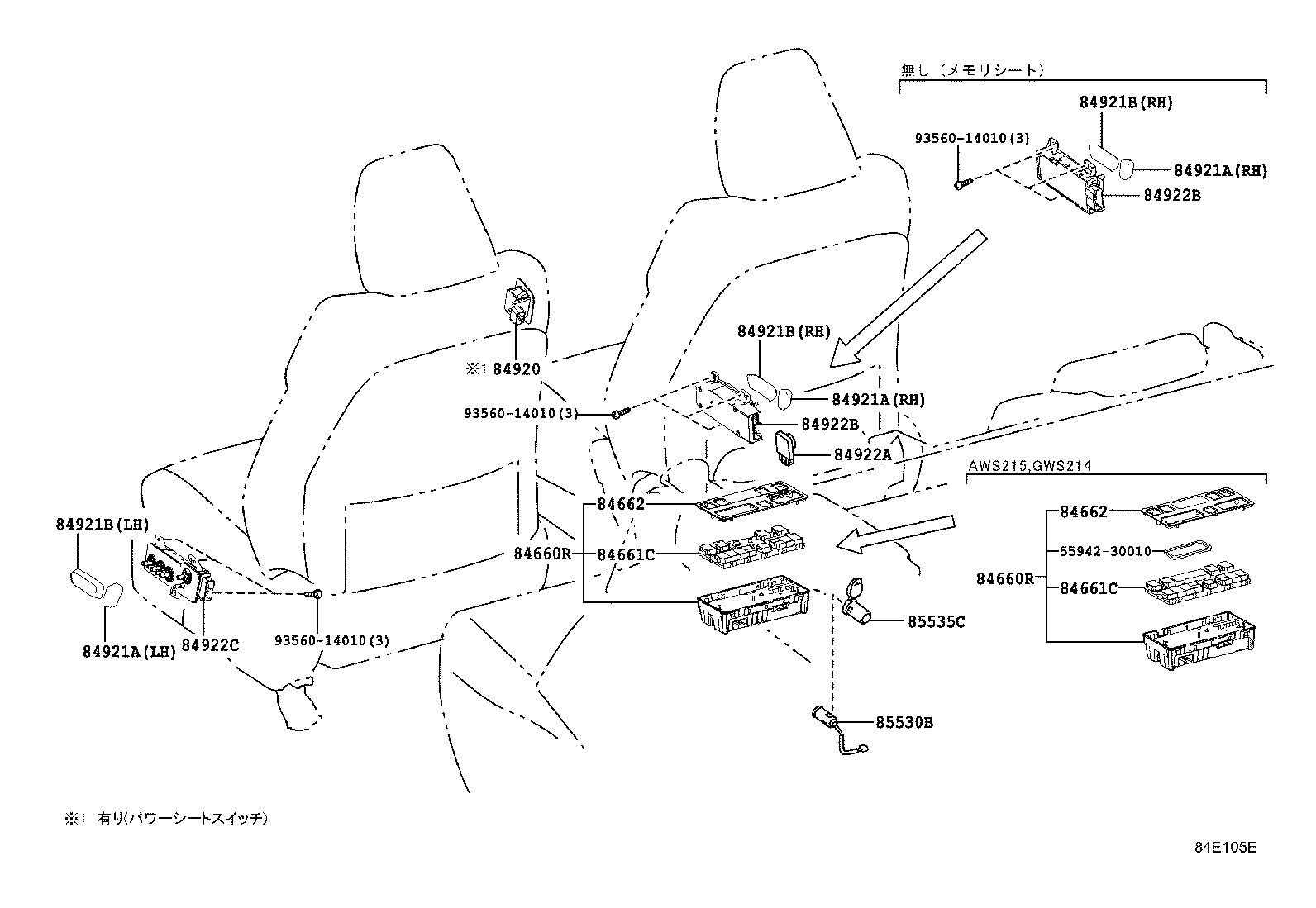

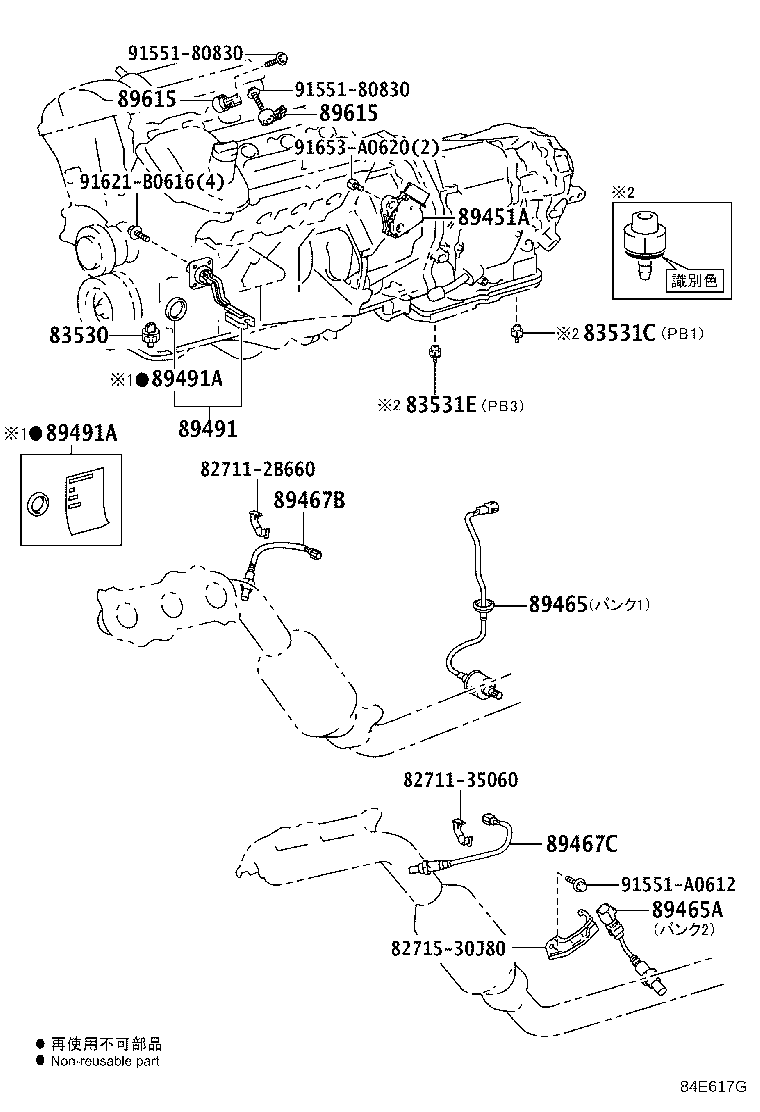

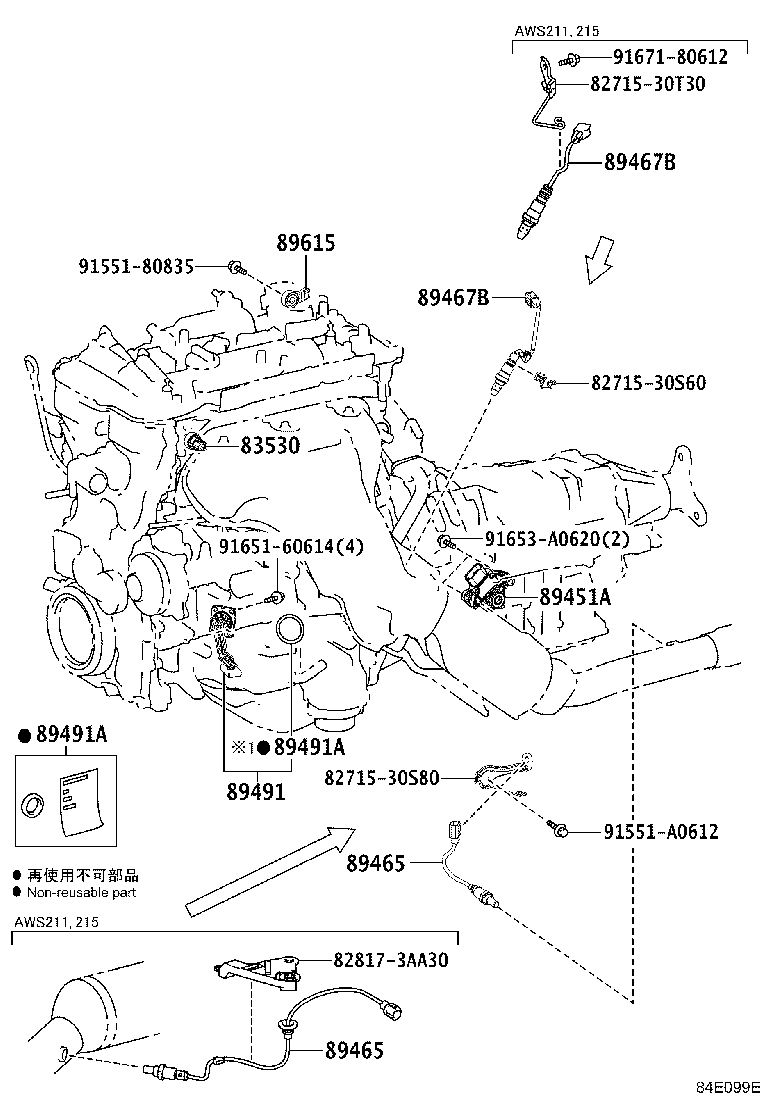

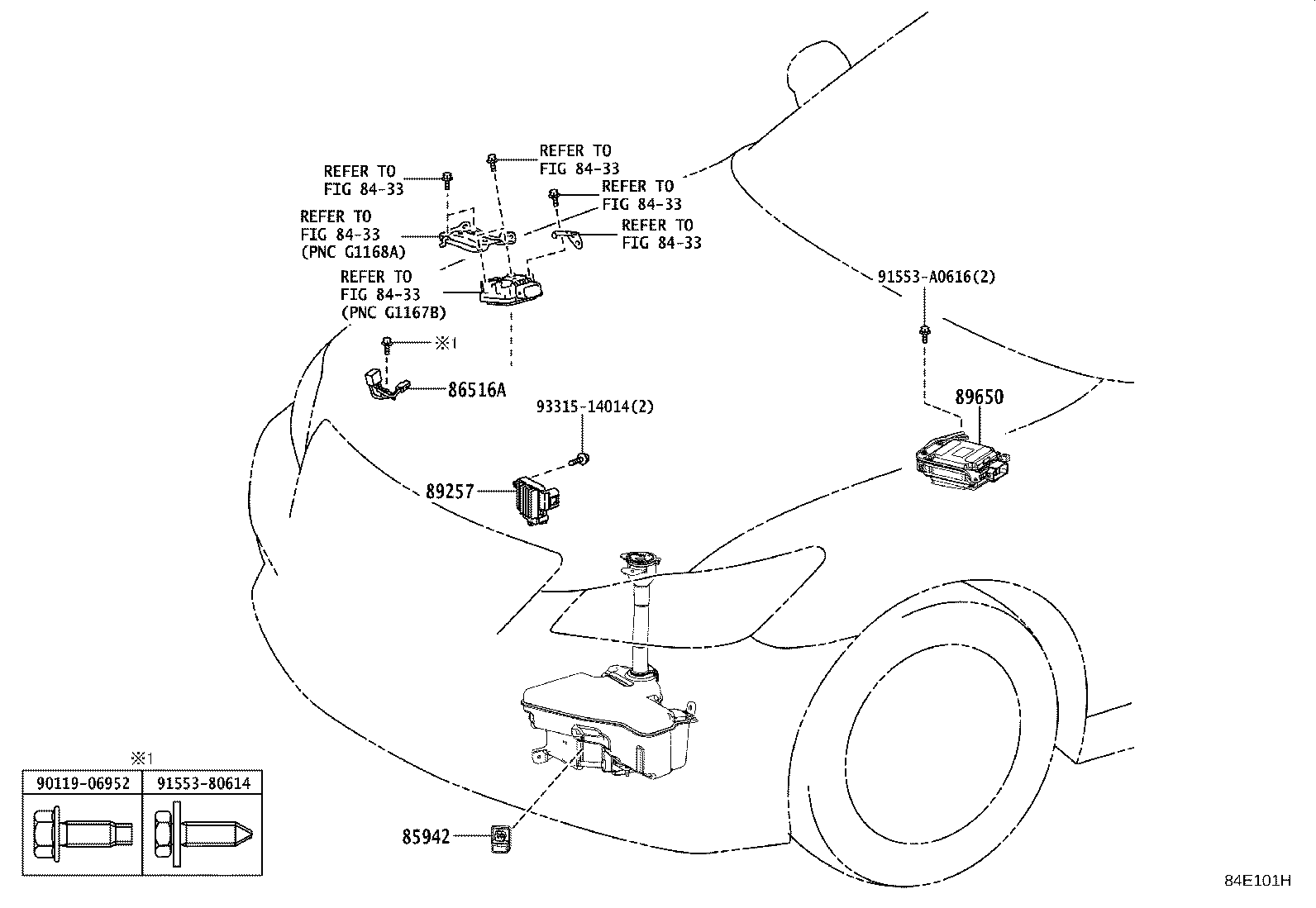

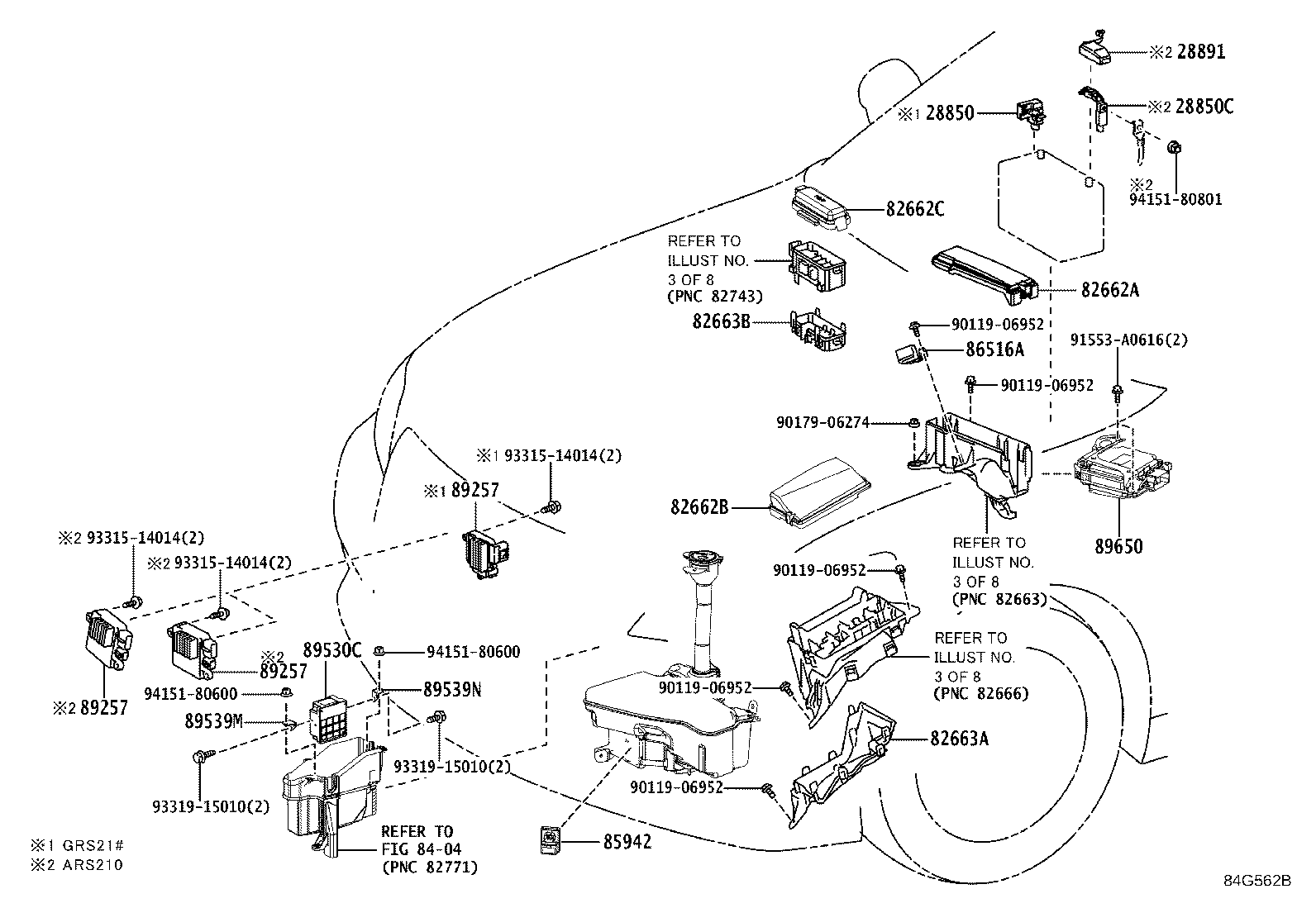

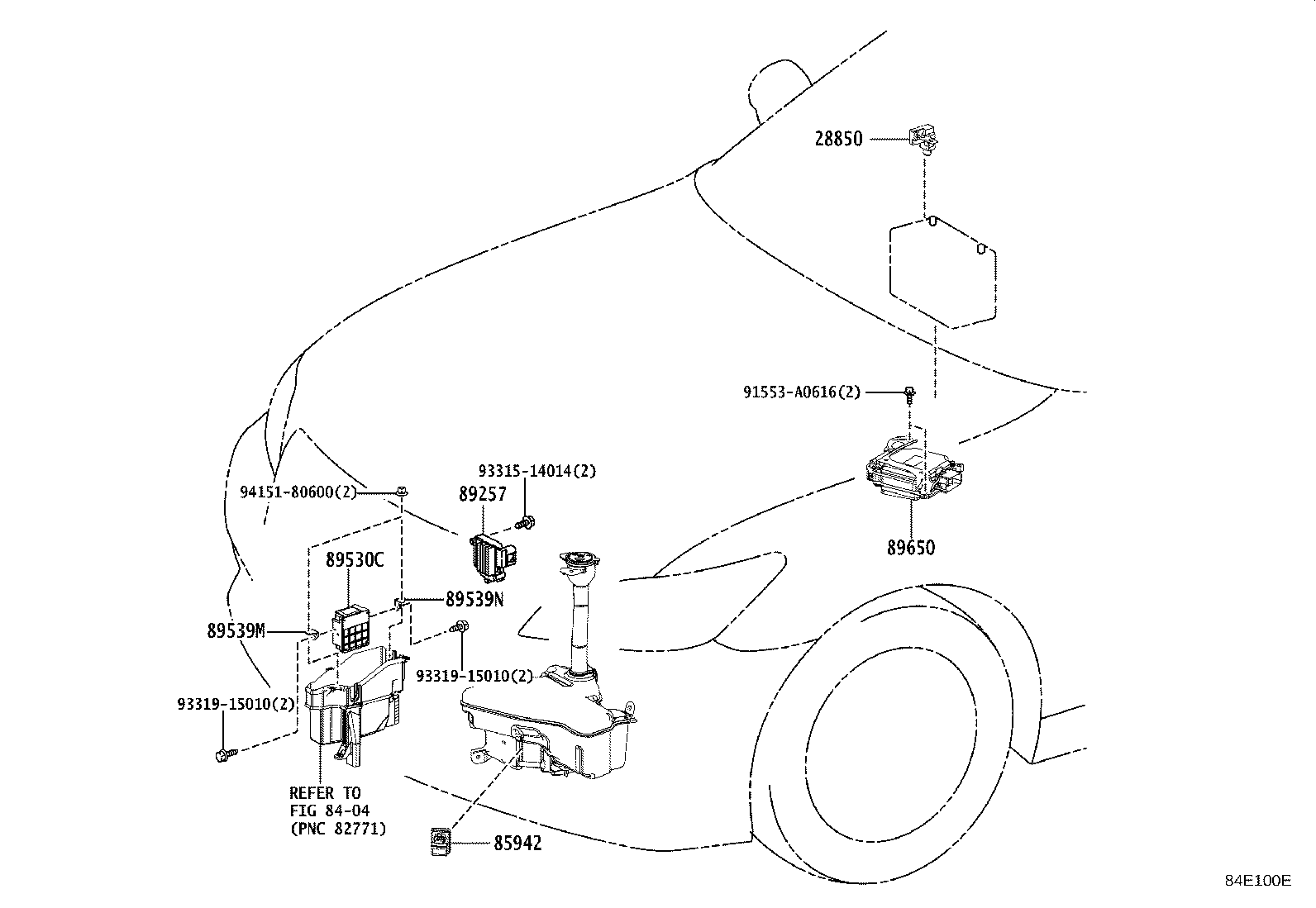

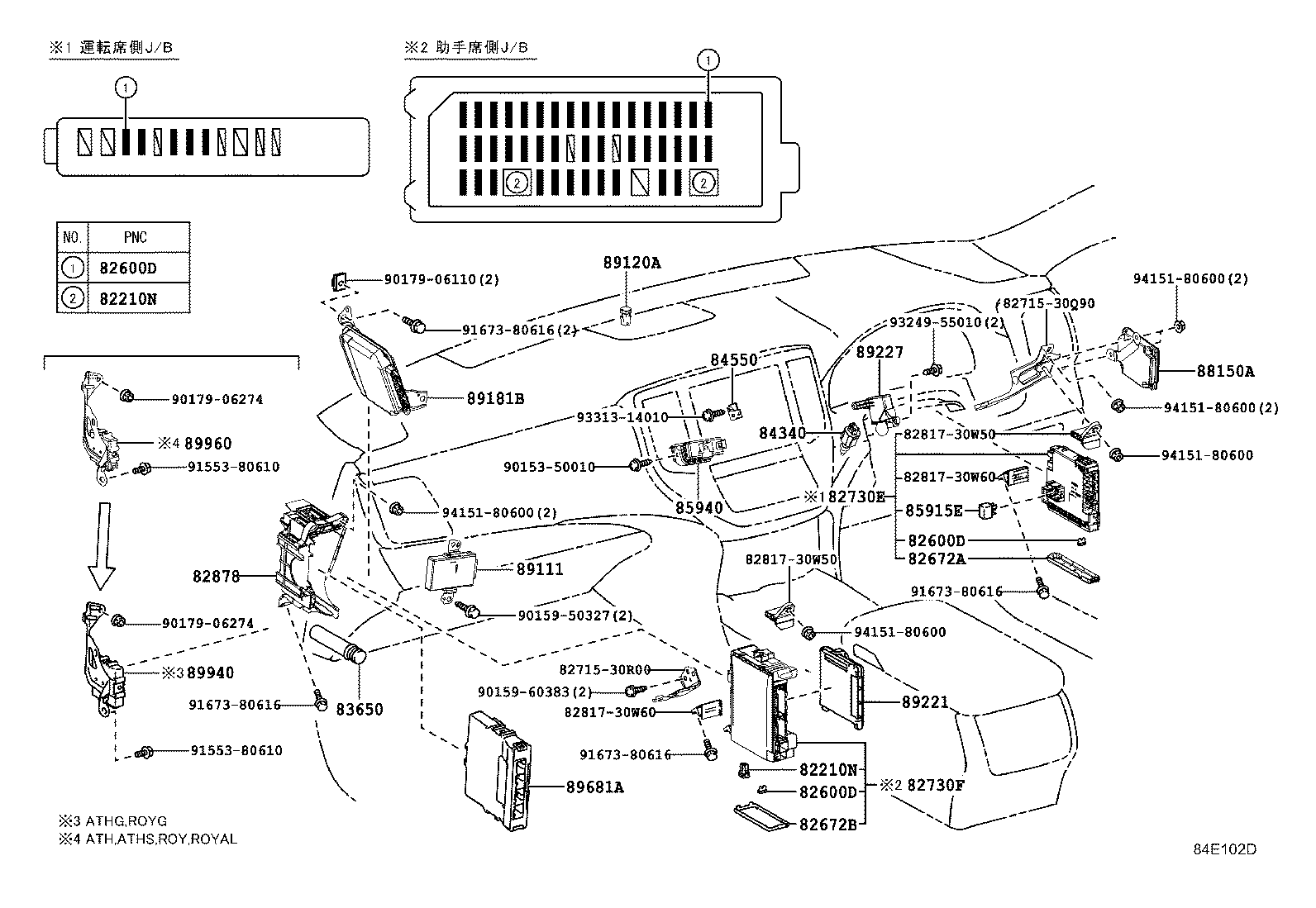

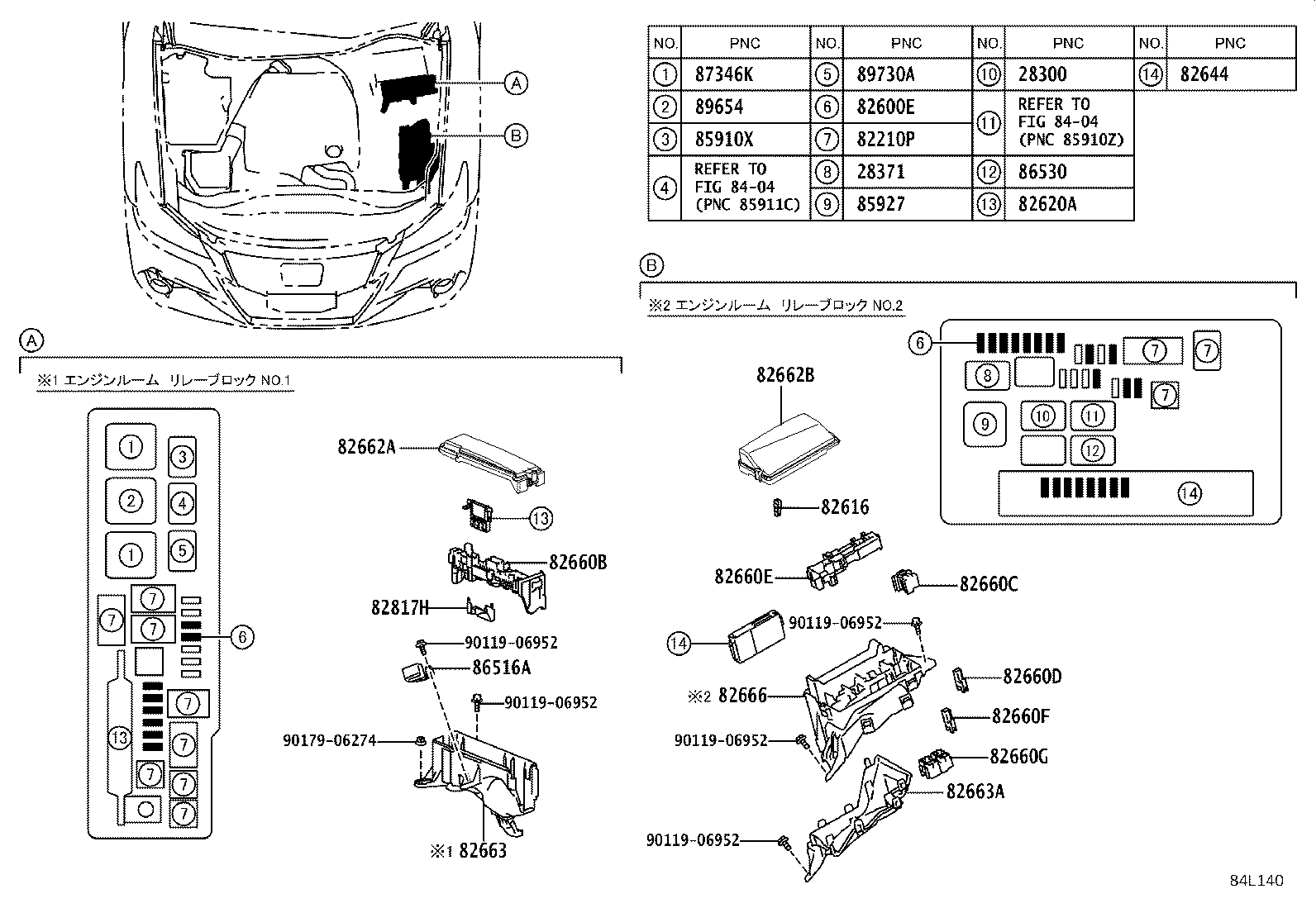

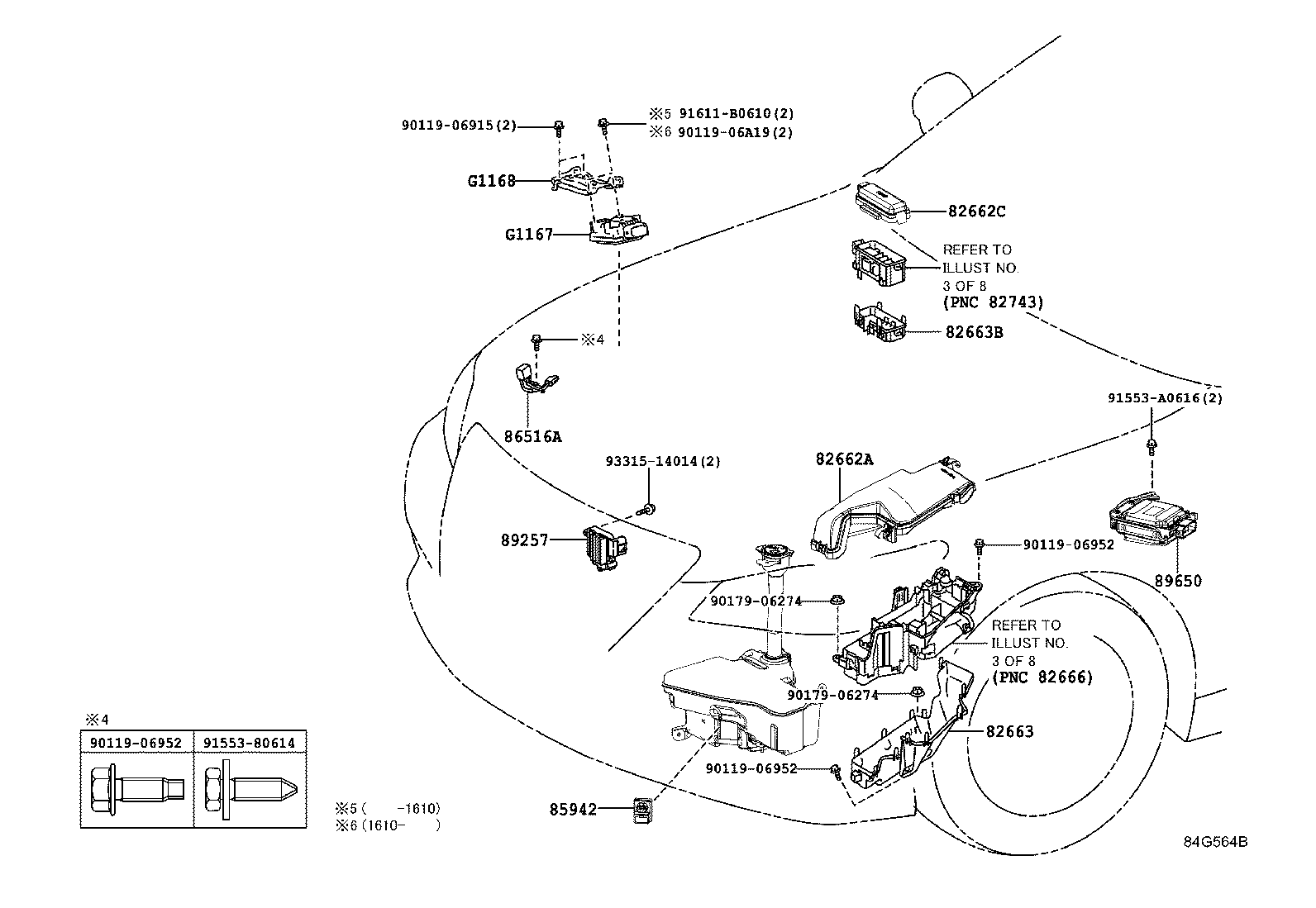

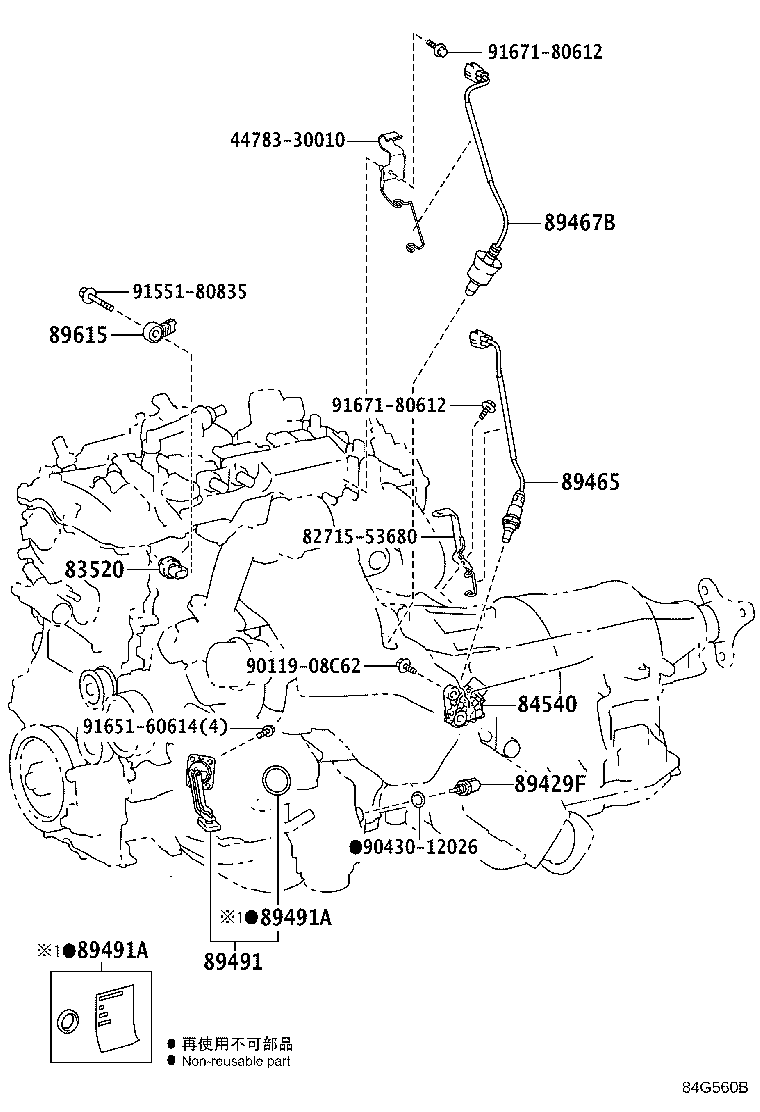

Figure 84E098E 84E098E 2012-12 → — Figure 84G560B 84G560B 2015-09 → — Figure 84E099E 84E099E 2012-12 → — Figure 84E617G 84E617G 2013-09 → — Figure 84E100E 84E100E 2012-12 → 2015-09 Figure 84G562B 84G562B 2015-09 → — Figure 84E101H 84E101H 2012-12 → 2015-09 Figure 84G564B 84G564B 2015-09 → — Figure 84L140 84L140 2012-12 → 2015-09 Figure 84G563D 84G563D 2015-09 → — Figure 84L141A 84L141A 2012-12 → 2015-09 Figure 84G565B 84G565B 2015-09 → — Figure 84E102D 84E102D 2012-12 → 2015-09 Figure 84G566B 84G566B 2015-09 → — Figure 84E103F 84E103F 2012-12 → — Figure 84E104D 84E104D 2012-12 → 2015-09 Figure 84G561A 84G561A 2015-09 → — Figure 84E105E 84E105E 2012-12 → — Figure 84F133 84F133 2012-12 → — Figure 84E106M 84E106M 2012-12 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
28850C Sensor Assy, Battery State
28891 Cover, Battery Terminal
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82642B Relay, Day Time Running Light, NO.1
82644 Computer, Semiconductor Power Integration
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82666 Holder, Connector
82672A Cover, Junction Block
82672B Cover, Junction Block
82730E Block Assy, Junction, RH
82730F Block Assy, Junction, LH
82743 Block, Engine Room Relay, NO.3
82817H Protector, Wiring Harness
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83361 Gasket, Fuel Sender Gage
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83531A Switch, Oil Pressure
83531C Switch, Oil Pressure, (PB1)
83531E Switch, Oil Pressure, (PB3)
83650 Fusee
83910G Clock Assy
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84140 Switch Assy, Headlamp Dimmer
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660R Switch, Cooler(REAR)
84661C Knob, Cooler Control Switch
84662 Panel, Cooler Control Switch
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85910X Relay, Heater Mirror
85911D Relay, Rear Sunshade
85913F Relay, Steering Heater
85915E Relay
85916D Relay, Fog Lamp
85924C Relay, Igct
85927 Relay, Cooling Fan
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
86516A Condenser
86530 Relay Assy, Horn
869A1 Computer, Intelligent Transport Systems Communication
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89181B Computer, Steering Control, FR
89221 Computer, Multiplex Network Body
89222 Computer, Multiplex Network Door, Front RH
89222A Computer, Multiplex Network Door
89223 Computer, Multiplex Network Door, Front LH
89224 Computer, Multiplex Network Door, Rear RH
89225 Computer, Multiplex Network Door, Rear LH
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89681A Computer, Power Management Control
89730A Relay(FOR SECURITY WARNING)
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
F1971 Cover, Ecu Water Proof
G1167 Controller, Oil Pump Motor
G1167A Relay (FOR OIL PUMP MOTOR)
G1168 Bracket, Oil Pump Motor Controller
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
