Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

21 part groups · 5 illustrations

Illustrations

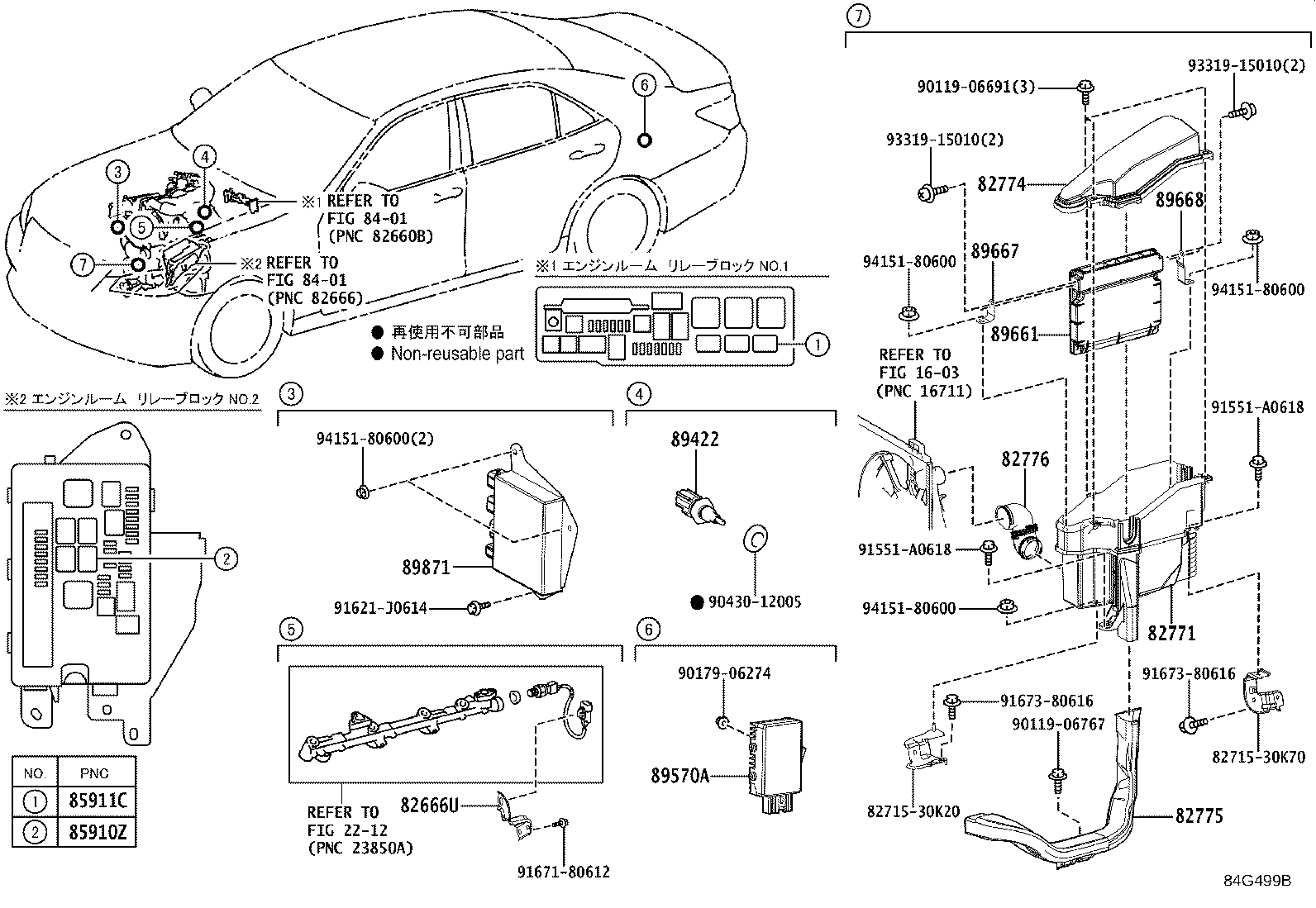

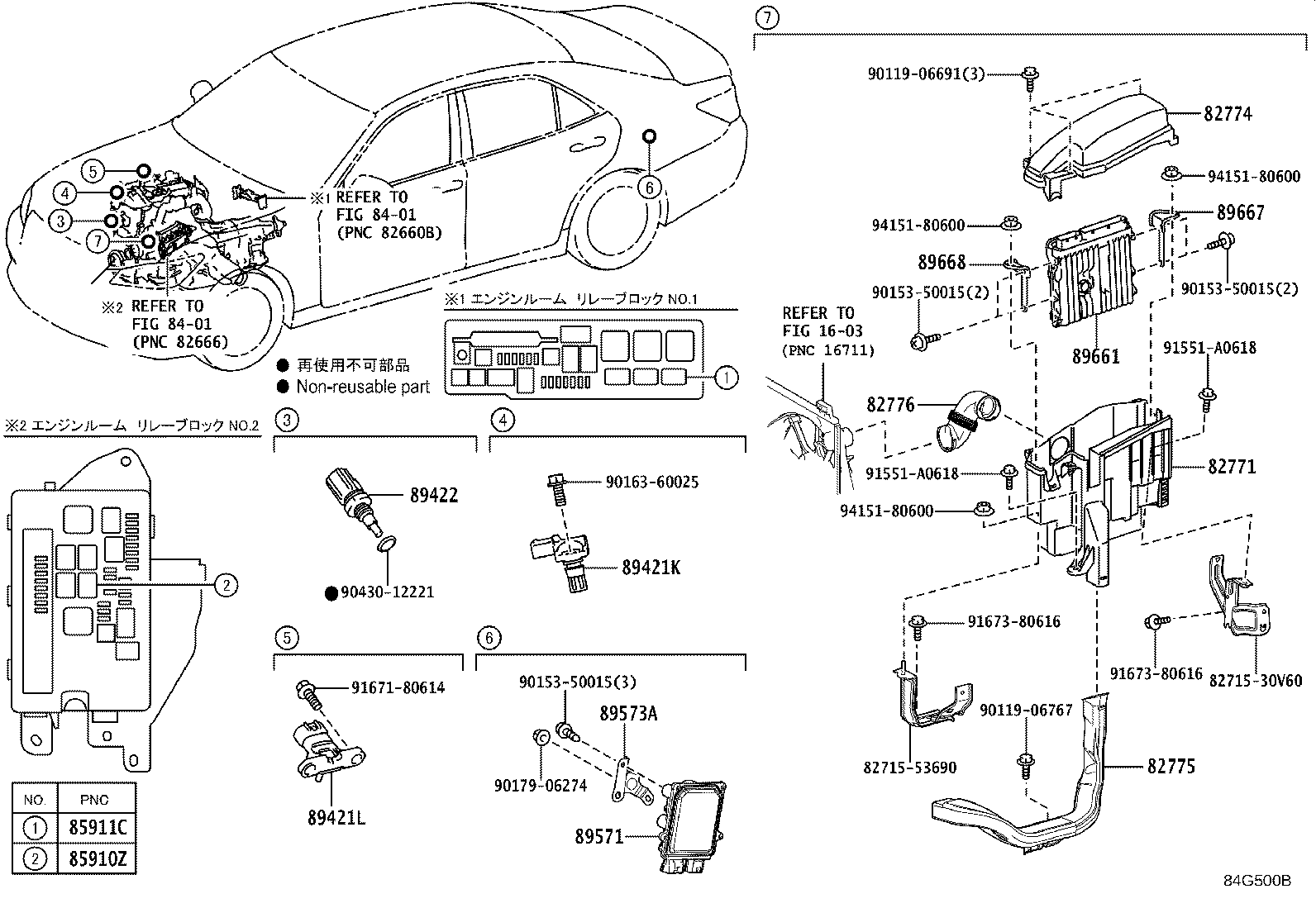

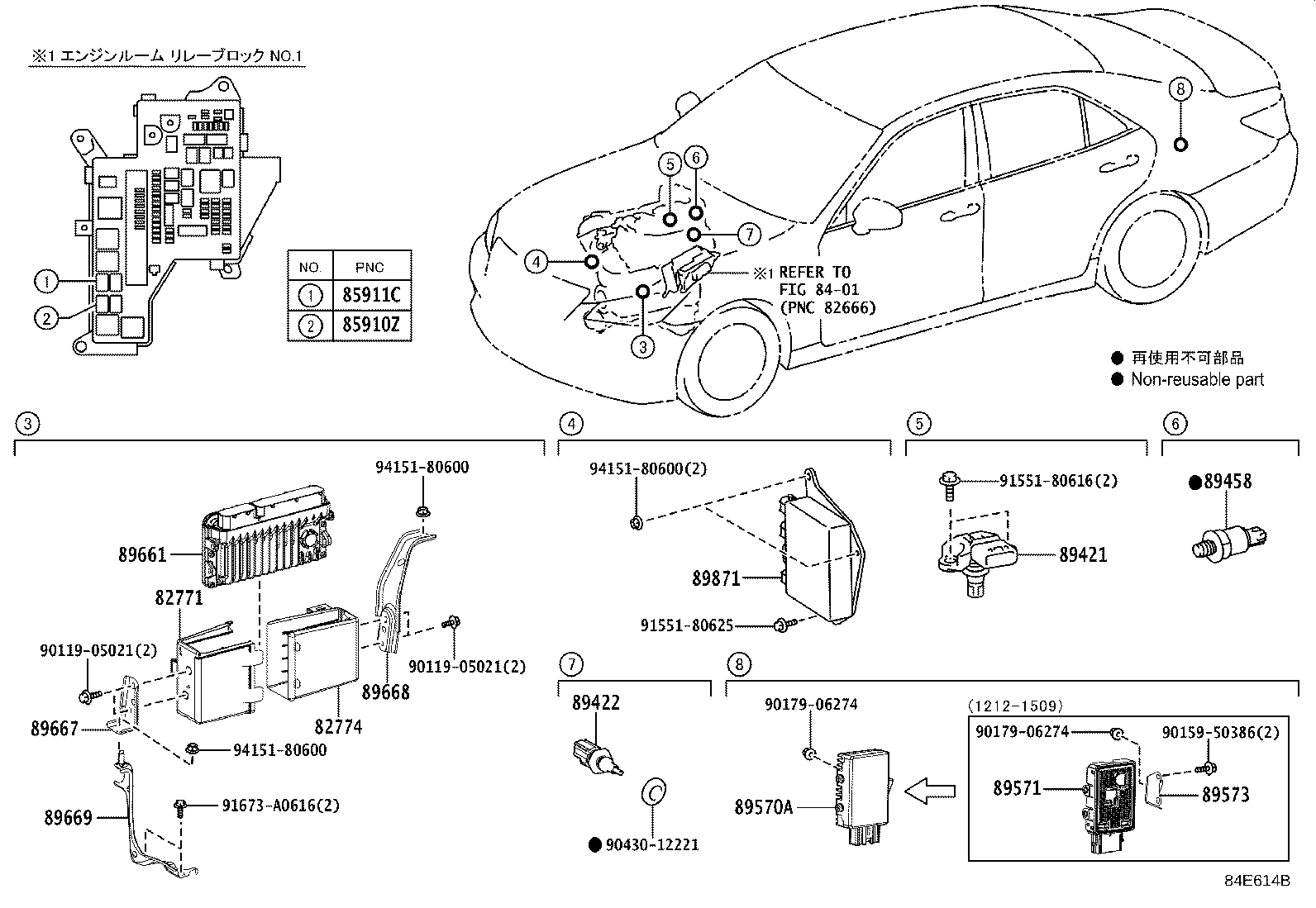

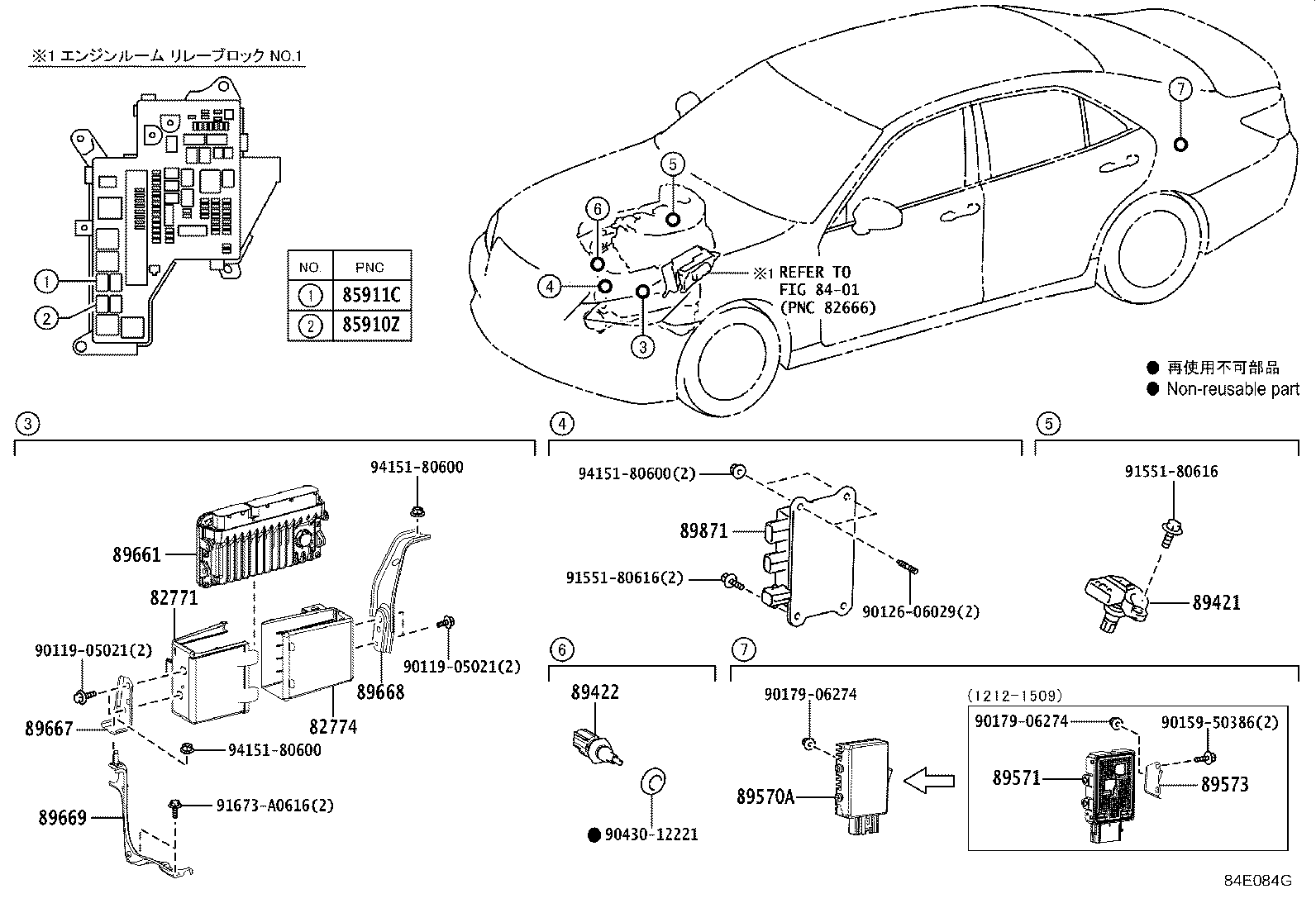

Figure 84E083I 84E083I 2012-12 → 2015-09 Figure 84G499B 84G499B 2015-09 → — Figure 84G500B 84G500B 2015-09 → — Figure 84E084G 84E084G 2012-12 → — Figure 84E614C 84E614C 2013-09 → —

Part groups

PNCDescription
82666U Holder, Connector
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82775 Duct, Engine Room Ecu Inlet
82776 Duct, Engine Room Ecu Outlet
85910Z Relay, Injection (FOR EFI)
85911C Relay, Efi 2
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89573A Bracket, Fuel Pump Control Computer, NO.2
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
