Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

11 part groups · 5 illustrations

Illustrations

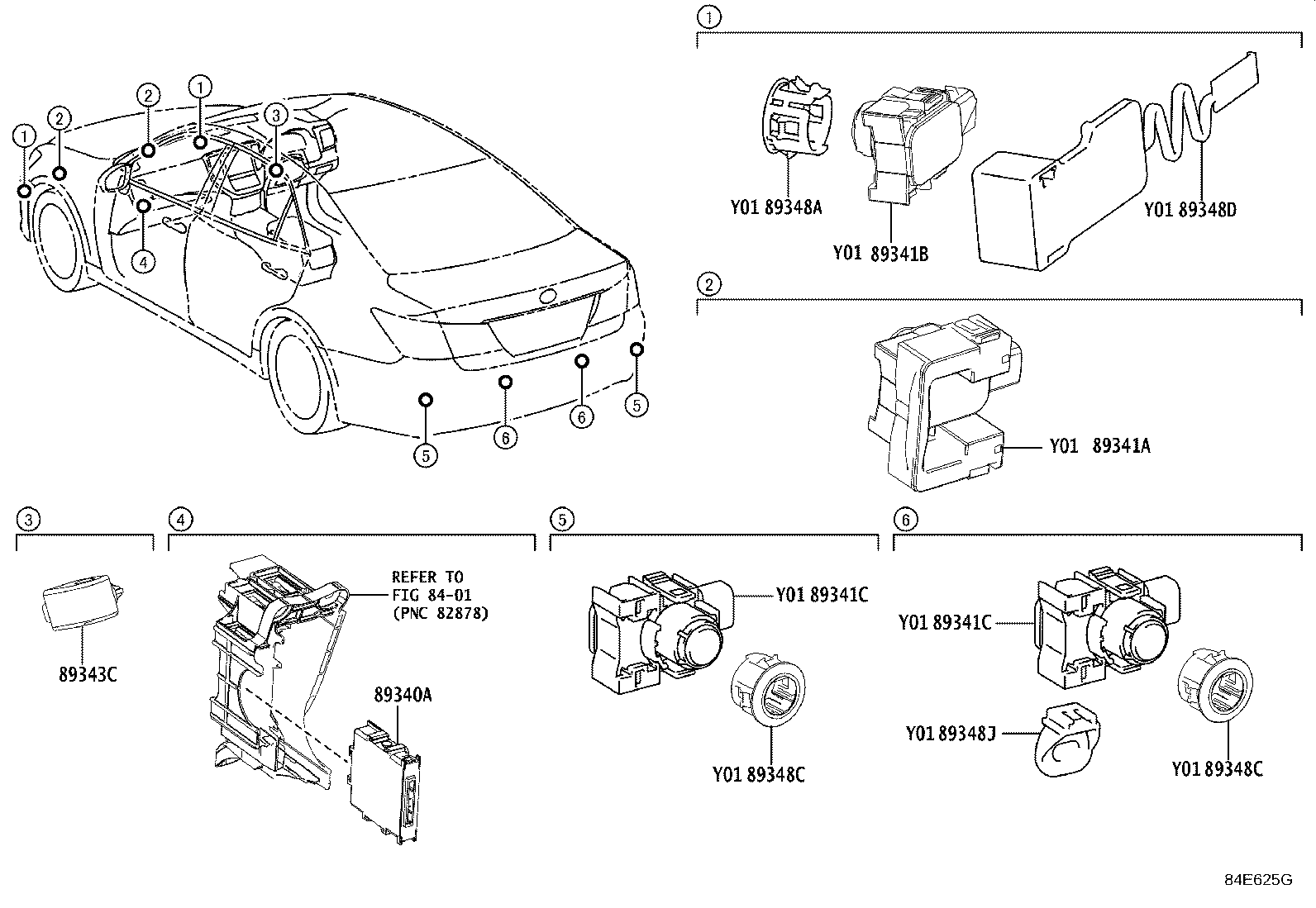

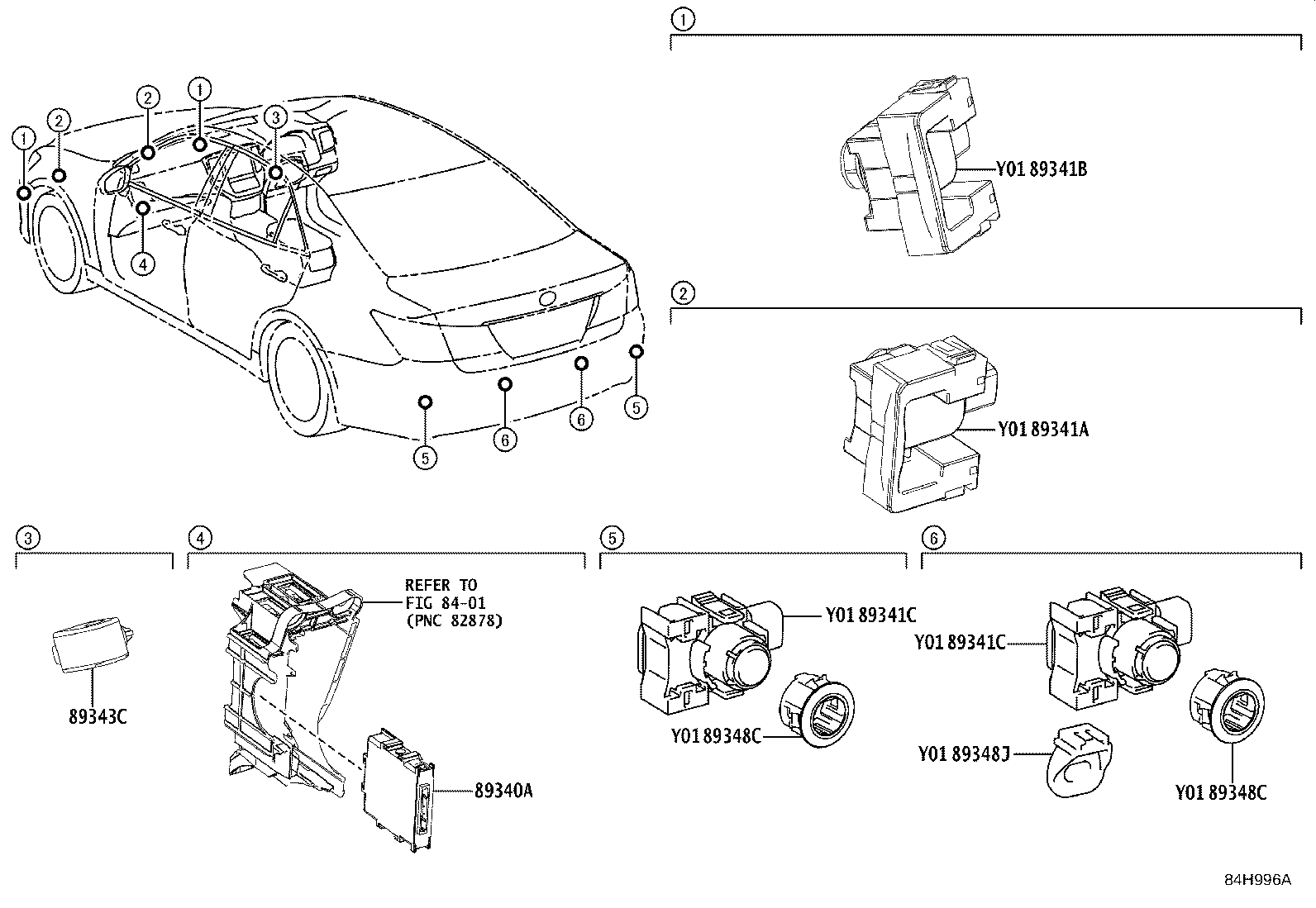

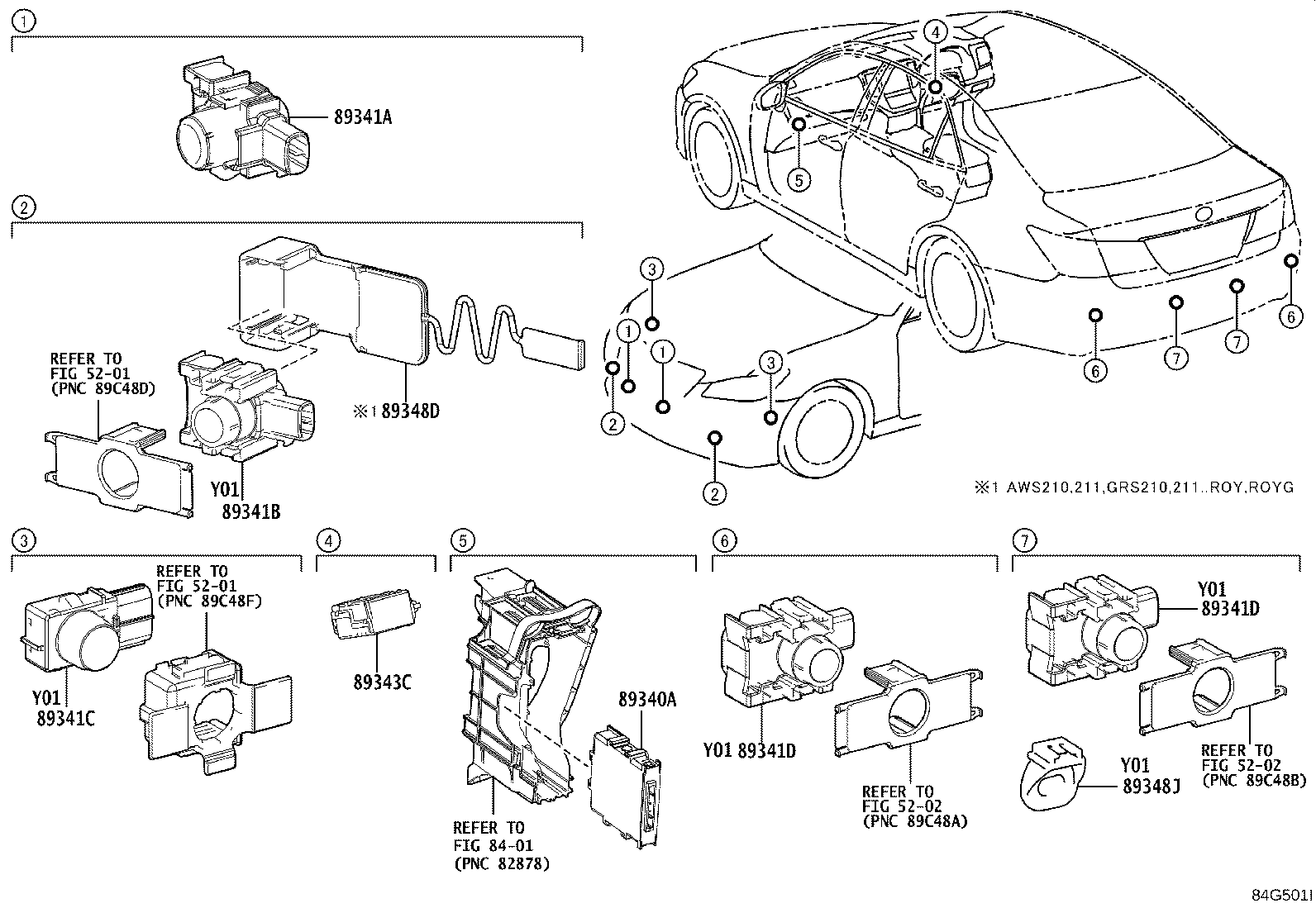

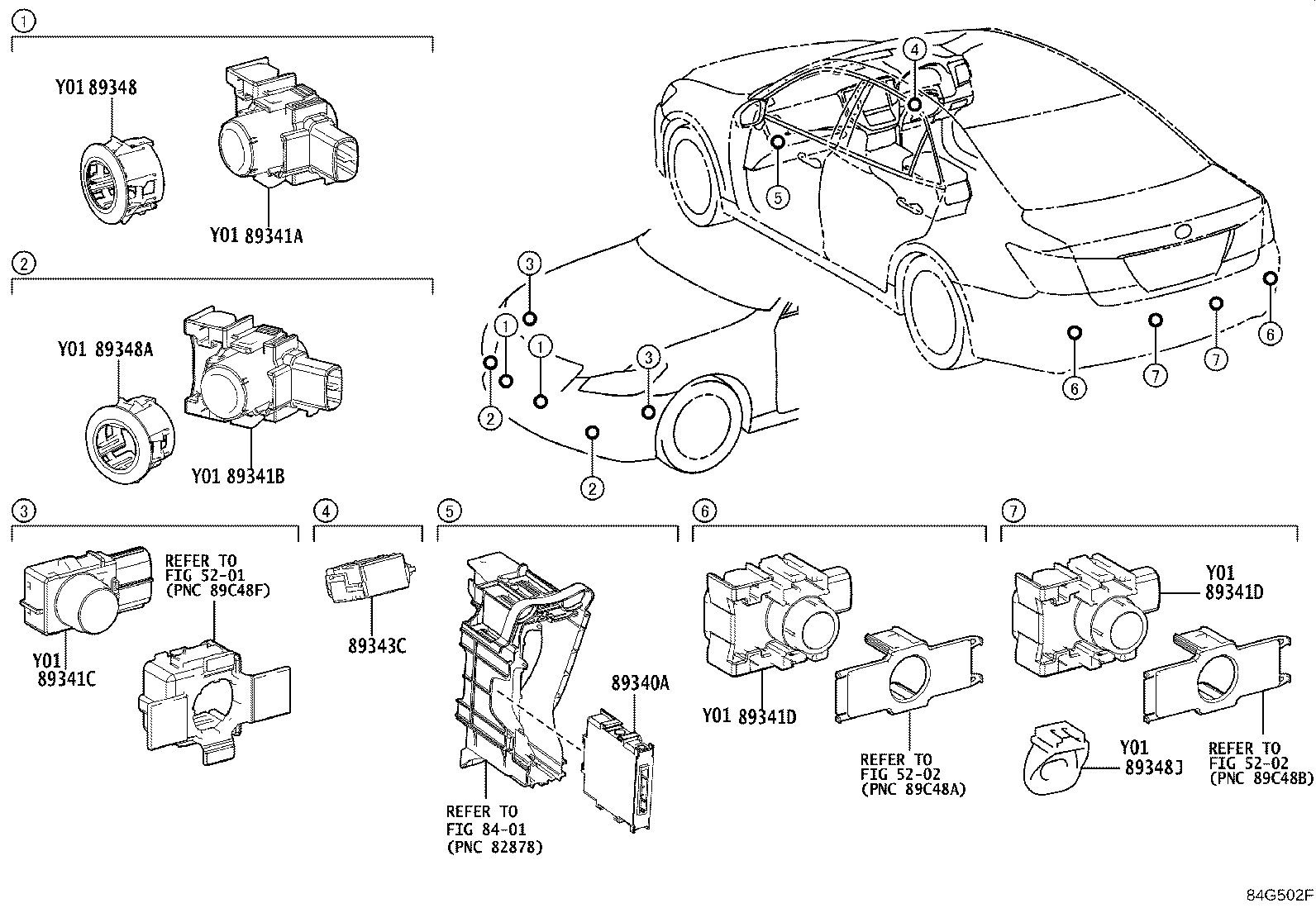

Figure 84E071H 84E071H 2012-12 → 2015-09 Figure 84H996A 84H996A 2012-12 → 2015-09 Figure 84E625G 84E625G 2013-08 → 2015-09 Figure 84G501I 84G501I 2015-09 → — Figure 84G502F 84G502F 2015-09 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89341D Sensor, Ultrasonic, NO.4
89343C Buzzer, Clearance Warning, NO.1
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89348C Retainer, Ultrasonic Sensor, NO.3
89348D Clip, Ultrasonic Sensor
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
