Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 3 illustrations

Illustrations

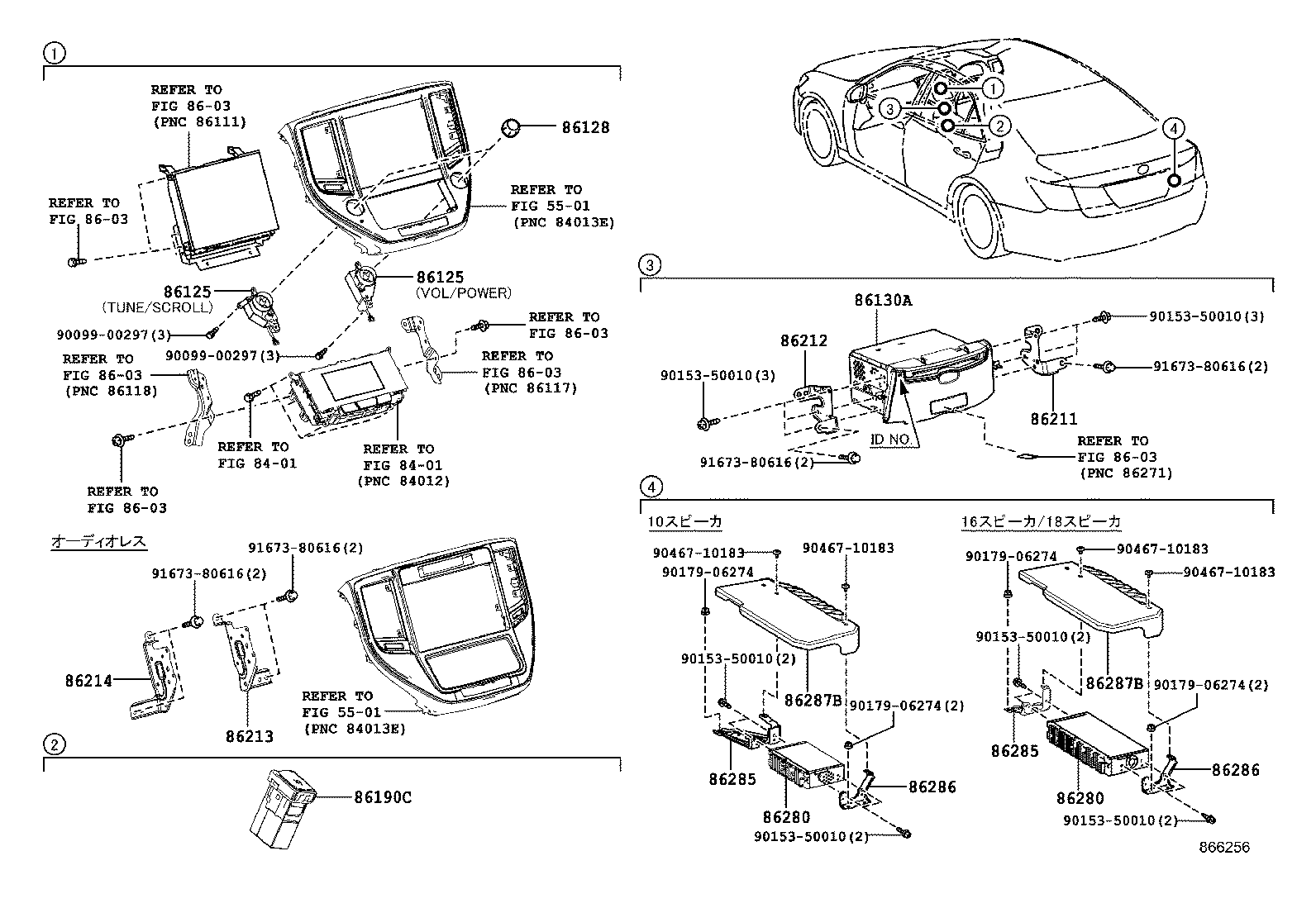

Figure 865361E 865361E 2012-12 → 2015-09 Figure 866256 866256 2015-09 → — Figure 865362A 865362A 2012-12 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86125 Knob, Radio Receiver Switch
86128 Knob, Radio Receiver
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86214 Bracket, Radio, NO.4
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
