Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

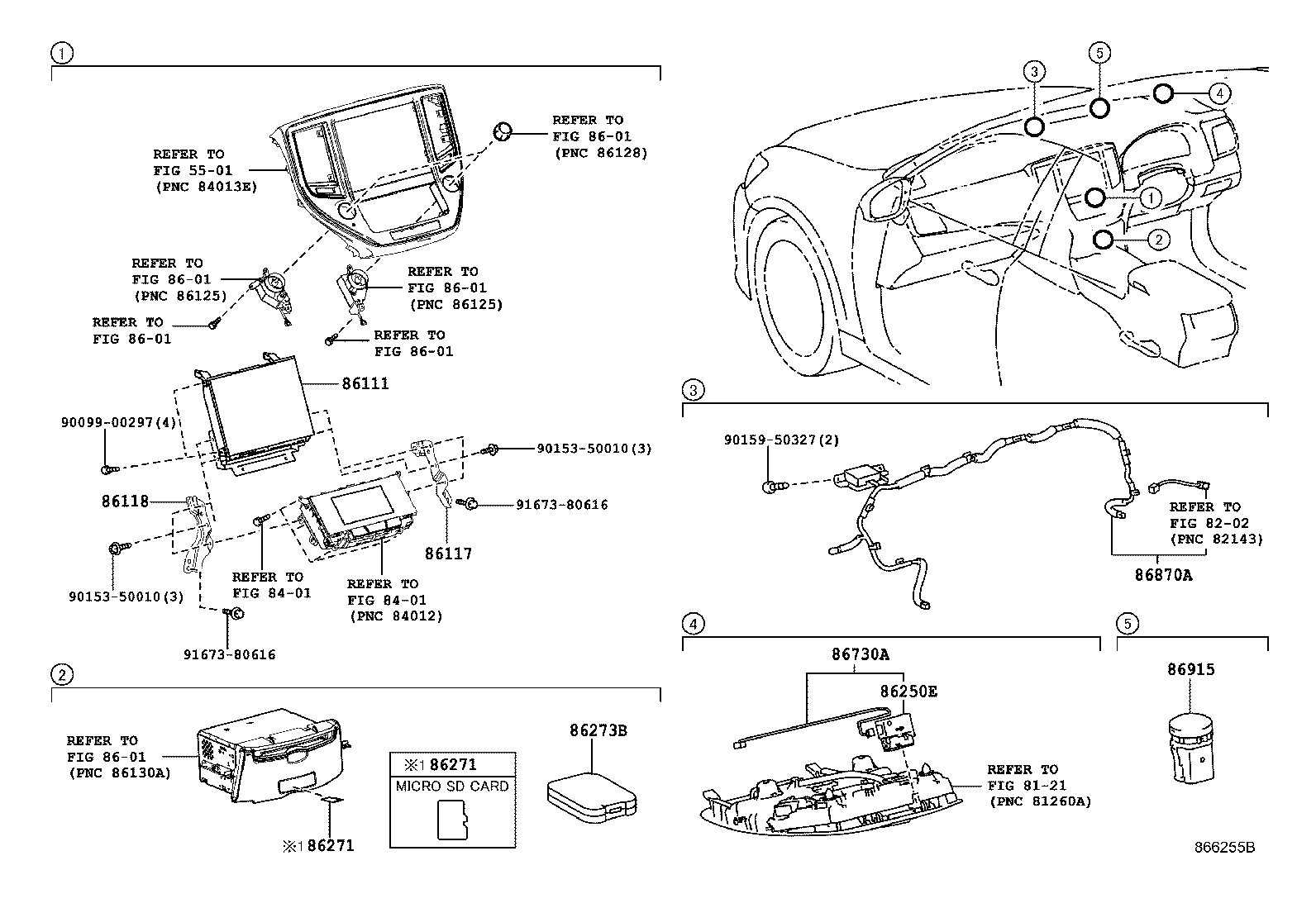

Navigation & Front Monitor Display
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84013D | Panel Sub-assy, Integration |
| 86111 | Multi-display |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86273B | Adapter, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86870A | Antenna Assy, Gps & Vics |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
