Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

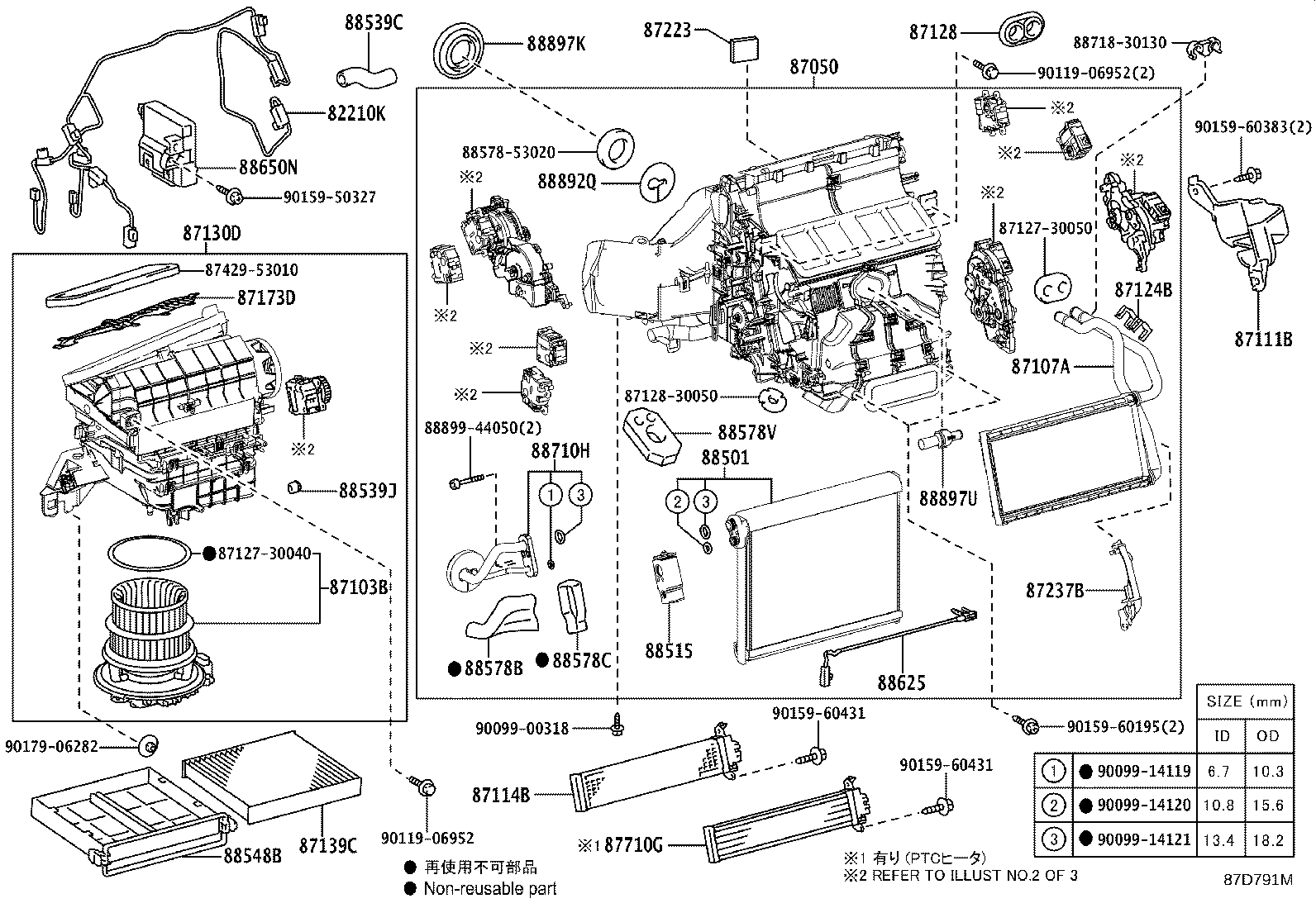

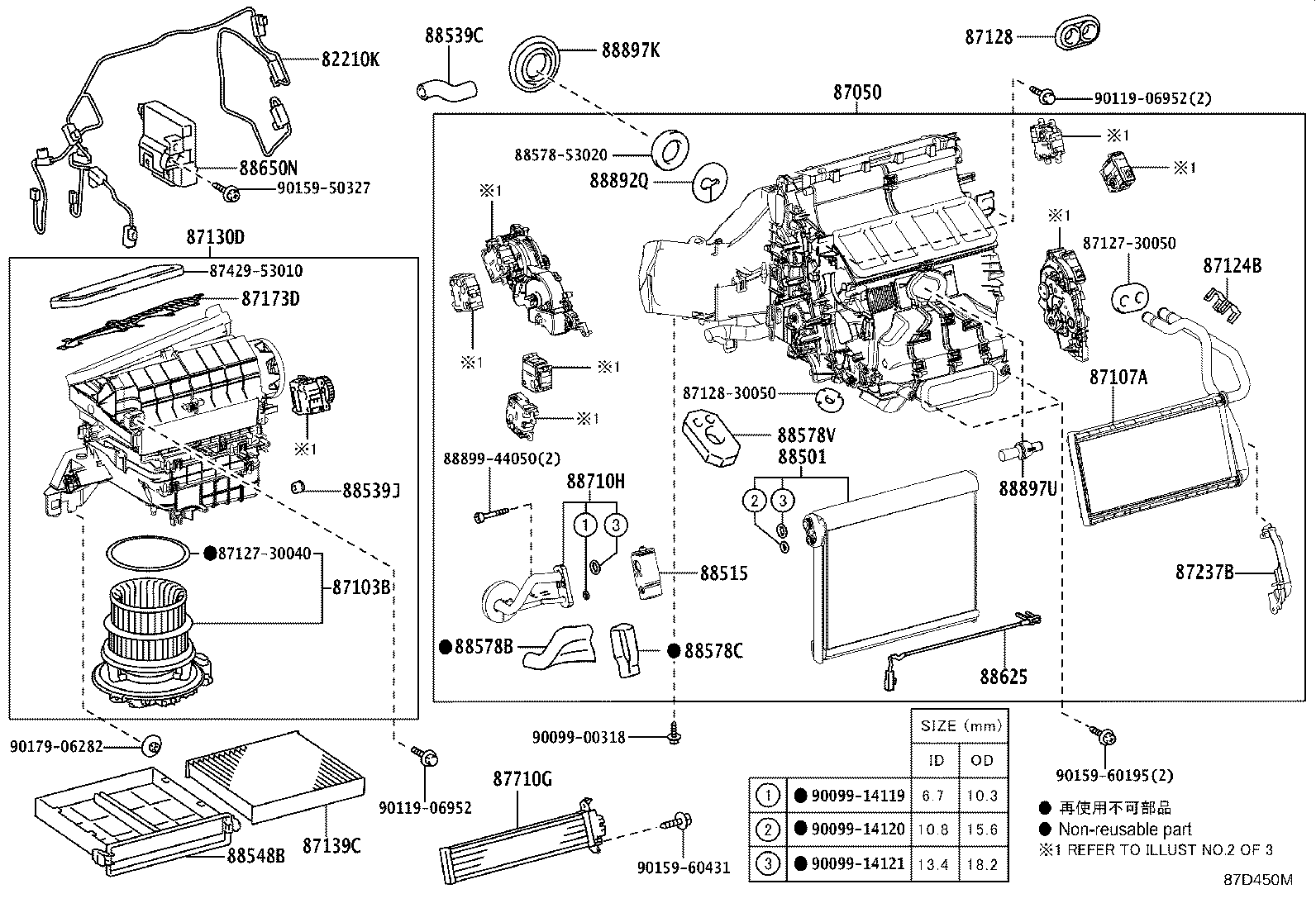

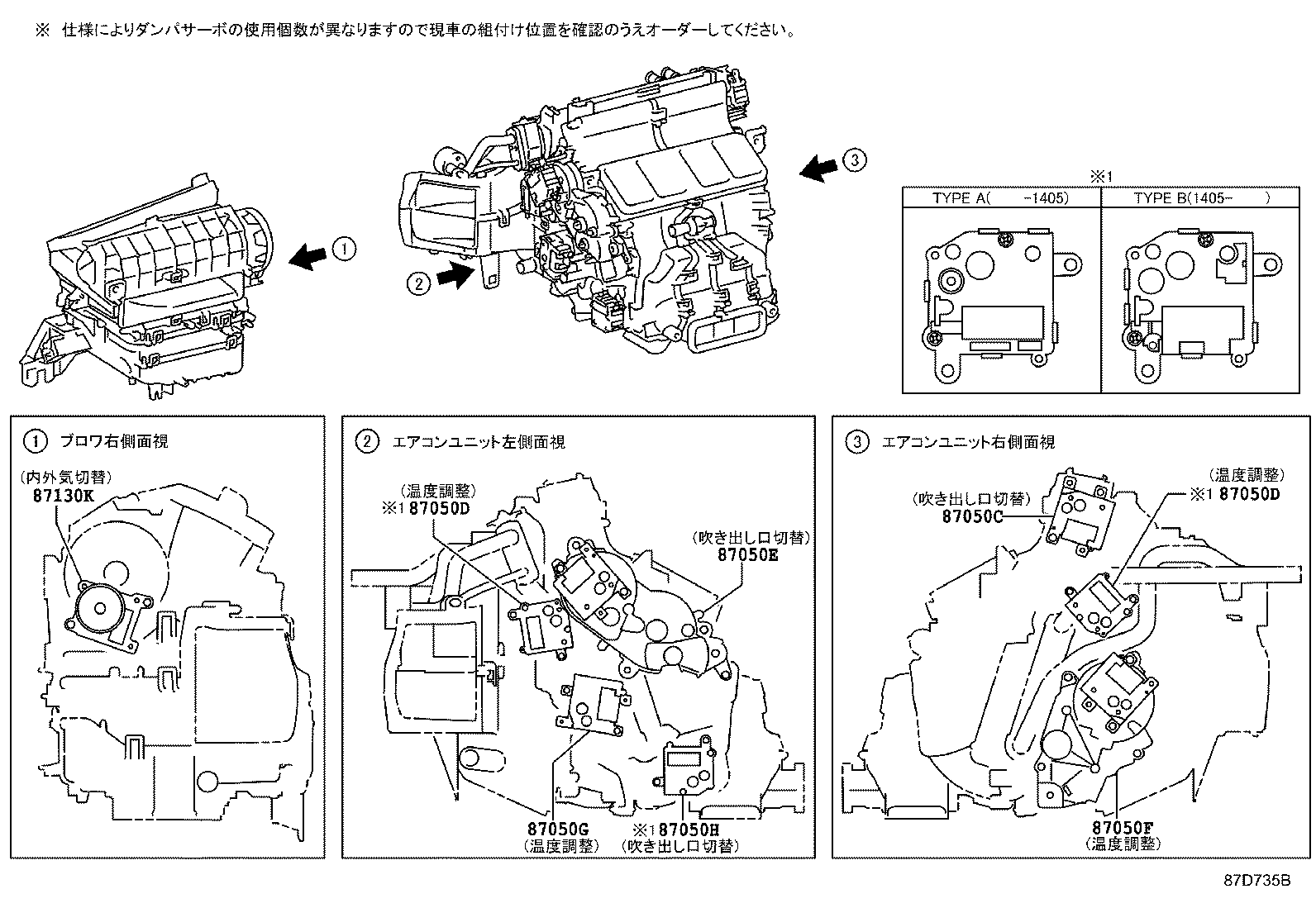

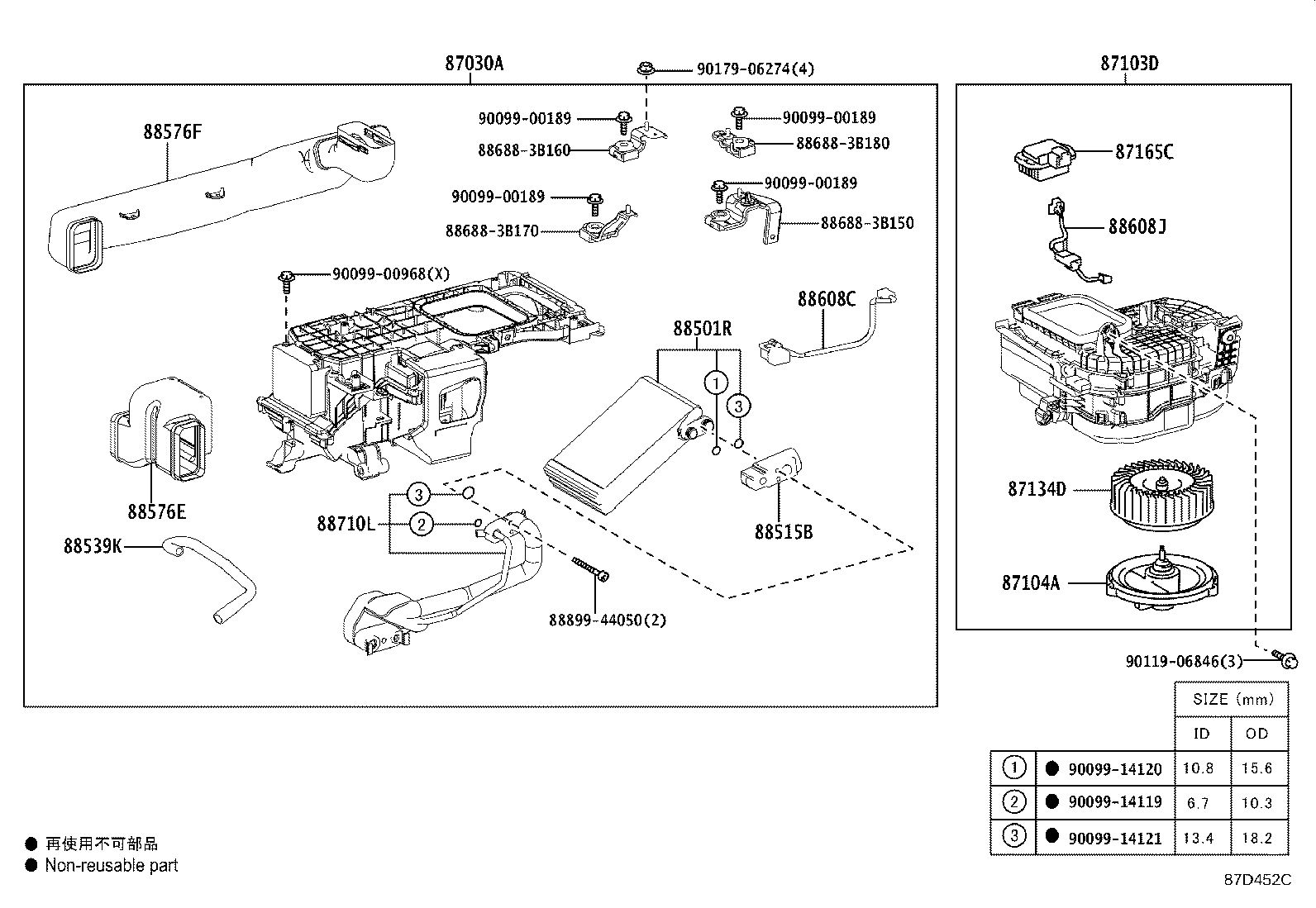

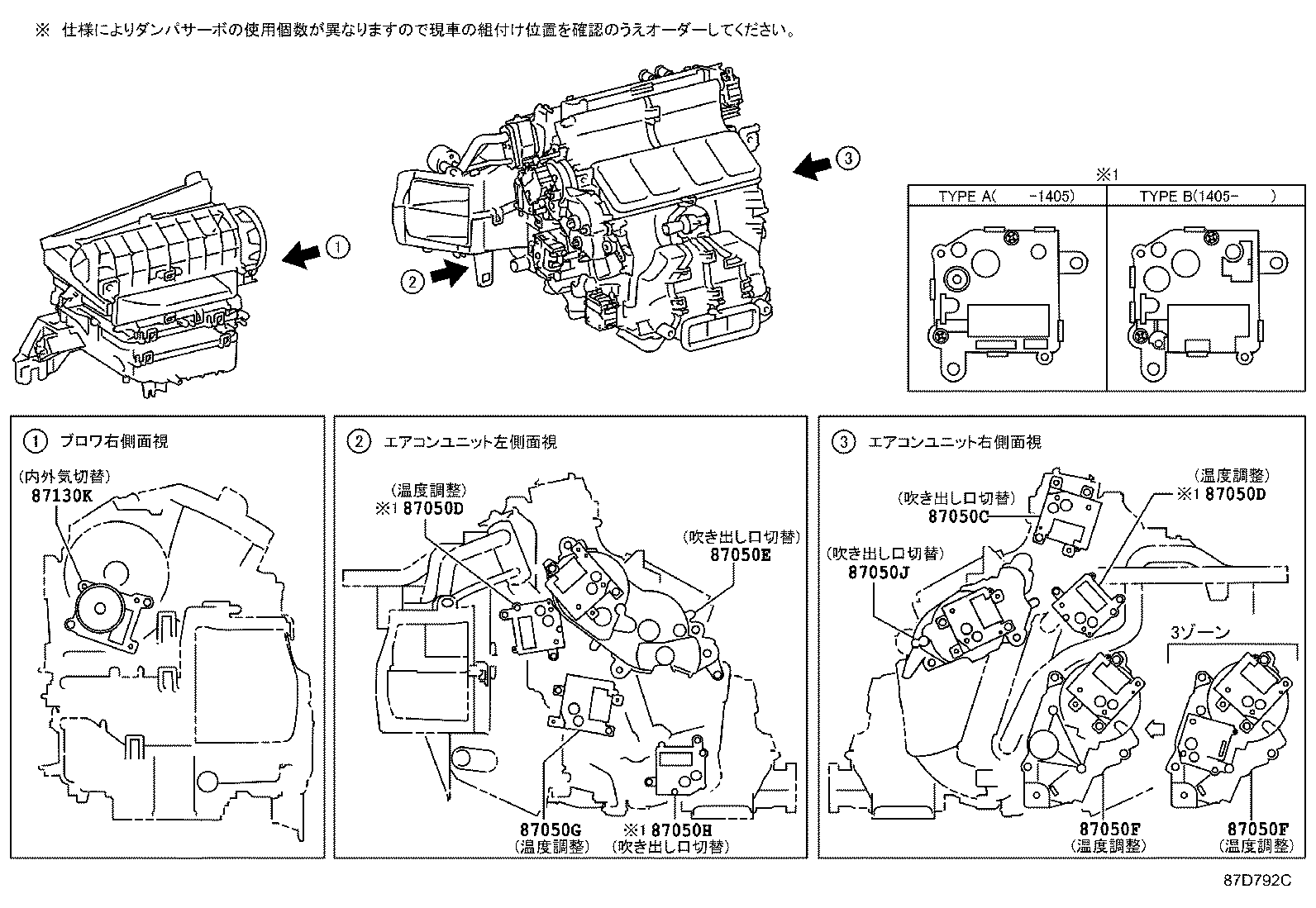

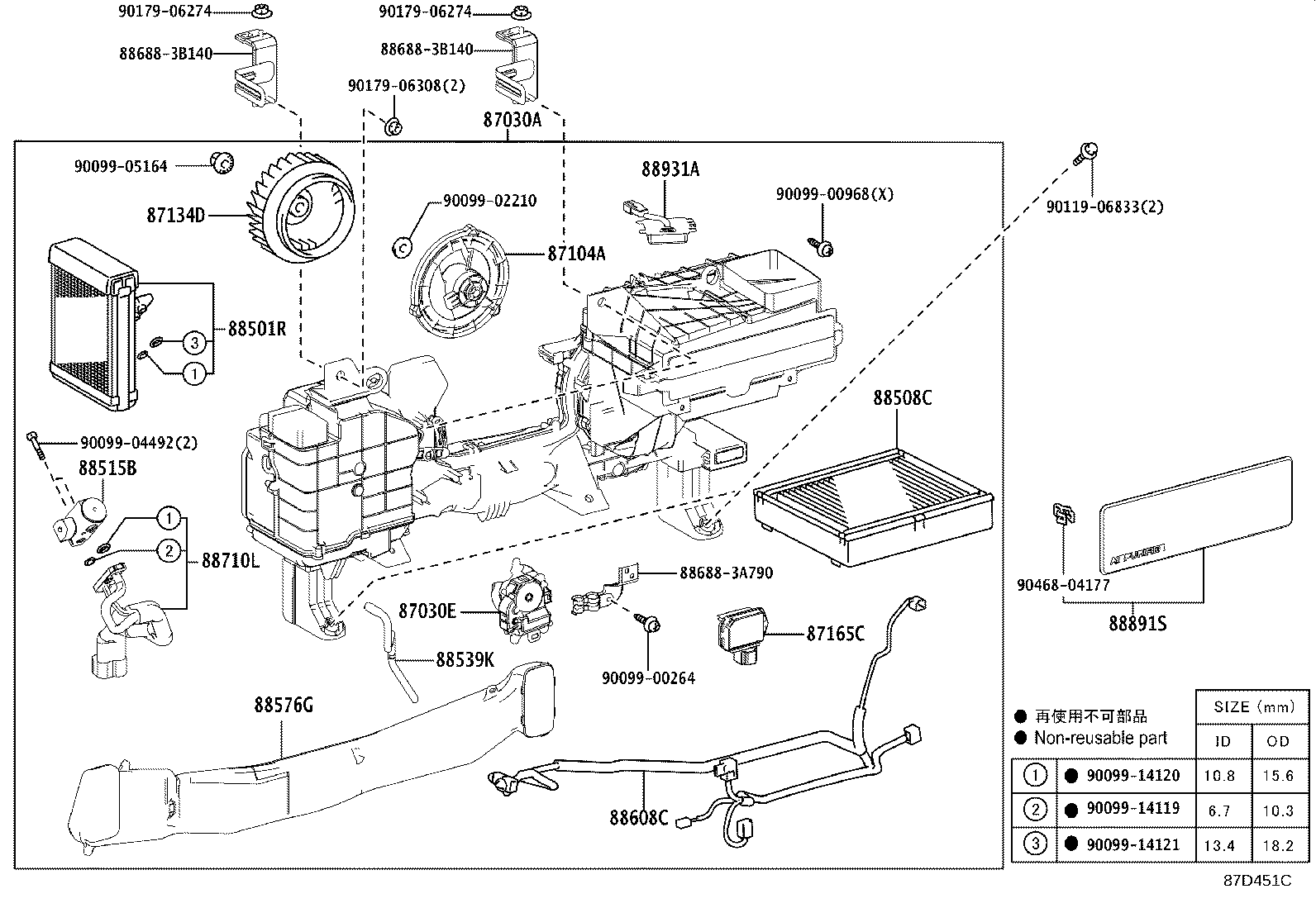

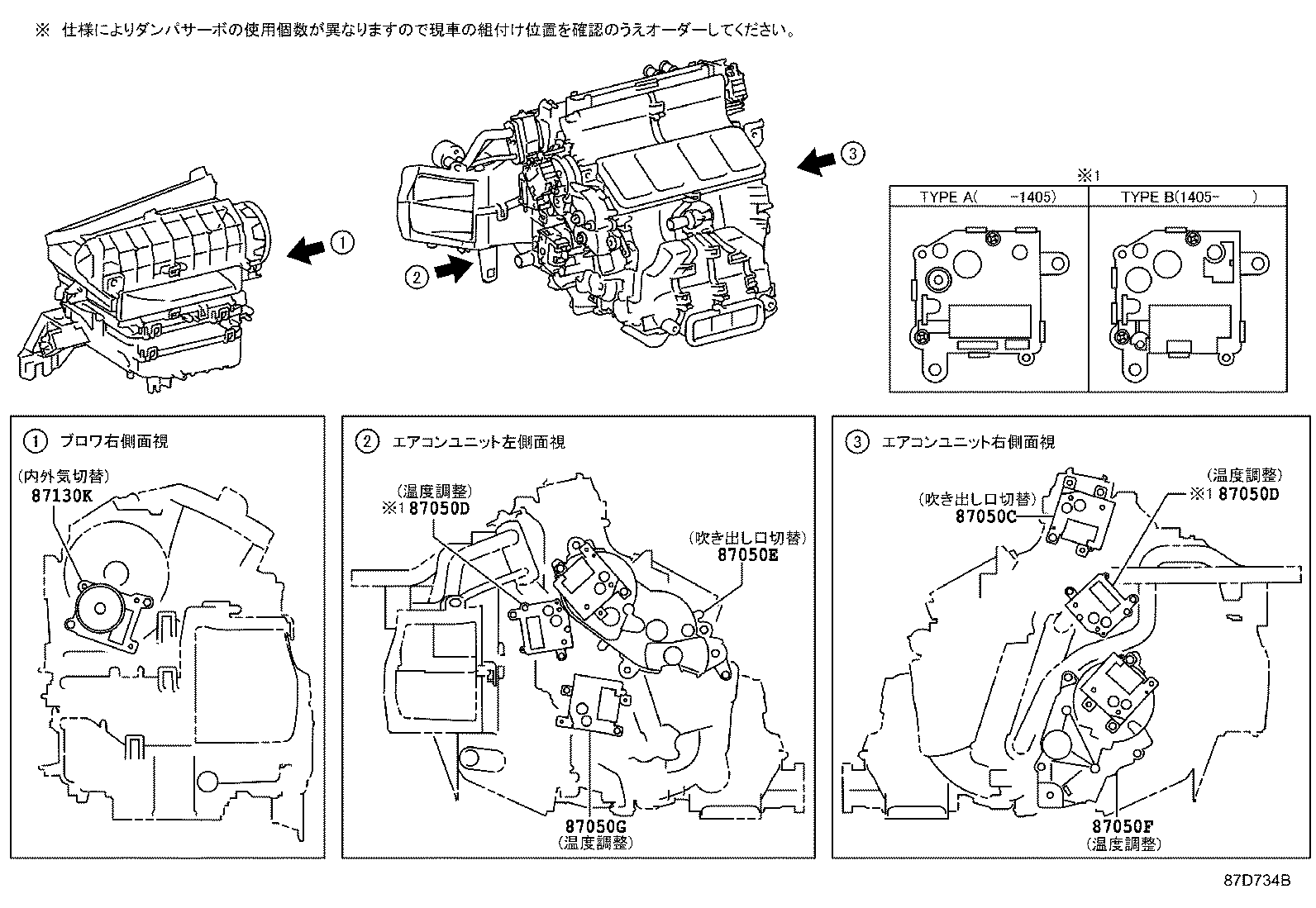

Heating & Air Conditioning - Cooler Unit
54 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87030A | Unit Assy, Cooling, Rear |
| 87030E | Damper Servo Sub-assy, Rear Cooling Unit, NO.1 |
| 87050 | Radiator Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87050E | Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 |
| 87050F | Damper Servo Sub-assy, Air Conditioner Radiator, NO.4 |
| 87050G | Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 |
| 87050H | Damper Servo Sub-assy, Air Conditioner Radiator, NO.6 |
| 87050J | Damper Servo Sub-assy, Air Conditioner Radiator, NO.7 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87104A | Motor Sub-assy, Blower |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87111B | Case, Heater |
| 87114B | Cover, Heater |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87130D | Blower Assy |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87134D | Fan, Blower, NO.2 |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87173D | Protector Heater |
| 87223 | Pad, Air Duct |
| 87237B | Cover, Heater Piping |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88508C | Filter Sub-assy, Air |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539J | Hose, Drain Cooler |
| 88539K | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88576E | Duct, Cooler Air, NO.1 |
| 88576F | Duct, Cooler Air, NO.2 |
| 88576G | Duct, Cooler Air, NO.3 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88608C | Harness Sub-assy, Wiring Air Indicator, NO.2 |
| 88608J | Harness Sub-assy, Wiring Air Indicator, NO.3 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88710L | Tube & Accessory Assy, Air Conditioner, NO.2 |
| 88891S | Cover, Cooler, NO.1 |
| 88892Q | Plate, Cooler |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897U | Pipe, Aspirator |
| 88931A | Sensor, Smoke |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
