Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

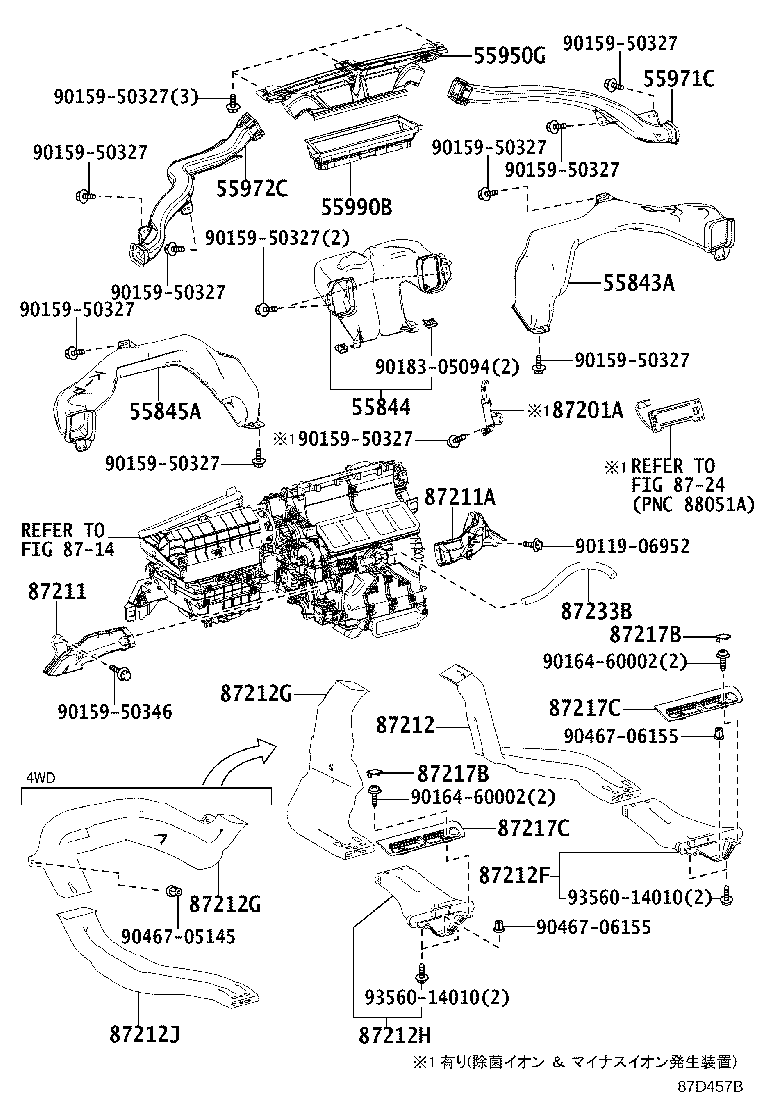

Heating & Air Conditioning - Control & Air Duct
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 62985 | Register, Roof Side Air Outlet |
| 87201A | Duct Sub-assy, Air |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87217B | Plug, Air Duct |
| 87217C | Duct, Air, Rear NO.5 |
| 87217D | Duct, Air, Rear Side NO.1 |
| 87217E | Duct, Air, Rear Side NO.2 |
| 87217F | Duct, Air, Rear Side NO.3 |
| 87217G | Duct, Air, Rear Side NO.4 |
| 87217H | Duct, Air, Rear Side NO.5 |
| 87233B | Hose, Air |
| 88566P | Clip, Cooler Air Duct |
| 88566R | Duct, Air, Rear Roof NO.1 |
| 88566S | Duct, Air, Rear Roof NO.2 |
| 88566T | Duct, Air, Rear Roof NO.3 |
| 88566U | Duct, Air, Rear Roof NO.4 |

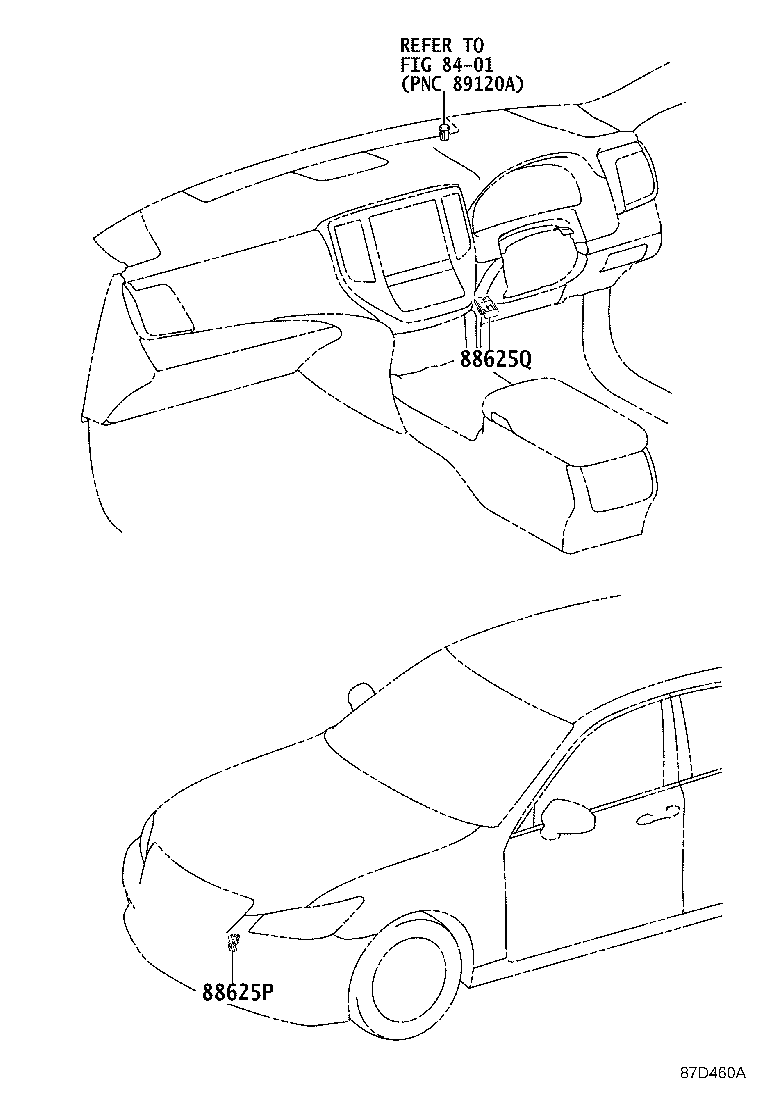

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
