Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

13 part groups · 4 illustrations

Illustrations

Figure 87D453B

87D453B 2012-12 → —

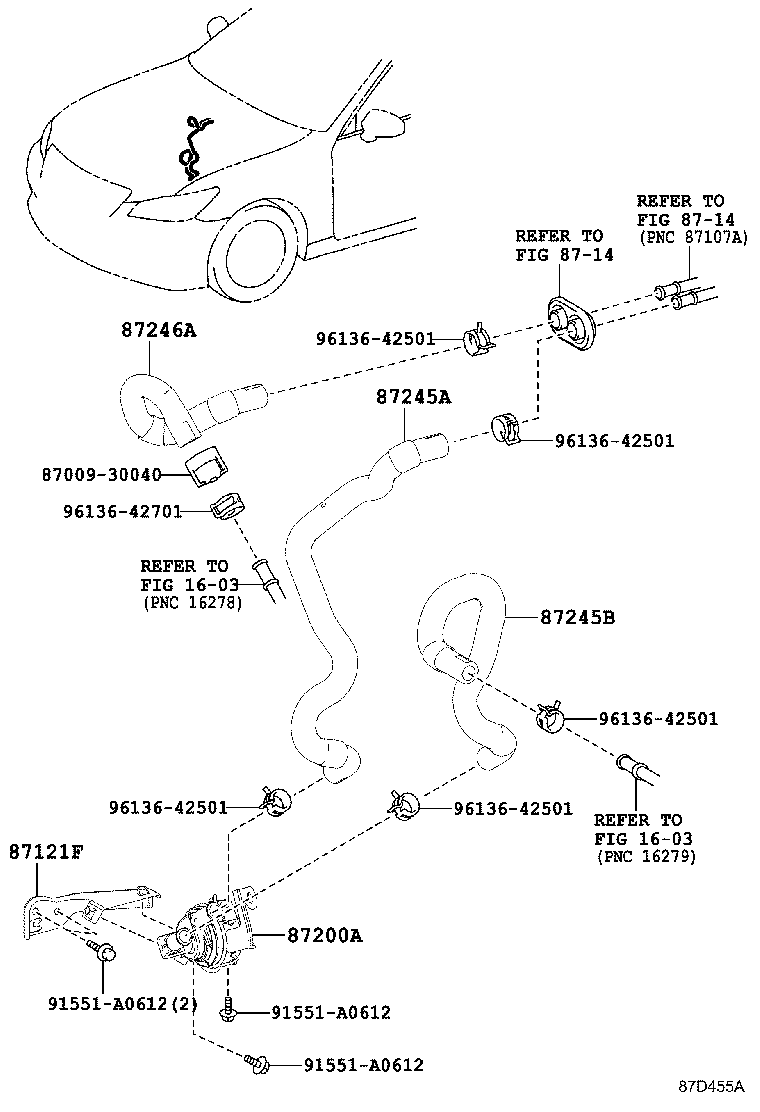

Figure 87D455A

87D455A 2013-01 → —

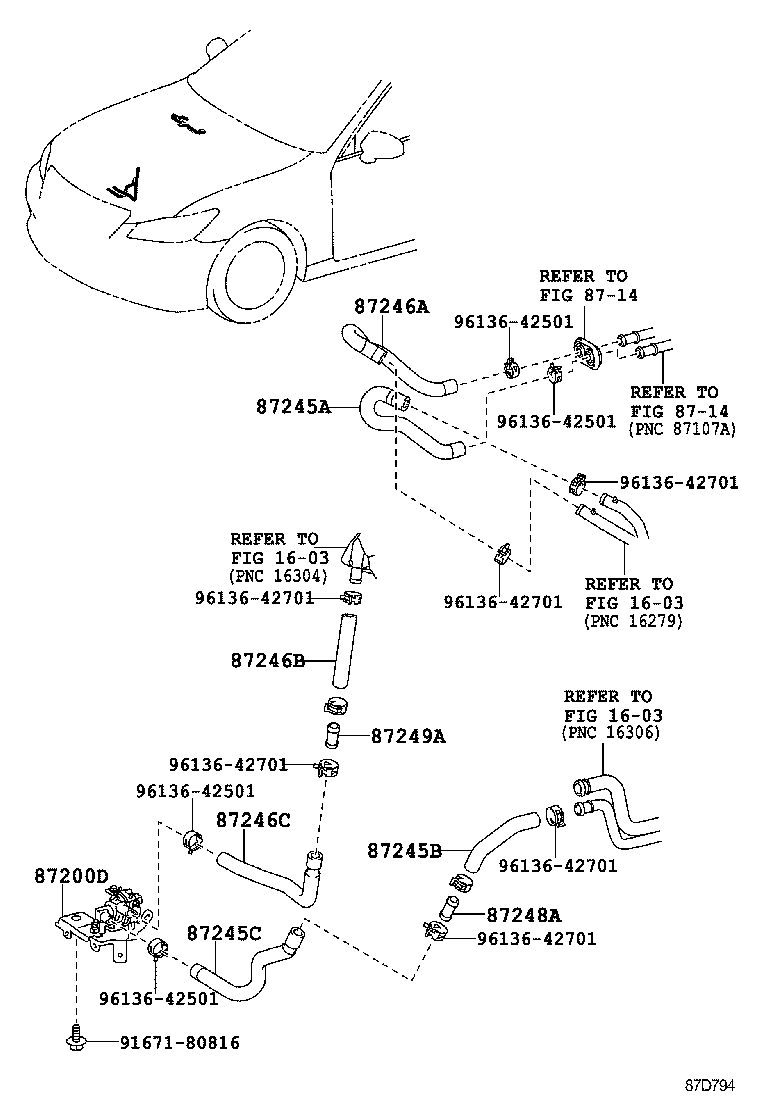

Figure 87D794

87D794 2013-09 → —

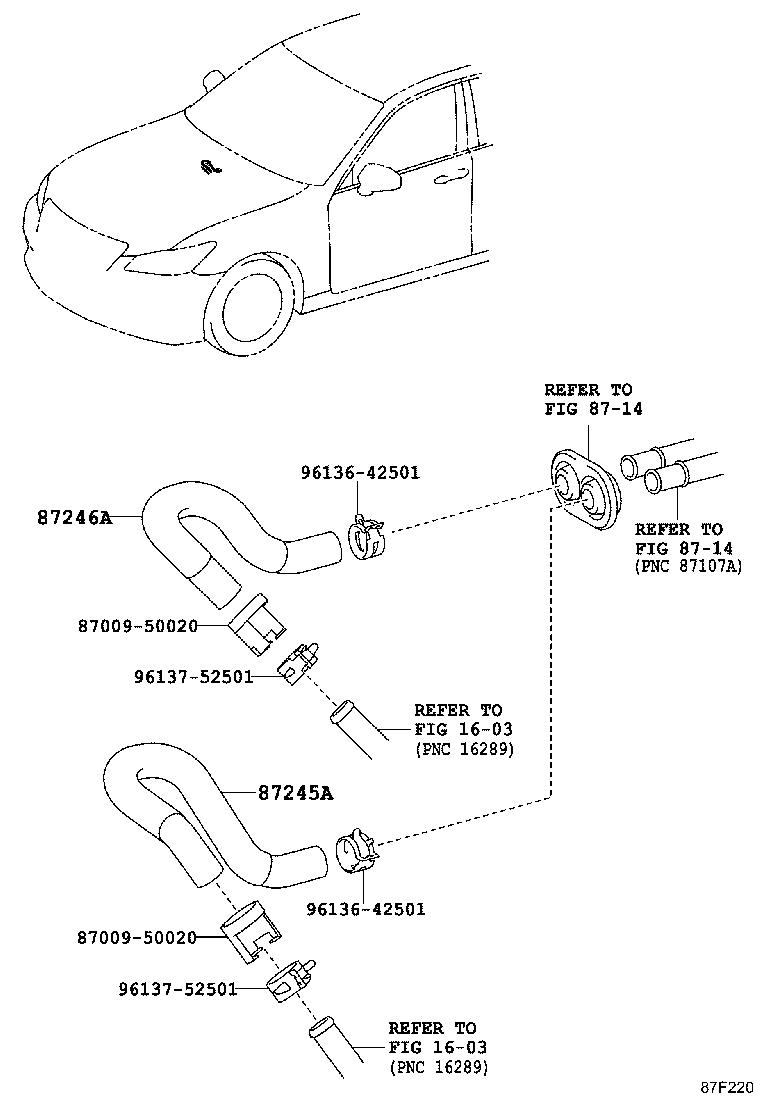

Figure 87F220

87F220 2015-09 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87200A	Pump Assy, Water(FOR HEATER)
87200D	Accessory Assy, Heater
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
