Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 13 illustrations

Illustrations

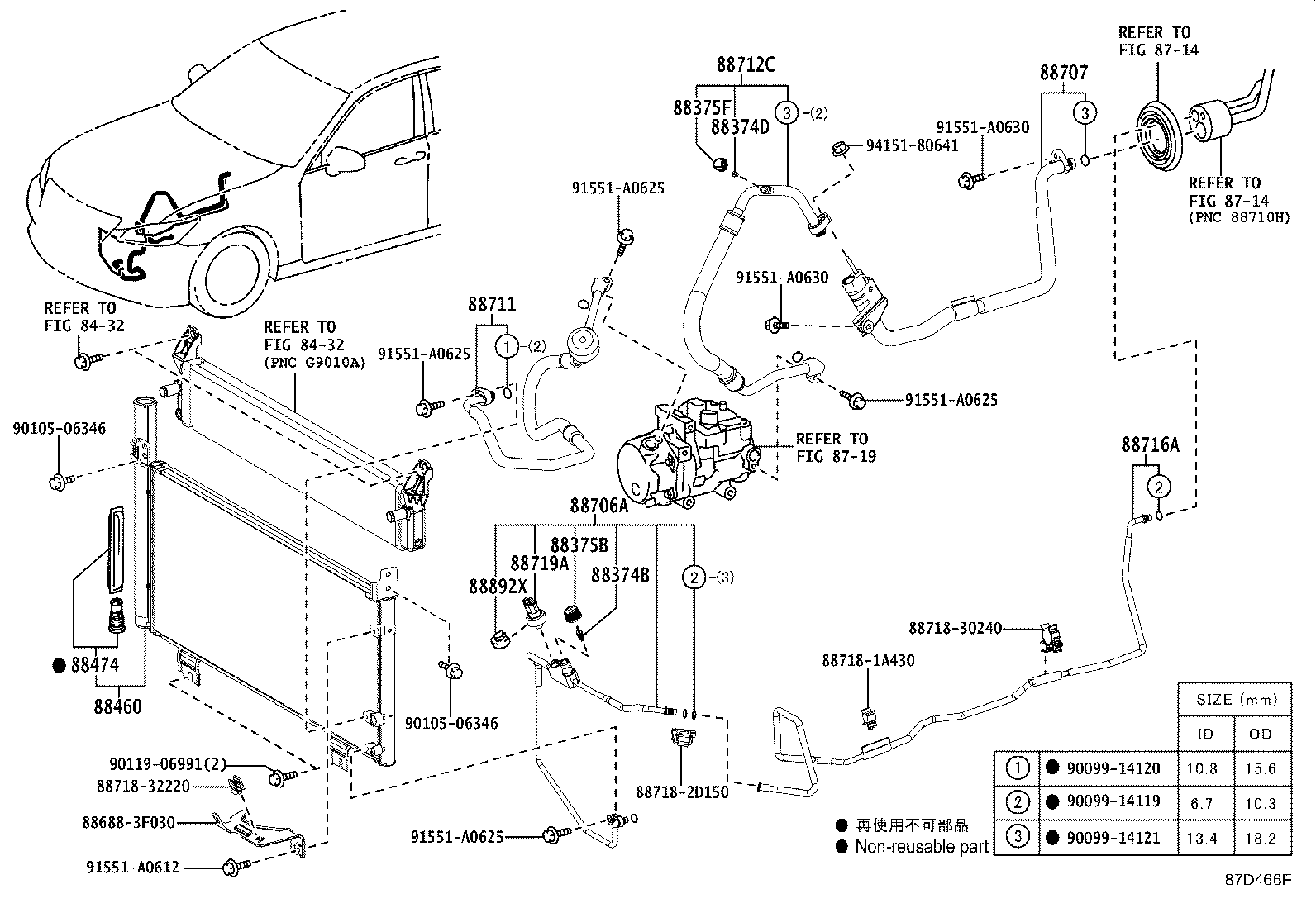

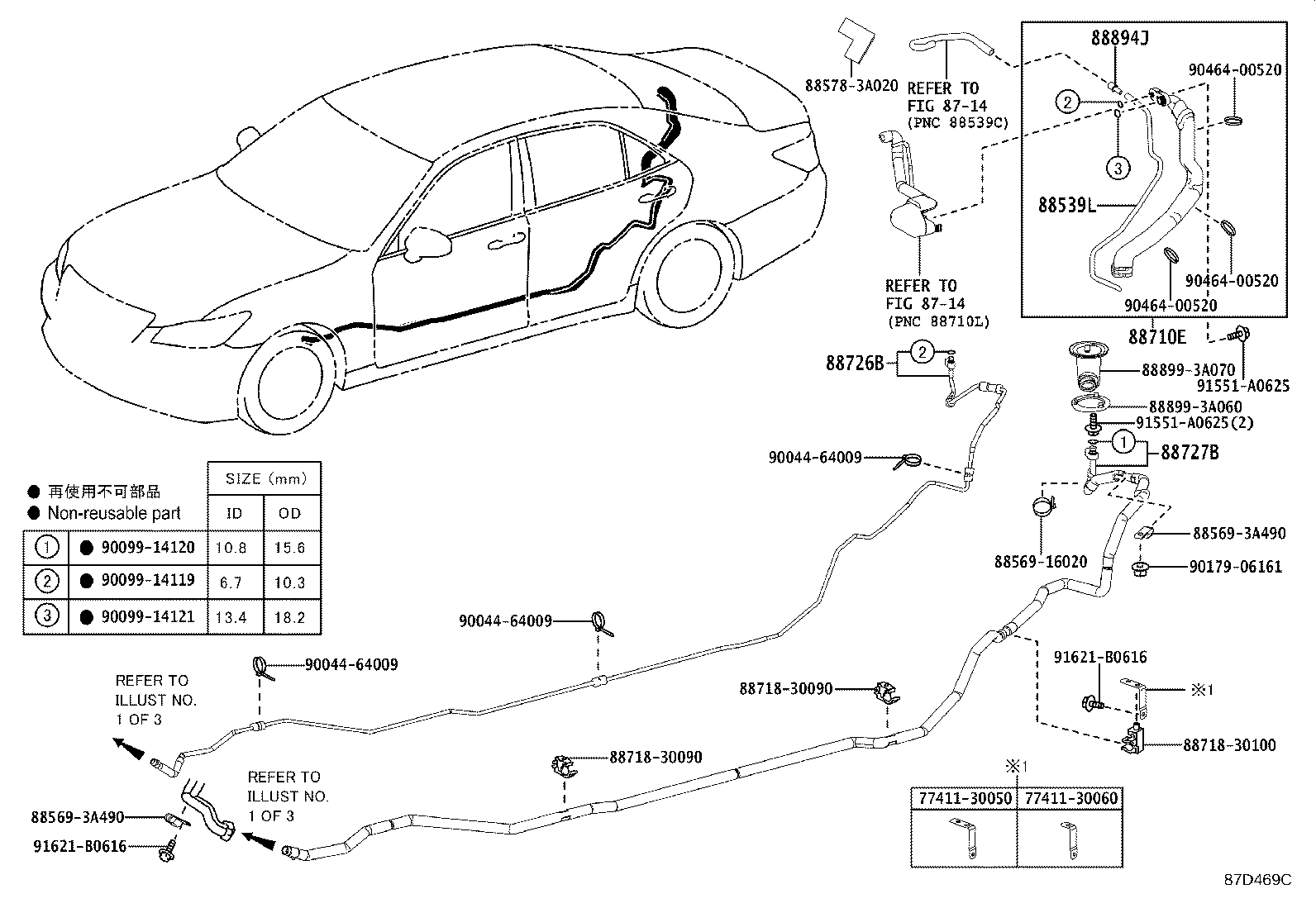

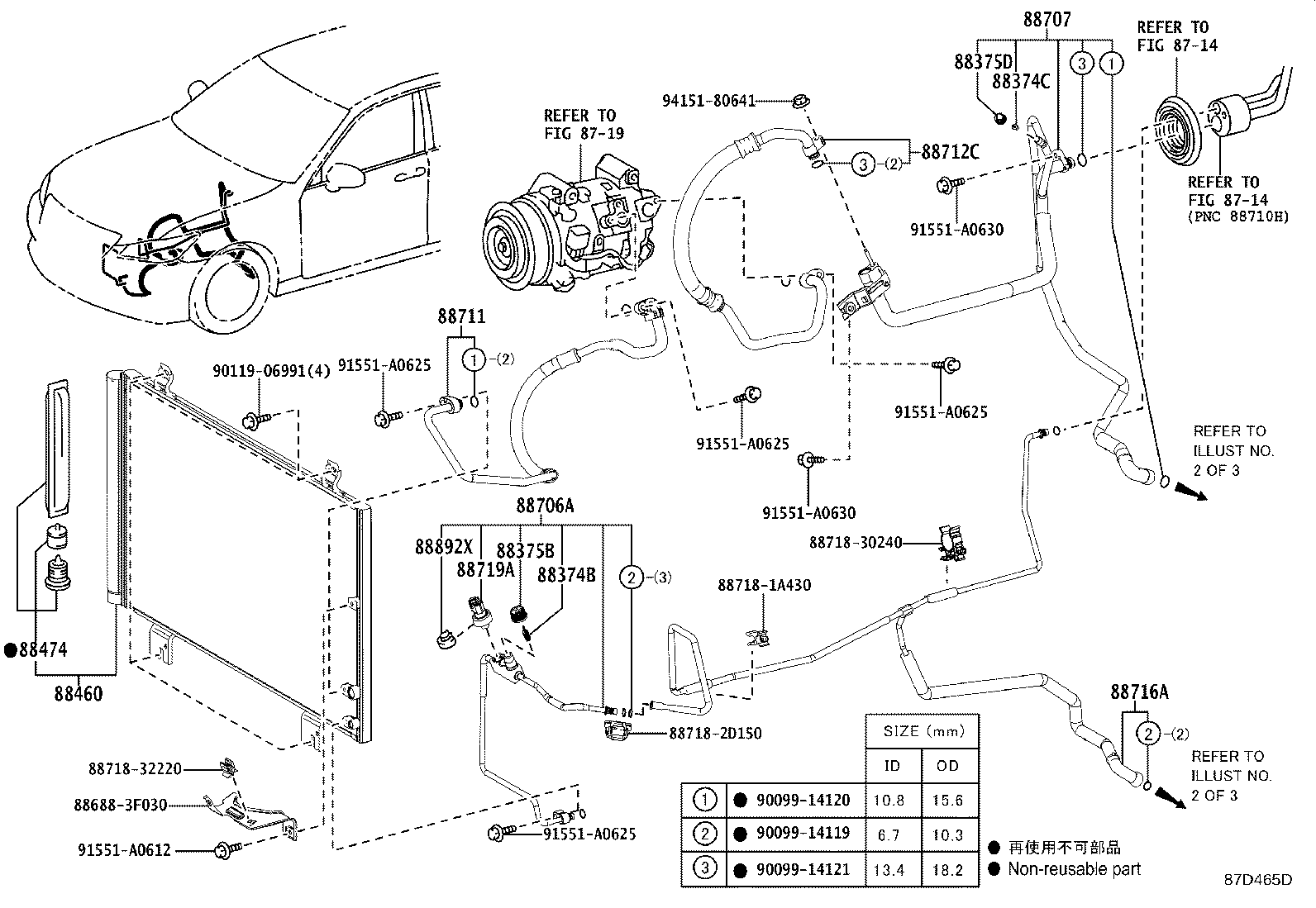

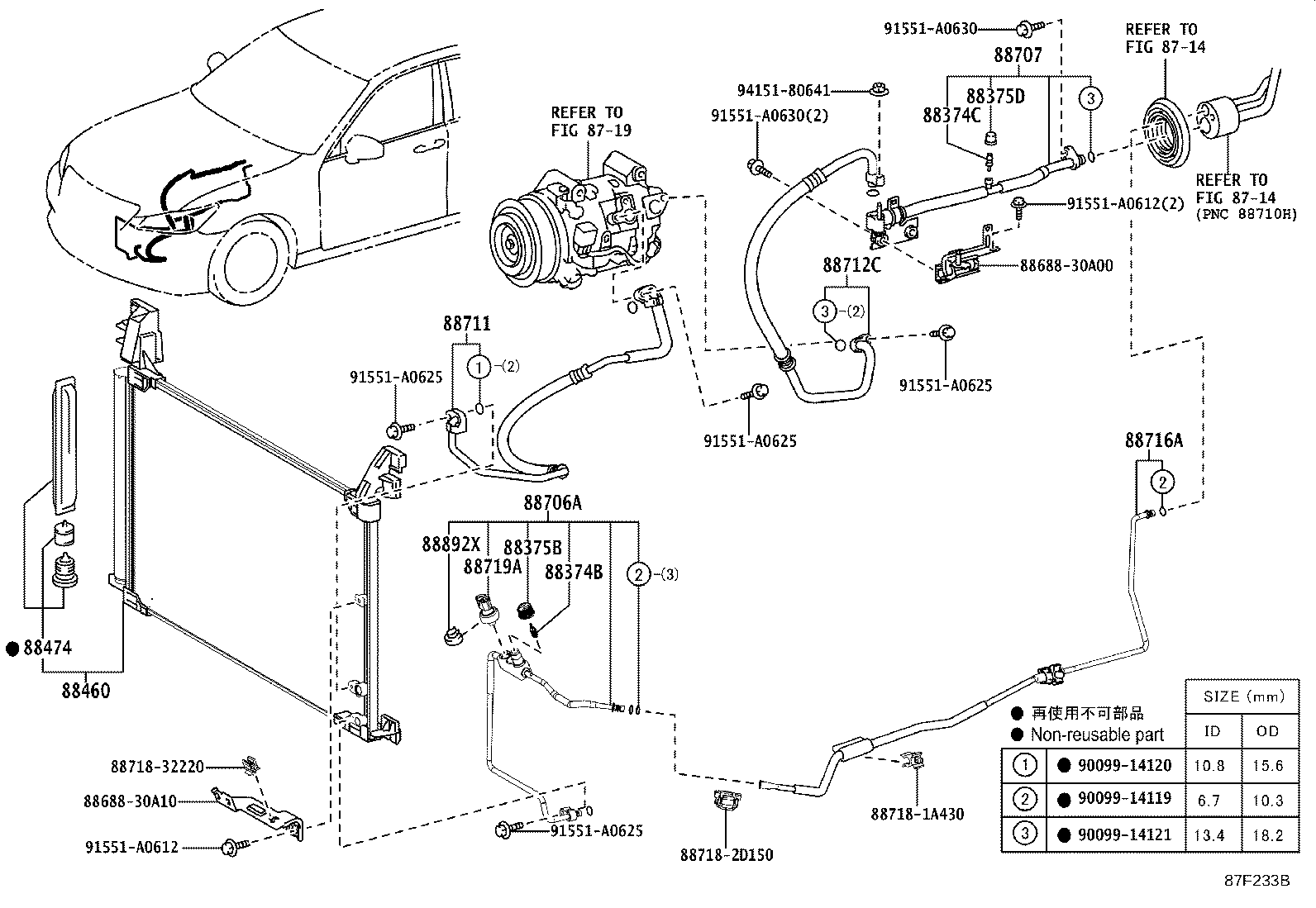

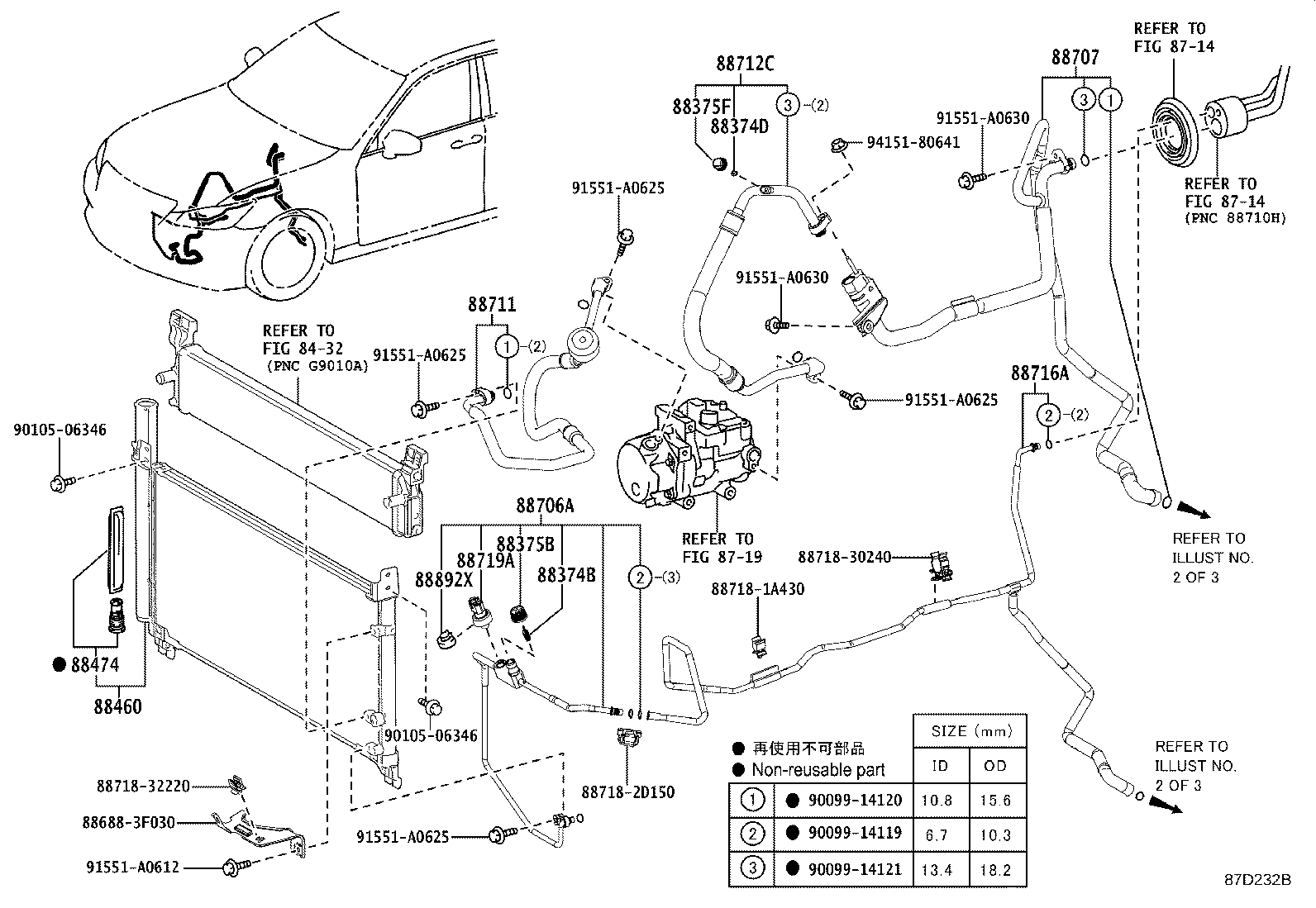

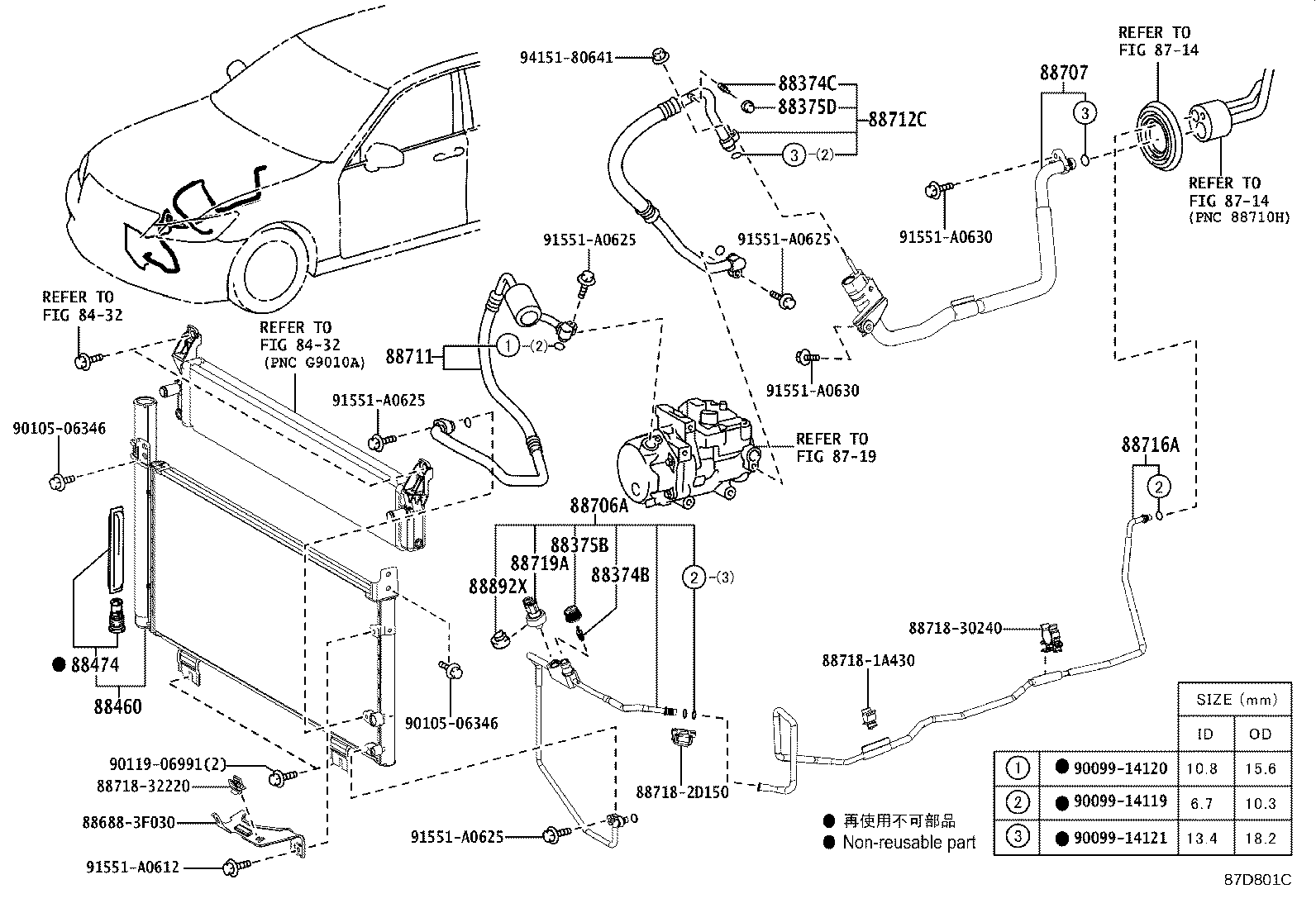

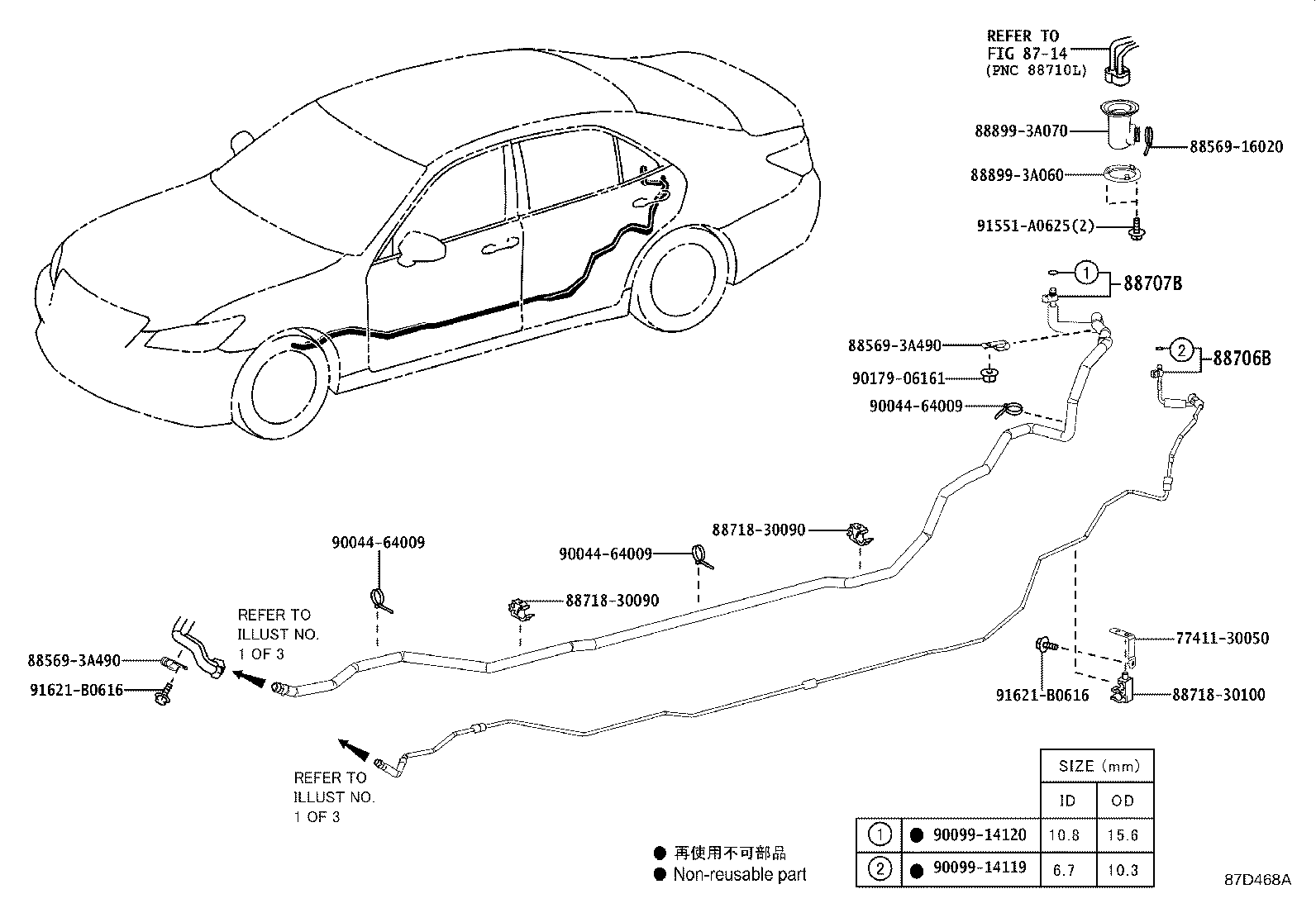

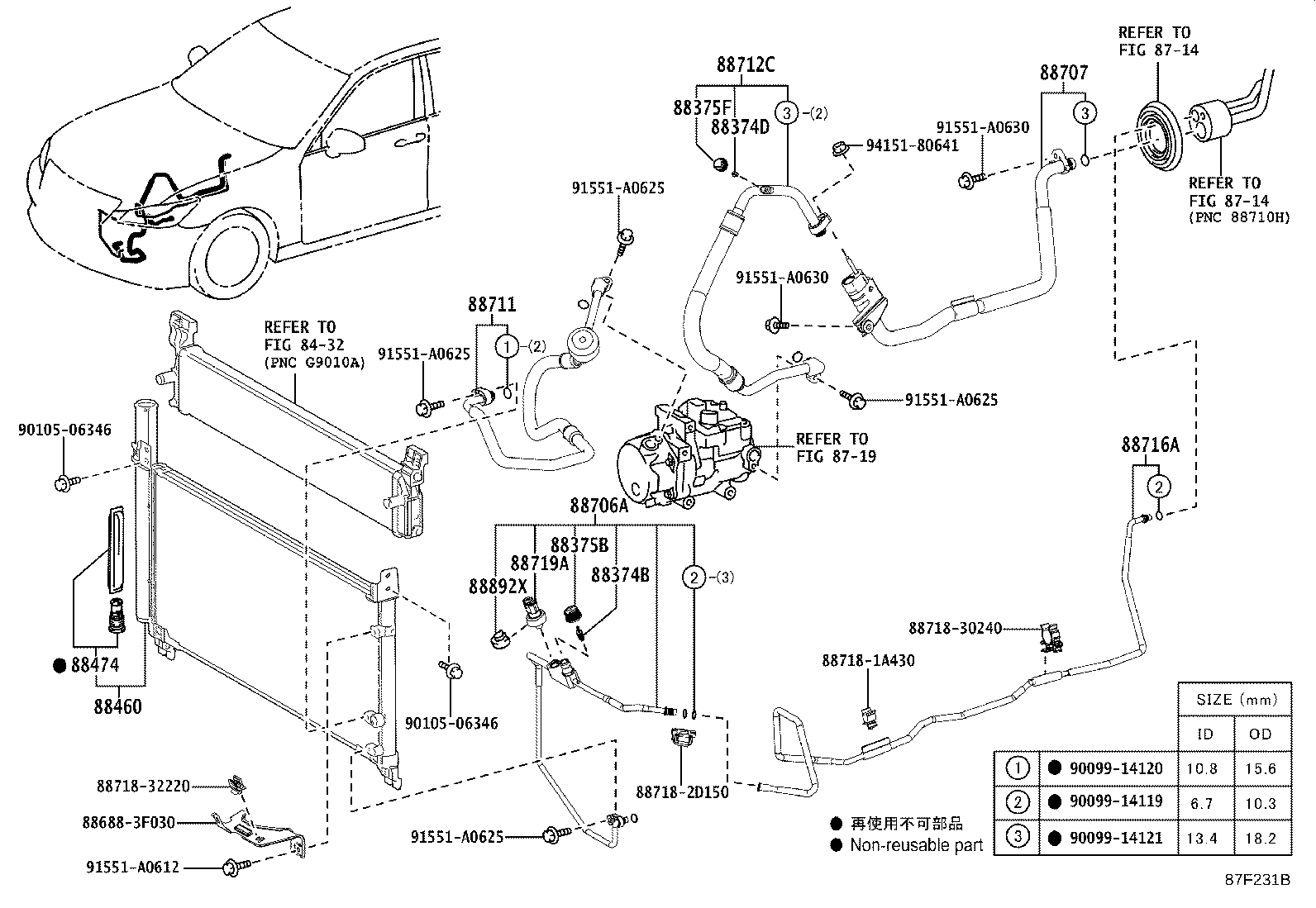

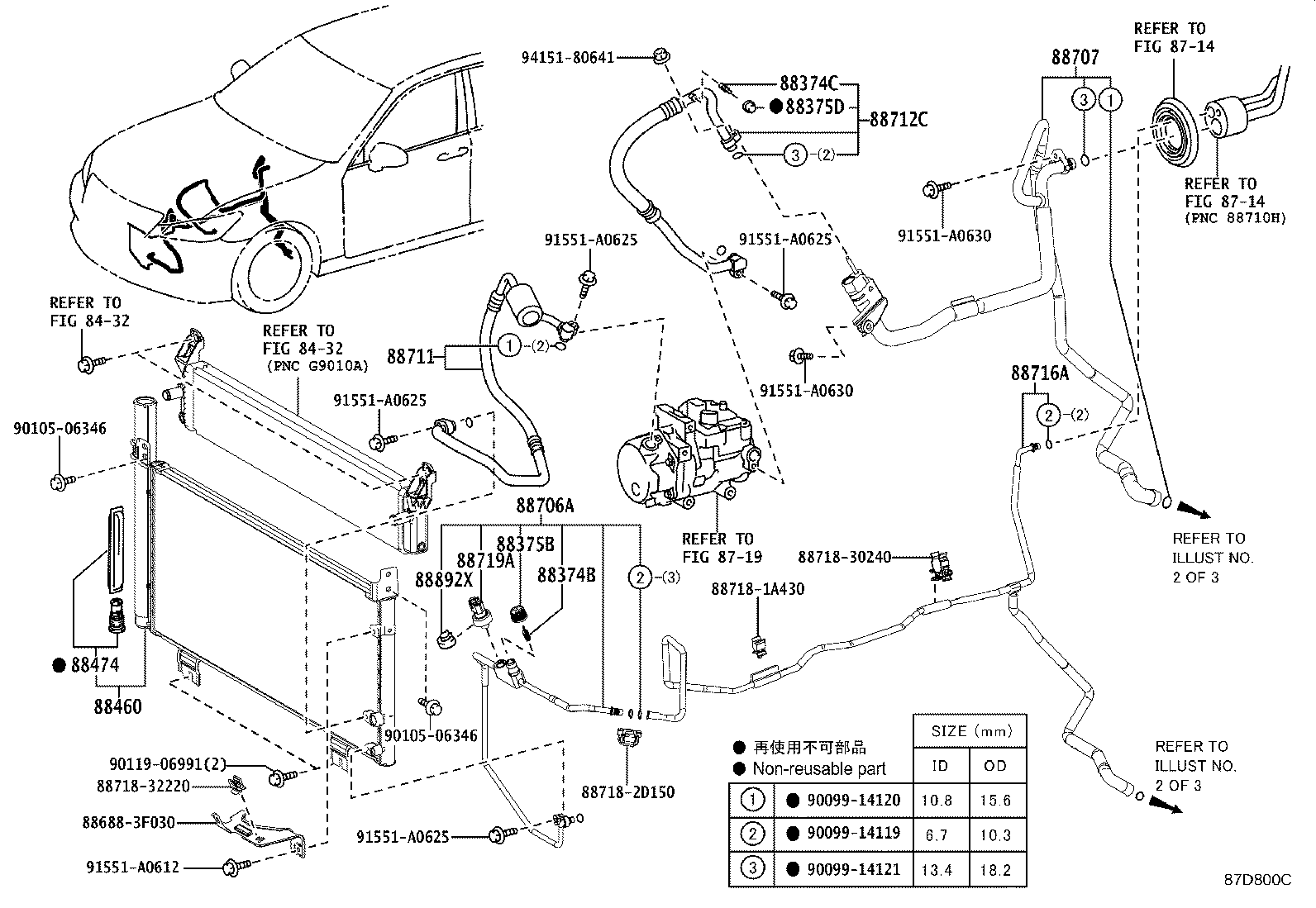

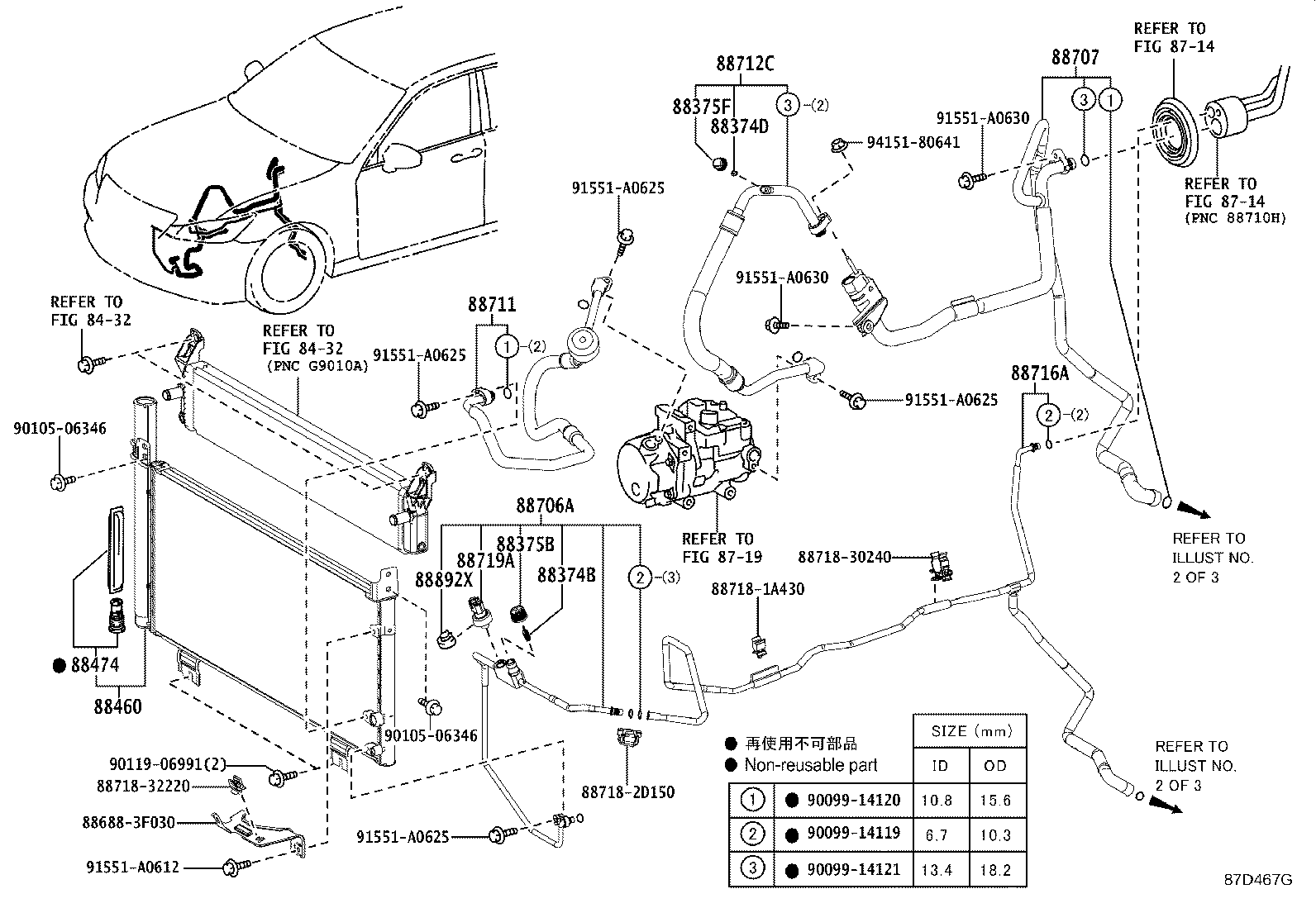

Figure 87D464D 87D464D 2012-12 → — Figure 87D465D 87D465D 2012-12 → — Figure 87D466G 87D466G 2013-01 → 2015-09 Figure 87D467G 87D467G 2013-01 → 2015-09 Figure 87D467G 87D467G 2015-09 → — Figure 87F231B 87F231B 2015-09 → — Figure 87F232B 87F232B 2015-09 → — Figure 87F233B 87F233B 2015-09 → — Figure 87D801C 87D801C 2013-09 → — Figure 87D800C 87D800C 2013-09 → — Figure 87D468A 87D468A 2012-12 → — Figure 87D469C 87D469C 2013-01 → — Figure 87D469C 87D469C 2014-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88539L Hose, Drain Cooler
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88726B Pipe, Cooler Refrigerant Liquid, B
88727B Pipe, Cooler Refrigerant Suction, B
88892X Cover, Cooler, NO.2
88894J Connector, Drain Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
