Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 4 illustrations

Illustrations

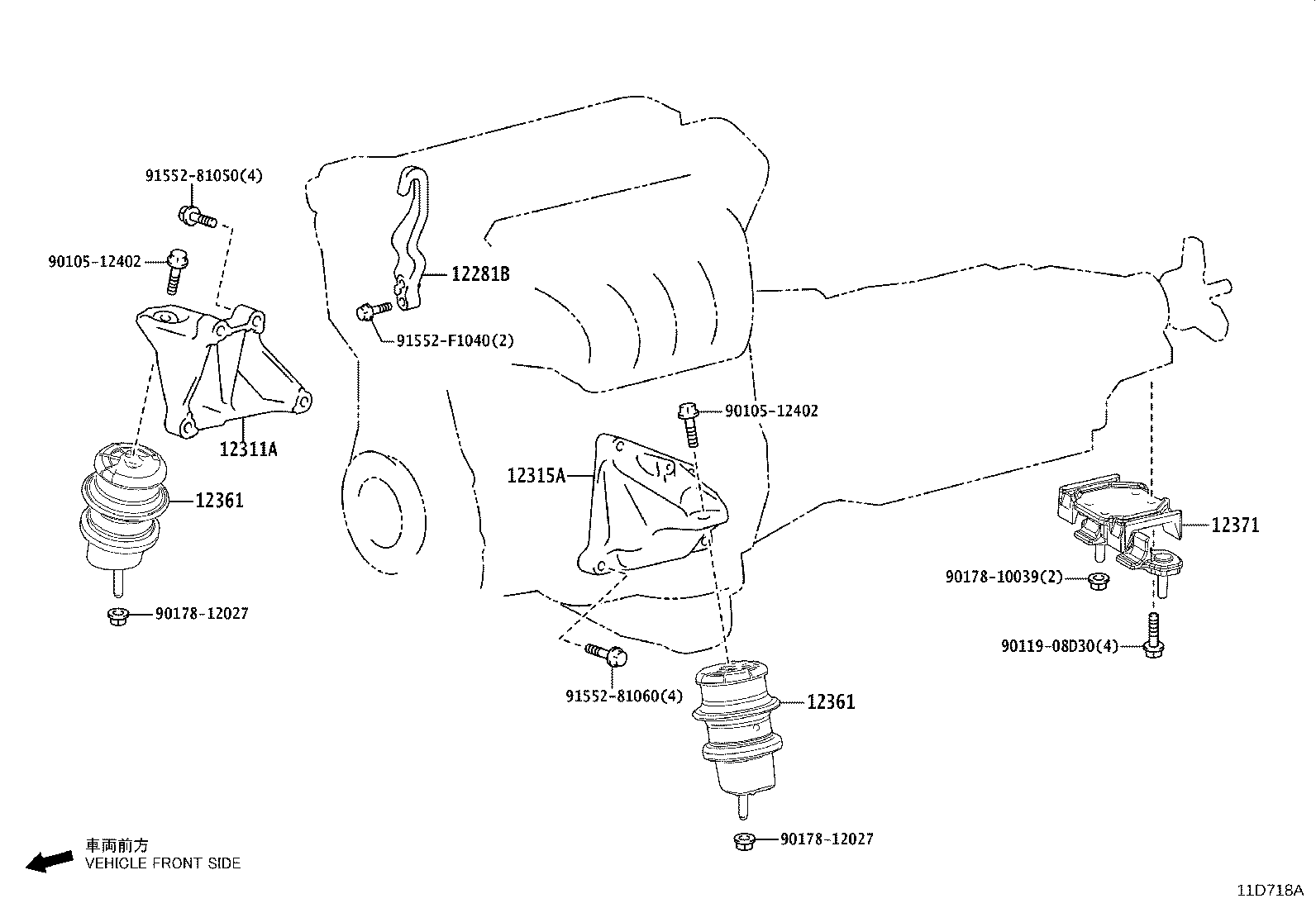

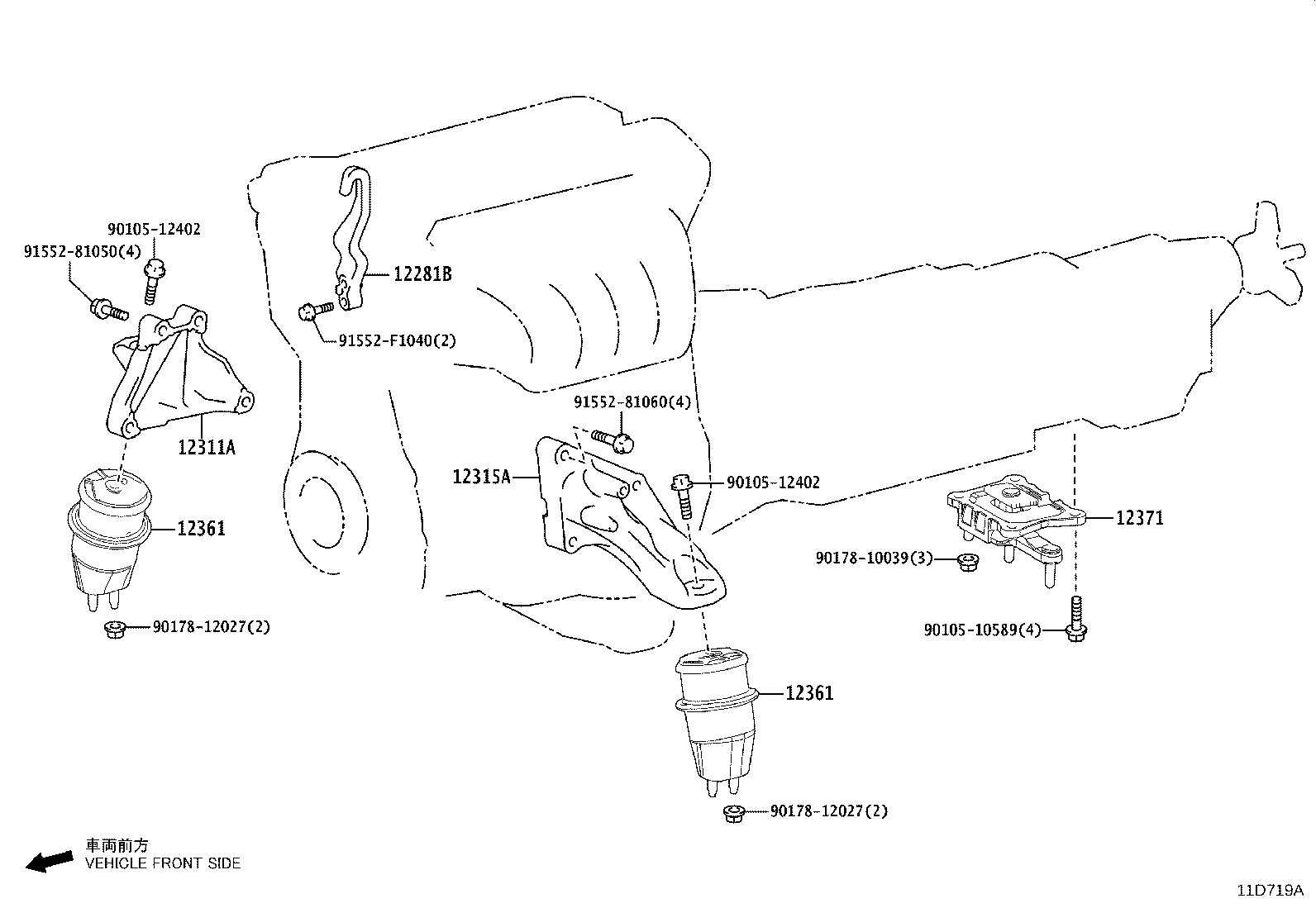

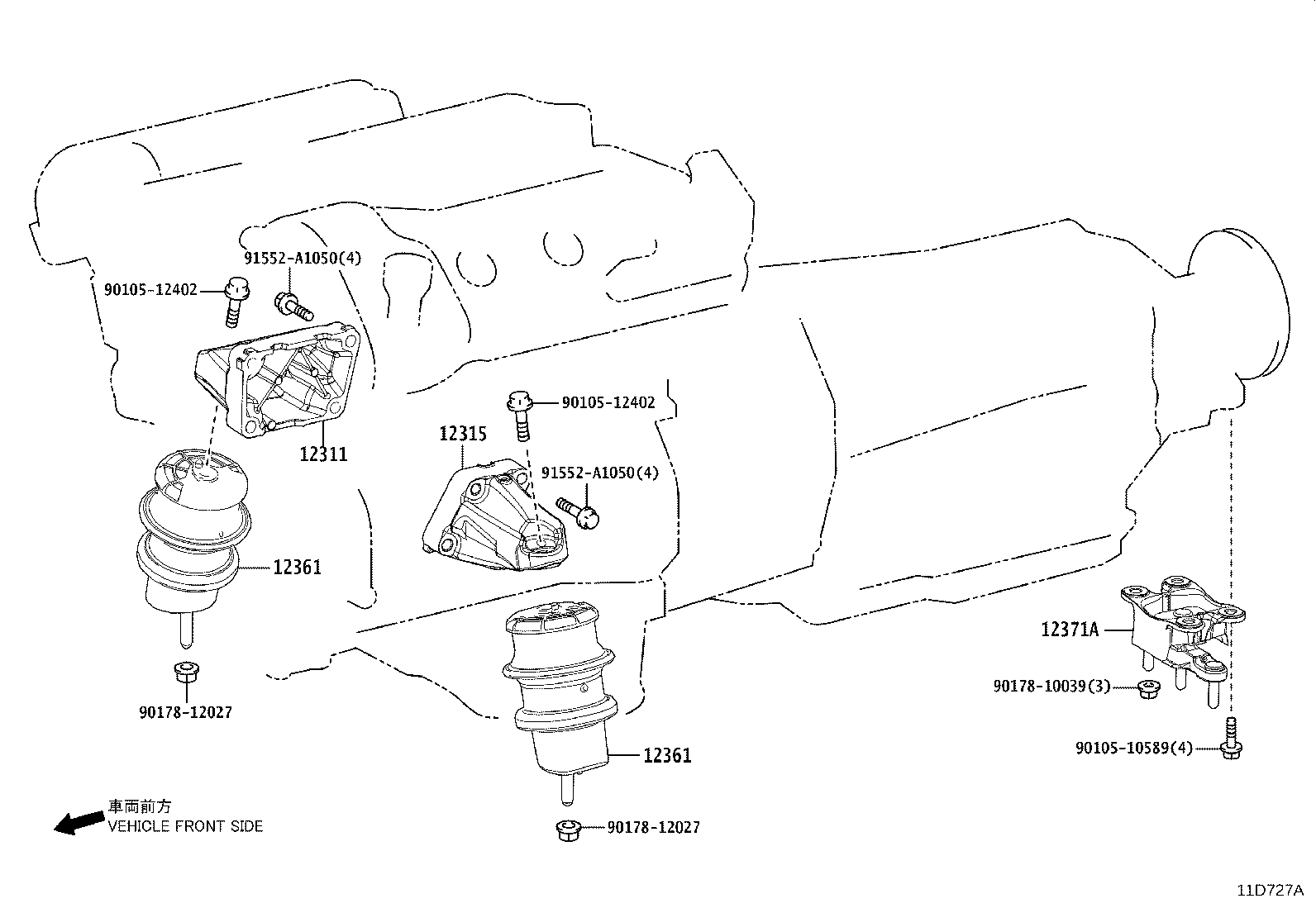

Figure 11D717C 11D717C 2018-06 → — Figure 11D718A 11D718A 2018-06 → — Figure 11D719A 11D719A 2018-06 → — Figure 11D727A 11D727A 2018-06 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
12392 Insulator, Engine Mounting Heat, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
