Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

15 part groups · 3 illustrations

Illustrations

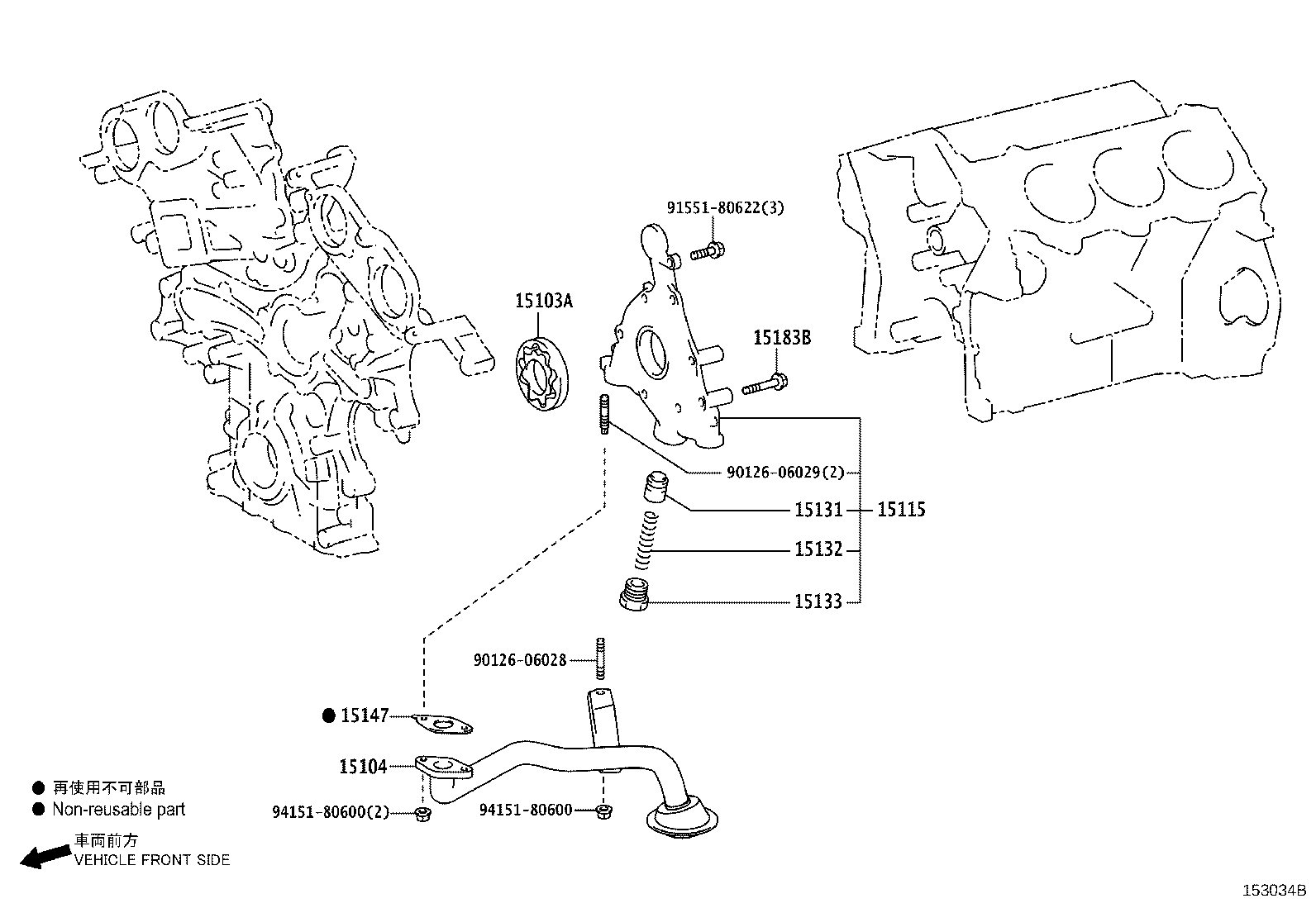

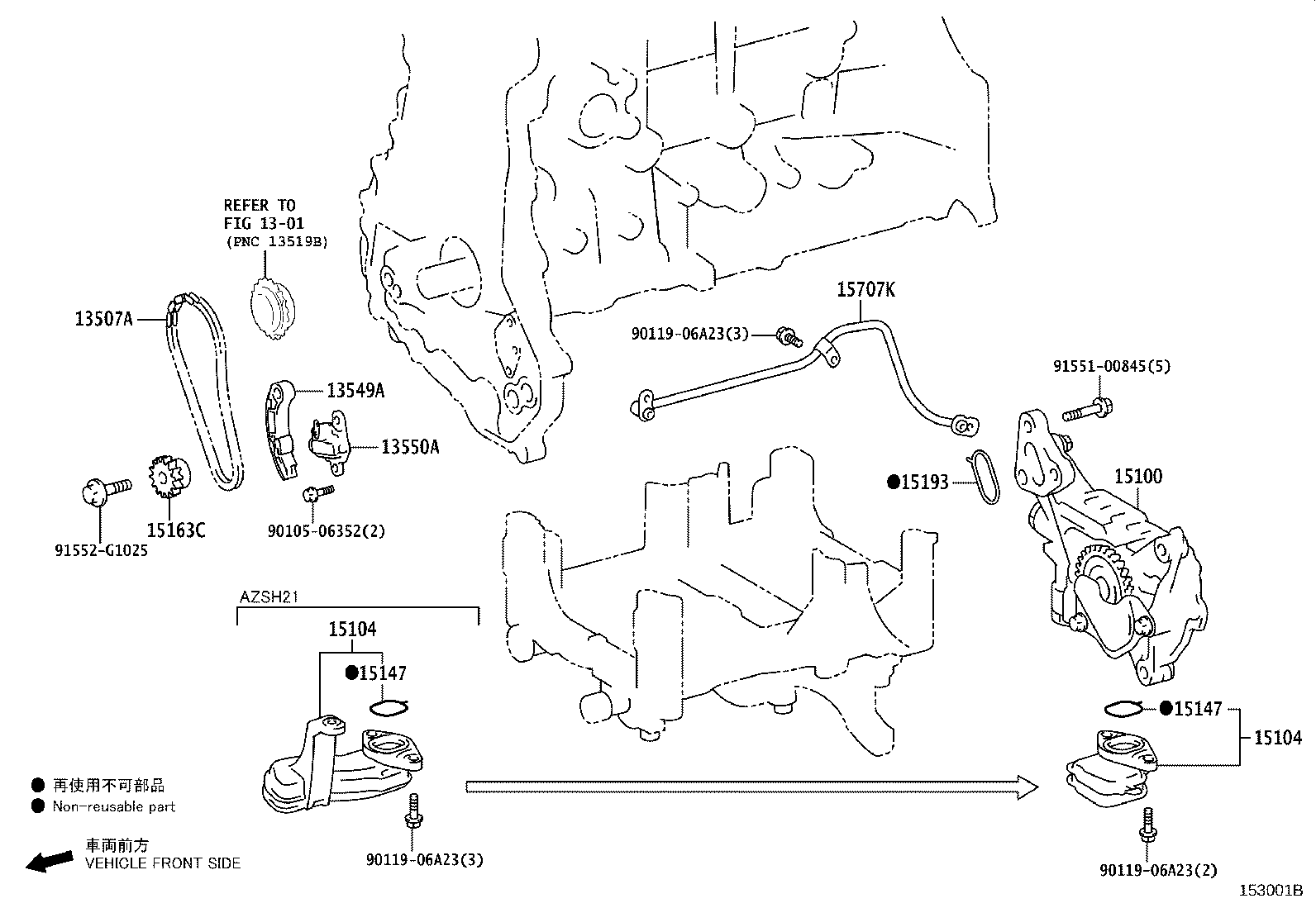

Figure 153000A 153000A 2018-06 → — Figure 153001B 153001B 2018-06 → — Figure 153034B 153034B 2018-06 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
13549A Plate, Chain Tensioner
13550A Tensioner Assy, Chain, NO.2
15100 Pump Assy, Oil
15103A Rotor Sub-assy, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163C Sprocket, Oil Pump Drive Shaft
15183B Bolt, Oil Pump Cover
15193 Gasket, Oil Pump
15707K Pipe Sub-assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
