Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

143 part groups · 8 illustrations

Illustrations

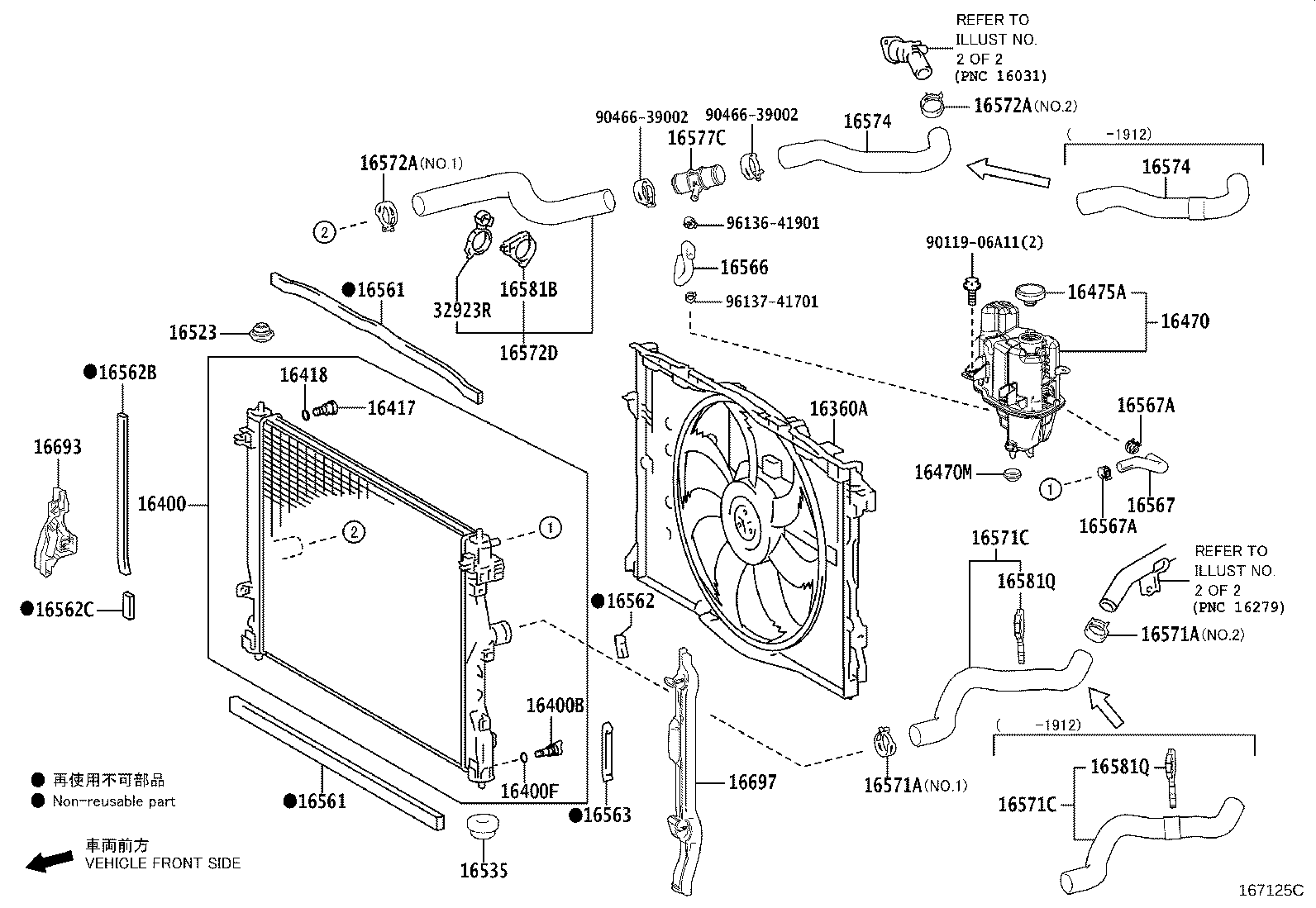

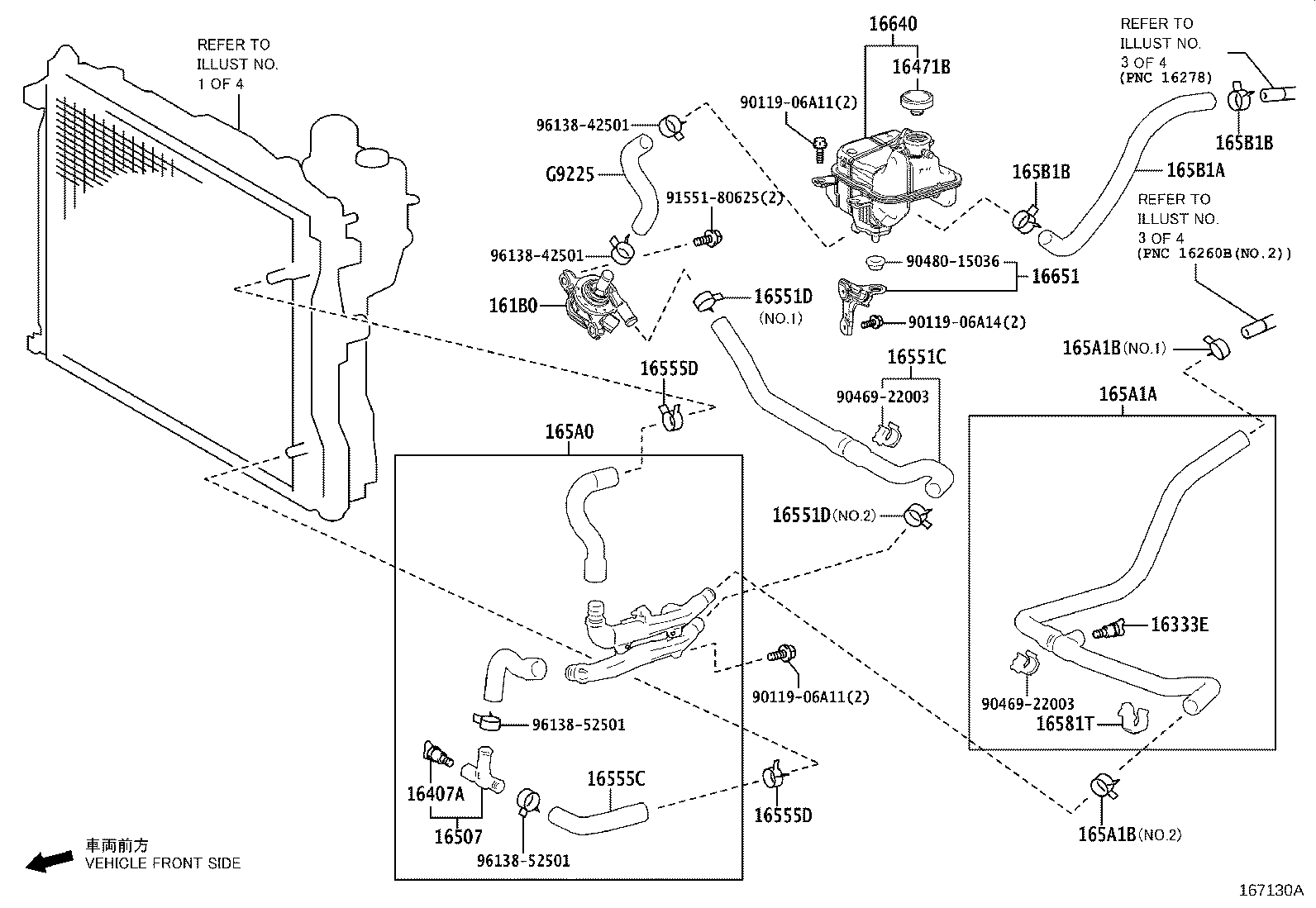

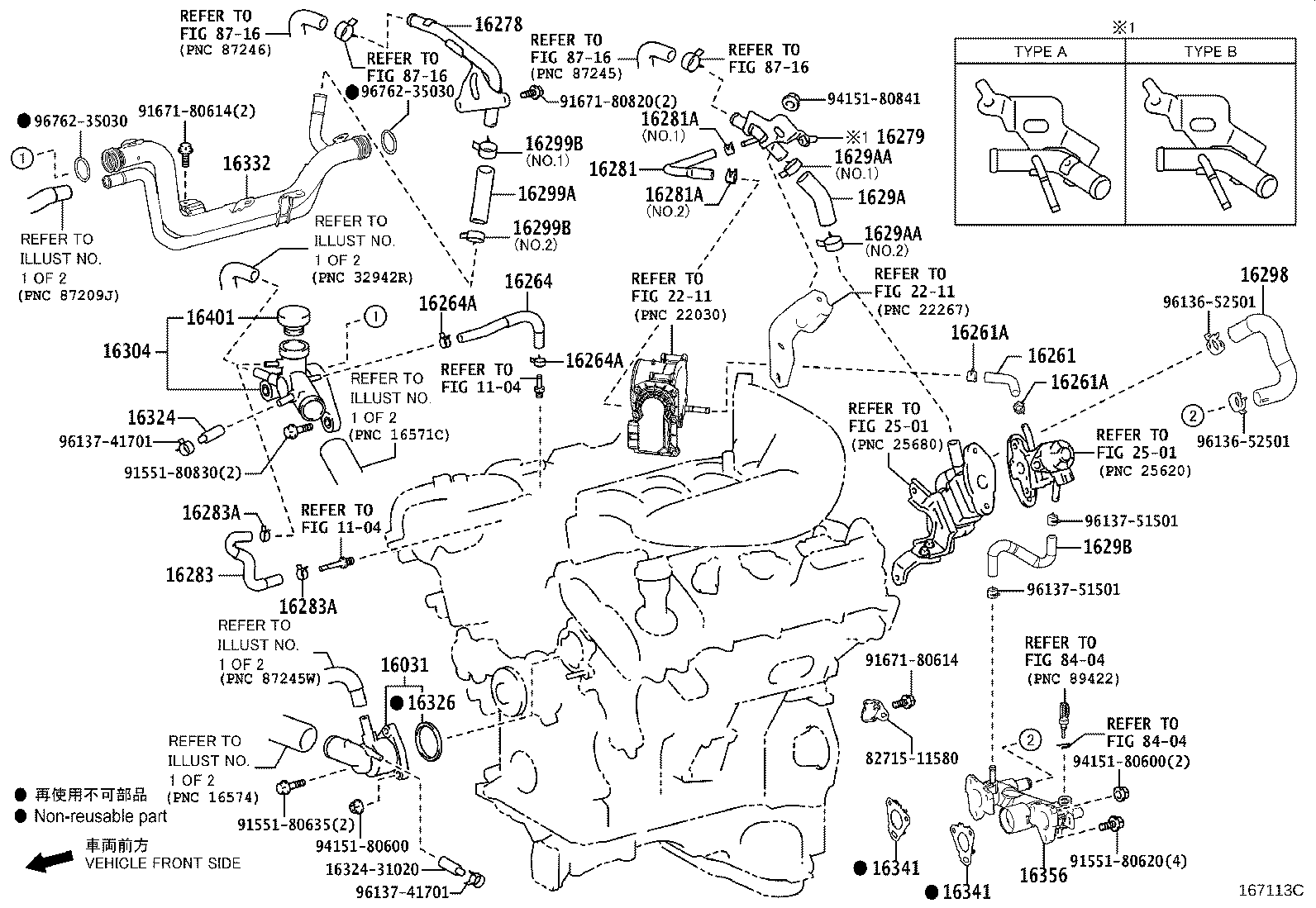

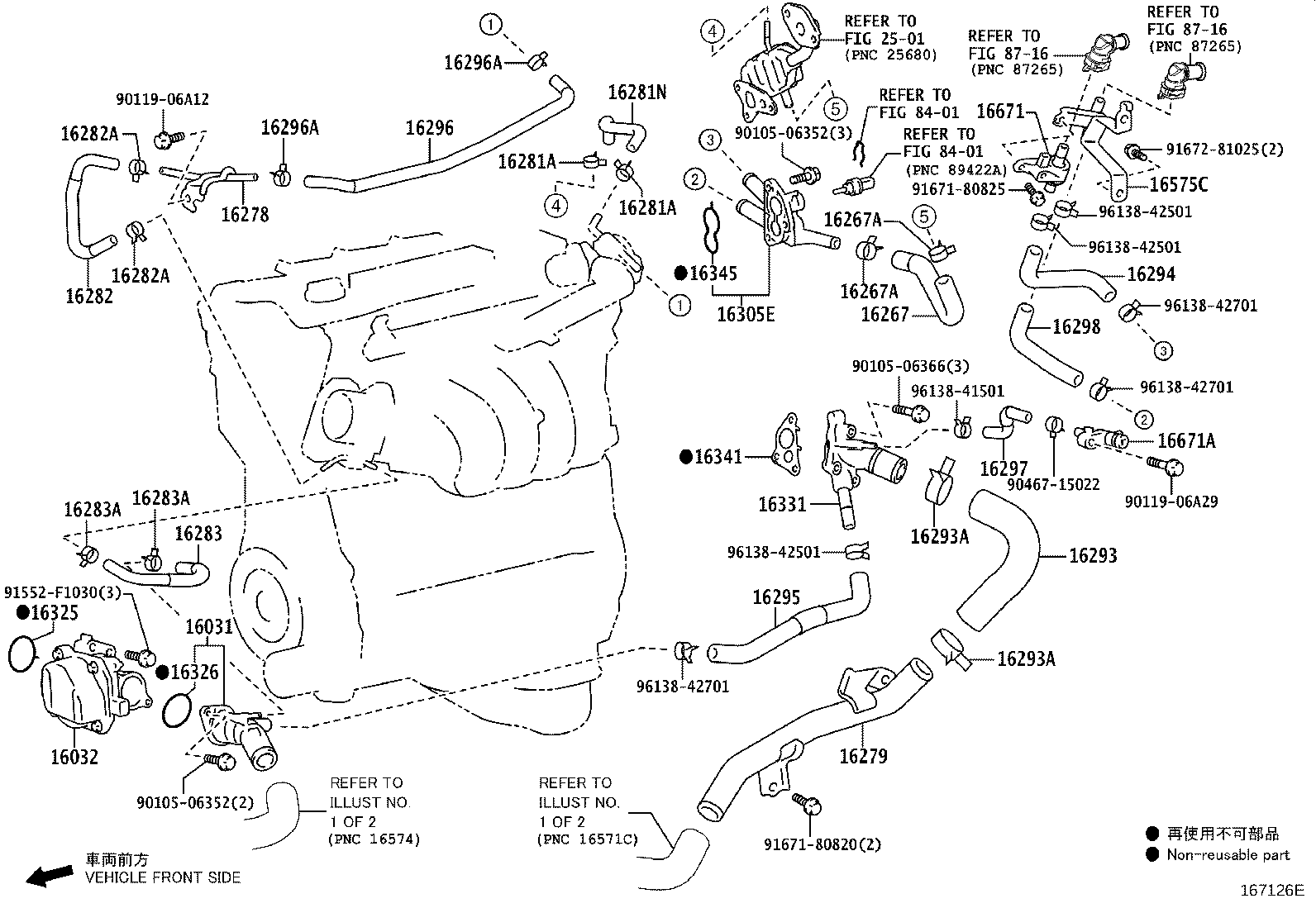

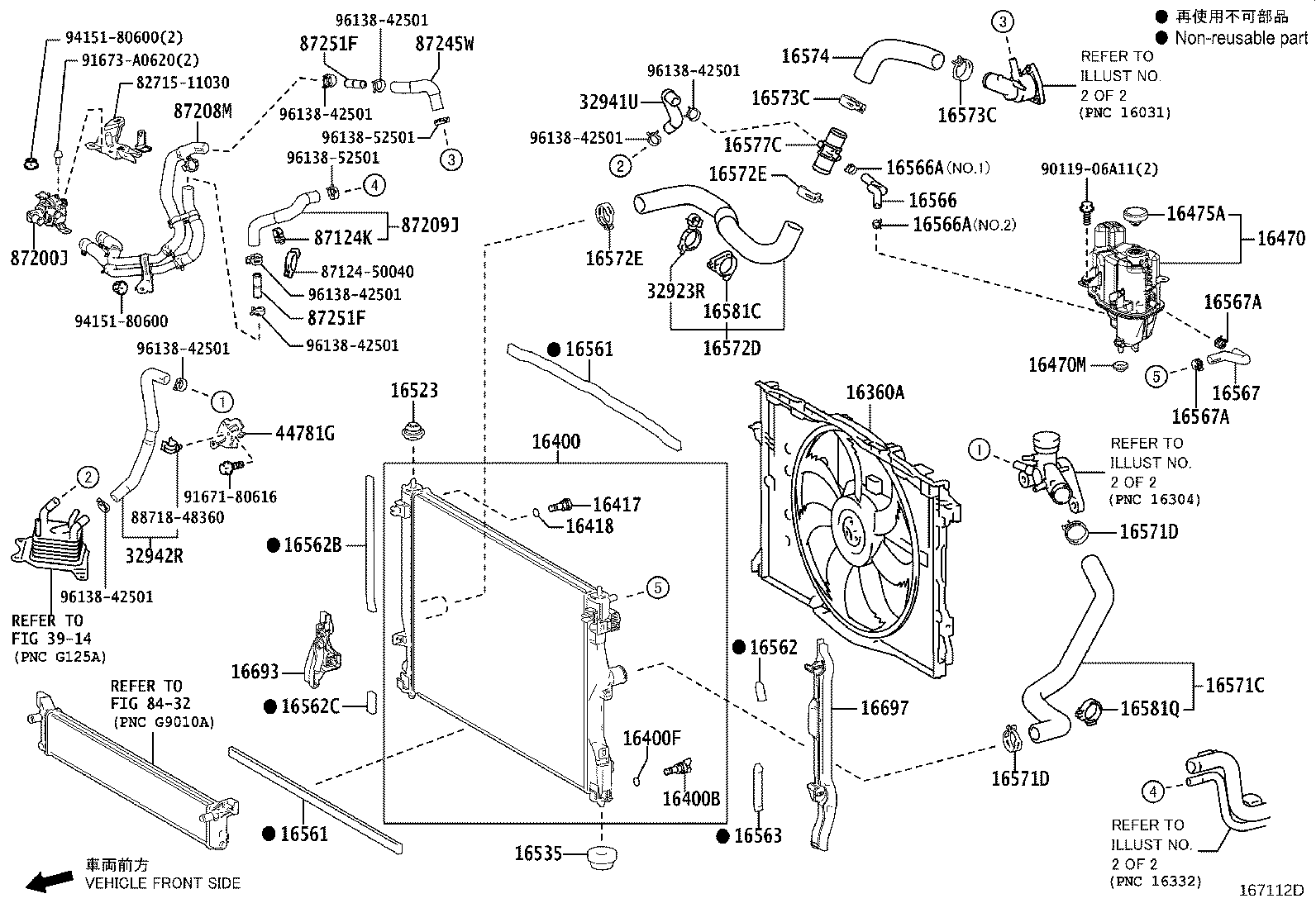

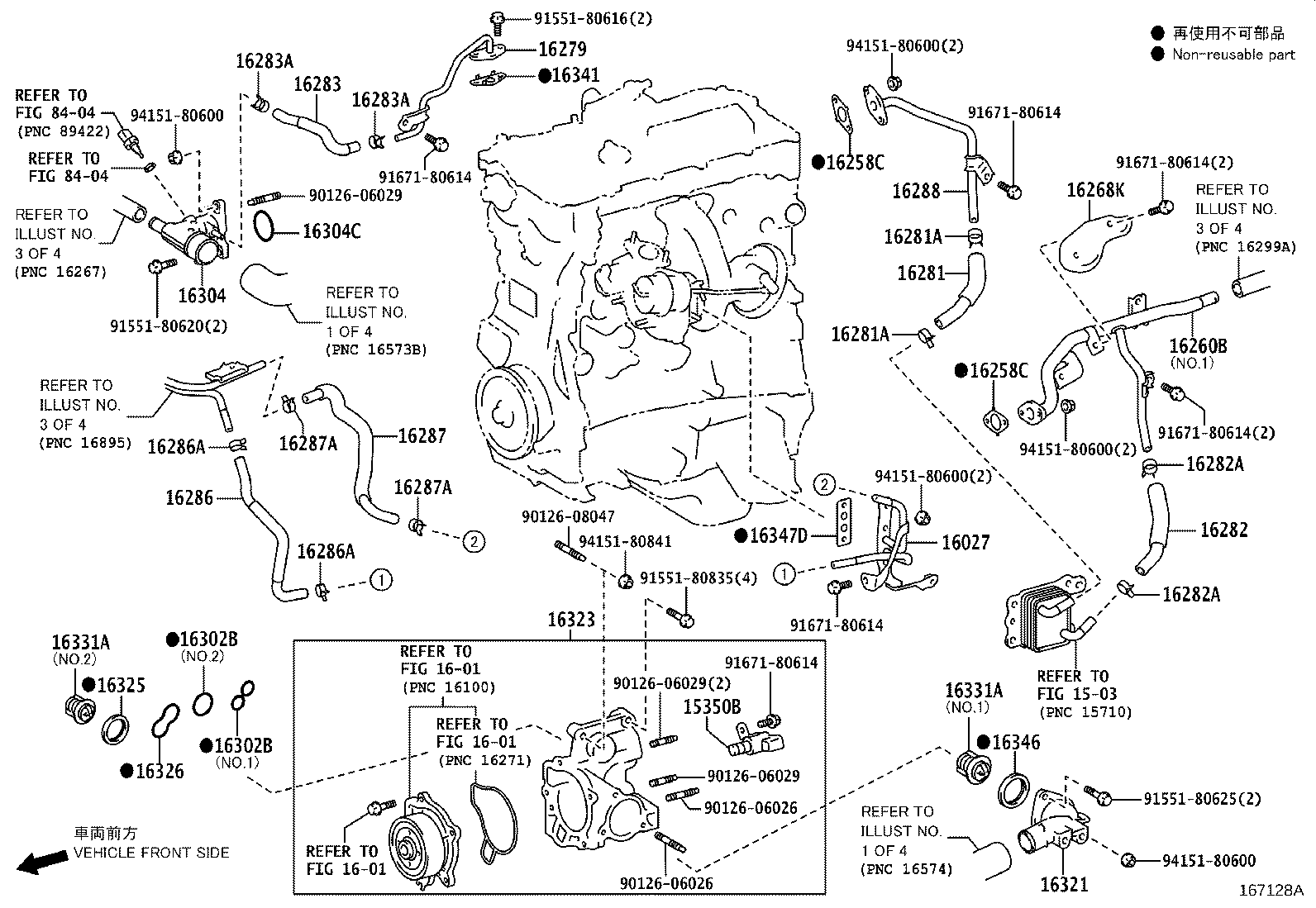

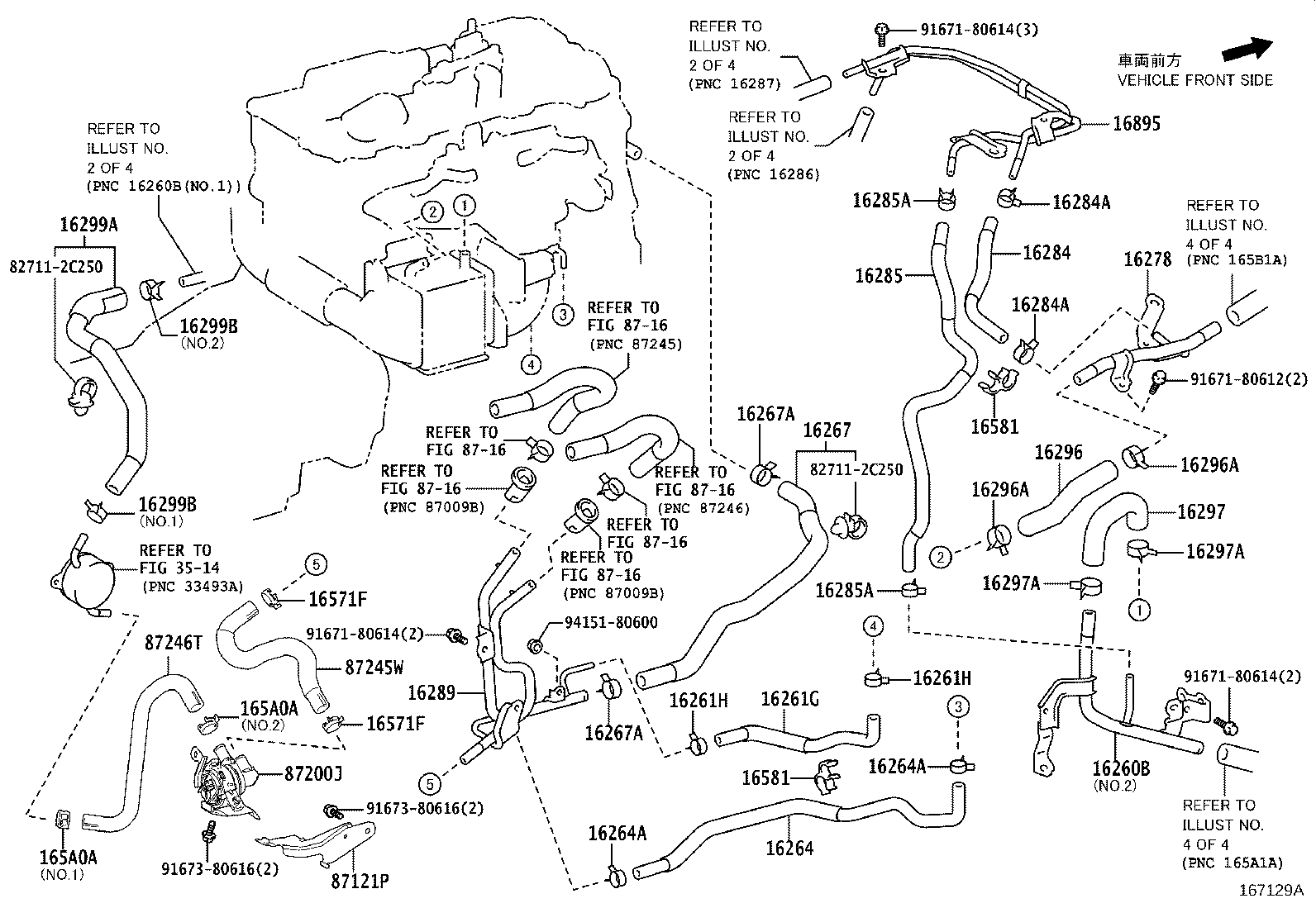

Figure 167127B 167127B 2018-06 → — Figure 167128A 167128A 2018-06 → — Figure 167129A 167129A 2018-06 → — Figure 167130A 167130A 2018-06 → — Figure 167125C 167125C 2018-06 → — Figure 167126E 167126E 2018-06 → — Figure 167112D 167112D 2018-06 → — Figure 167113C 167113C 2018-06 → —

Part groups

PNCDescription
15350B Valve Assy, Oil Pressure Switching
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
16032 Housing Sub-assy, Water Inlet W/Water Pump
161B0 Pump Assy, Electric Water
16258C Gasket(FOR WATER BY-PASS PIPE)
16260B Pipe Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268K Insulator, Exhaust Manifold Heat, NO.3
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629B Hose, Water By-pass, NO.15
16302B Gasket(FOR WATER INLET HOUSING)
16304 Outlet Sub-assy, Water
16304C Ring, O(FOR WATER OUTLET)
16305E Outlet Sub-assy, Water By-pass
16321 Inlet, Water
16323 Housing, Water Inlet
16324 Cap, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333E Plug, Drain Cock
16341 Gasket, Water Outlet
16345 Gasket, Water Outlet Pipe
16346 Gasket, Thermostat
16347D Gasket, Water By-pass
16356 Joint, Water By-pass, Rear
16360A Fan Assy, W/Motor
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16407A Cock Sub-assy, Radiator Drain
16417 Cock
16418 Packing
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471B Cap, Reserve Tank
16475A Cap, Reserve Tank
16502 Filler Sub-assy, Water
16507 Pipe Sub-assy, Radiator
16520A Cap Sub-assy, Water Filler
16522 Bracket, Water Filler
16523 Cushion, Sub-radiator Support
16535 Support, Radiator, Lower
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16555C Hose, Intercooler Cooling Water, NO.5
16555D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16562B Seal, Radiator TO Support, NO.4
16562C Seal, Radiator TO Support, NO.5
16563 Seal, Radiator TO Support, NO.3
16566 Hose, Reserve Tank Outlet
16566A Clip(FOR RESERVE TANK OUTLET)
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571F Clamp OR Clip(FOR WATER HOSE)
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16575C Bracket, Water Hose Clamp, NO.1
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16581Q Clamp, Hose(FOR RADIATOR HOSE NO.1)
16581R Clamp, Hose(FOR RADIATOR HOSE NO.3)
16581T Clamp(FOR INTERCOOLER COOLING WATER HOSE)
165A0 Hose Assy, Intercooler Cooling Water, NO.1
165A0A Clip, Hose
165A1A Hose, Intercooler Cooling Water Inlet
165A1B Clip(FOR INTERCOOLER COOLING WATER INLET HOSE)
165B1A Hose, Intercooler Cooling Water Outlet
165B1B Clip(FOR INTERCOOLER COOLING WATER OUTLET HOSE)
16640 Tank Assy, Intercooler Reserve
16651 Bracket, Intercooler Reserve Tank
16671 Valve, Water
16671A Valve, Water, NO.2
16693 Plate, Radiator Side Air Guide, RR RH
16697 Plate, Radiator Side Air Guide, RR LH
16895 Pipe, Turbo Water, NO.1
32923R Clamp, Oil Cooler Tube
32941U Hose, Oil Cooler Inlet
32942R Hose, Oil Cooler Outlet
44781G Bracket, Hose
87121P Bracket, Water Pump
87124K Clamp, Heater
87200J Accessory Assy, Heater
87208M Pipe Sub-assy, Water
87209J Hose Sub-assy, Water
87245W Hose, Water
87246T Hose, Water, NO.2
87251F Joint, Water
G9225 Hose, Inverter Cooling, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
