Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

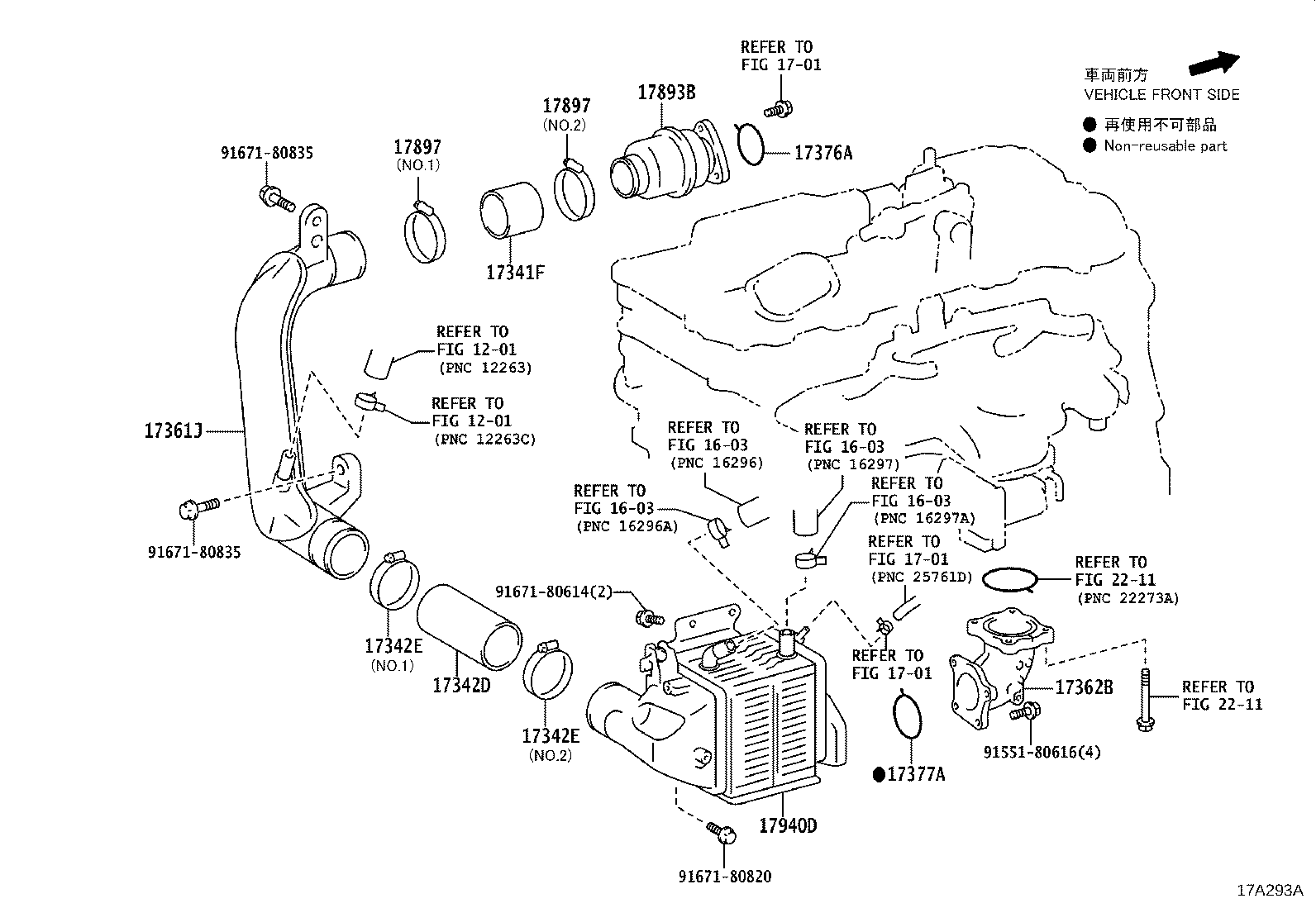

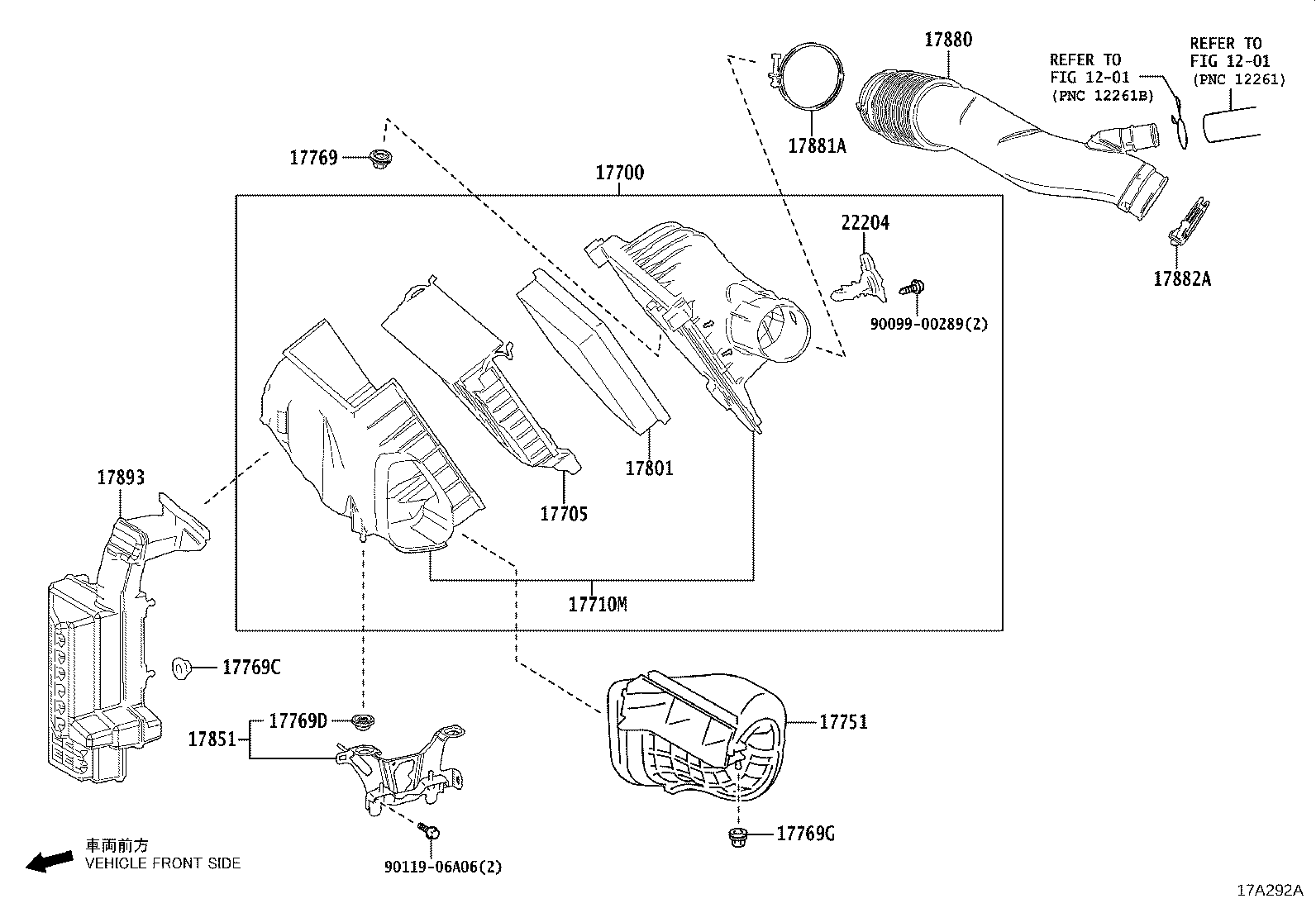

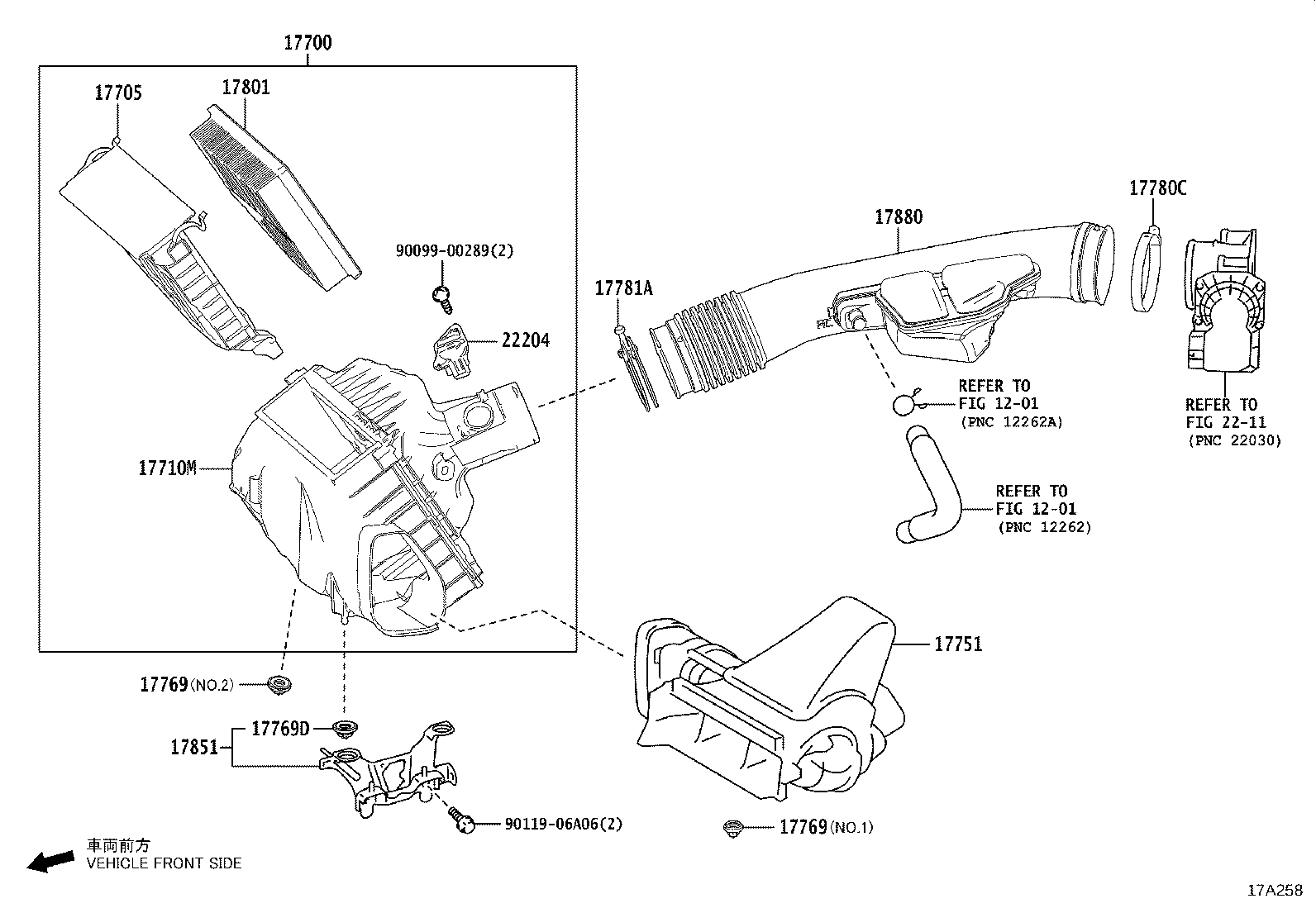

Air Cleaner
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341F | Hose, Air, NO.1 |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17376A | Gasket, Air Tube |
| 17377A | Gasket, Air Tube, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710M | Cleaner Assy, Air (WITHOUT ELEMENT) |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17769 | Support, Air Cleaner |
| 17769C | Support, Air Cleaner, NO.1 |
| 17769D | Support, Air Cleaner, NO.2 |
| 17769G | Support, Air Cleaner, NO.3 |
| 17780C | Clamp Assy, Cool Air Intake Duct, NO.2 |
| 17781A | Clamp, Hose |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17851 | Bracket, Air Cleaner Support |
| 17880 | Hose Assy, Air Cleaner |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17893B | Resonator, Intake Air, NO.2 |
| 17897 | Clamp, Hose(FOR AIR CLEANER) |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
