Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

8 part groups · 4 illustrations

Illustrations

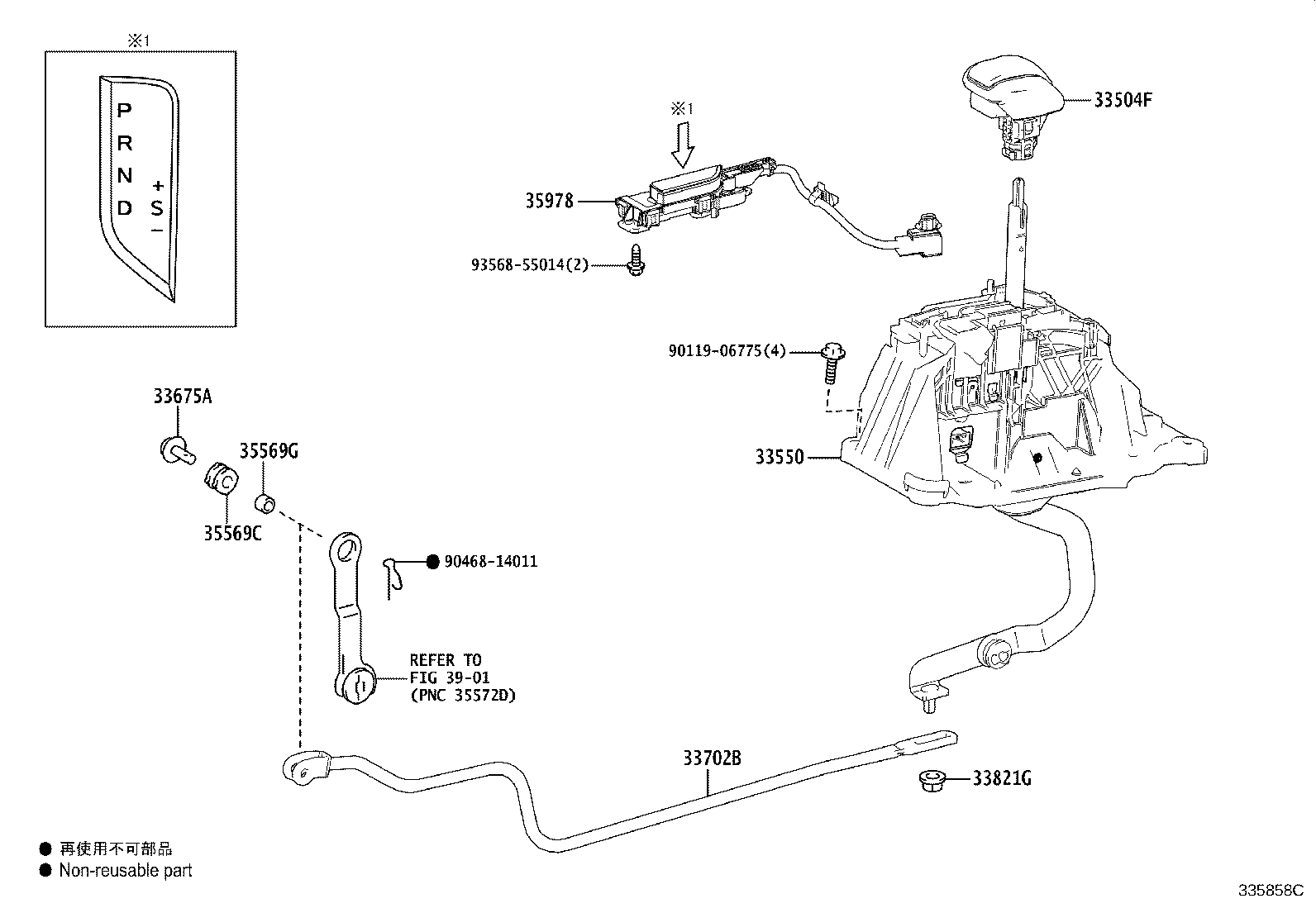

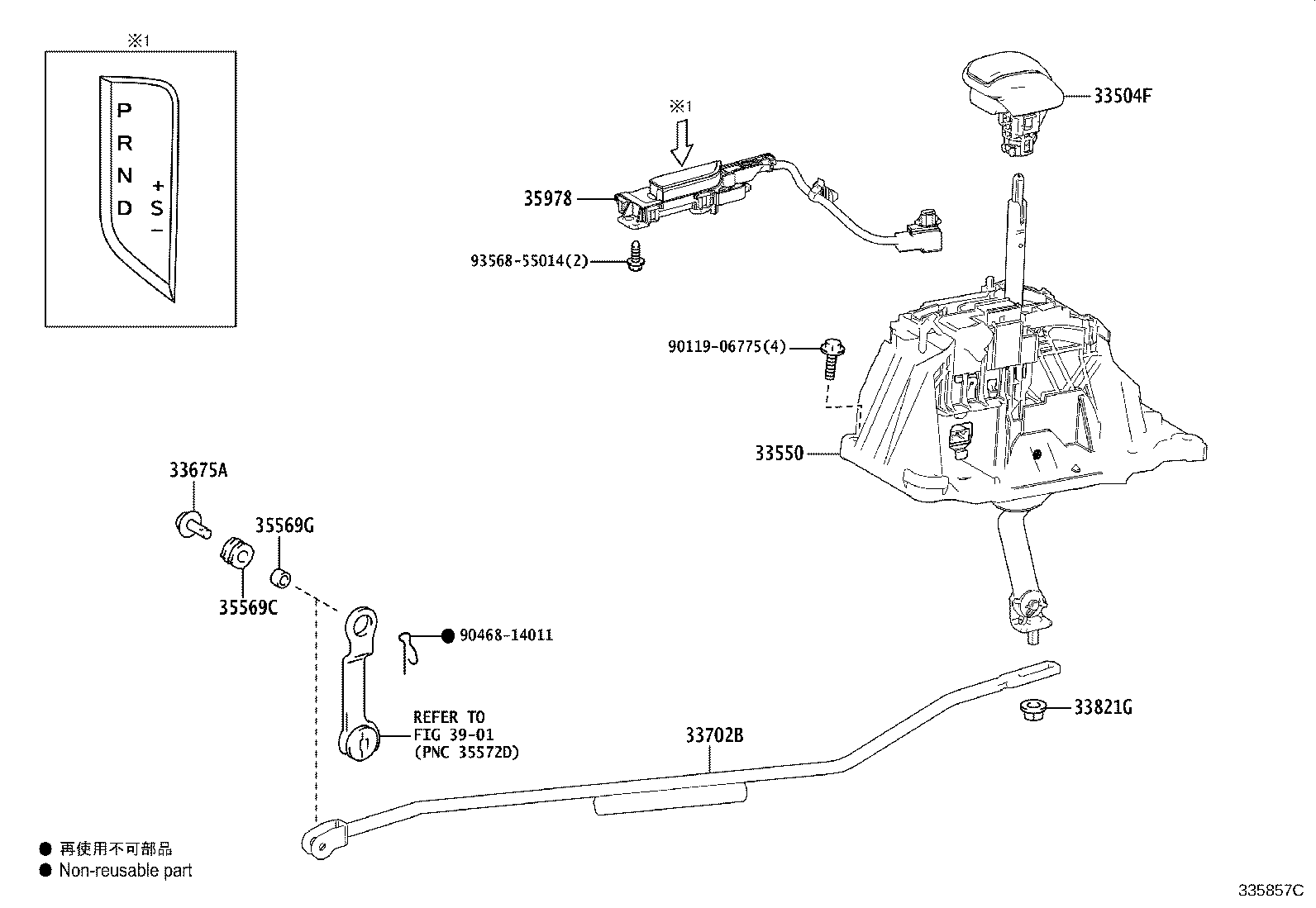

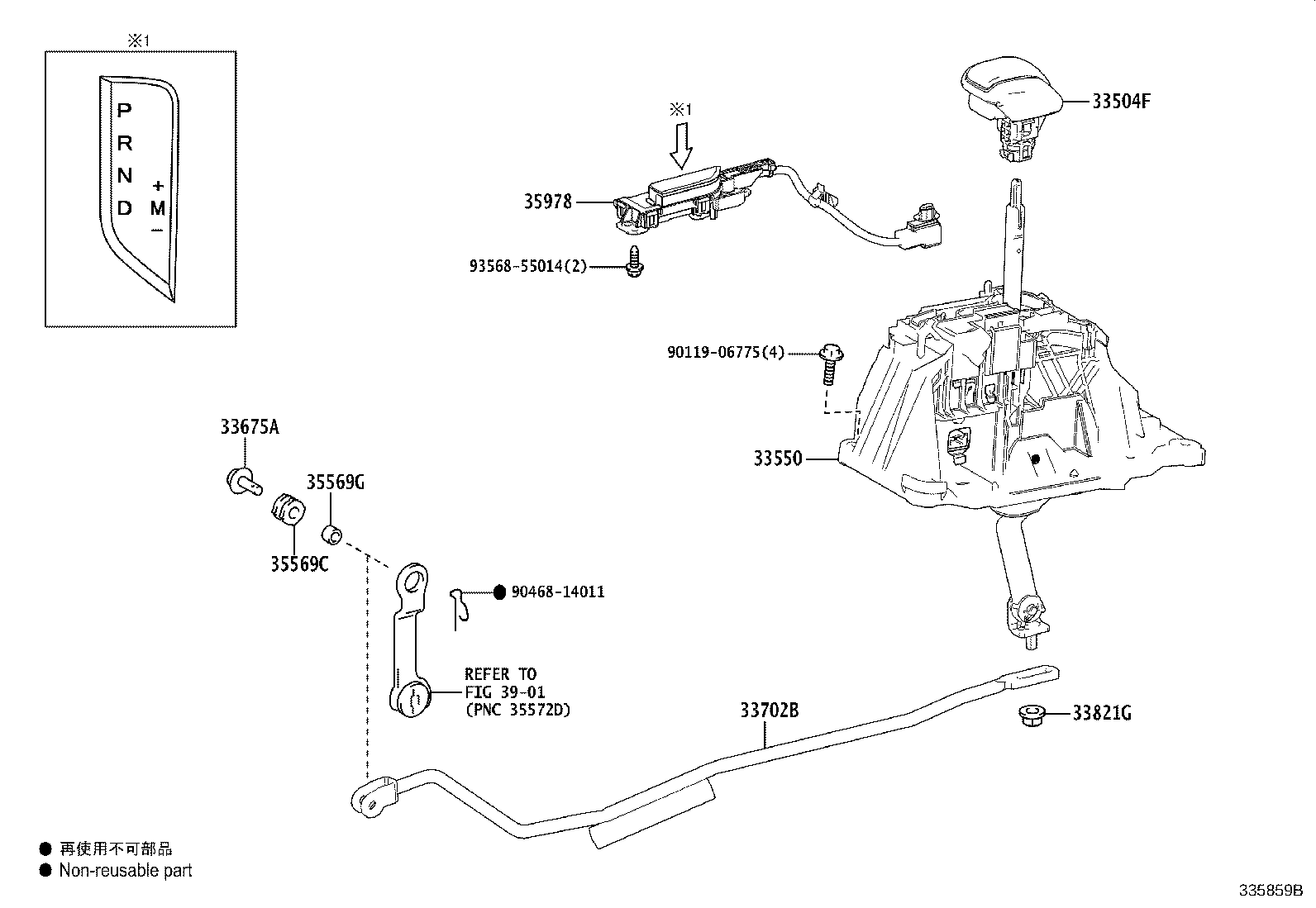

Figure 335856C 335856C 2018-06 → — Figure 335857C 335857C 2018-06 → — Figure 335858C 335858C 2018-06 → — Figure 335859C 335859C 2018-06 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
