Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

12 part groups · 2 illustrations

Illustrations

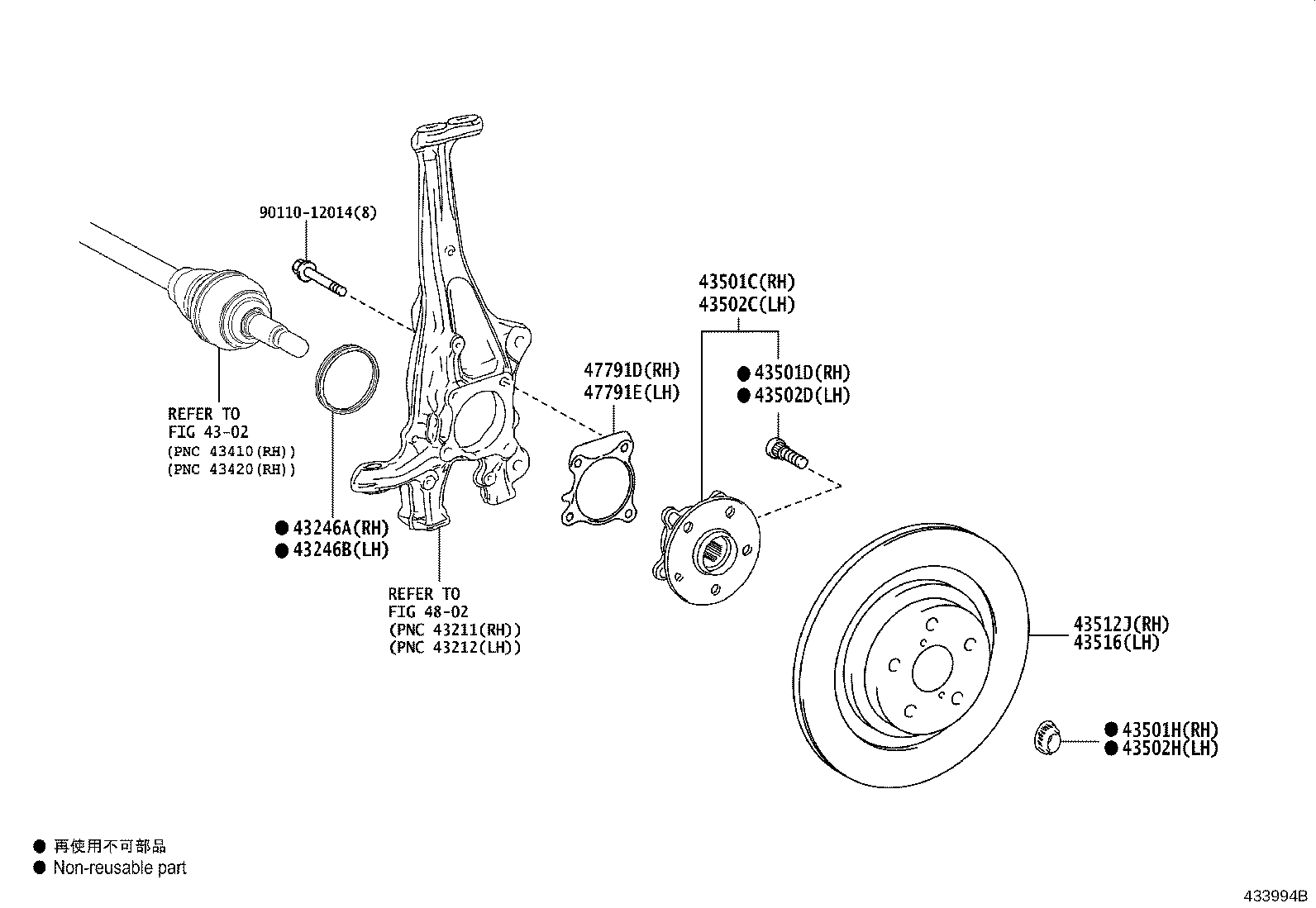

Figure 433993C 433993C 2018-06 → — Figure 433994B 433994B 2018-06 → —

Part groups

PNCDescription
43246A Deflector, Front Wheel Bearing Dust, NO.1 RH
43246B Deflector, Front Wheel Bearing Dust, NO.1 LH
43501C Hub Sub-assy, Front Axle, RH
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501H Nut (FOR FRONT AXLE SHAFT RH)
43502C Hub Sub-assy, Front Axle, LH
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502H Nut (FOR FRONT AXLE SHAFT LH)
43512J Disc, Front RH
43516 Disc, Front LH
47791D Plate, Disc Brake Air Guide, RH
47791E Plate, Disc Brake Air Guide, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
