Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

12 part groups · 8 illustrations

Illustrations

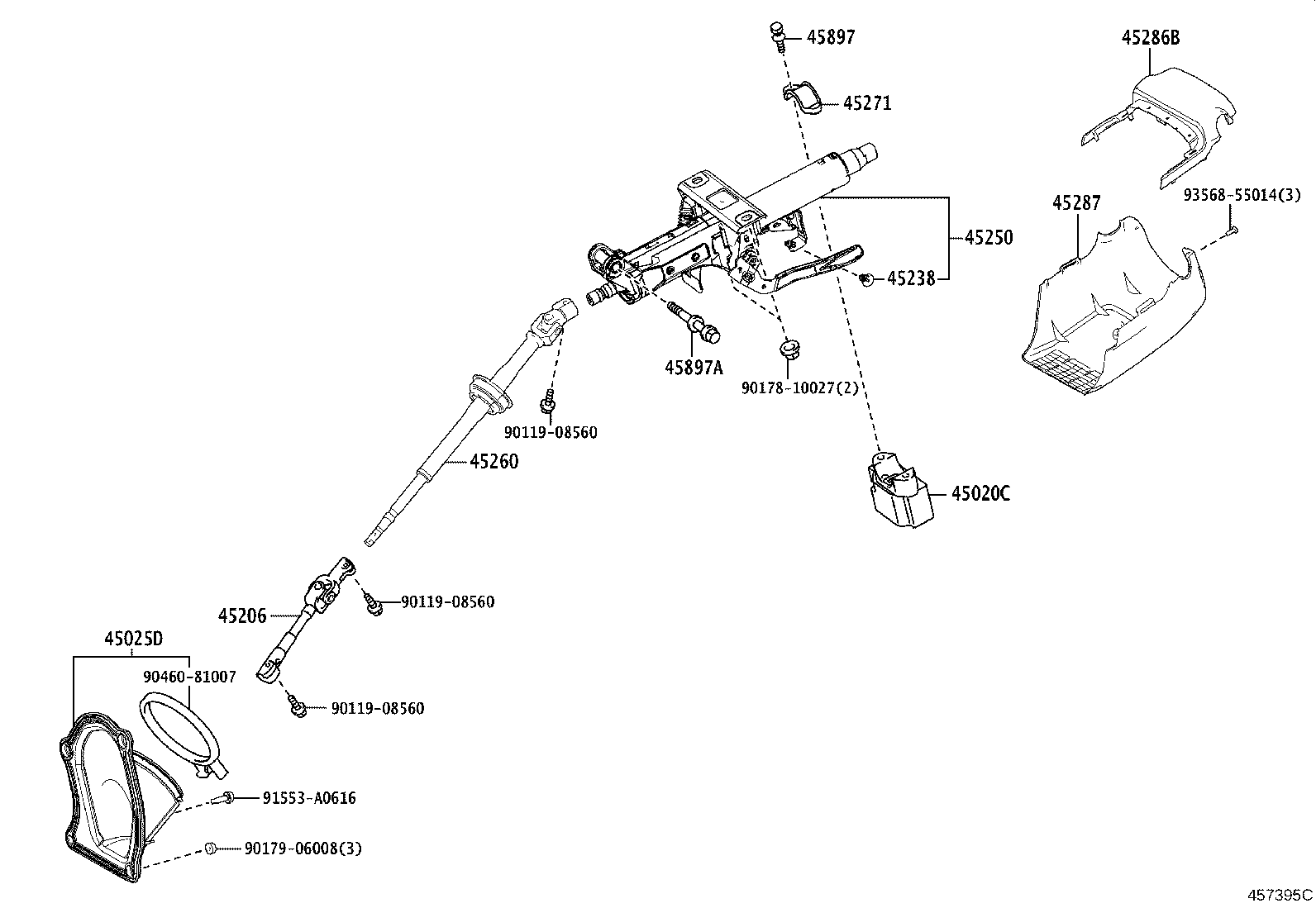

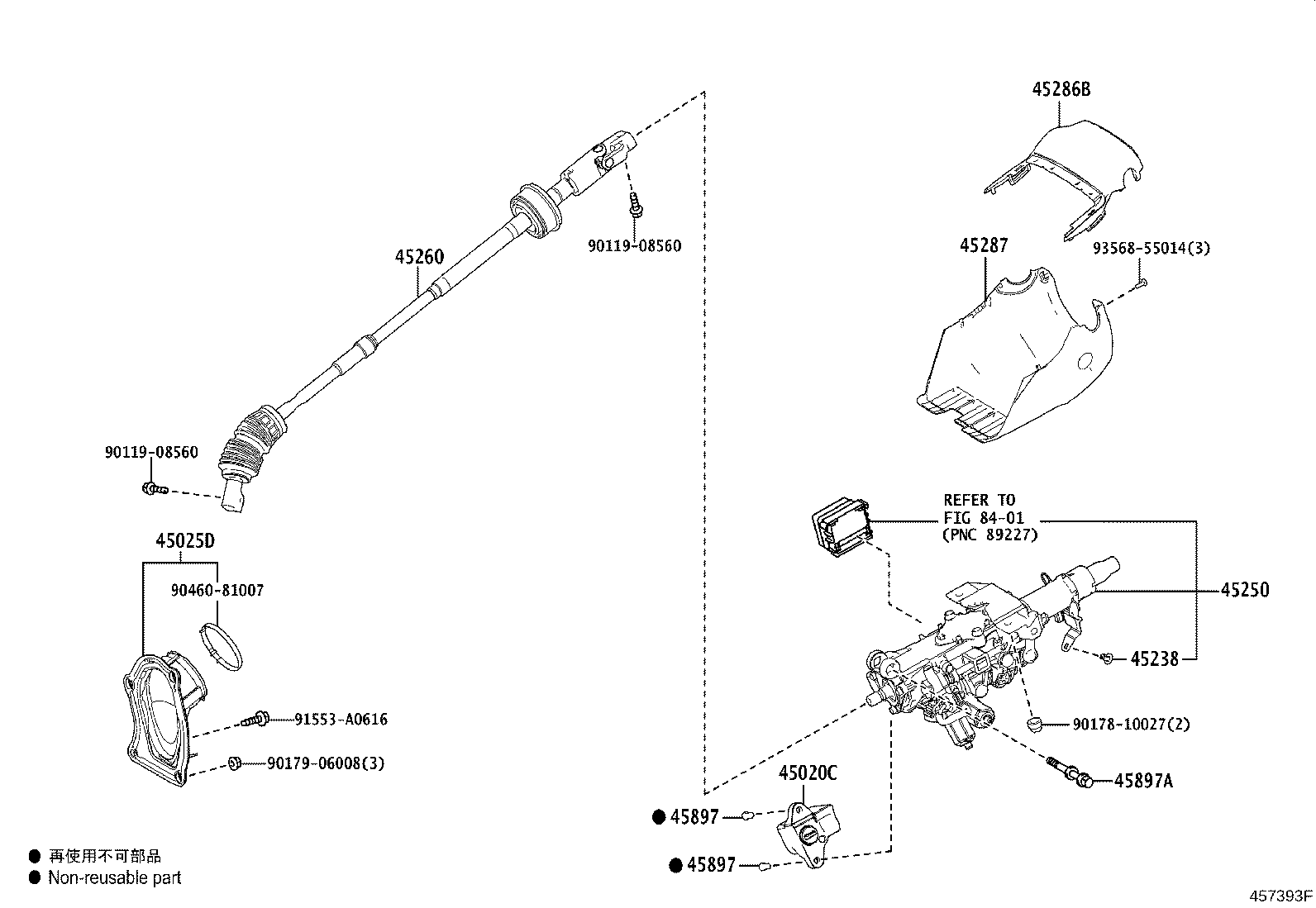

Figure 457394F 457394F 2018-06 → 2020-04 Figure 457394F 457394F 2018-06 → 2020-11 Figure 457394F 457394F 2020-11 → — Figure 457393F 457393F 2018-06 → 2020-11 Figure 457393F 457393F 2020-11 → — Figure 457395C 457395C 2018-06 → 2020-11 Figure 457395C 457395C 2020-04 → 2020-11 Figure 457395C 457395C 2020-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45240J Actuator Assy, Steering
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
