Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

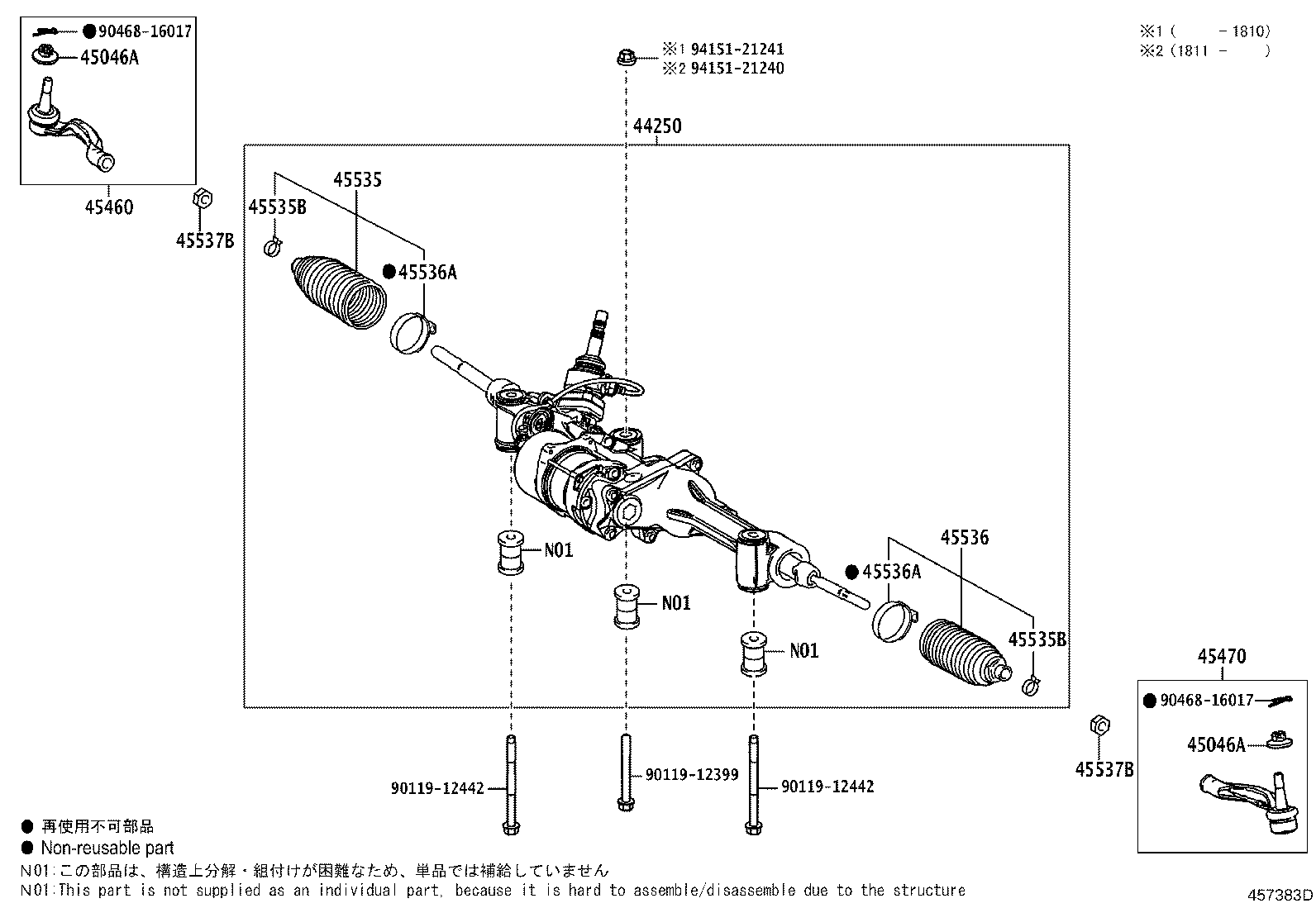

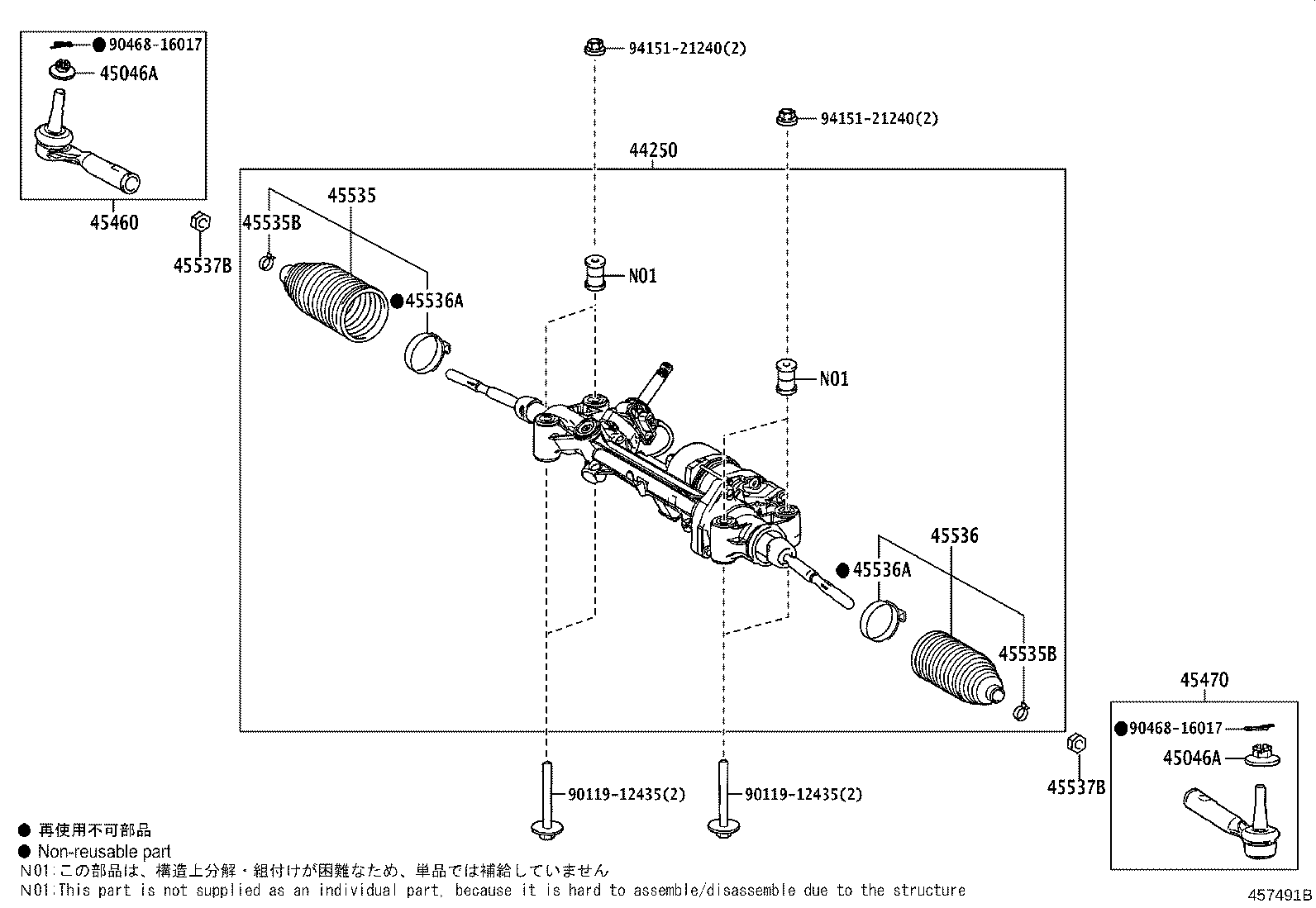

Front Steering Gear & Link
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45460 | Rod Assy, Tie, RH |
| 45470 | Rod Assy, Tie, LH |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
| 45537B | Nut, Rack End Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
