Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

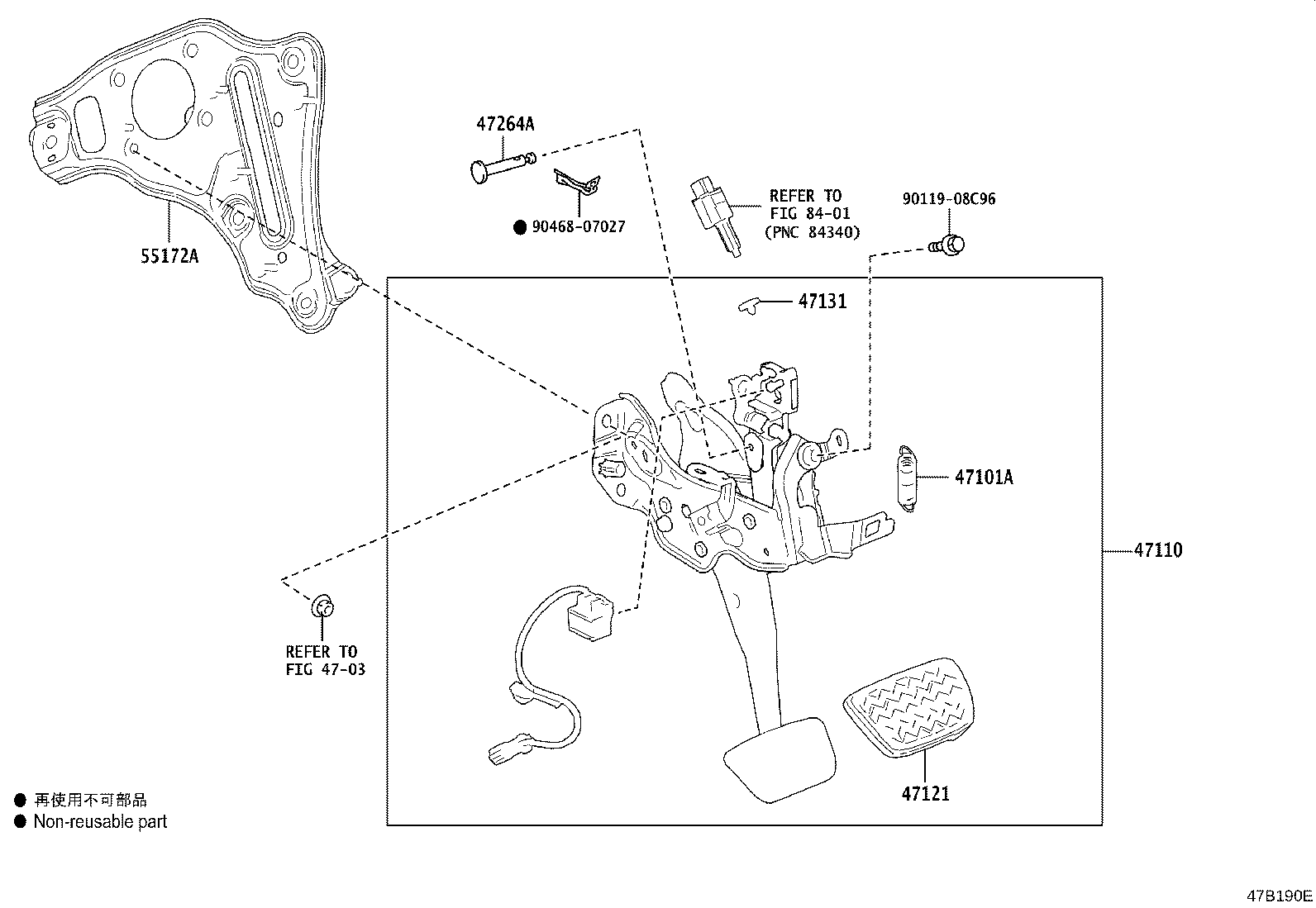

Brake Pedal & Bracket
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
| 55172A | Base, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
