Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

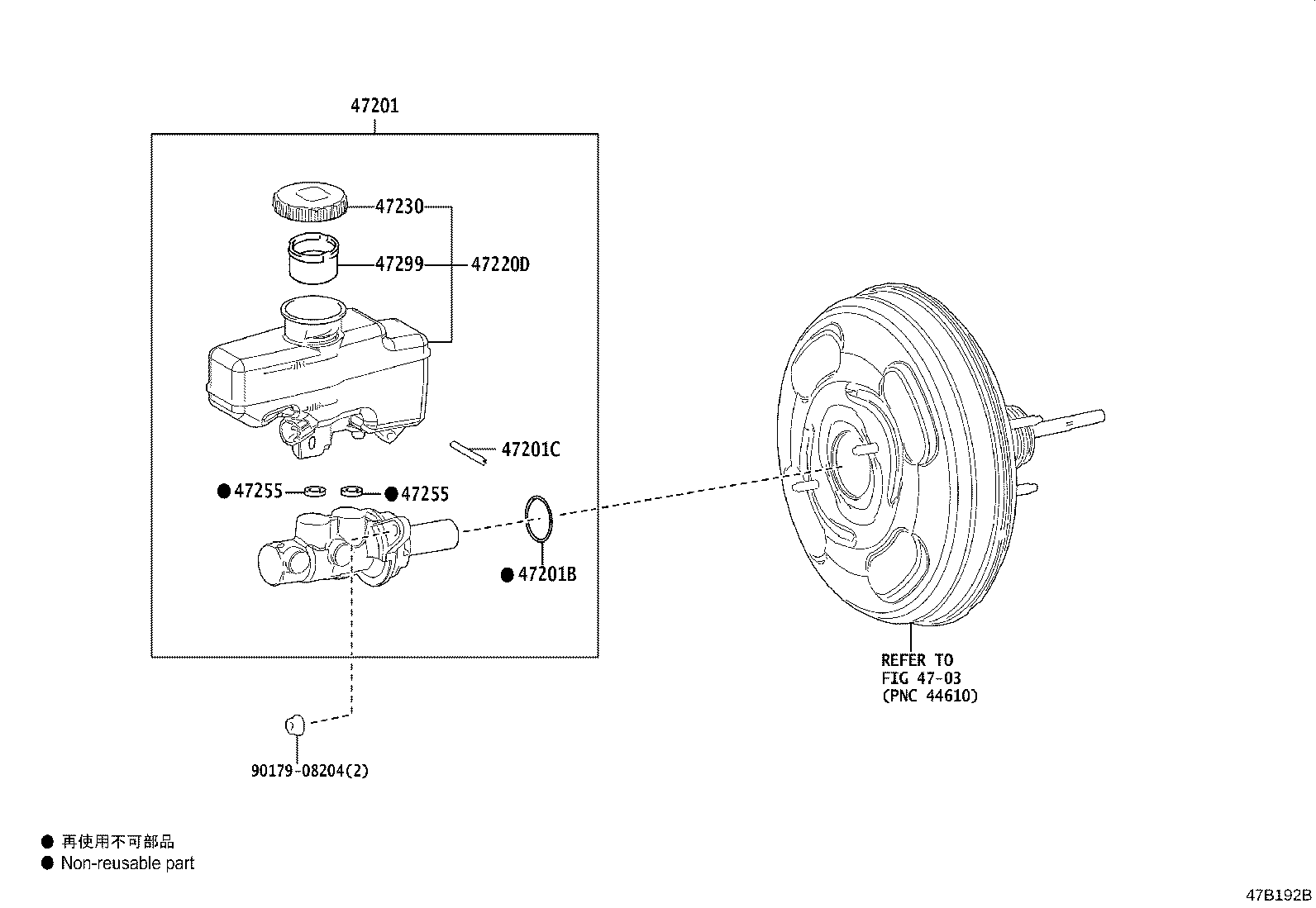

Brake Master Cylinder
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44255 | Tube, Brake Master Cylinder |
| 44521C | Collar, Brake Actuator Case |
| 44551C | Tube, Brake Actuator, NO.1 |
| 44552B | Tube, Brake Actuator, NO.2 |
| 44572C | Hose, Brake Actuator, NO.2 |
| 44591A | Bracket, Brake Actuator, NO.1 |
| 44785D | Gasket, Brake Master Cylinder |
| 47070B | Pump Assy, Brake Booster W/Accumulator |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47207A | Cylinder Sub-assy, Brake Stroke Simulator |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47273 | Bracket, Brake Stroke Simulator |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47381N | Bracket, Tube Clamp |
| 47962A | Collar, Brake Booster Pump |
| 47965A | Bush, Brake Booster Pump |
| 47965C | Bush, Brake Booster Pump, NO.2 |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
