Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

20 part groups · 2 illustrations

Illustrations

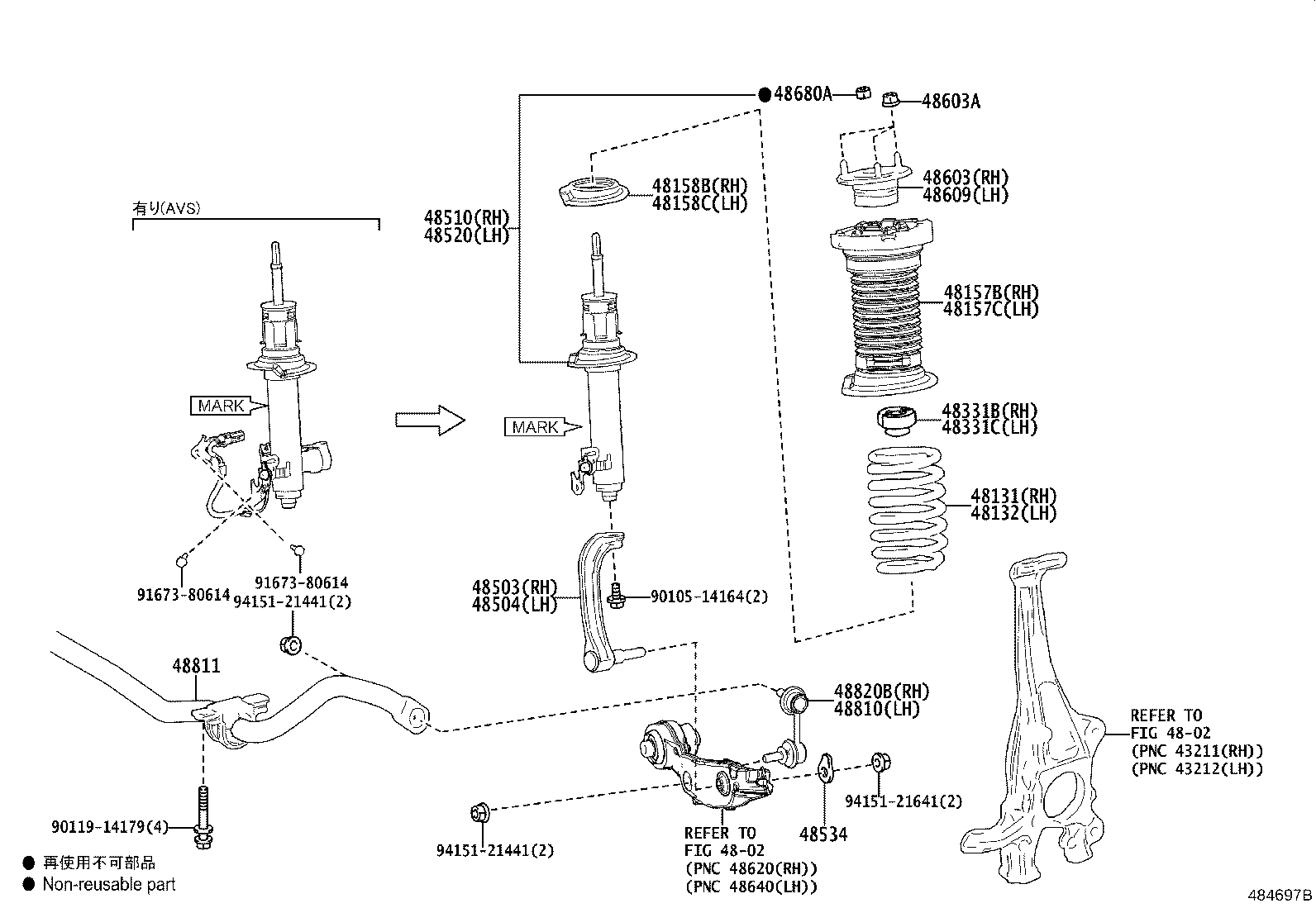

Figure 484696D 484696D 2018-06 → — Figure 484697B 484697B 2018-06 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48503 Bracket Sub-assy, Front Shock Absorber, Lower RH
48504 Bracket Sub-assy, Front Shock Absorber, Lower LH
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48534 Plate, Front Shock Absorber Upper Bracket
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48609 Support Sub-assy, Front Suspension, LH
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48820B Link Assy, Front Stabilizer, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
