Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

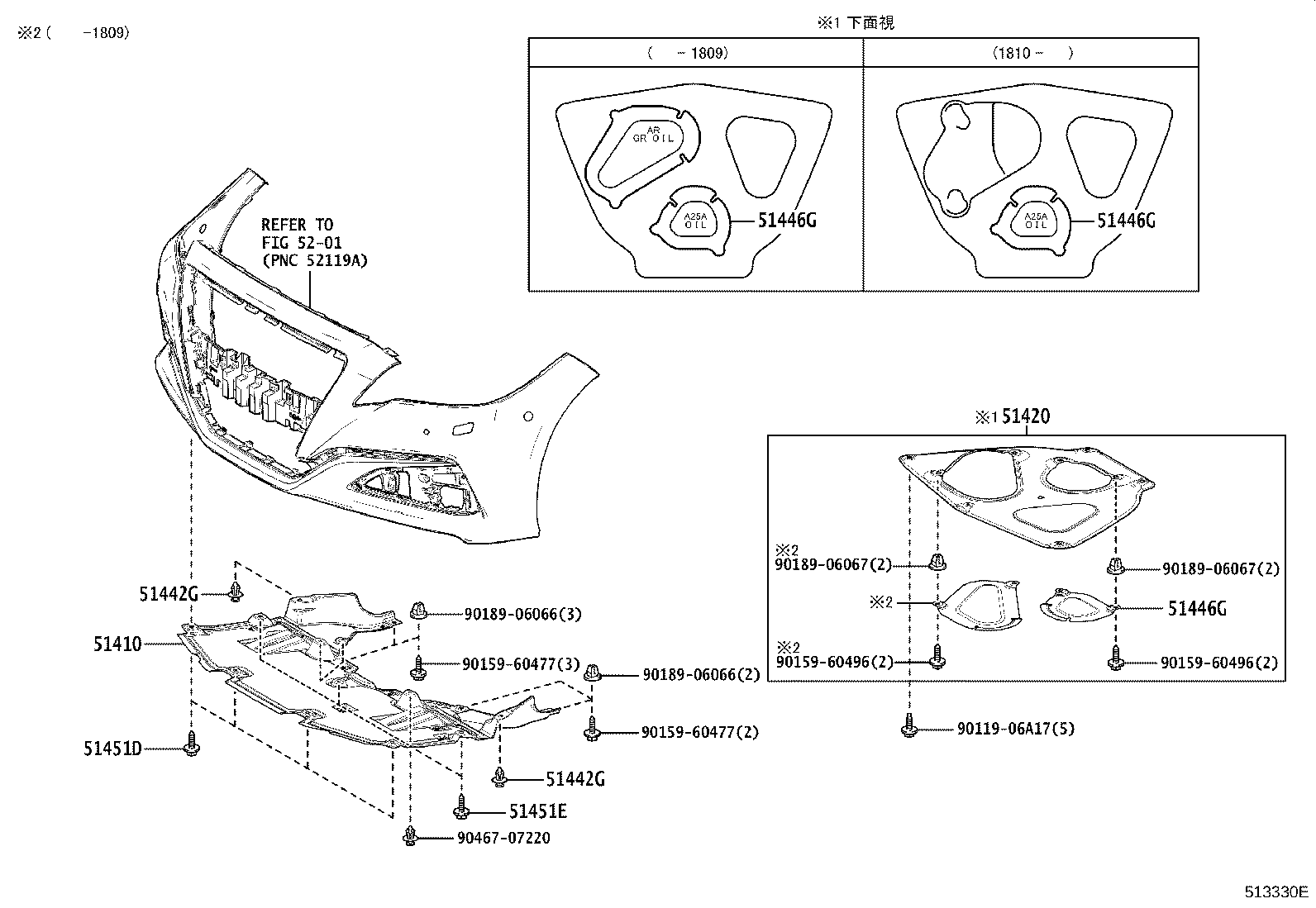

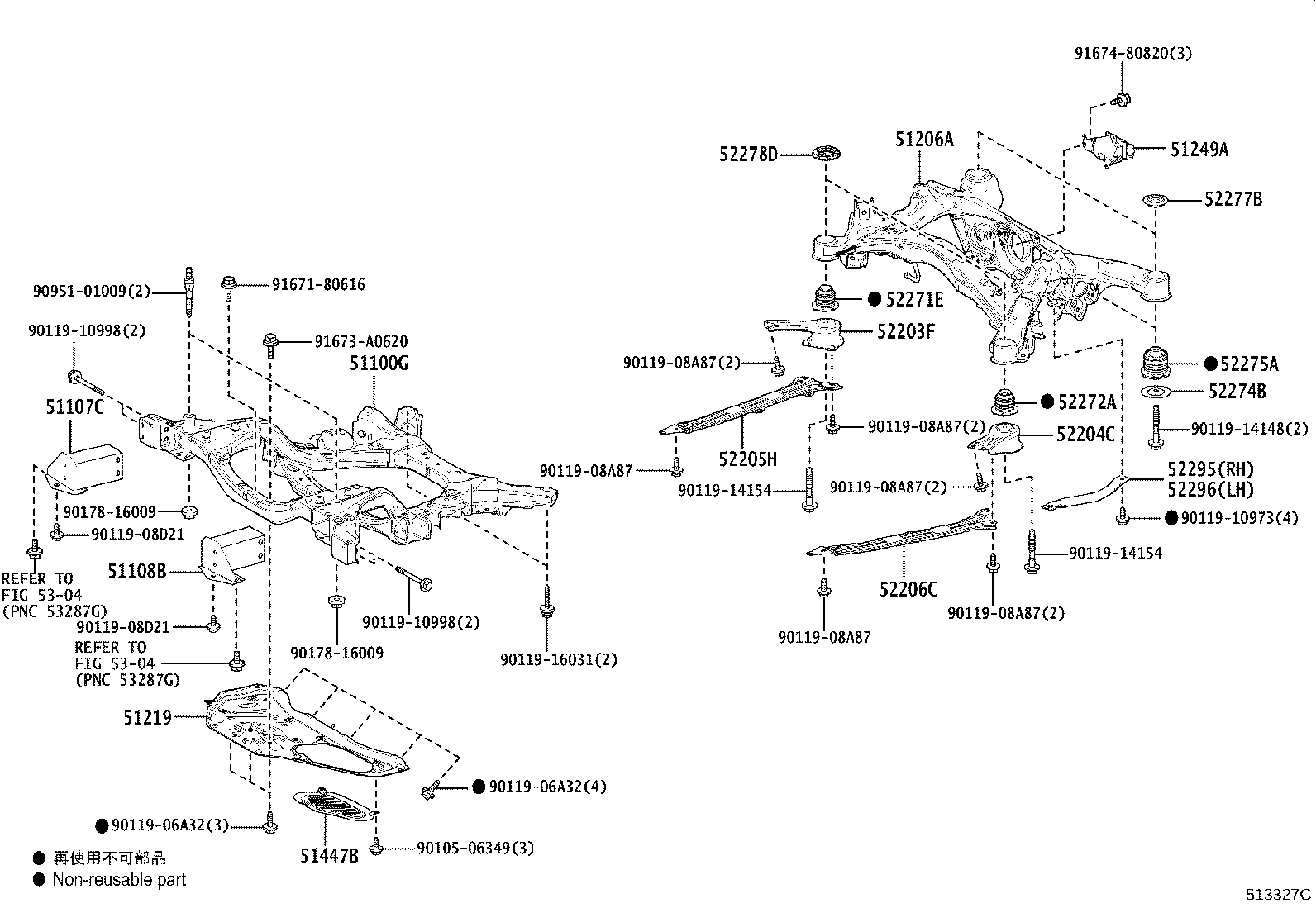

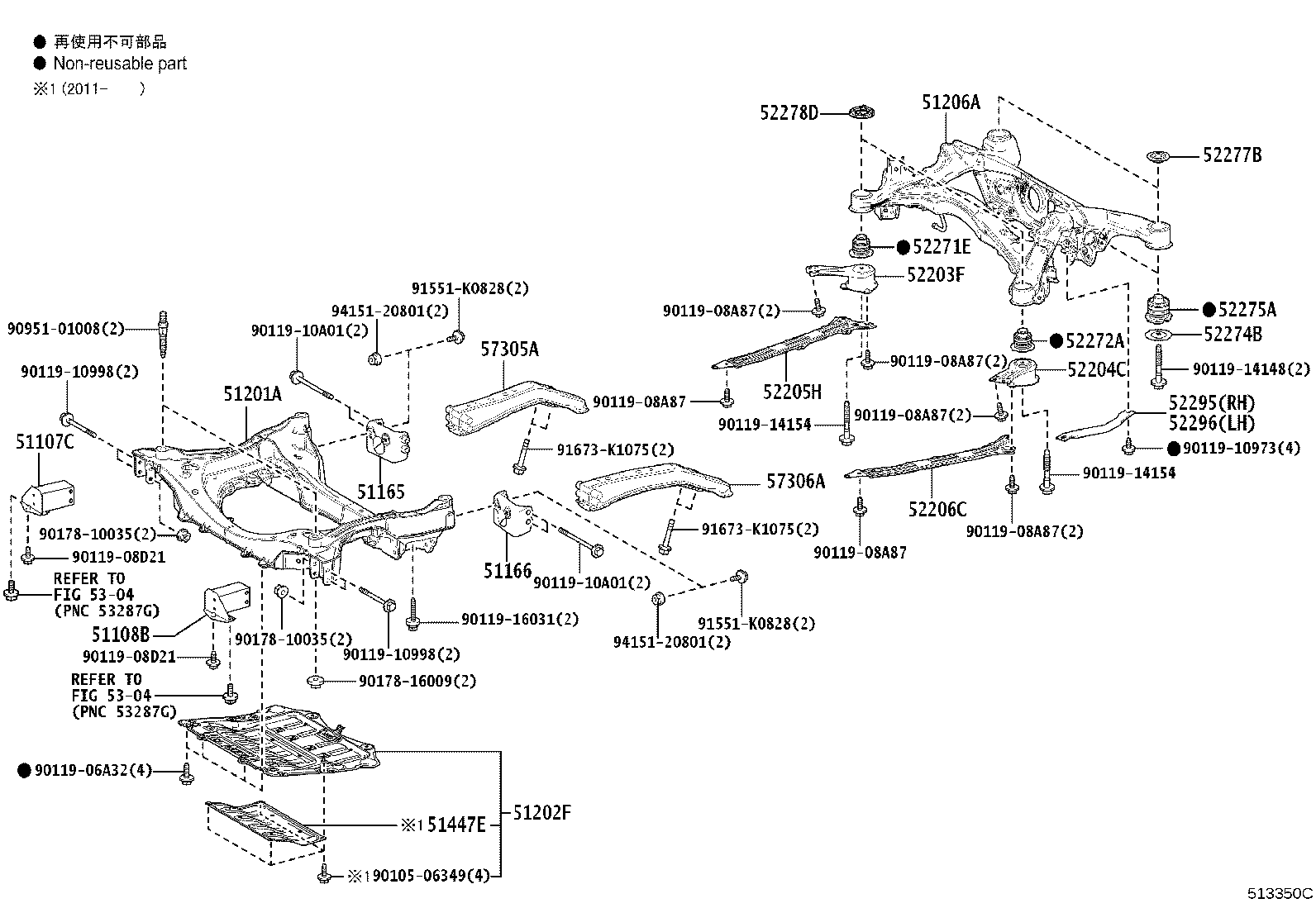

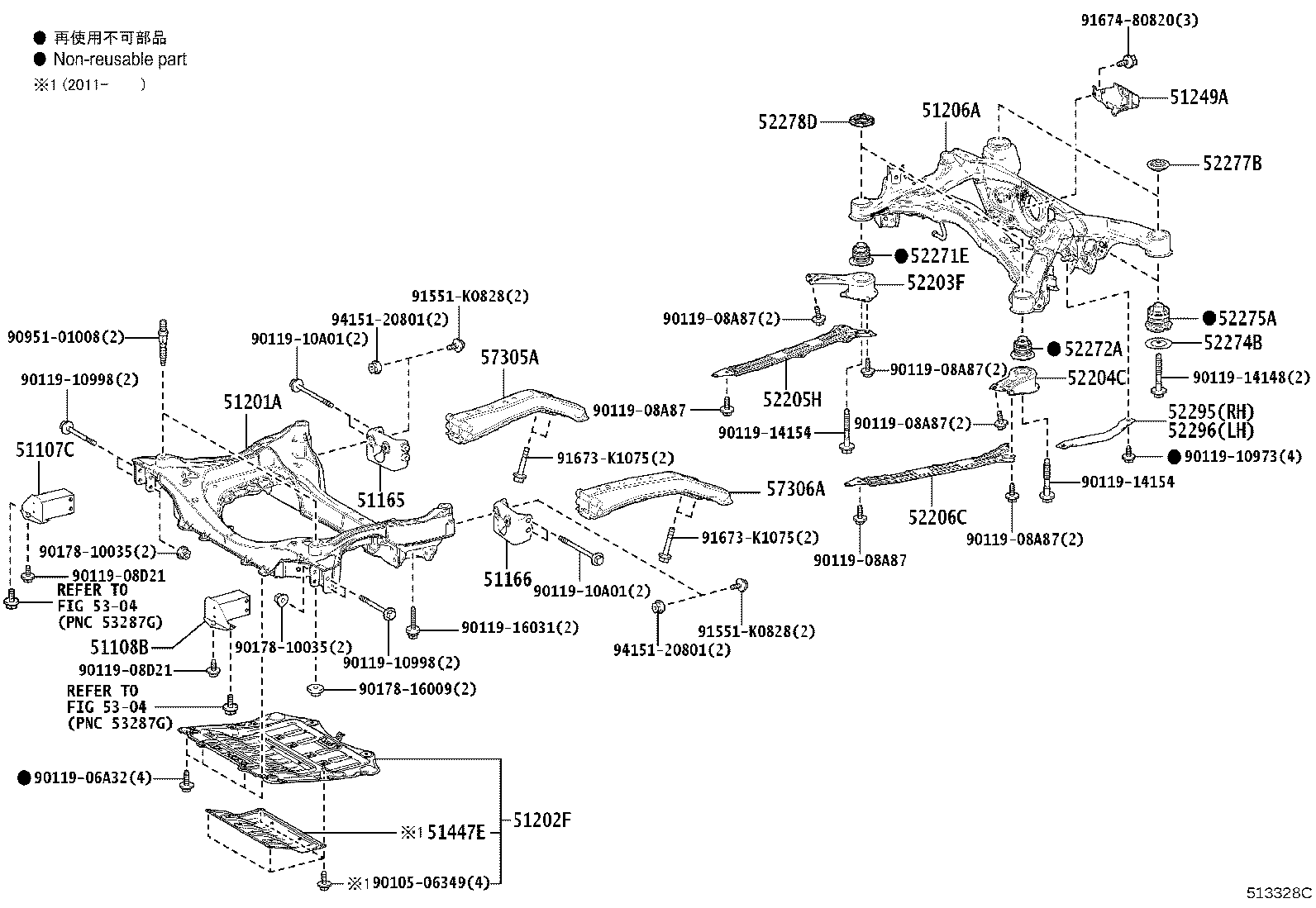

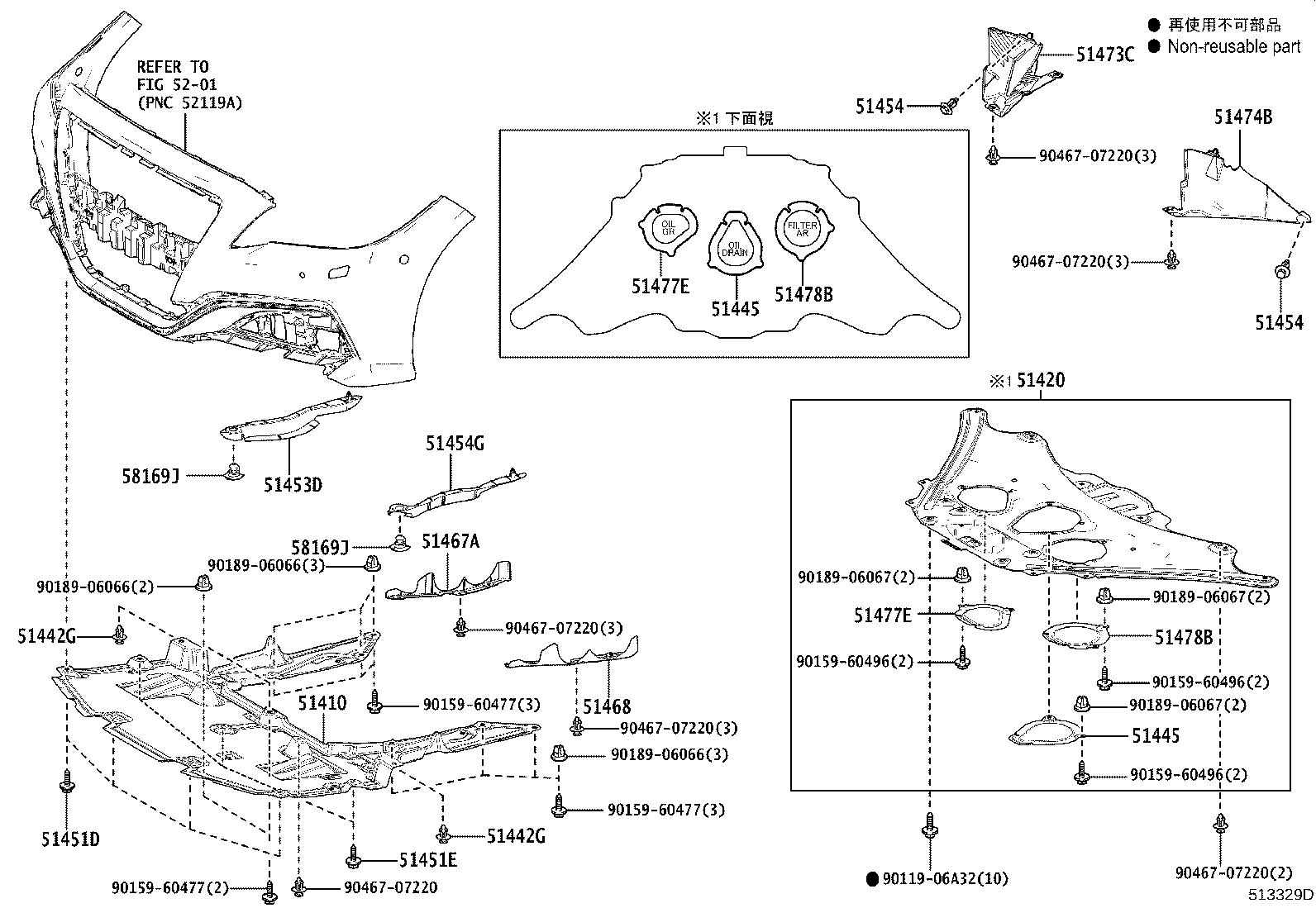

Suspension Crossmember & Under Cover
45 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100G | Frame Assy, Front |
| 51107C | Rail Sub-assy, Rear Frame, RH |
| 51108B | Rail Sub-assy, Rear Frame, LH |
| 51165 | Reinforcement, Side Rail, NO.2 RH |
| 51166 | Reinforcement, Side Rail, NO.2 LH |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51202F | Support Sub-assy, Strut Bar Bracket |
| 51206A | Member Sub-assy, Rear Suspension |
| 51219 | Protector, Front Suspension Member, Lwr |
| 51249A | Damper, Rear Suspension Member |
| 51410 | Cover Assy, Engine Under, NO.1 |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51445 | Bracket, Engine Under Cover |
| 51446G | Patch, Engine Under Cover, Rear LH |
| 51447B | Protector, Oil Pan |
| 51447E | Reinforcement, Engine Under Cover |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51453D | Cover, Engine Room Under, RH |
| 51454 | Clip |
| 51454G | Cover, Engine Room Under, LH |
| 51467A | Silencer, Side Rail Inner, NO.2 RH |
| 51468 | Silencer, Side Rail Inner, NO.2 LH |
| 51473C | Cover, Engine Side, RH |
| 51474B | Cover, Engine Side, LH |
| 51477E | Plate, Engine Under Cover Side, RH |
| 51478B | Plate, Engine Under Cover Side, LH |
| 52203F | Stopper Sub-assy, Rear Suspension Member, Lower RH |
| 52204C | Stopper Sub-assy, Rear Suspension Member, Lower LH |
| 52205H | Cushion Sub-assy, Body Mounting, Rear RH |
| 52206C | Cushion Sub-assy, Body Mounting, Rear LH |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52272A | Cushion, Rear Suspension Member Body Mounting, Front LH |
| 52274B | Stopper, Rear Suspension Member, Rear Lower |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52277B | Stopper, Rear Suspension Member, Rear Upper |
| 52278D | Stopper, Rear Suspension Member, Front Upper |
| 52295 | Brace, Rear Suspension Member, RH |
| 52296 | Brace, Rear Suspension Member, LH |
| 53653E | Brace, Rear Suspension, Lower RH |
| 53654C | Brace, Rear Suspension, Lower LH |
| 57305A | Reinforcement Sub-assy, Lower Arm Mounting, Rear RH |
| 57306A | Reinforcement Sub-assy, Lower Arm Mounting, Rear LH |
| 58169J | Patch, Front Floor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
