Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 2 illustrations

Illustrations

Figure 535630C

535630C 2018-06 → —

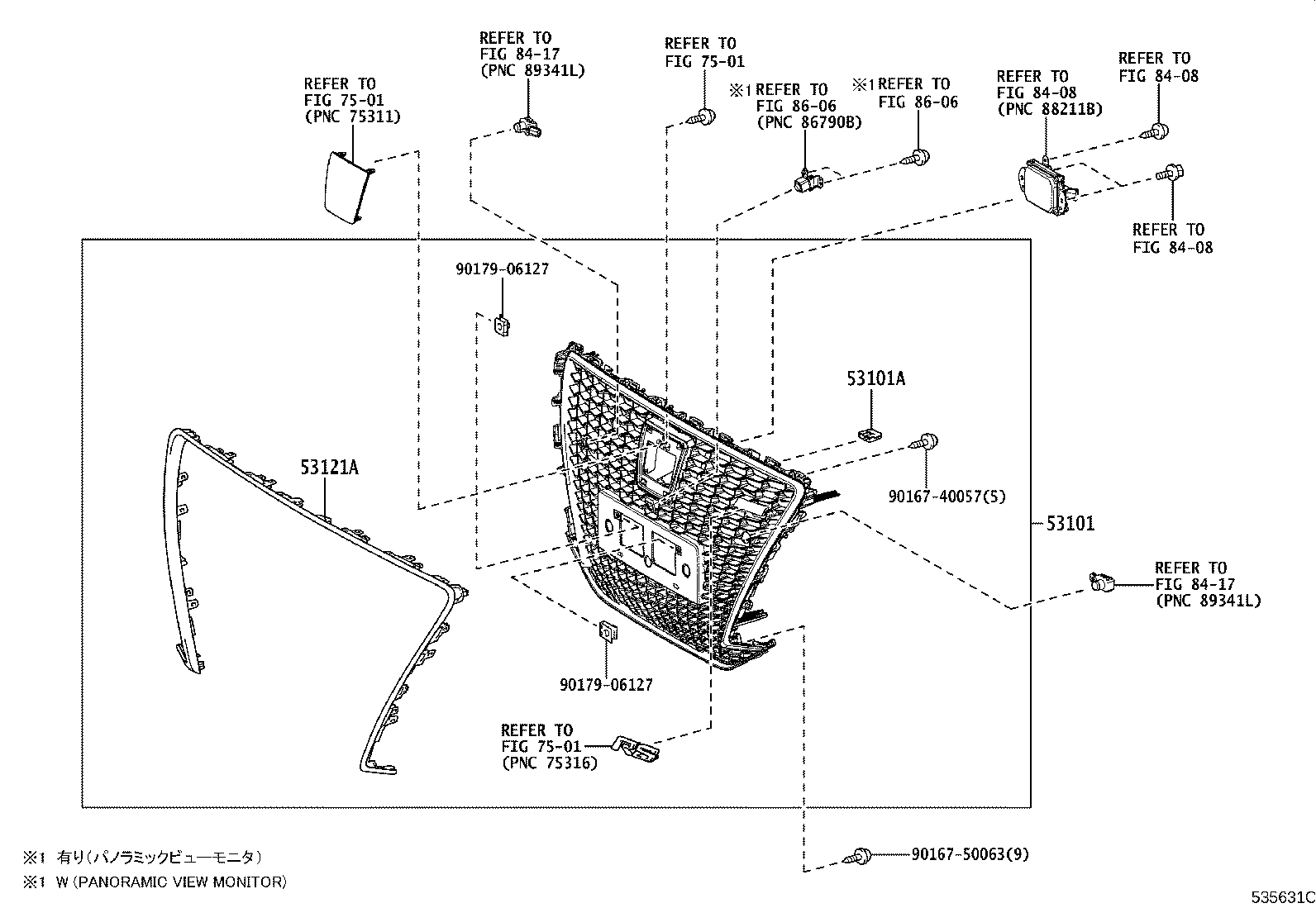

Figure 535631C

535631C 2018-06 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53101A	Clip, Radiator Grille
53121A	Moulding, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
