Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

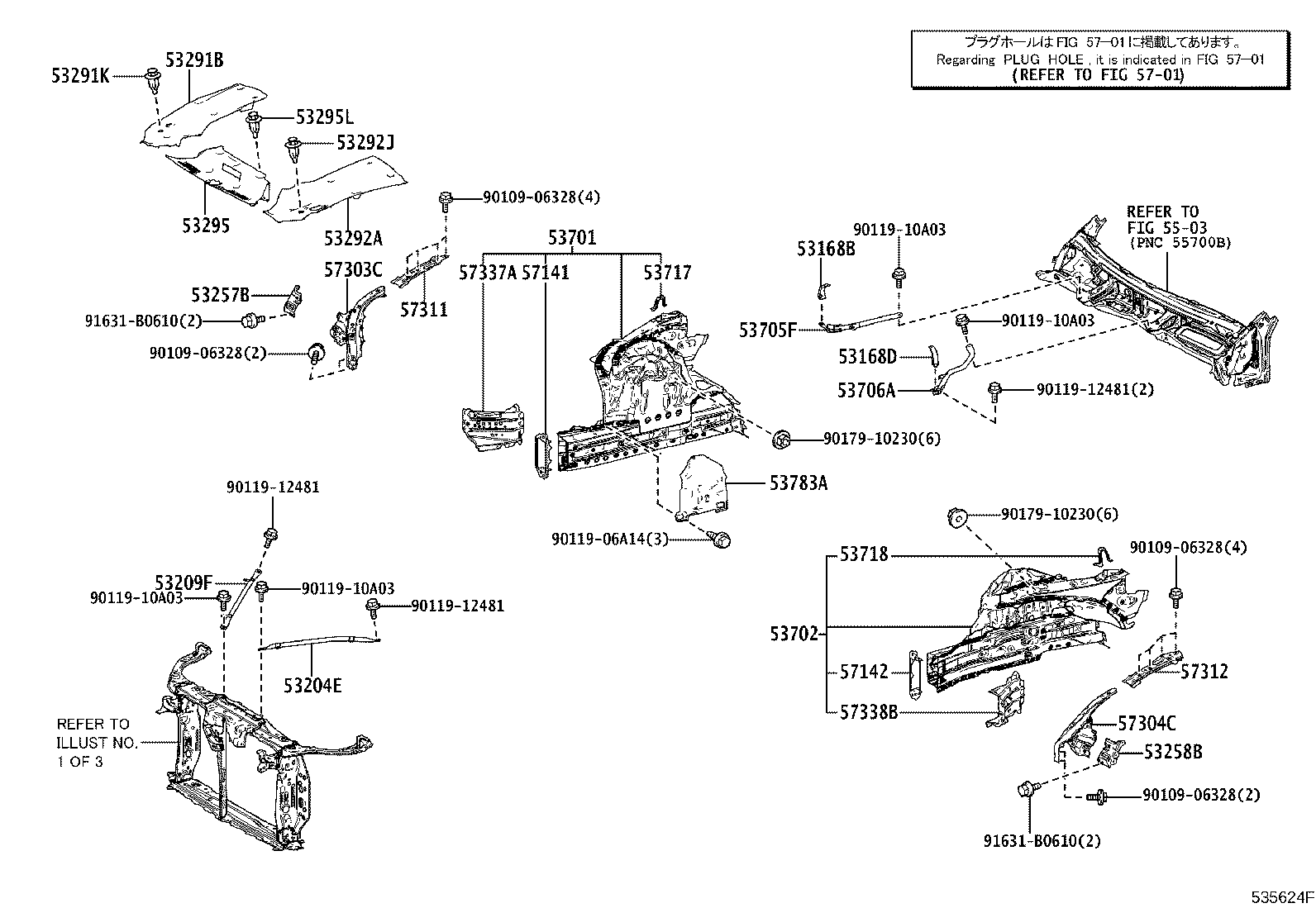

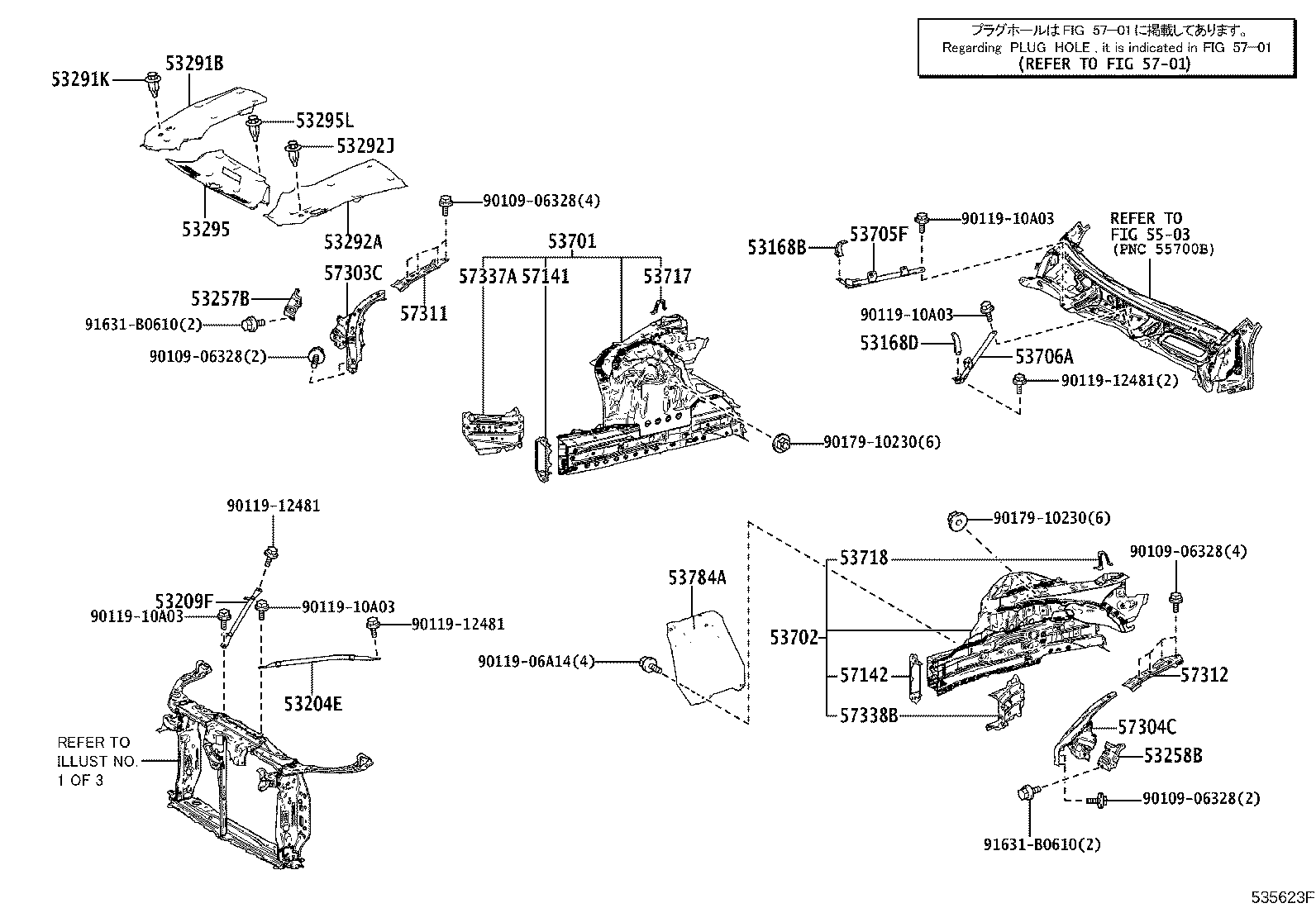

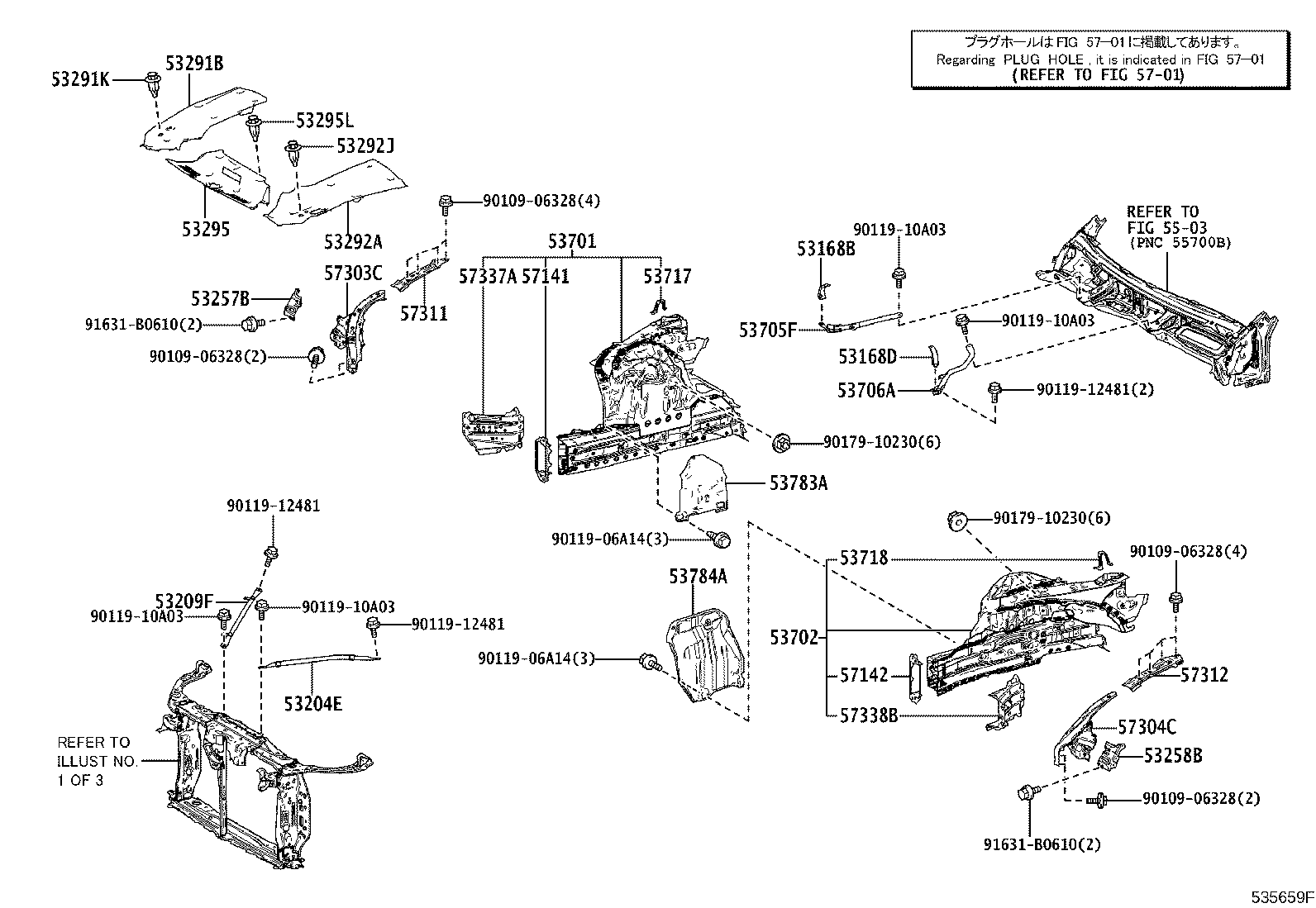

Front Fender Apron & Dash Panel
60 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 51465 | Brace, Radiator Support, Upper RH |
| 51466 | Brace, Radiator Support, Upper LH |
| 53035B | Bracket Sub-assy, Headlamp Mounting, RH |
| 53036B | Bracket Sub-assy, Headlamp Mounting, LH |
| 53168B | Bracket, Radiator Brace Rod |
| 53168D | Bracket, Radiator Brace Rod |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53204E | Brace Sub-assy, Radiator Support TO Crossmember, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209F | Brace Sub-assy, Radiator Support TO Crossmember, RH |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53217A | Brace, Hood Lock Support |
| 53218D | Extension, Hood Lock Brace |
| 53245C | Bracket, Headlamp Mounting, Upper RH |
| 53246C | Bracket, Headlamp Mounting, Upper LH |
| 53257B | Bracket, Radiator Support TO Front Fender |
| 53258B | Bracket, Radiator Support TO Front Fender, LH |
| 53287B | Extension, Radiator Support, RH |
| 53287G | Bolt, NO.1 |
| 53288B | Extension, Radiator Support, LH |
| 53289A | Cover, Radiator Support Opening |
| 53291B | Plate, Radiator Cover |
| 53291K | Clip, Radiator Cover Plate |
| 53292A | Seal, Radiator Support, Upper |
| 53292J | Clip, Radiator Support Seal |
| 53295 | Deflector, Radiator Lower Air |
| 53295L | Clip, Radiator Lower Air Deflector |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705F | Brace Sub-assy, Fender Apron, RH |
| 53706A | Brace Sub-assy, Fender Apron, LH |
| 53717 | Plate, Fender Apron, RH |
| 53718 | Plate, Fender Apron, LH |
| 53783A | Insulator, Apron Front Fender, RH |
| 53784A | Insulator, Apron Front Fender, LH |

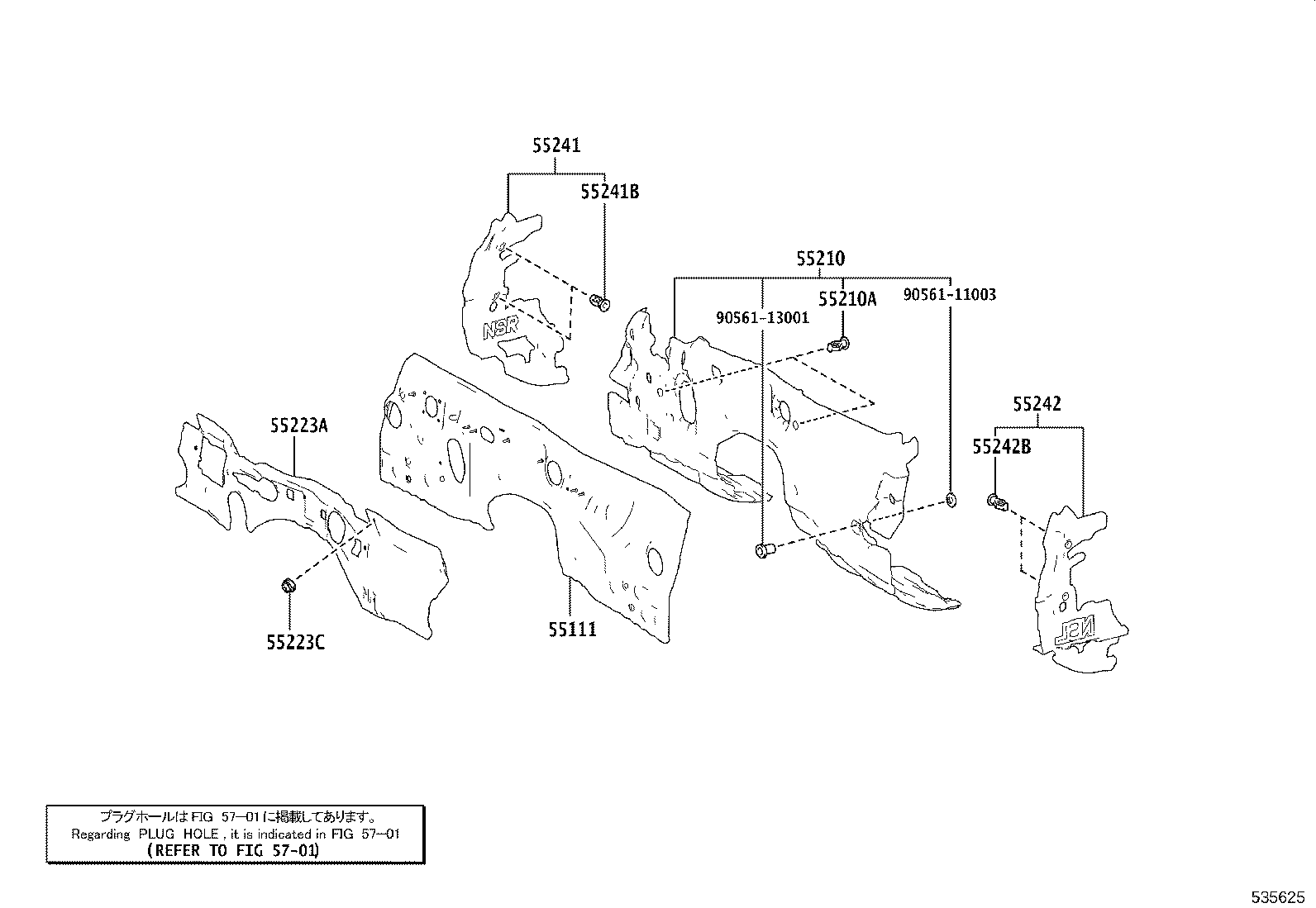

| 55111 | Panel, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55241B | Clip, Front Panel Side Silencer |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
| 57104A | Member Sub-assy, Front Cross |
| 57107K | Reinforce Sub-assy, Front Bumper Mounting, RH |
| 57108H | Reinforce Sub-assy, Front Bumper Mounting, LH |
| 57141 | Support, Front Bumper Arm, RH |
| 57142 | Support, Front Bumper Arm, RH |
| 57303C | Outrigger Sub-assy, NO.2 RH |
| 57304C | Outrigger Sub-assy, NO.2 LH |
| 57311 | Outrigger, NO.1 RH |
| 57312 | Outrigger, NO.1 LH |
| 57337A | Gusset, Outrigger, NO.1 RH |
| 57338B | Gusset, Outrigger, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
