Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

22 part groups · 4 illustrations

Illustrations

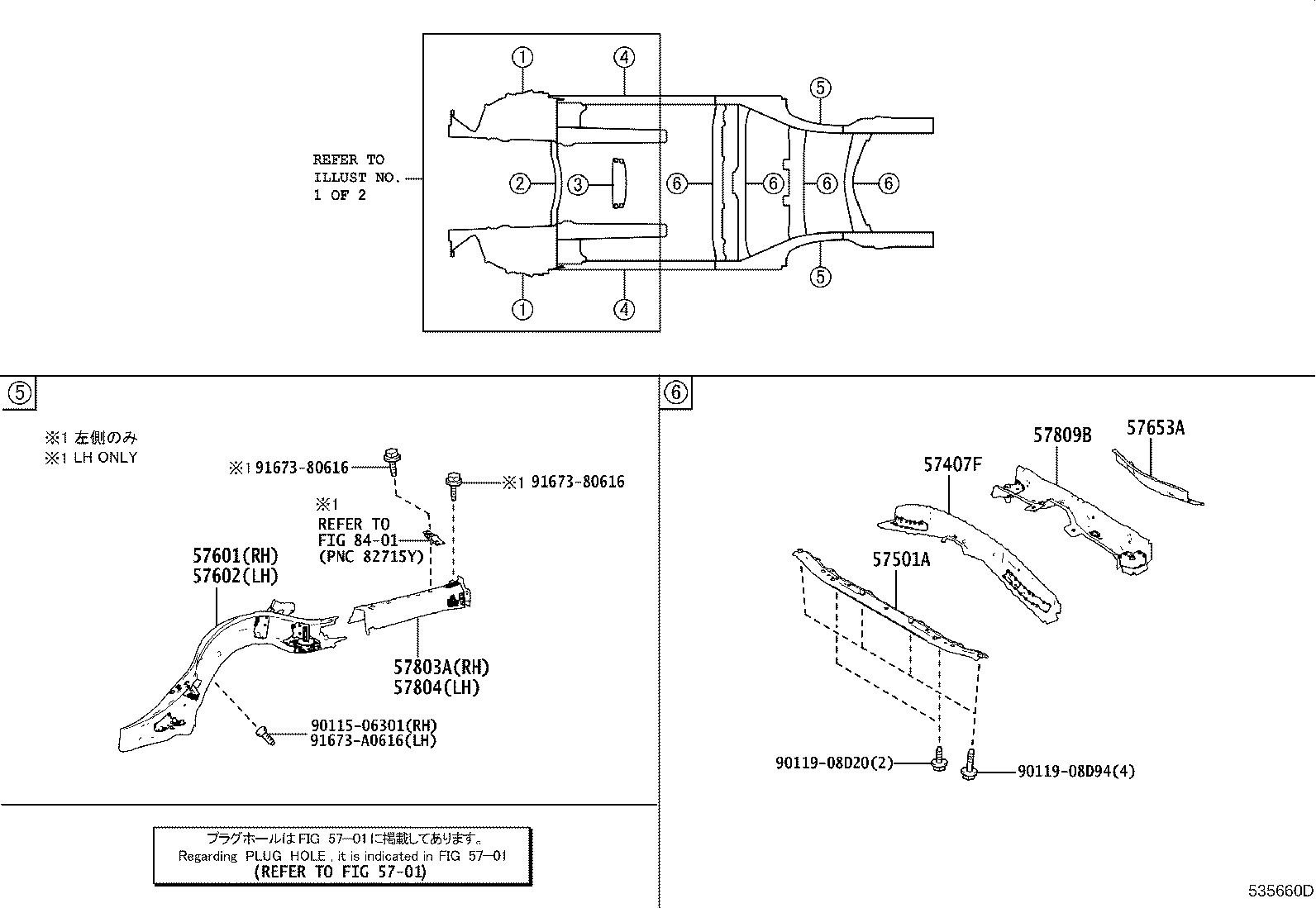

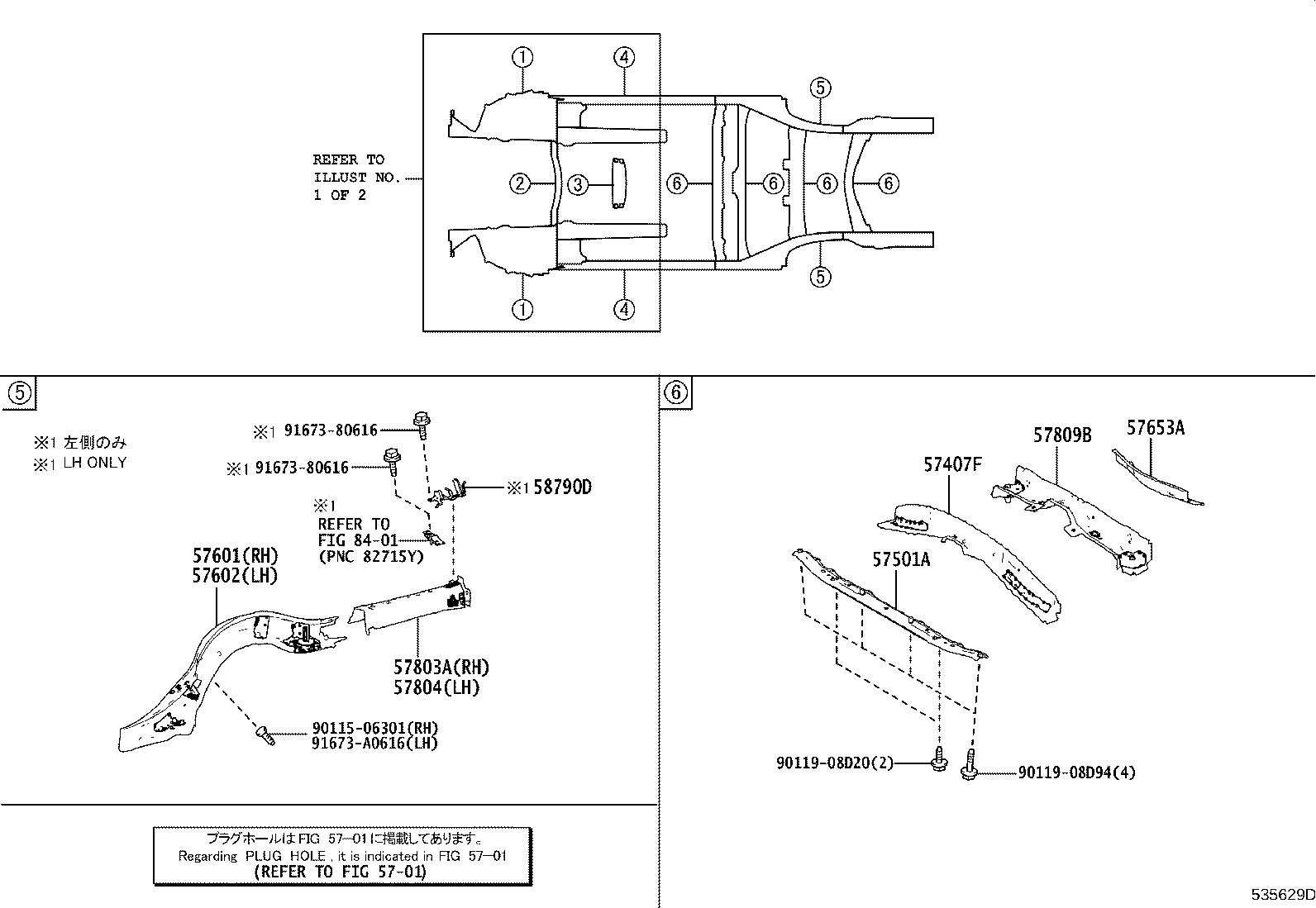

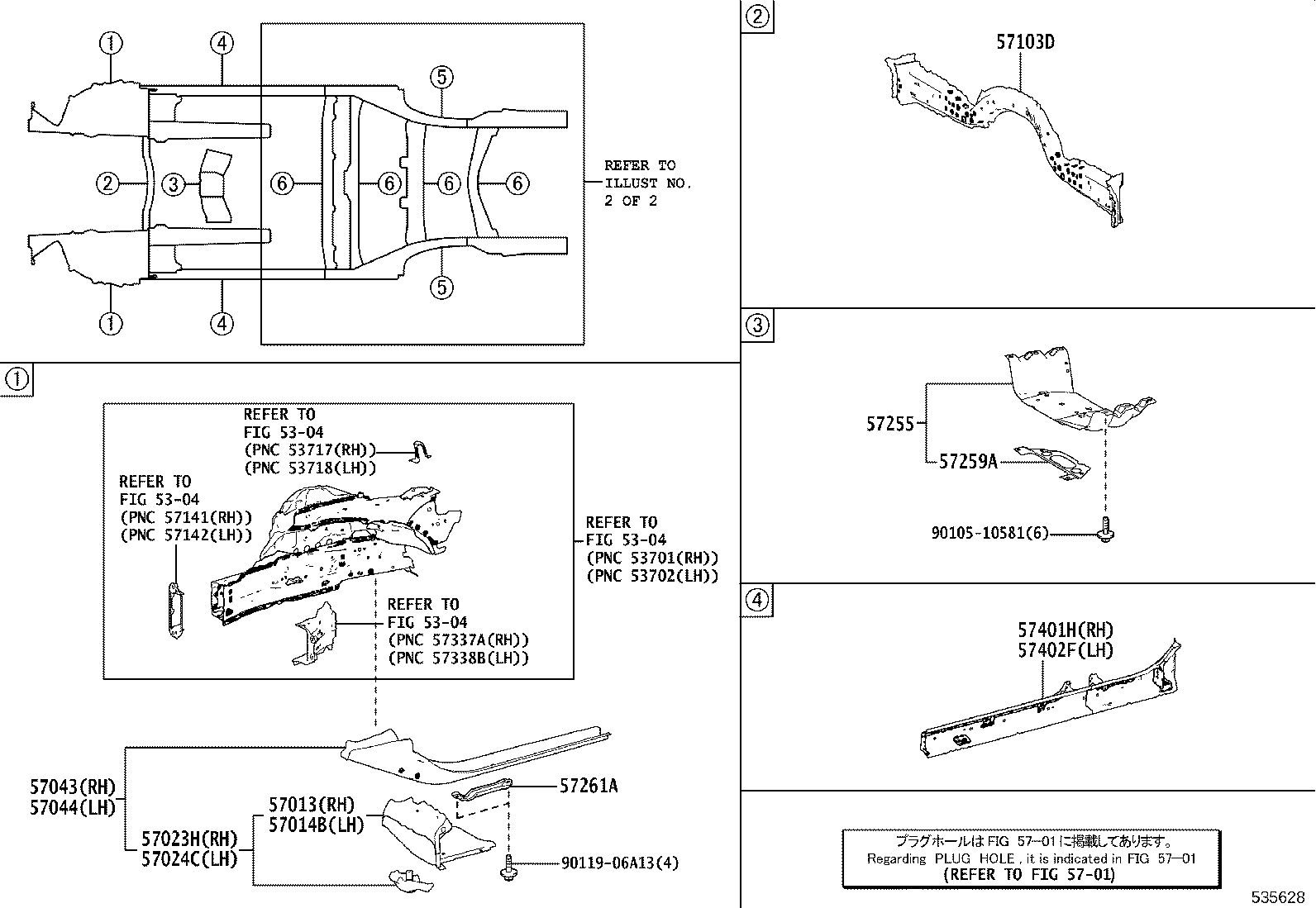

Figure 535627A 535627A 2018-06 → — Figure 535628 535628 2018-06 → — Figure 535660D 535660D 2018-06 → — Figure 535629D 535629D 2018-06 → —

Part groups

PNCDescription
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57023H Bracket Sub-assy, Body Mounting, NO.2 RH
57024C Bracket Sub-assy, Body Mounting, NO.2 LH
57043 Reinforcement Sub-assy, Front Side Member, Rear RH
57044 Reinforcement Sub-assy, Front Side Member, Rear LH
57103D Crossmember Sub-assy, Front Side Member TO Dash Panel
57201D Damper Sub-assy, Engine Rear Mounting Member, NO.1
57255 Member, Engine Rear Mounting
57259A Plate, Engine Rear Mounting Member Bracket
57261A Plate, Engine Rear Mounting Member
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407F Member Sub-assy, Center Floor Cross, NO.1
57501A Brace Sub-assy, Front Floor, Center
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57653A Member, Rear Floor Cross, NO.2
57803A Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
57804 Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
57809B Reinforcement Sub-assy, Belt Anchor, NO.3
58790D Carrier Assy, Jack
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
