Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

31 part groups · 3 illustrations

Illustrations

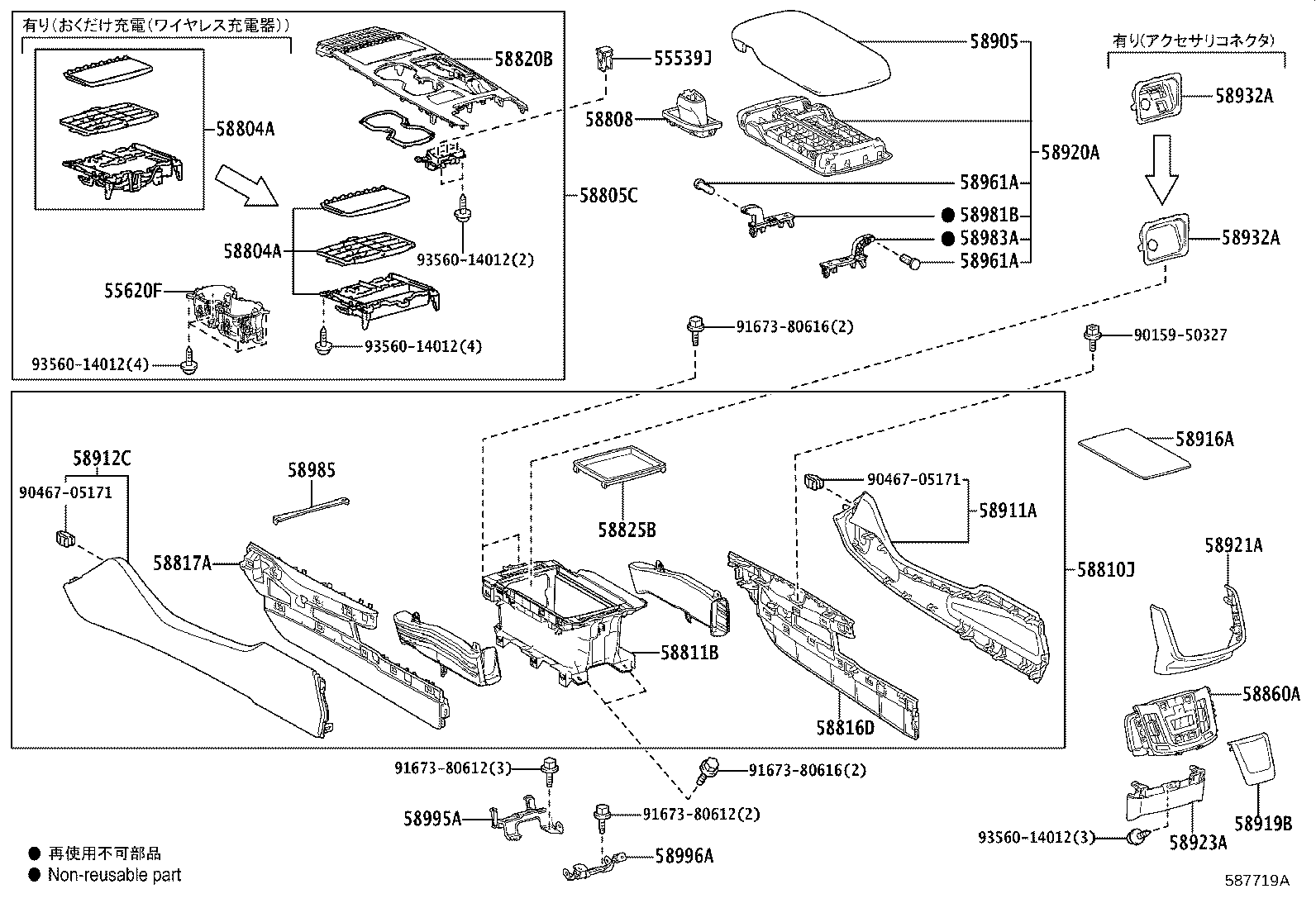

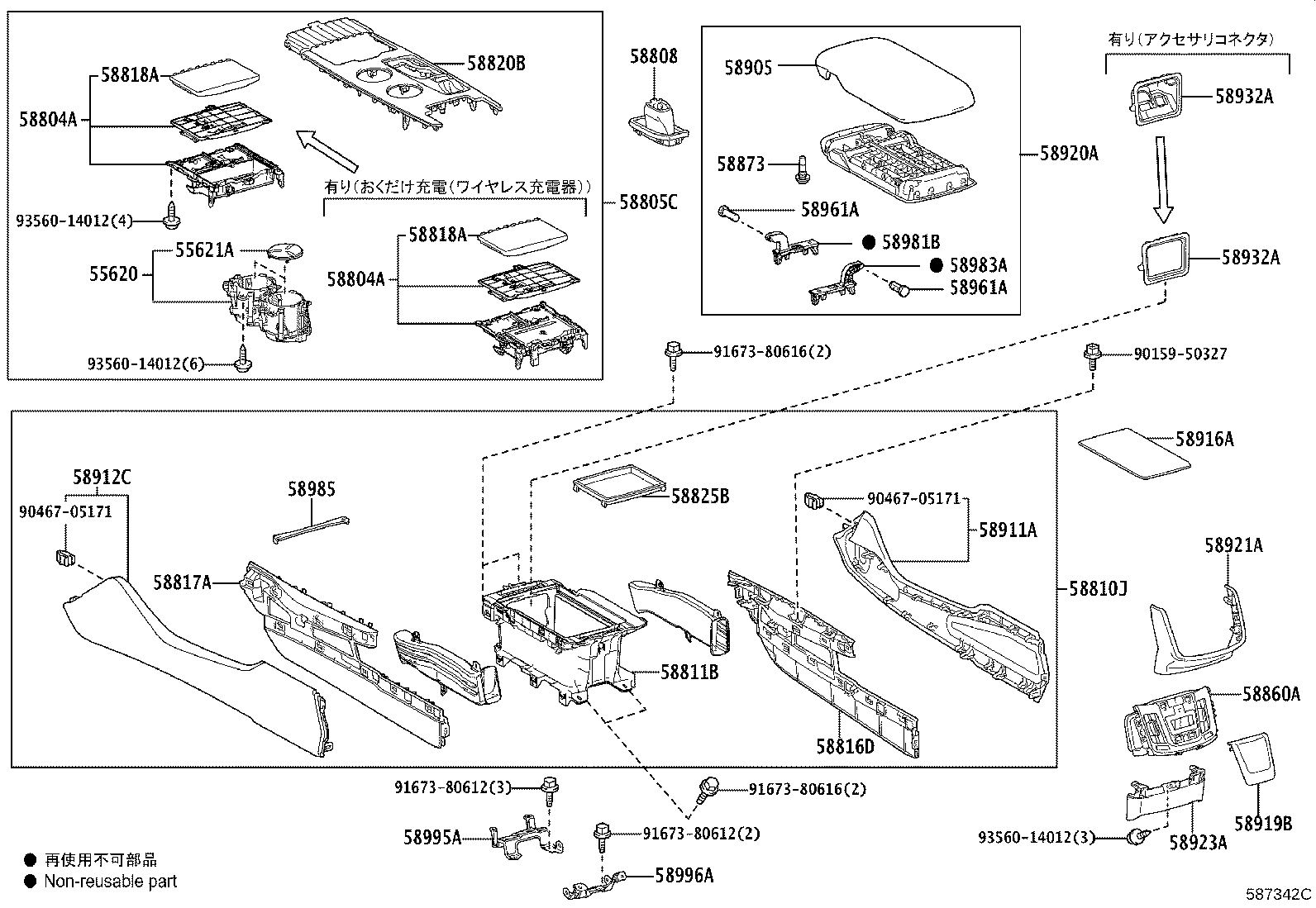

Figure 586610L 586610L 2018-06 → 2020-01 Figure 587342C 587342C 2020-01 → 2020-10 Figure 587719A 587719A 2020-11 → —

Part groups

PNCDescription
55539J Cover, Spare Switch Hole
55620 Holder Assy, Instrument Panel Cup
55620F Holder Assy, Console Box Cup
55621A Door, Console Box Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811B Box, Console
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58820B Panel Assy, Console, Upper
58825B Pocket, Console Box
58860A Register Assy, Console Box
58873 Cushion, Console Box, NO.3
58905 Door Sub-assy, Console Compartment
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58916A Insert, Console Box, Rear
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58921A Panel, Rear Console, Upper
58923A Panel, Console Rear End
58932A Garnish, Rear Console Box
58961A Hinge, Console Compartment Door Male
58981B Retainer, Console Mounting, NO.1
58983A Retainer, Console Mounting
58985 Retainer, Console Box
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
