Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

34 part groups · 3 illustrations

Illustrations

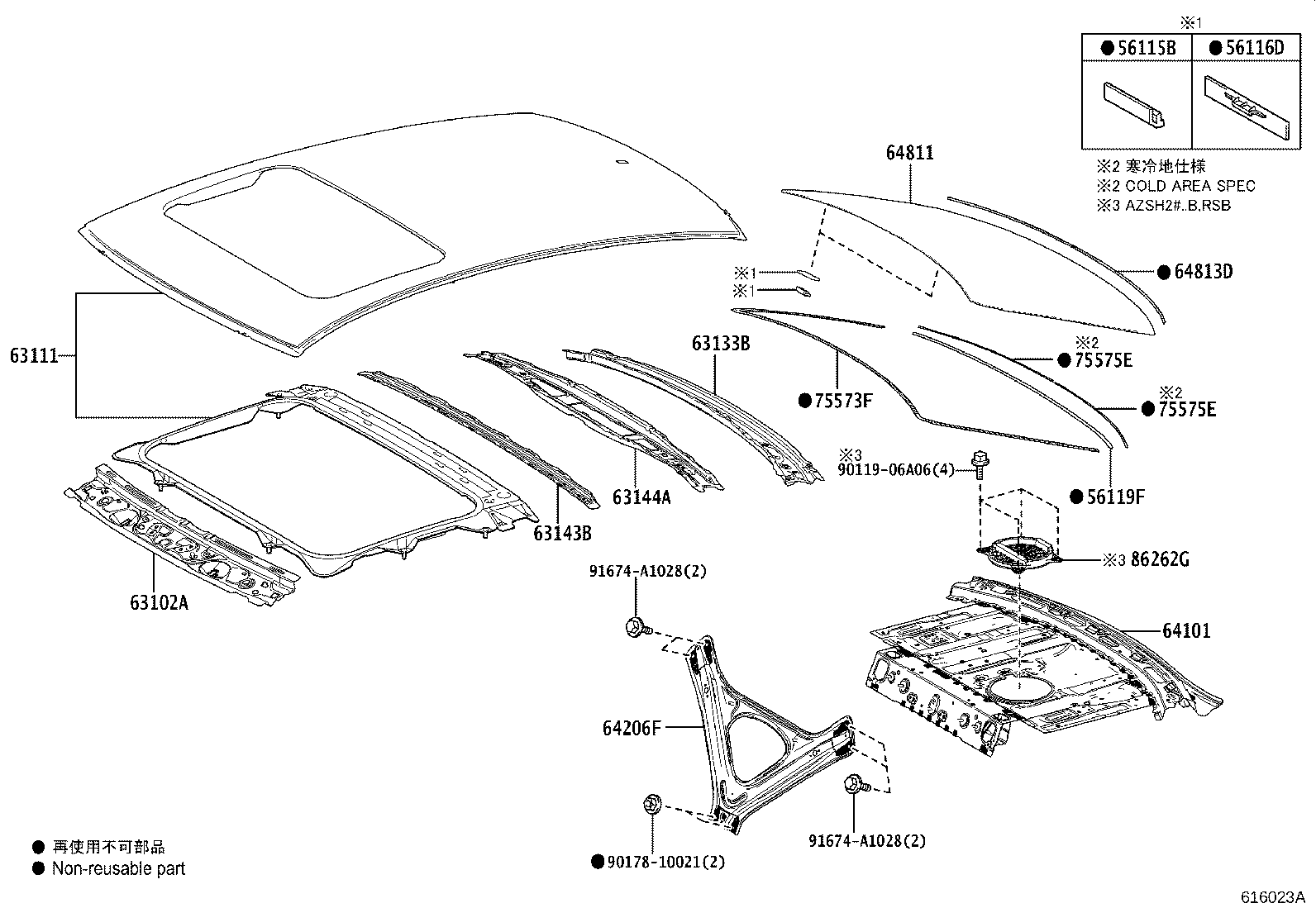

Figure 616022C 616022C 2018-06 → — Figure 616023B 616023B 2018-06 → — Figure 616024B 616024B 2018-06 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
56119F Seal, Windshield Glass
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63133B Frame, Back Window
63141G Reinforcement, Roof Panel, NO.1
63142A Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63209 Panel Sub-assy, Roof Wind Deflector
63214F Channel, Roof Drip, Rear
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63220A Hose Assy, Sliding Roof Drain, RH
63236 Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D Clamp, Sliding Roof Drain Hose
63236E Clamp, Sliding Roof Drain Hose
63240A Hose Assy, Sliding Roof Drain, LH
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
64101 Panel Sub-assy, Upper Back
64206F Panel Sub-assy, Room Partition
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
75573F Moulding, Back Window, Outside
75575E Moulding, Back Window, Outside Lower
86262G Cover, Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
