Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11

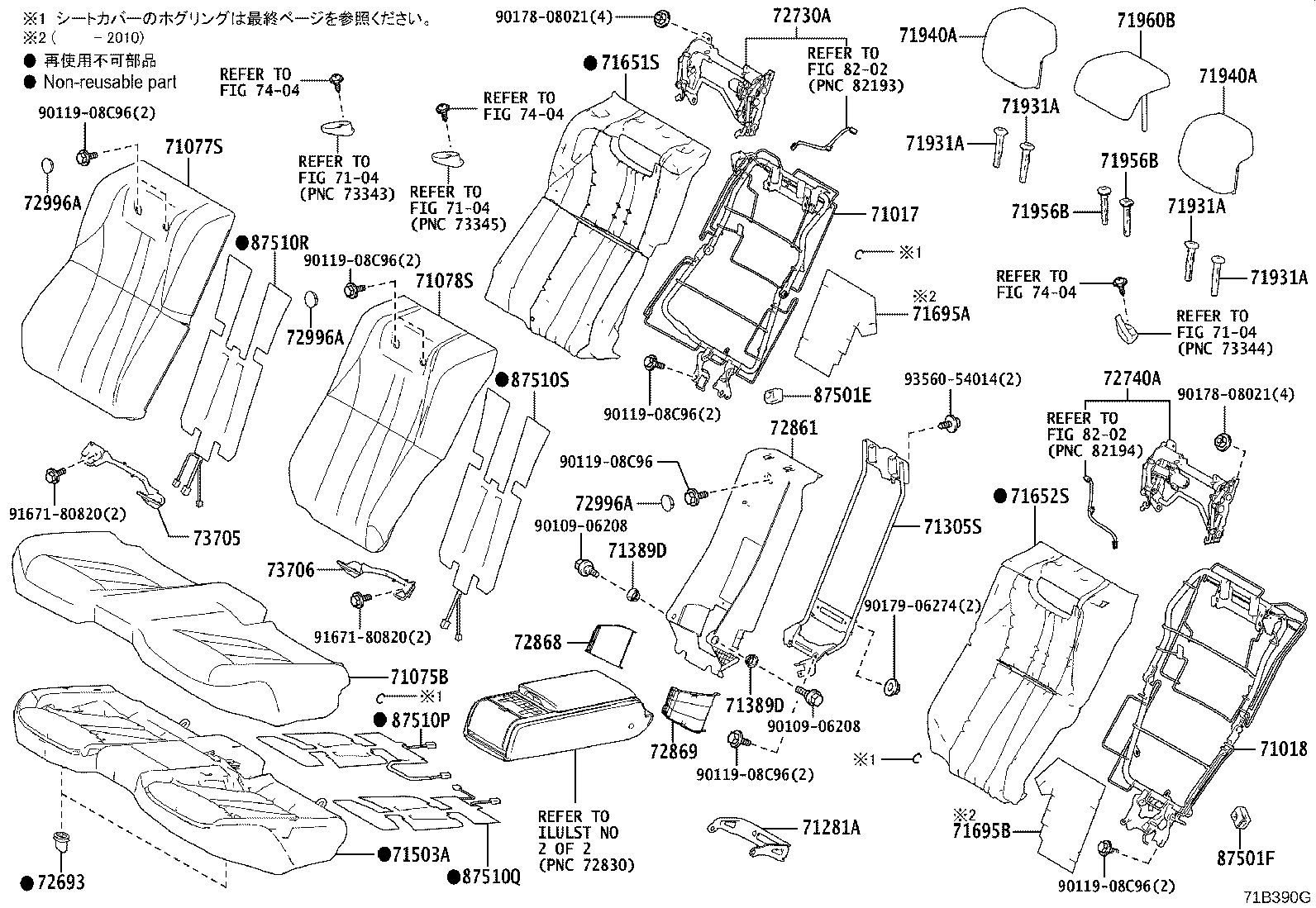

Rear Seat & Seat Track

39 part groups · 4 illustrations

PNC	Description
66990	Holder Assy, Cup
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71266	Gusset, Rear Seatback Frame
71281A	Hinge, Rear Seat Center Armrest
71305S	Frame Sub-assy, Center Seatback
71389D	Plate, Rear Seat Stopper
71503A	Pad Sub-assy, Rear Seat Cushion
71507A	Pad Sub-assy, Rear Seatback
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
72693	Hook, Rear Seat Cushion Lock
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72805B	Door Sub-assy, Rear Seat Center Armrest

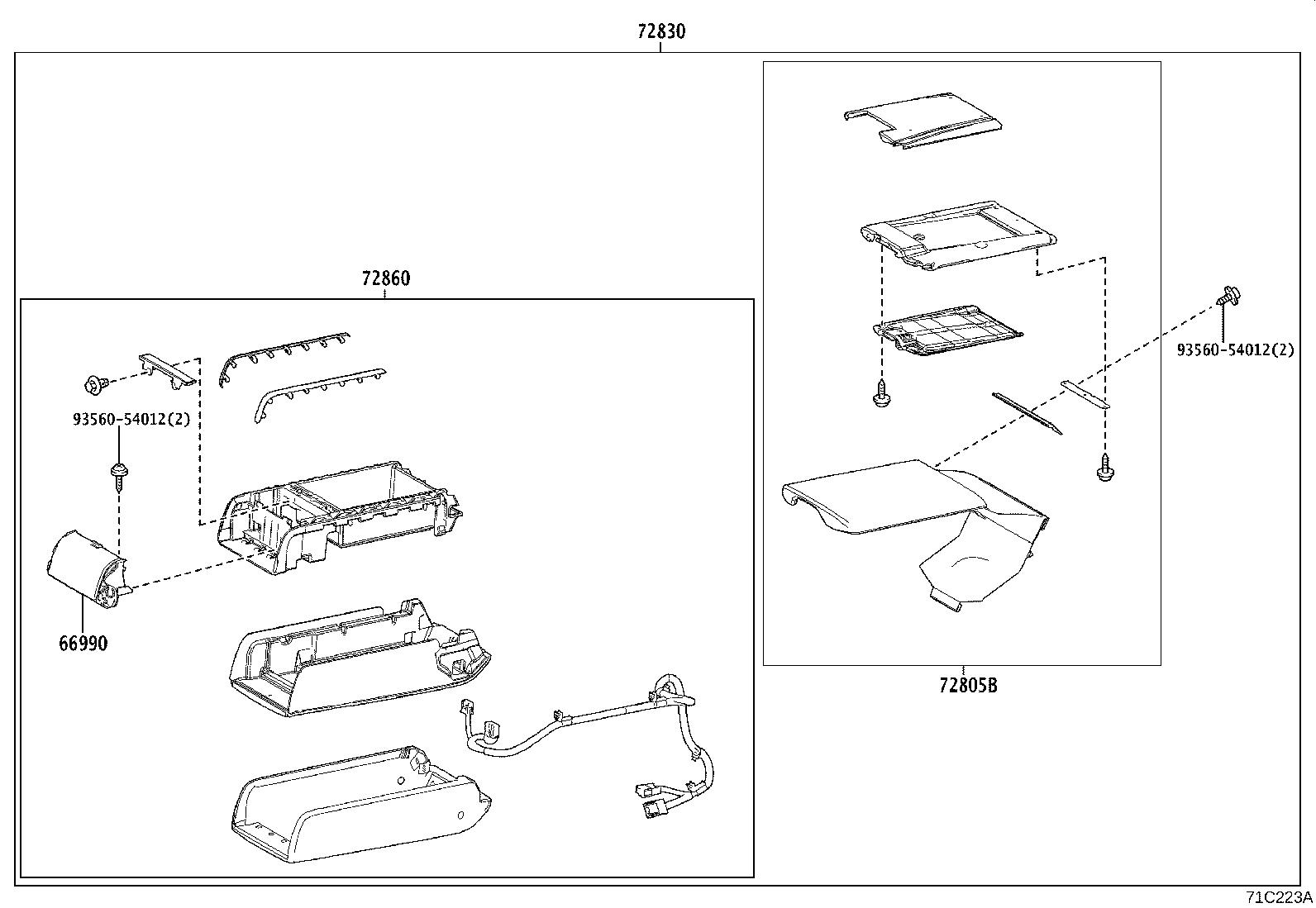

72830	Armrest Assy, Rear Seat, Center
72860	Box Assy, Rear Seat Center Armrest
72861	Trim, Center Armrest Corner
72868	Cover, Center Armrest Hinge, RH
72869	Cover, Center Armrest Hinge, LH
72996A	Cover, Rear Seatback
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706	Bracket Sub-assy, Child Restraint Seat Anchor, LH
87501E	Control Sub-assy, Seat Heater, RH
87501F	Control Sub-assy, Seat Heater, LH
87510P	Heater Assy, Seat
87510Q	Heater Assy, Seat
87510R	Heater Assy, Seat
87510S	Heater Assy, Seat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
