Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

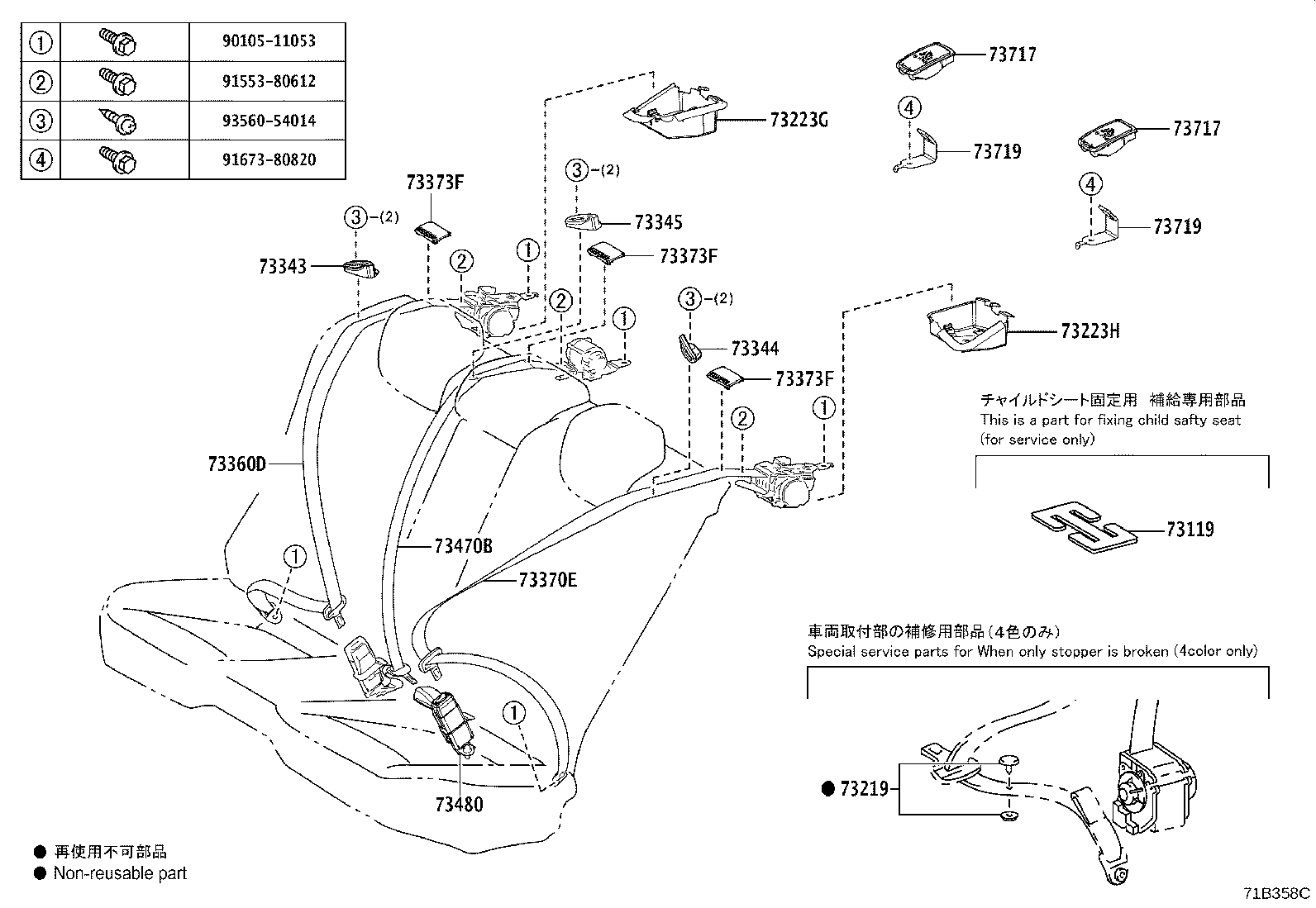

Seat Belt & Child Restraint Seat
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223B | Cover, Front Seat Belt Retractor, RH |
| 73223G | Cover, Seat Belt Retractor, RH |
| 73223H | Cover, Seat Belt Retractor, LH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73345 | Guide, Rear Seat Shoulder Belt, Center |
| 73360D | Belt Assy, Rear Seat, Outer RH |
| 73370E | Belt Assy, Rear Seat, Outer LH |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
| 73717 | Cover, Child Restraint Seat Tether Anchor |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
