Toyota Crown/Hybrid
2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan
Supported model
Data version 2020-11

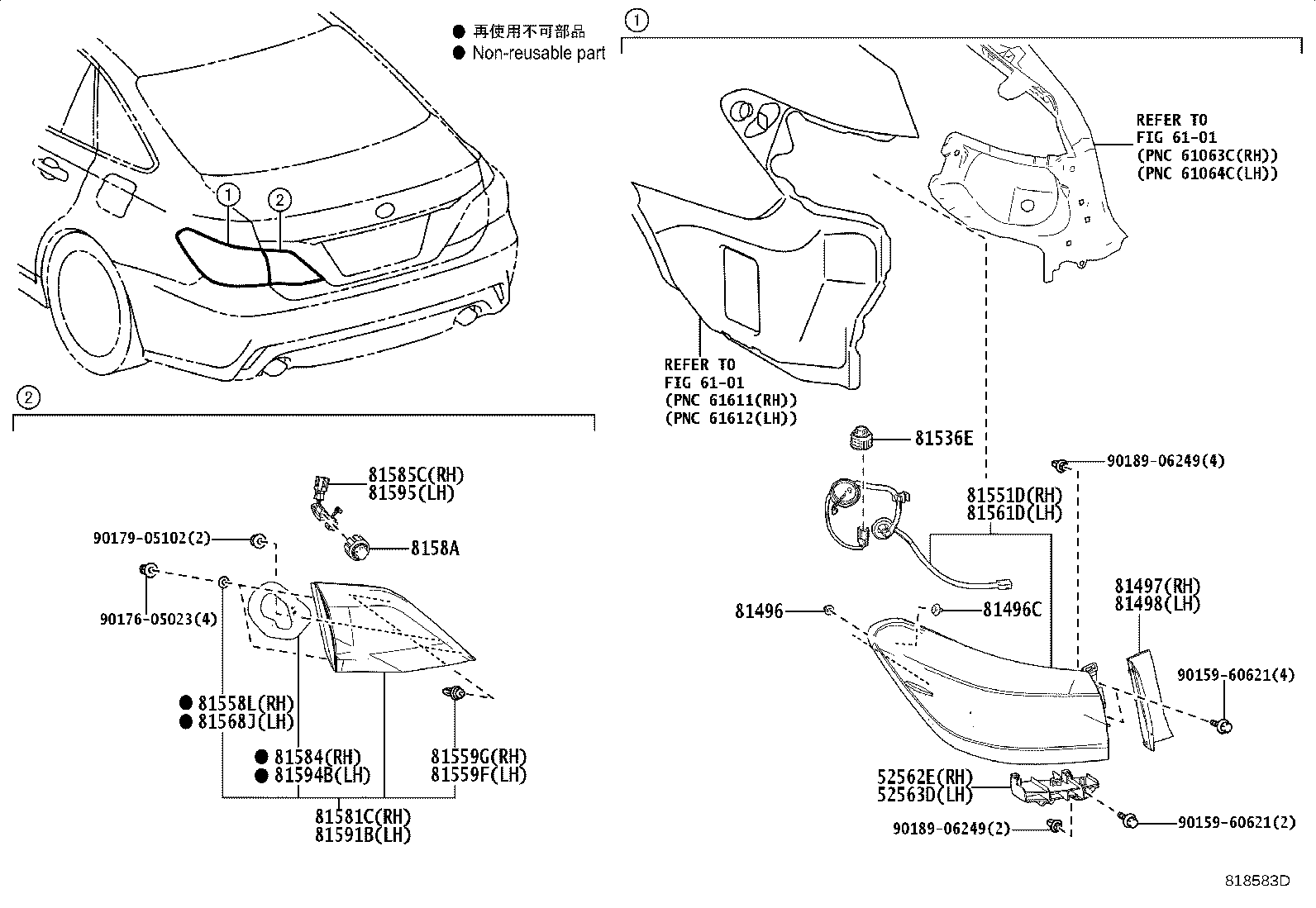

Rear Combination Lamp
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52562E | Retainer, Rear Bumper, Upper RH |
| 52563D | Retainer, Rear Bumper, Upper LH |
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536B | Led, Rear Turn Signal Lamp |
| 81536E | Led, Stop Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81558L | Protector, Rear Combination Lamp, RH |
| 81559F | Clip, RR Combination Lamp, LH |
| 81559G | Clip, RR Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81568J | Protector, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 8158A | Led, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594B | Packing, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
