Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

5 part groups · 2 illustrations

Illustrations

Figure 818637A

818637A 2018-06 → —

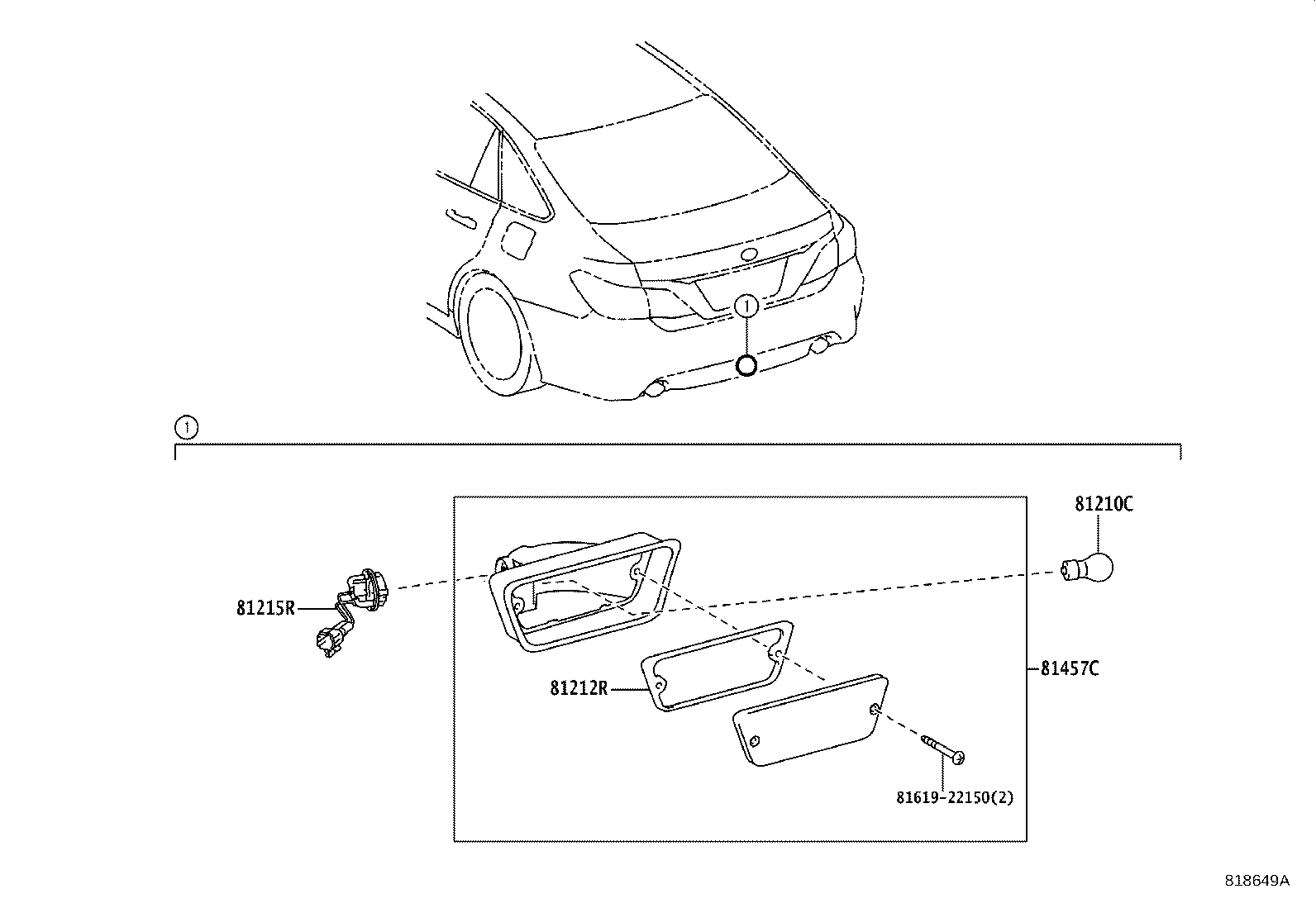

Figure 818649A

818649A 2018-06 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81212R	Gasket, Rear Fog Lamp, NO.1
81215R	Socket & Wire, Rear Fog Lamp
81457C	Lens & Body, Rear Fog Lamp
81483A	Protector, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
