Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

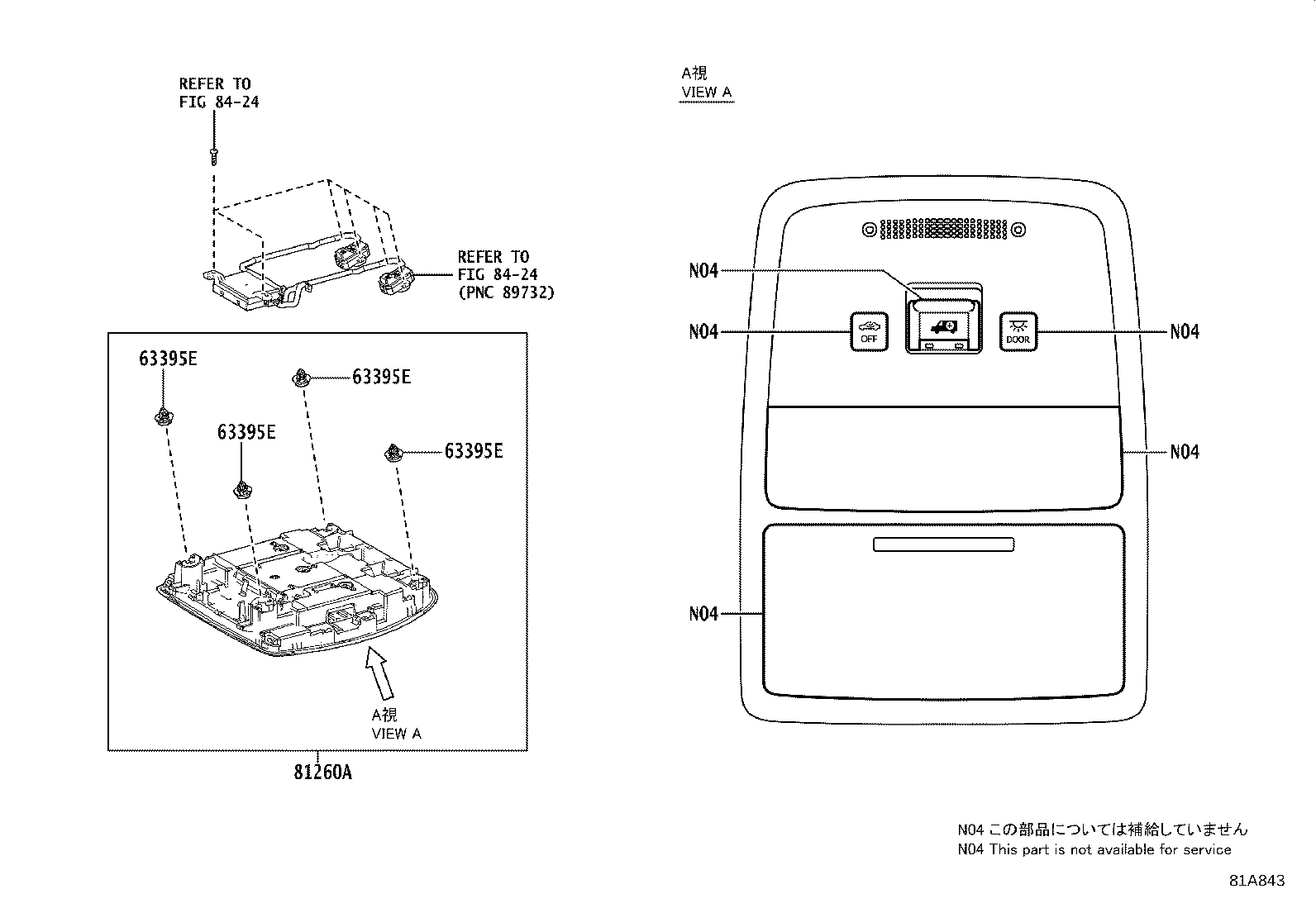

Figure 818584E 818584E 2018-06 → — Figure 81A843 81A843 2018-06 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81230F Lamp Assy, Rear Door Courtesy, RH
81230G Lamp Assy, Rear Door Courtesy, LH
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81360T Lamp Assy, Spot
81362B Lens, Interior Illumination Lamp
81362C Lens, Interior Illumination Lamp, RH
81362D Lens, Interior Illumination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
