Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

187 part groups · 16 illustrations

Illustrations

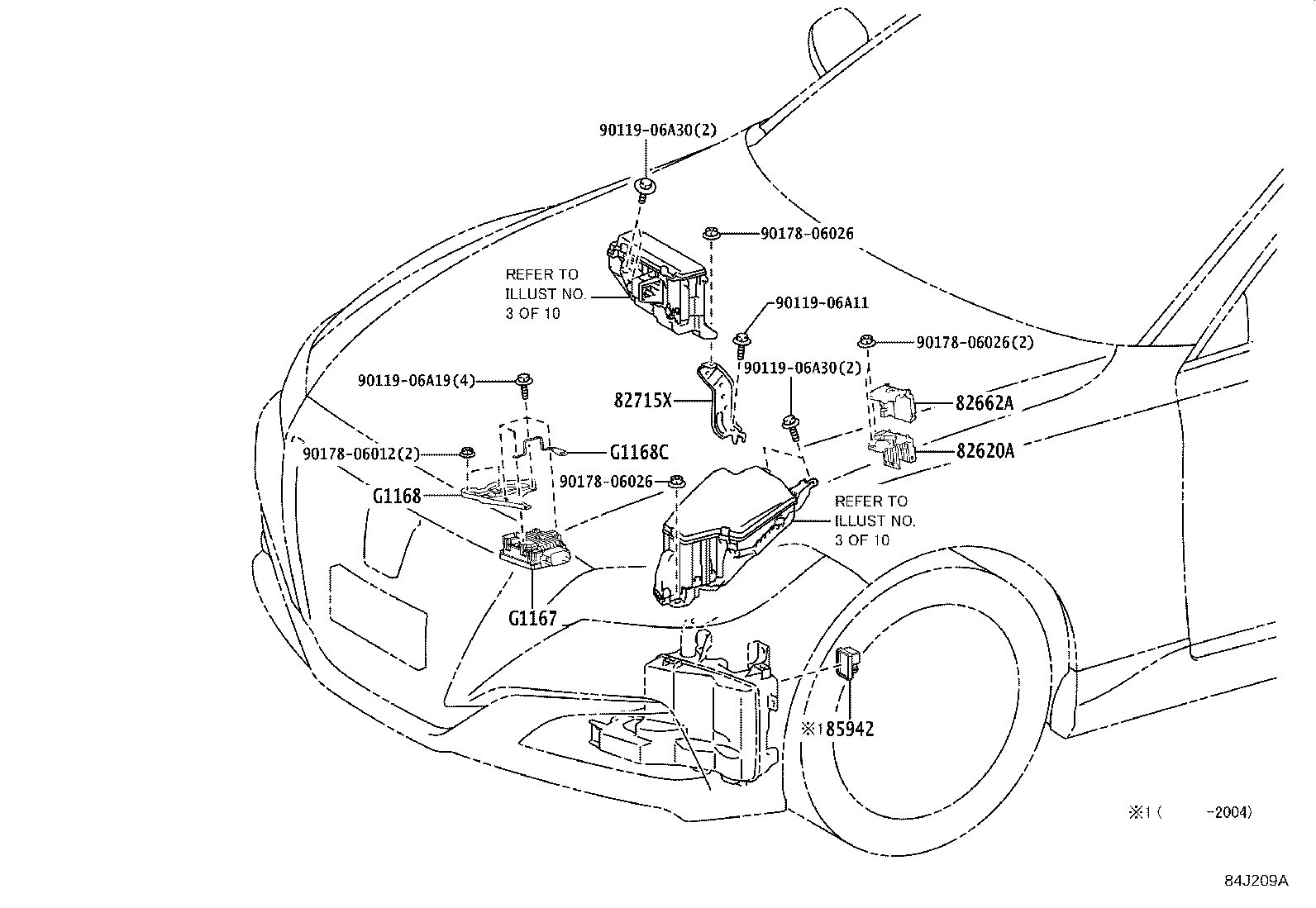

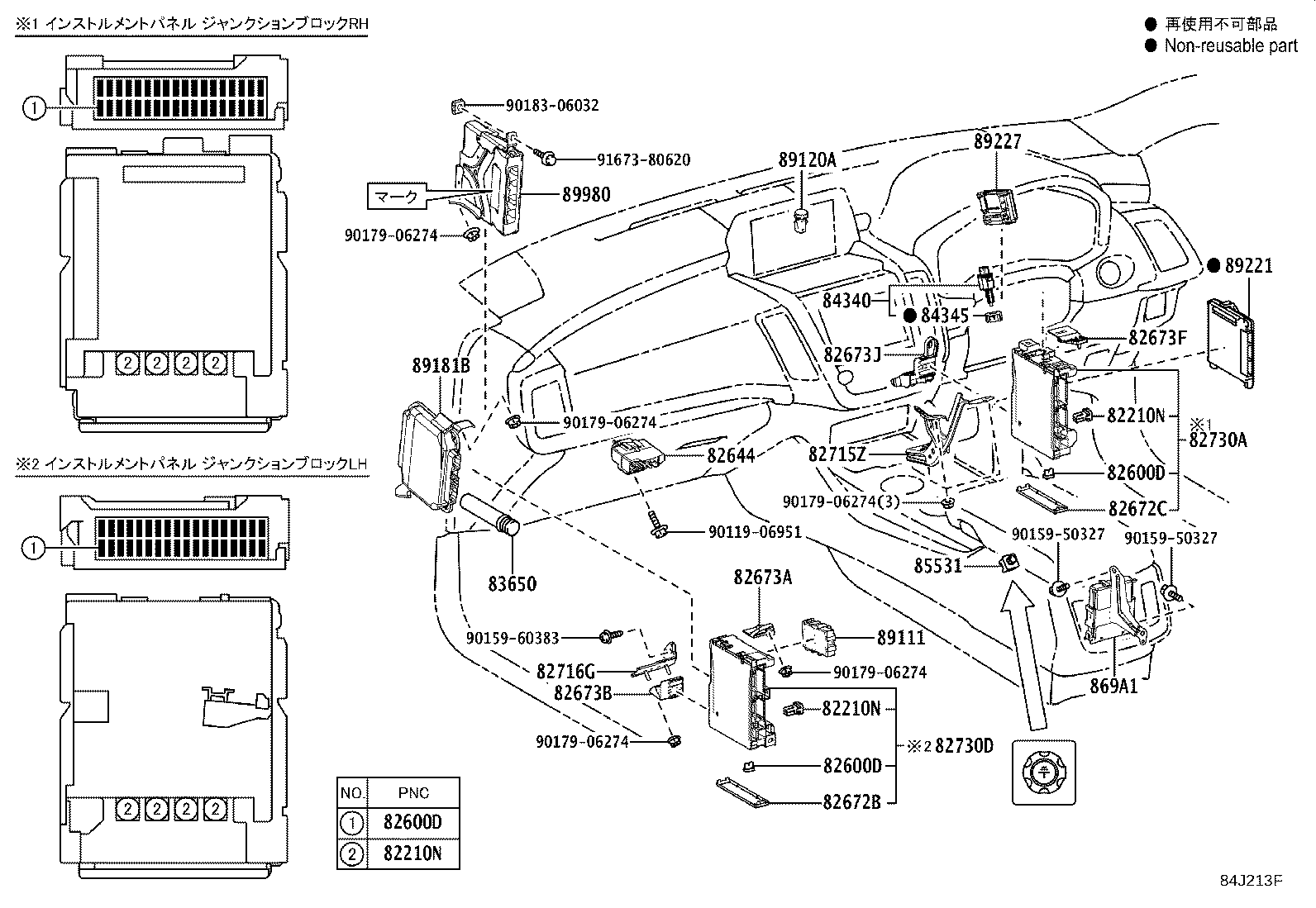

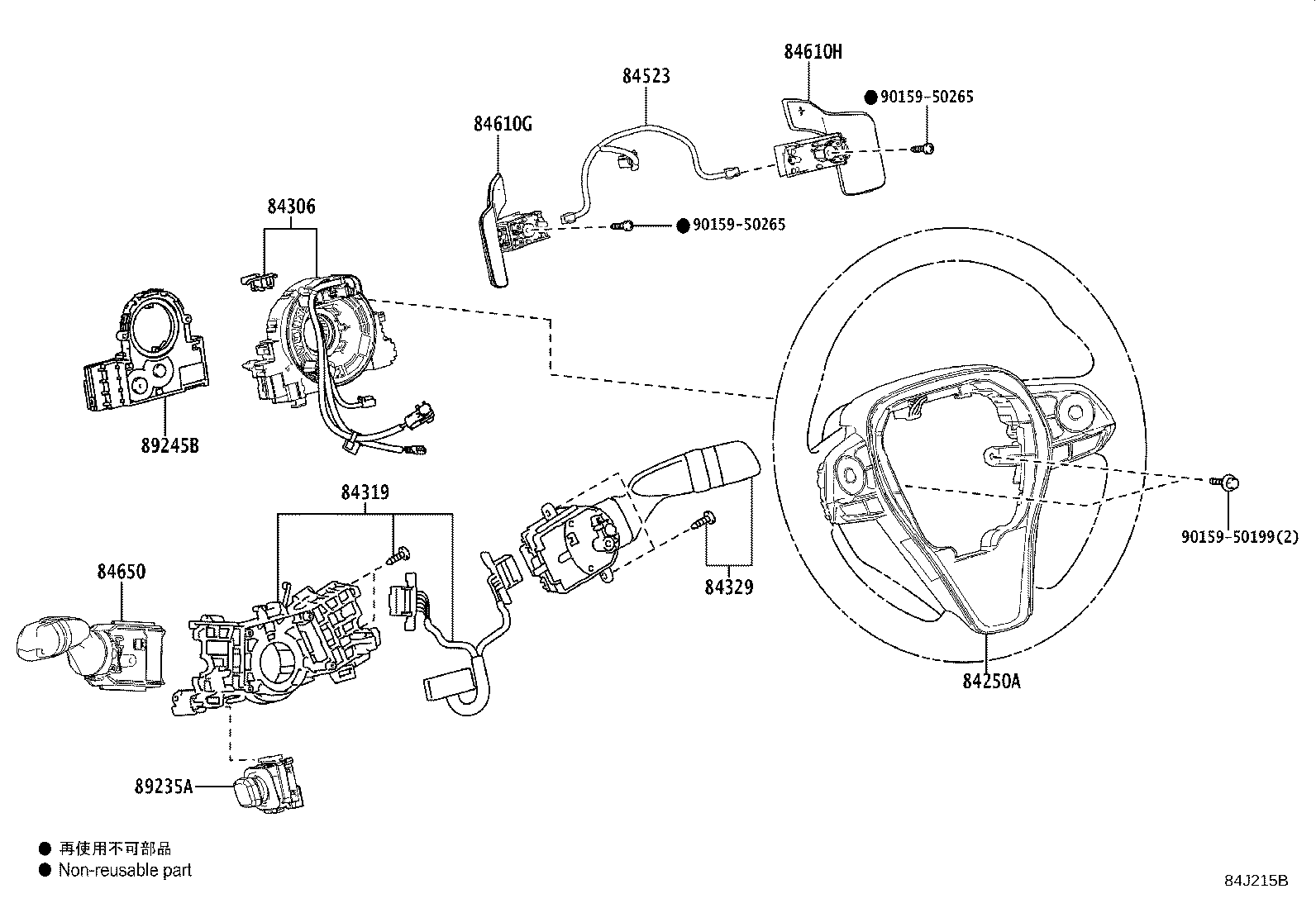

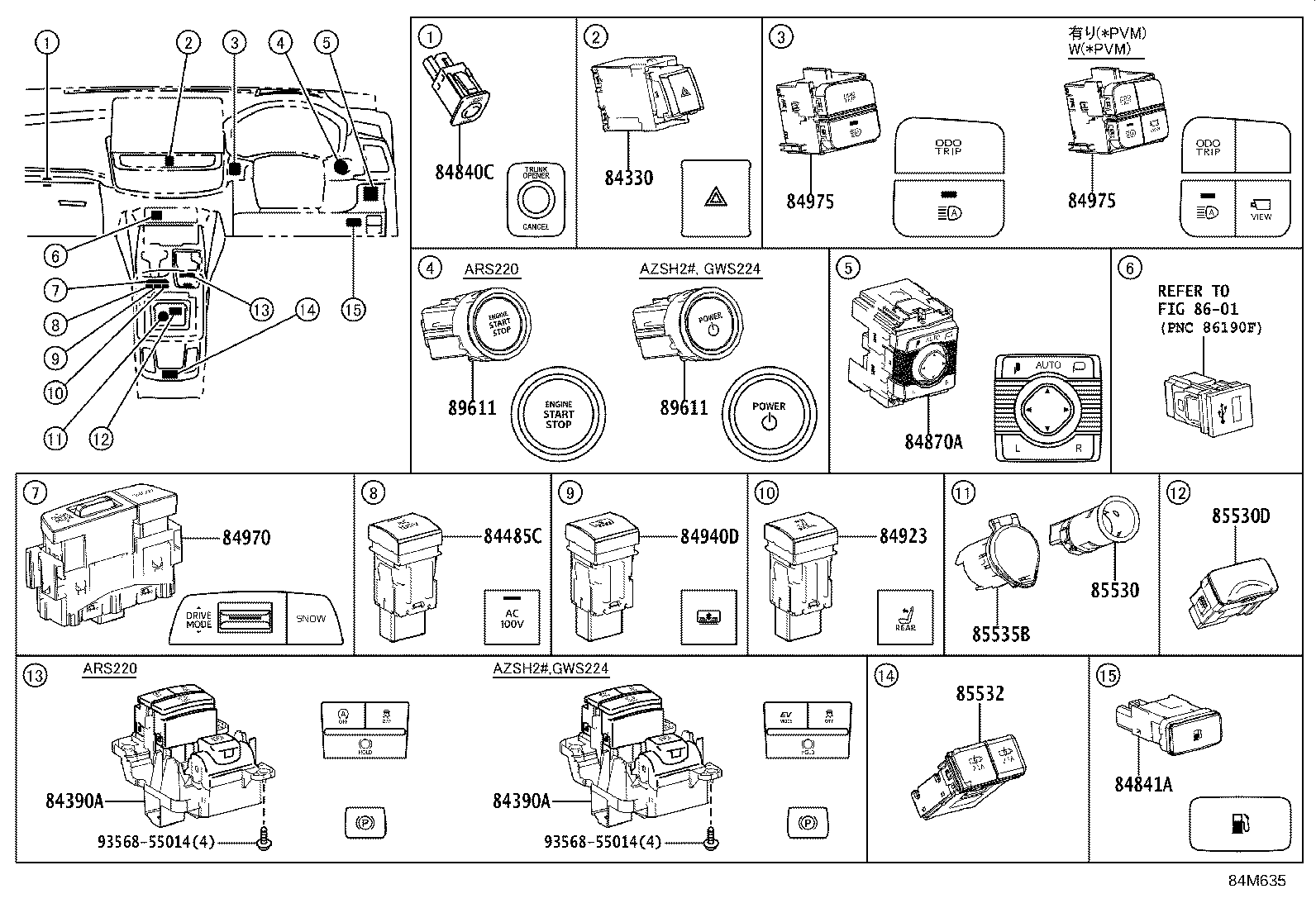

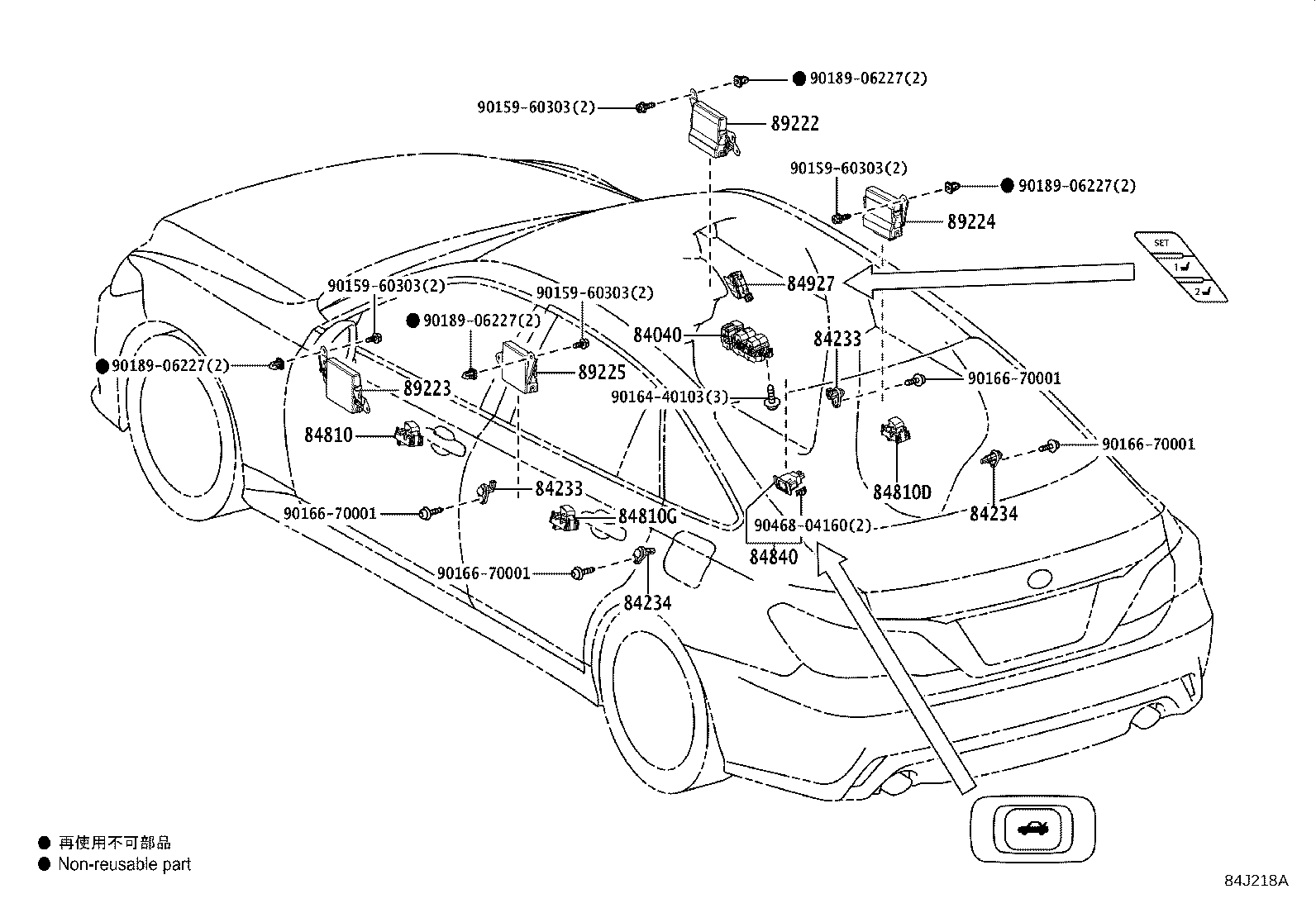

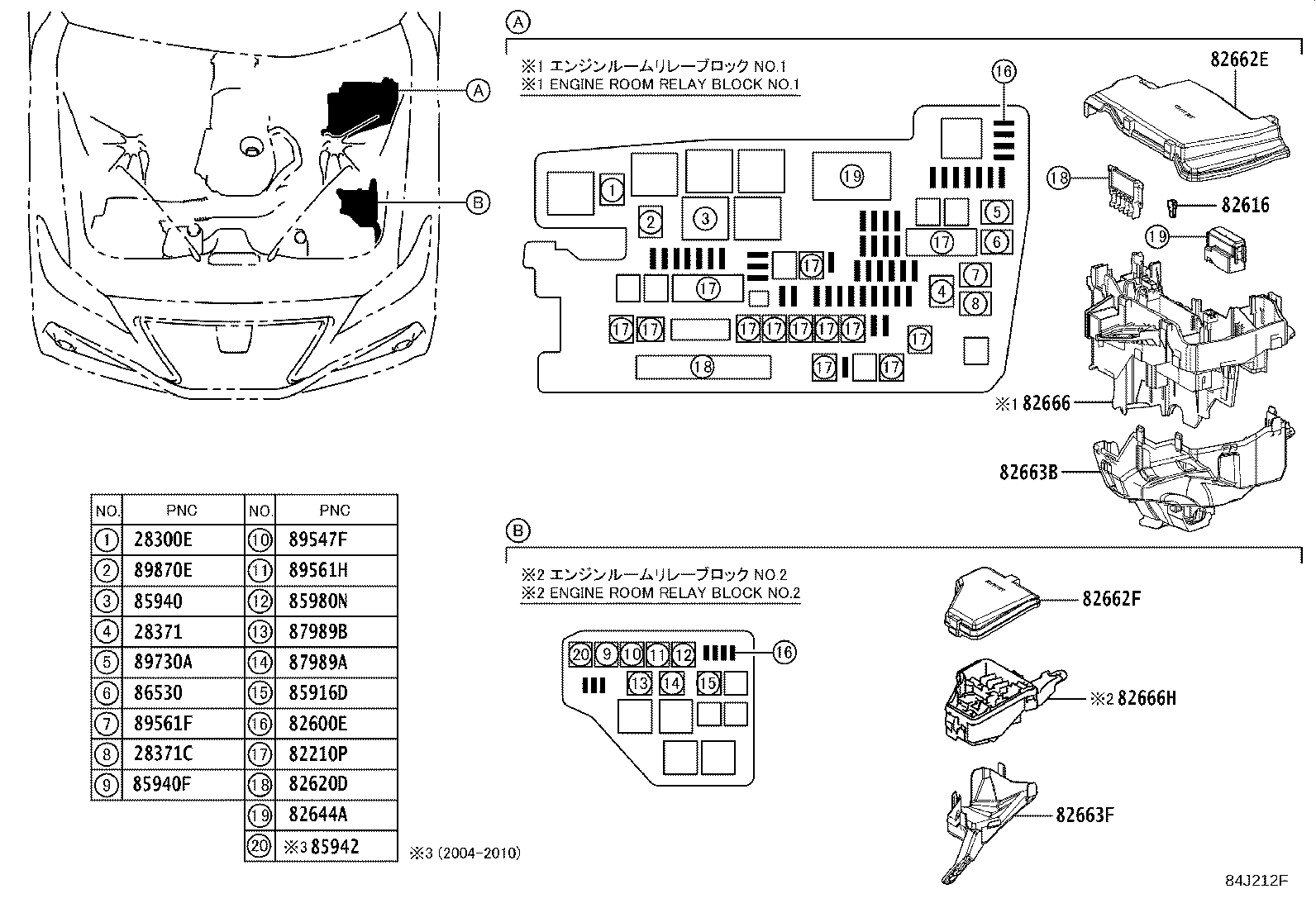

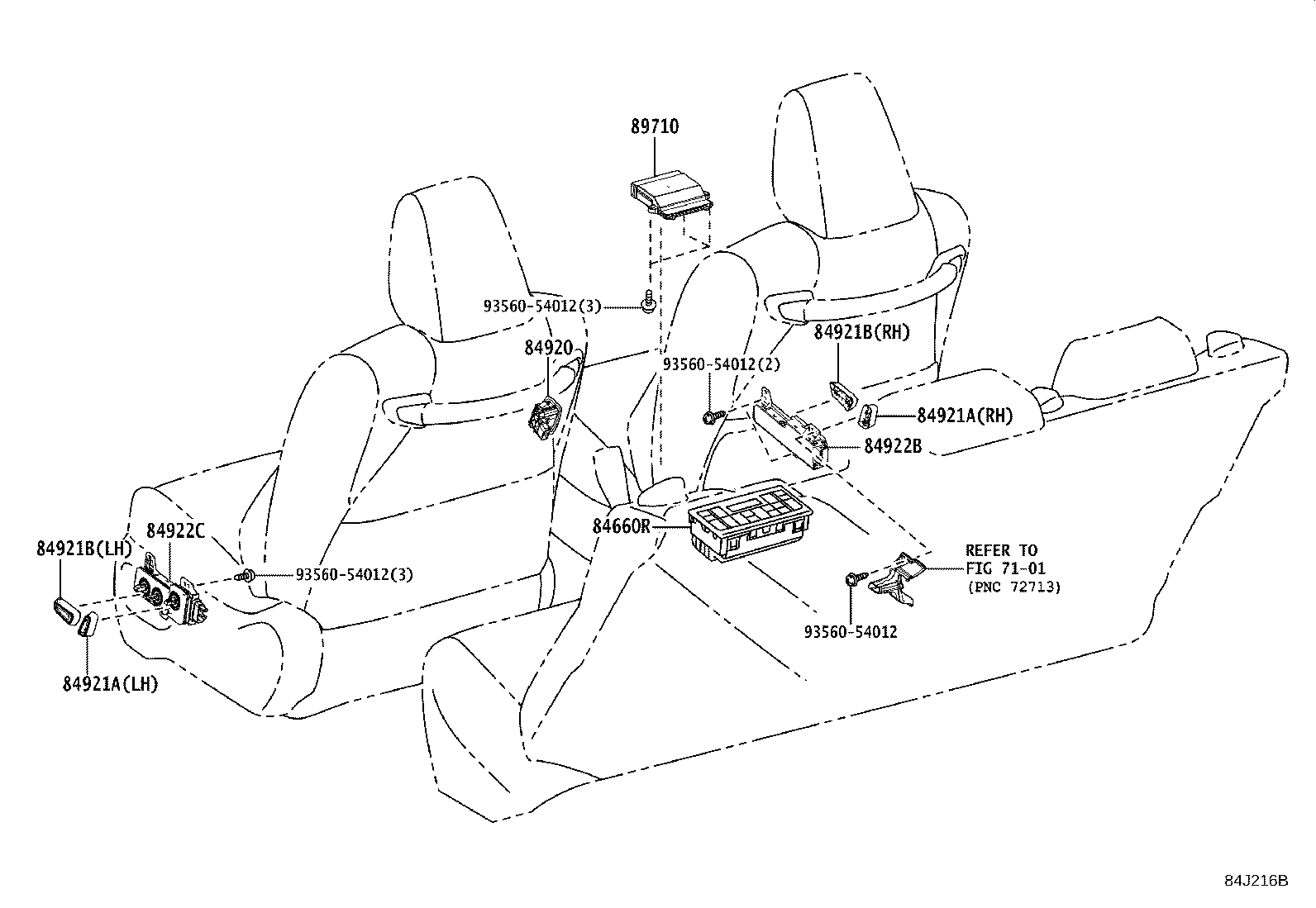

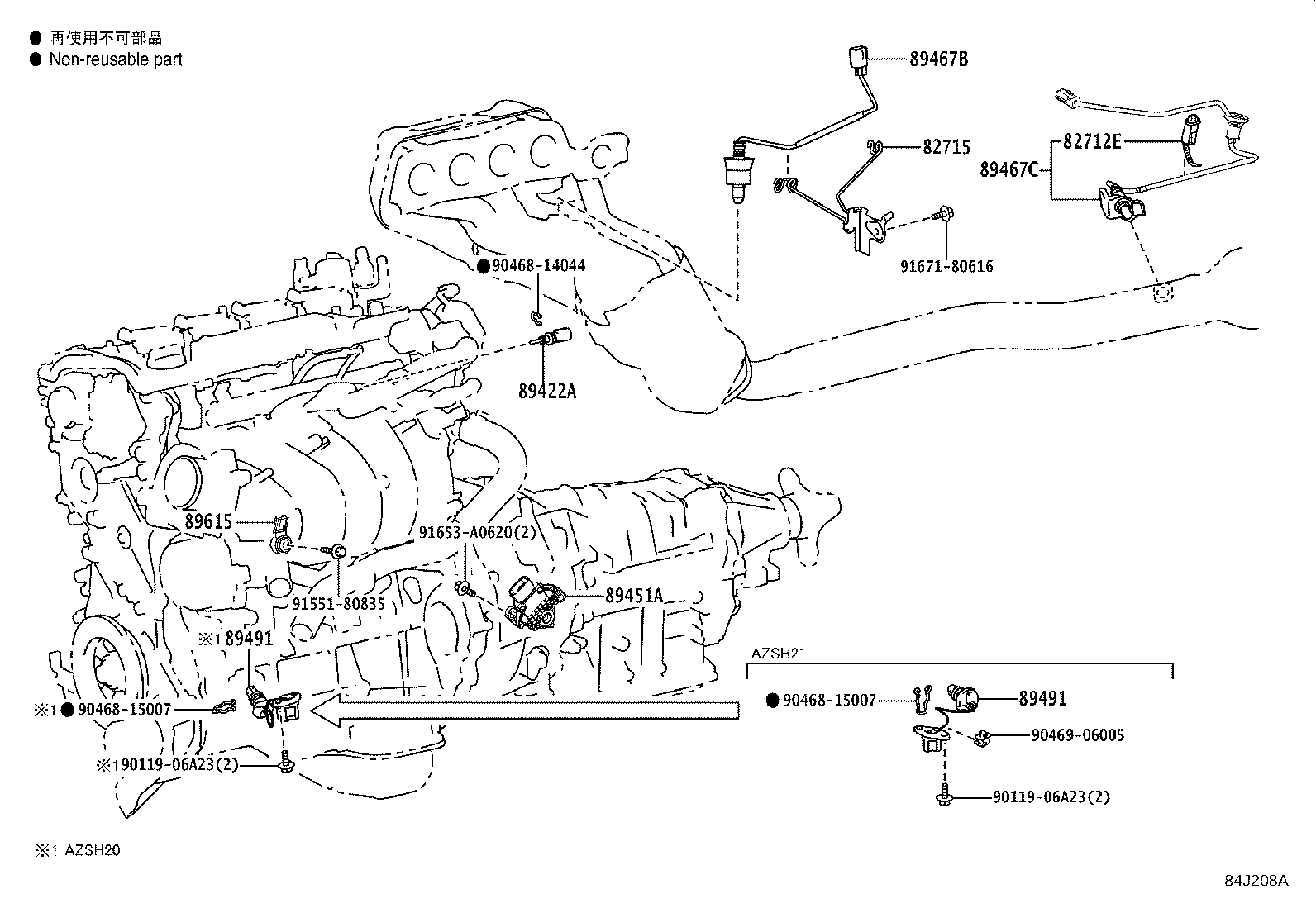

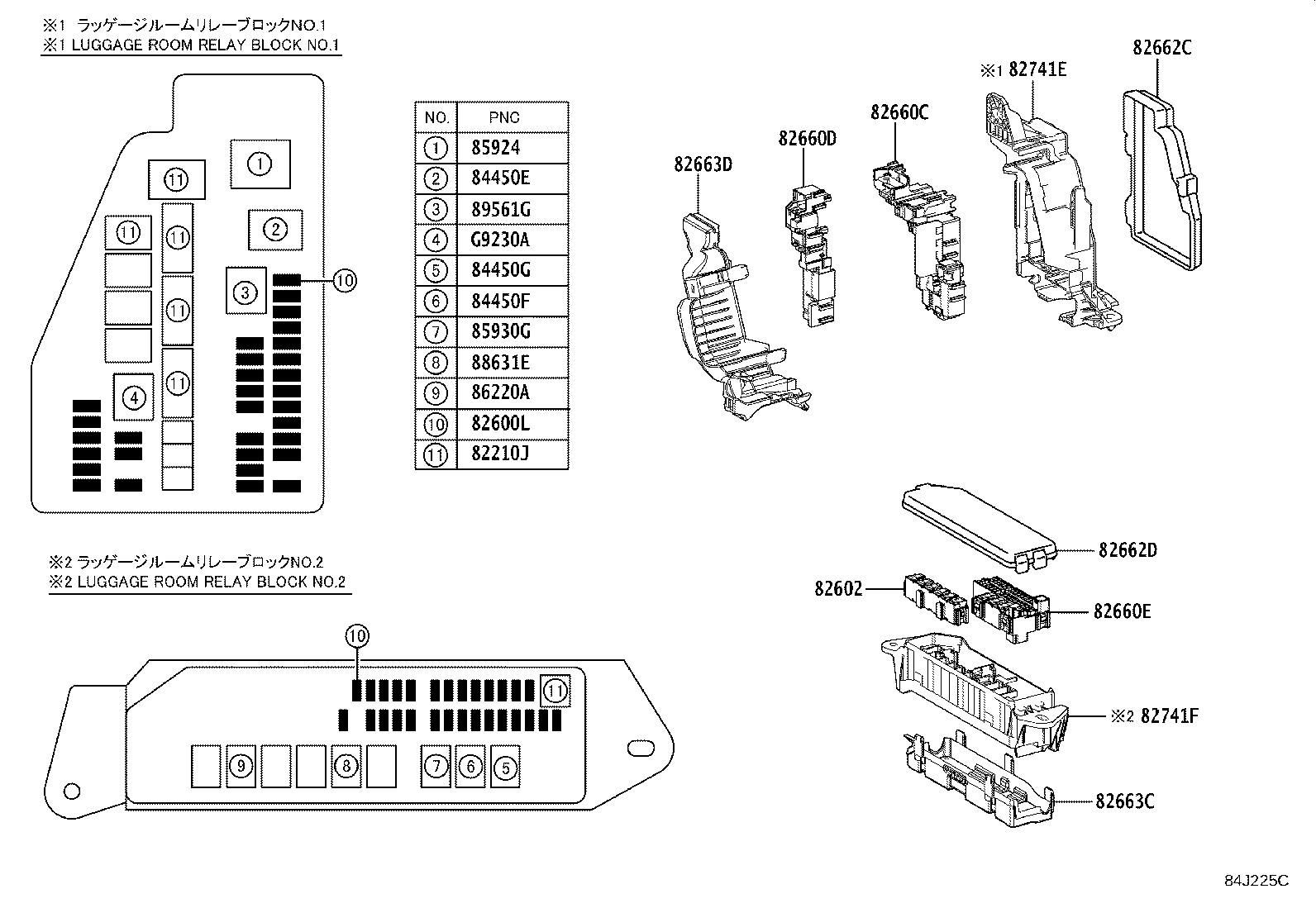

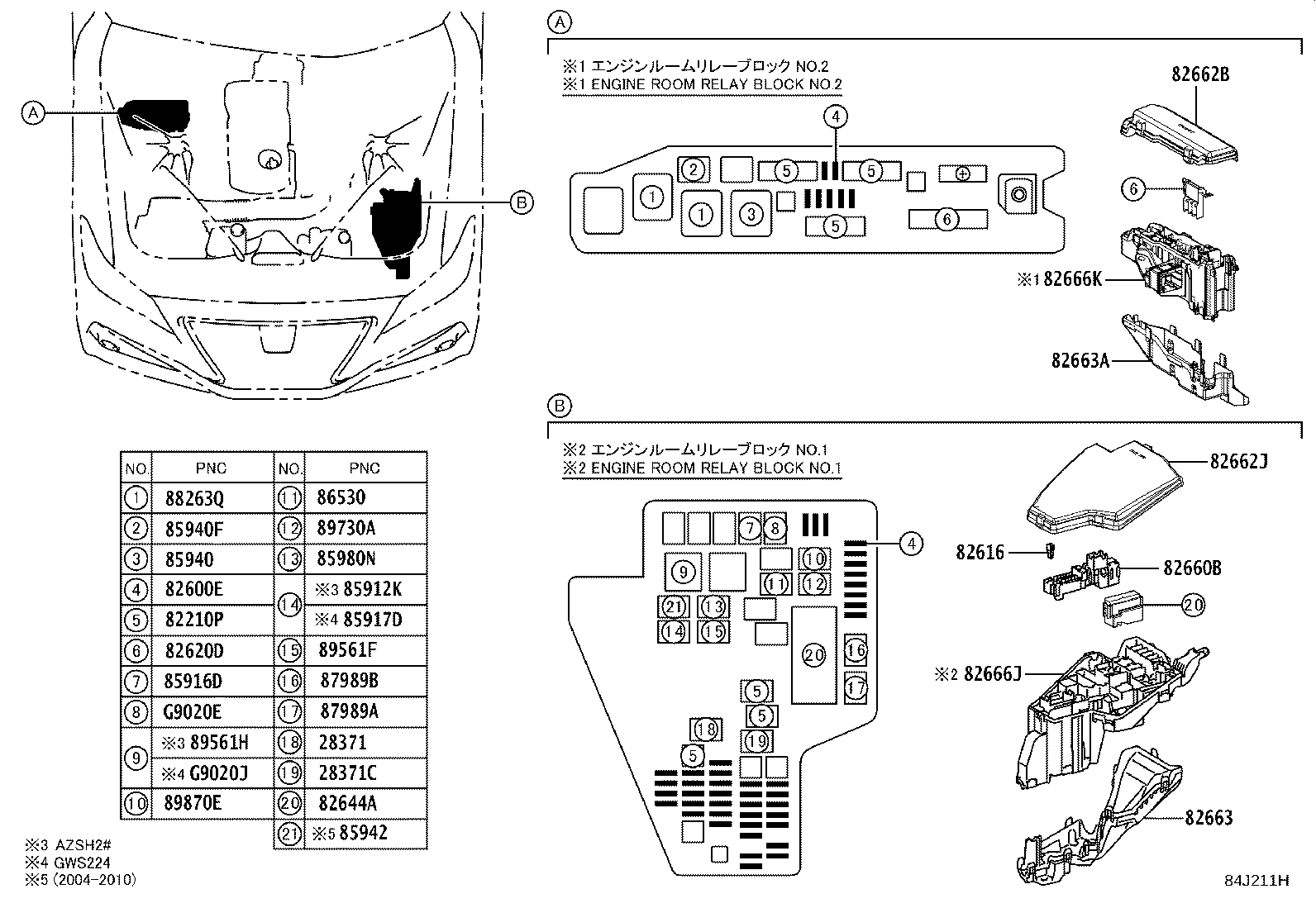

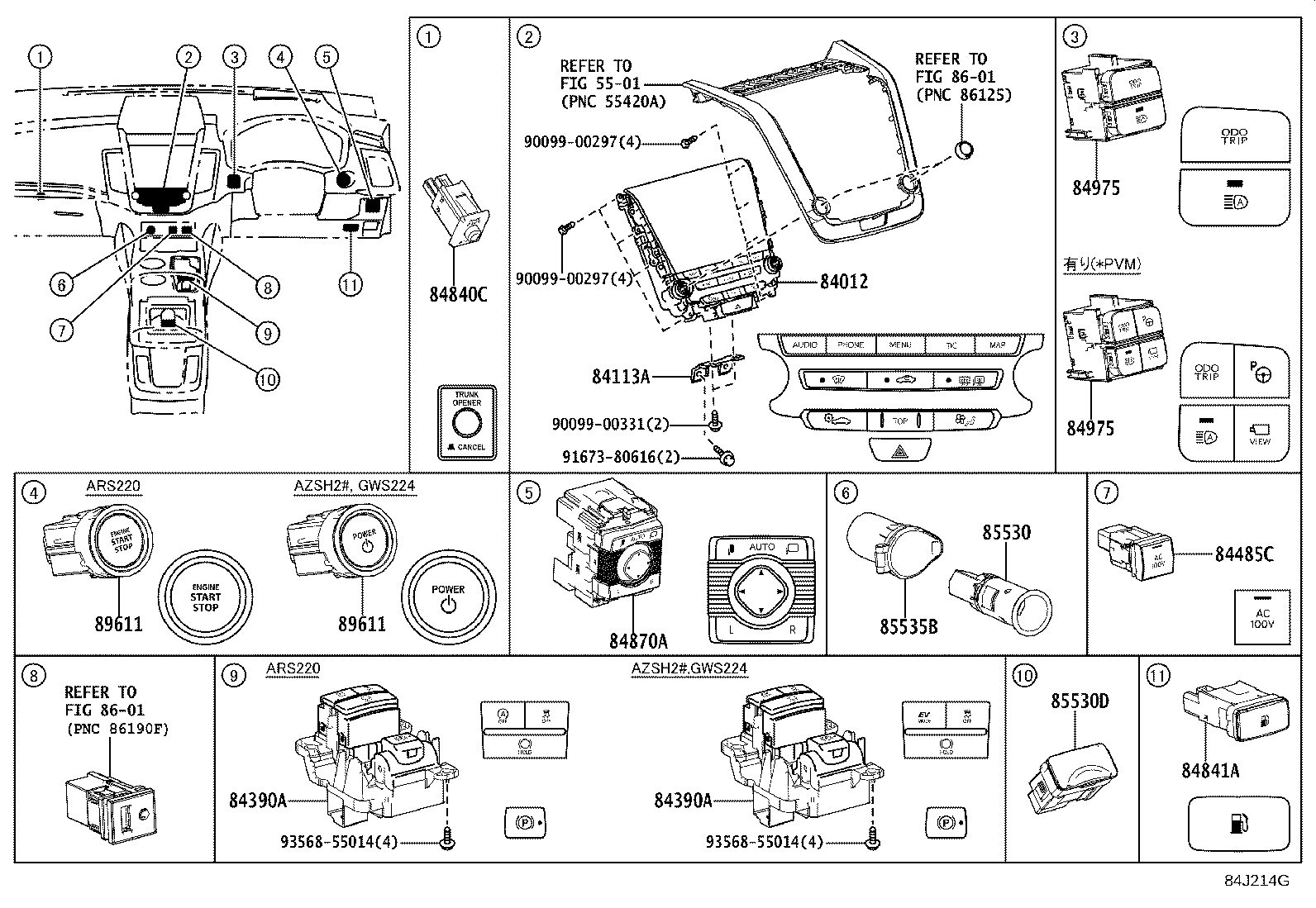

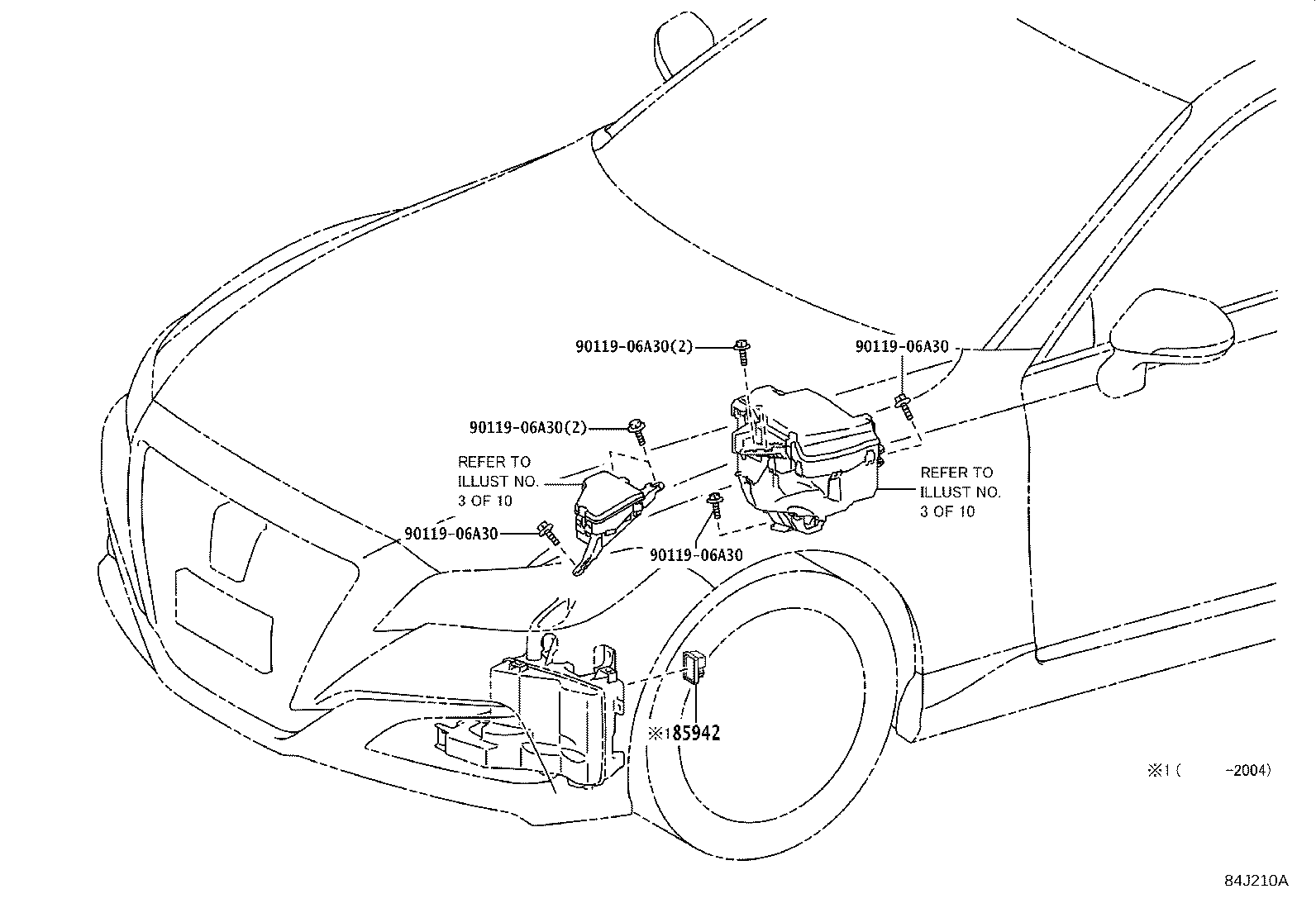

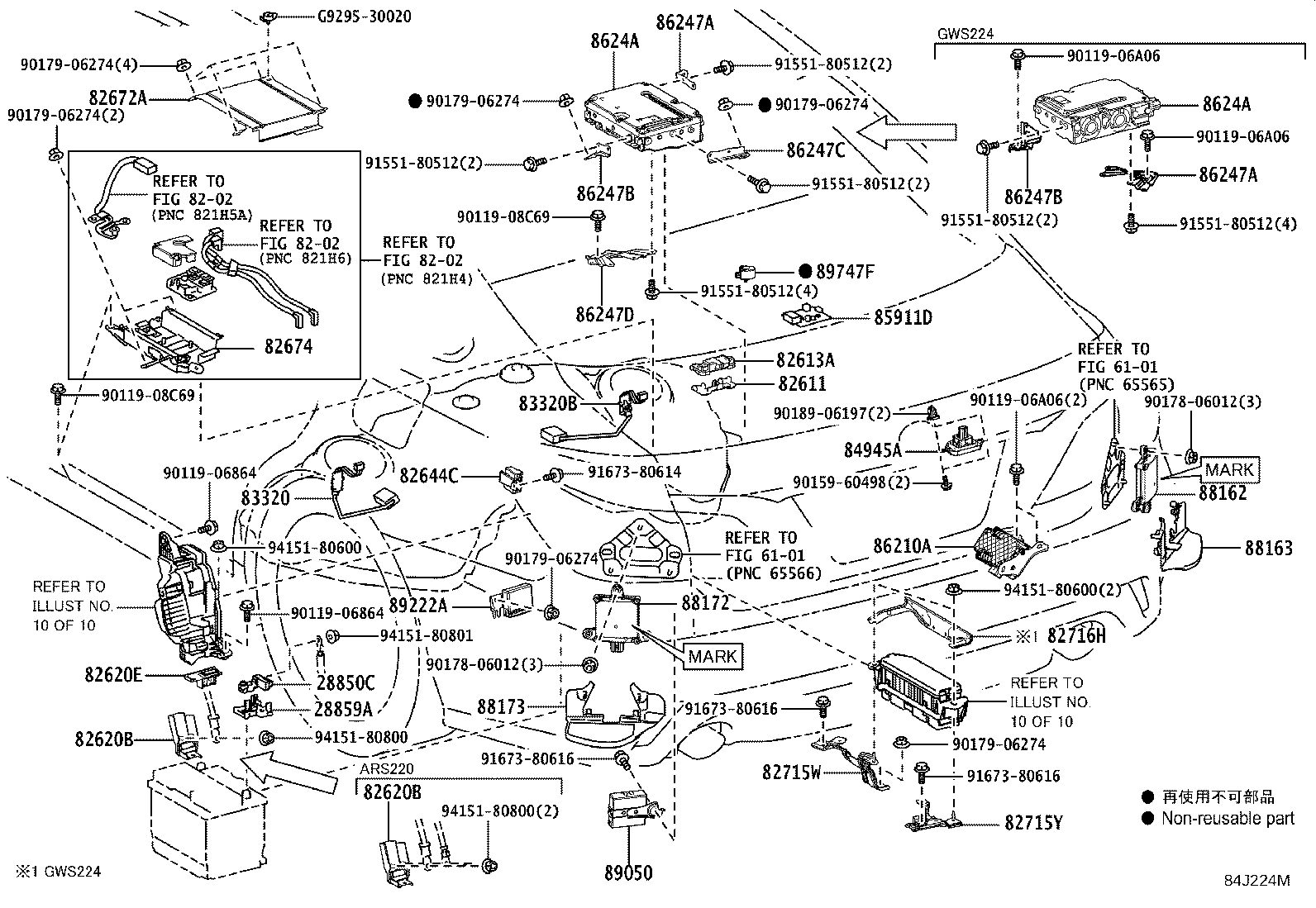

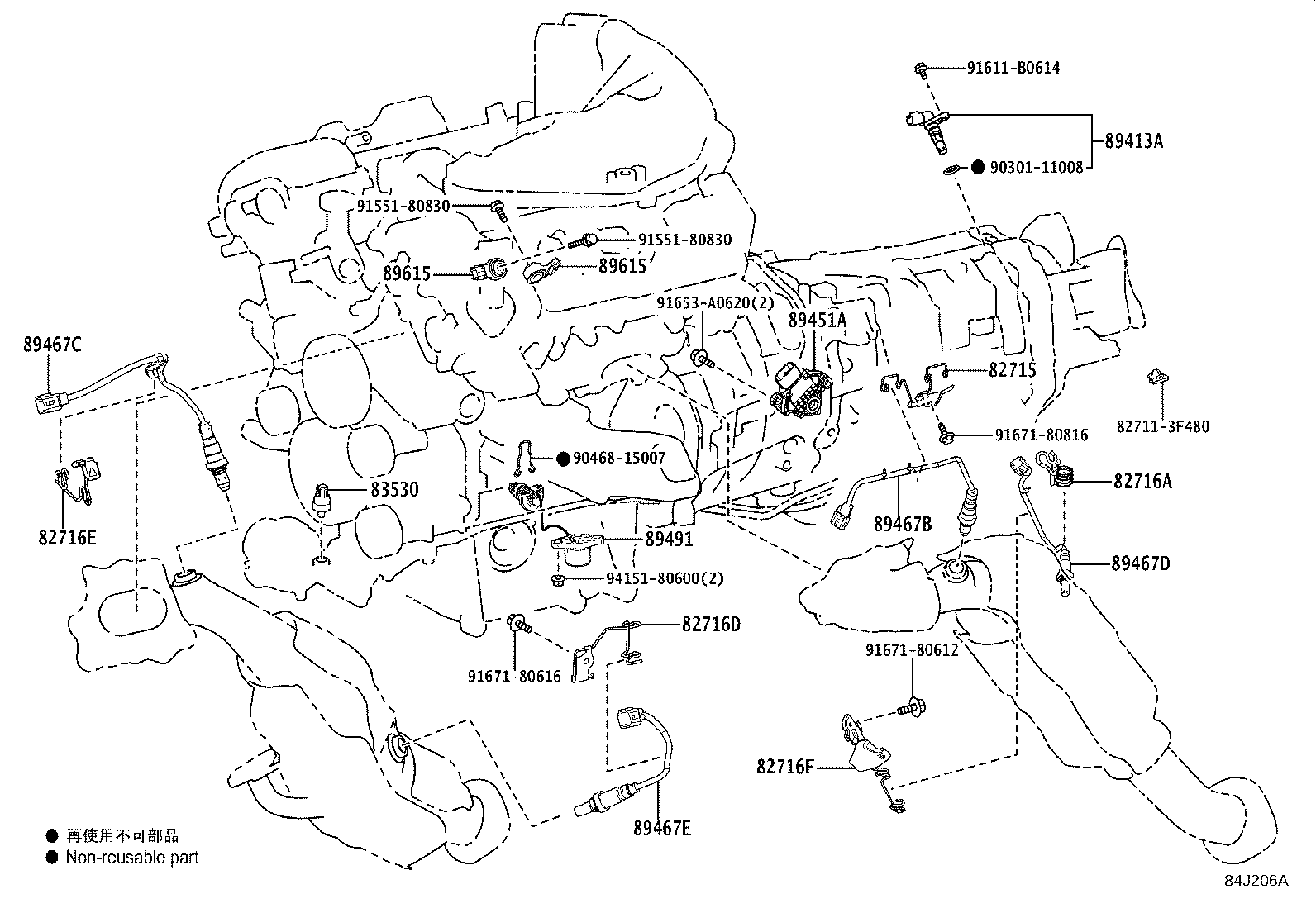

Figure 84J207B 84J207B 2018-06 → — Figure 84J208A 84J208A 2018-06 → — Figure 84J206A 84J206A 2018-06 → — Figure 84J210A 84J210A 2018-06 → — Figure 84J209A 84J209A 2018-06 → — Figure 84J212F 84J212F 2018-06 → — Figure 84J211H 84J211H 2018-06 → — Figure 84J213F 84J213F 2018-06 → — Figure 84J214G 84J214G 2018-06 → 2020-10 Figure 84M635 84M635 2020-11 → — Figure 84J215B 84J215B 2018-06 → — Figure 84J216B 84J216B 2018-06 → — Figure 84J217 84J217 2018-06 → — Figure 84J218A 84J218A 2018-06 → — Figure 84J224M 84J224M 2018-06 → — Figure 84J225C 84J225C 2018-06 → —

Part groups

PNCDescription
28300E Relay Assy, Starter, NO.1
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
44783A Clamp, Vacuum Hose
82210J Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82602 Block Sub-assy, Relay
82611 Cover, Fuse Block
82613A Block, Fuse Base
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82644A Computer, Semiconductor Power Integration, NO.1
82644C Computer, Semiconductor Power Integration, NO.3
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82662E Cover, Relay Block, Upper, NO.7
82662F Cover, Relay Block, Upper, NO.8
82662J Cover, Relay Block, Upper, NO.5
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82663D Cover, Relay Block, Lower, NO.5
82663F Cover, Relay Block, Lower, NO.8
82666 Holder, Connector
82666H Holder, Connector, NO.2
82666J Holder, Connector, NO.3
82666K Holder, Connector, NO.4
82672A Cover, Junction Block
82672B Cover, Junction Block
82672C Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673F Bracket, Junction Block
82673J Bracket, Junction Block
82674 Cover, Junction Block Lower
82712E Support, Wiring Harness
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82715Z Bracket, Wiring Harness Clamp
82716A Bracket, Wiring Harness Clamp
82716D Bracket, Wiring Harness Clamp, NO.2
82716E Bracket, Wiring Harness Clamp, NO.3
82716F Bracket, Wiring Harness Clamp, NO.4
82716G Bracket, Wiring Harness Clamp
82716H Bracket, Wiring Harness Clamp
82730A Block Assy, Driver Side Junction
82730D Block Assy, Passenger Side Junction
82741E Block, Luggage Room Relay, NO.1
82741F Block, Luggage Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
84113A Bracket, Switch, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390A Switch Assy, Brake Warning
84450E Relay, Luggage Ignition 1, NO.1
84450F Relay, Luggage Ignition 1, NO.2
84450G Relay, Luggage Ignition 1, NO.3
84485C Switch, Power Outlet
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610G Switch Assy, Transmission Shift, NO.1
84610H Switch Assy, Transmission Shift, NO.2
84650 Switch Assy, Windshield Wiper
84660R Switch, Cooler(REAR)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84940D Switch Assy, Rear Sun Shade
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85911D Relay, Rear Sunshade
85912K Relay, Vvt
85916D Relay, Fog Lamp
85917D Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924 Relay, Ignition Control
85930G Relay, Acc
85940 Relay Assy, Windshield Wiper
85940F Relay Assy, Windshield Deicer
85942 Relay, Headlamp Cleaner Control
85980N Relay, Trunk Open
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86247A Bracket, Voltage Inverter
86247B Bracket, Voltage Inverter
86247C Bracket, Voltage Inverter, NO.2
86247D Bracket, Voltage Inverter, NO.3
8624A Inverter, Voltage
86530 Relay Assy, Horn
869A1 Computer, Intelligent Transport Systems Communication
87989A Relay, Mirror NO.1
87989B Relay, Mirror NO.2
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88263Q Relay, Abs Motor
88631E Relay, Airconditioner
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89181B Computer, Steering Control, FR
89221 Computer, Multiplex Network Body
89222 Computer, Multiplex Network Door, Front RH
89222A Computer, Multiplex Network Door
89223 Computer, Multiplex Network Door, Front LH
89224 Computer, Multiplex Network Door, Rear RH
89225 Computer, Multiplex Network Door, Rear LH
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89413A Sensor, Transmission Revolution
89422A Sensor, Water Temperature
89429F Sensor, Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89467D Sensor, Air Fuel Ratio, NO.3
89467E Sensor, Air Fuel Ratio, NO.4
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89547F Relay, Brake Control
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89710 Computer Assy, Position Control
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89870E Relay, Electronic Driver Unit
89980 Computer Assy, Hybrid Vehicle Control
G1167 Controller, Oil Pump Motor
G1168 Bracket, Oil Pump Motor Controller
G1168C Bracket, Oil Pump Motor Controller, NO.2
G9020E Relay, Hybrid Water Pump
G9020J Relay, Oil Pump
G9230A Relay, Battery Fan, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
