Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

11 part groups · 2 illustrations

Illustrations

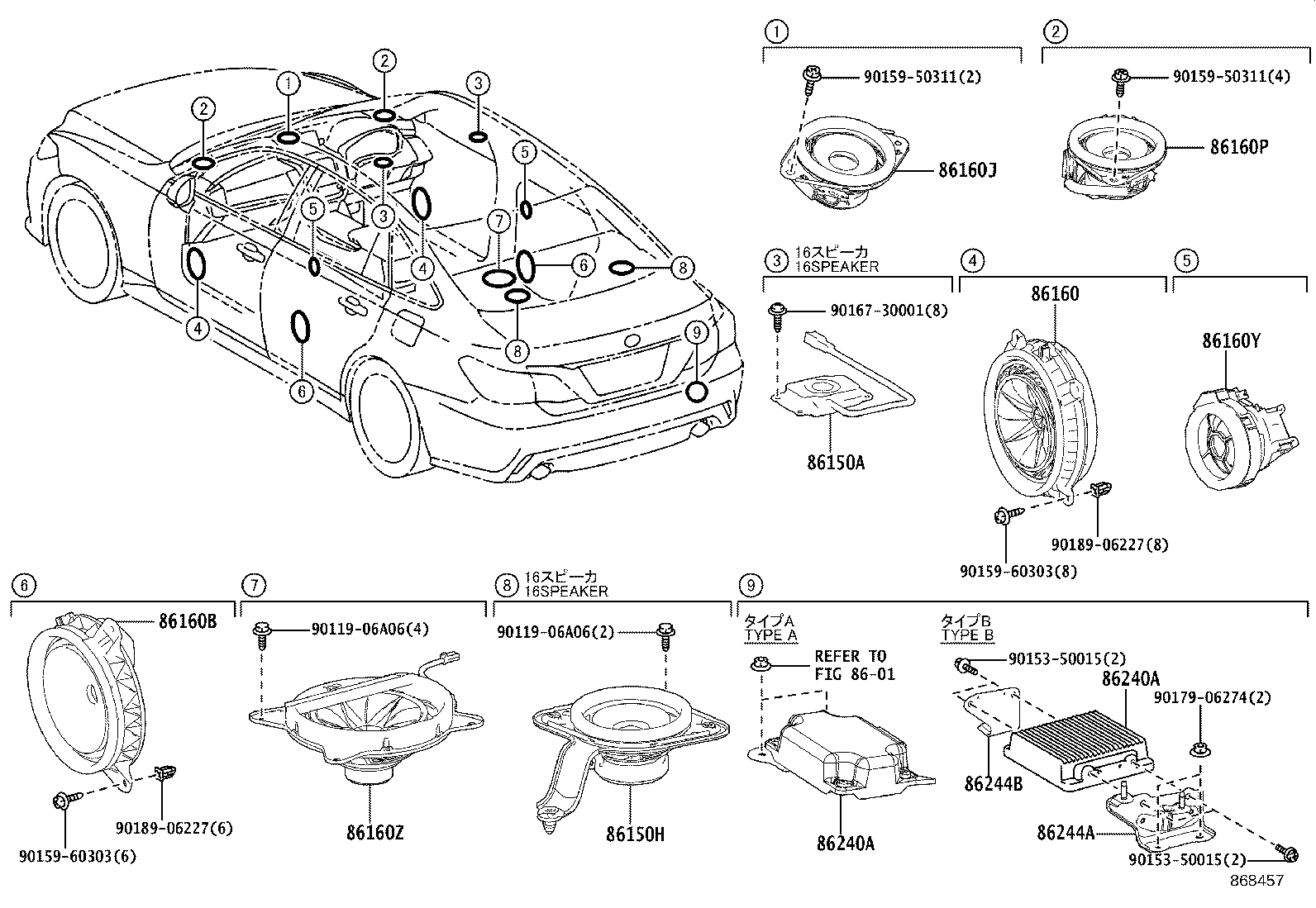

Figure 867283B 867283B 2018-06 → 2020-10 Figure 868457 868457 2020-11 → —

Part groups

PNCDescription
86150A Speaker Assy, W/Bracket, NO.2
86150H Speaker Assy, W/Bracket
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86240A Equalizer Assy,Stereo Component
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
