Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

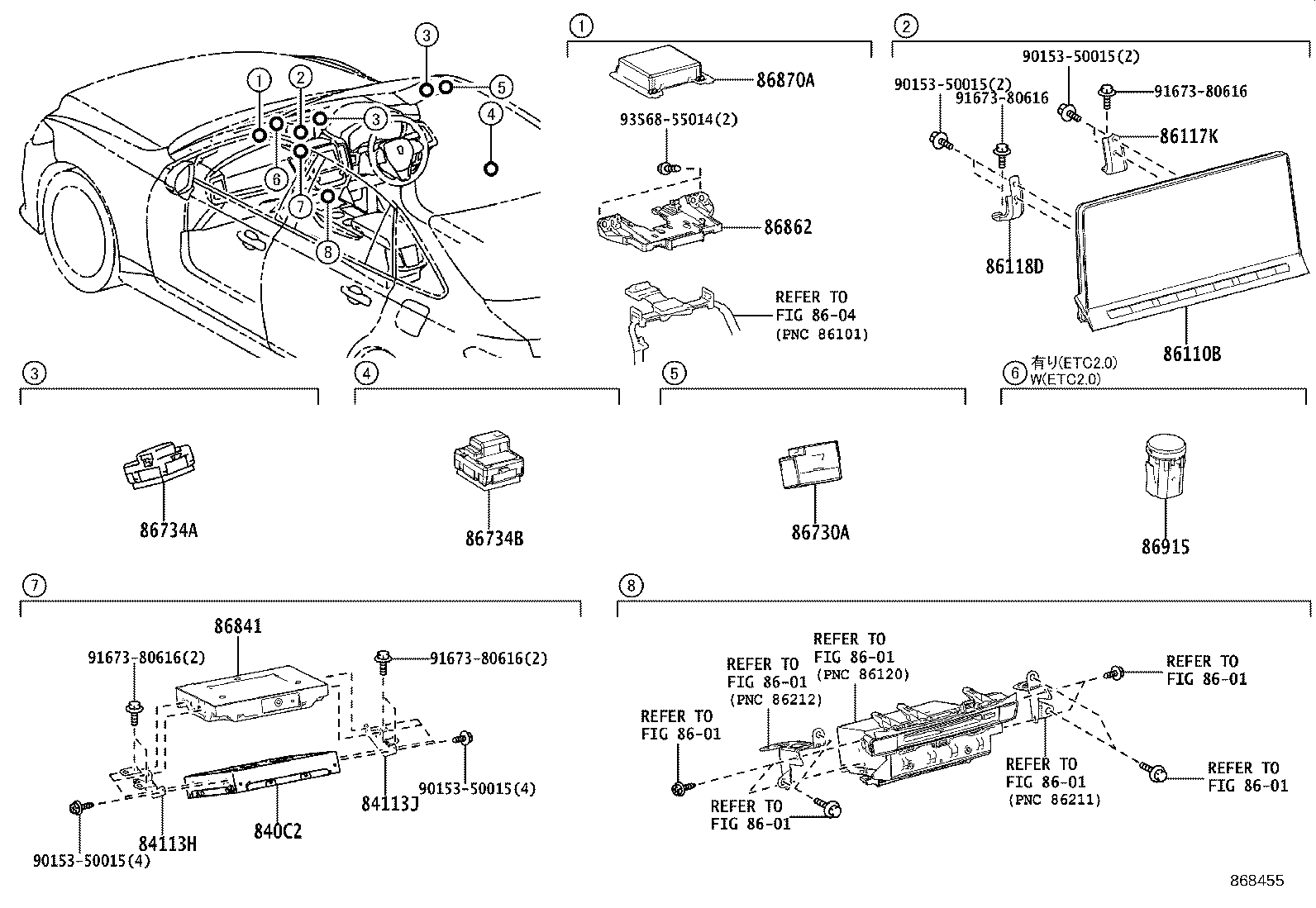

Figure 867281C 867281C 2018-06 → 2020-10 Figure 868455 868455 2020-11 → —

Part groups

PNCDescription
840C2 Control Sub-assy, Integration
84113H Bracket, Integration Control, NO.1
84113J Bracket, Integration Control, NO.2
86110B Multi-display Assy
86117K Bracket, Multi-display, NO.1
86118D Bracket, Multi-display, NO.2
86730A Microphone Assy, Telephone
86734A Microphone, Active Noise Control, Front
86734B Microphone, Active Noise Control, Rear
86841 Computer, Navigation
86862 Bracket, Navigation Antenna
86870A Antenna Assy, Gps & Vics
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
