Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 6 illustrations

Illustrations

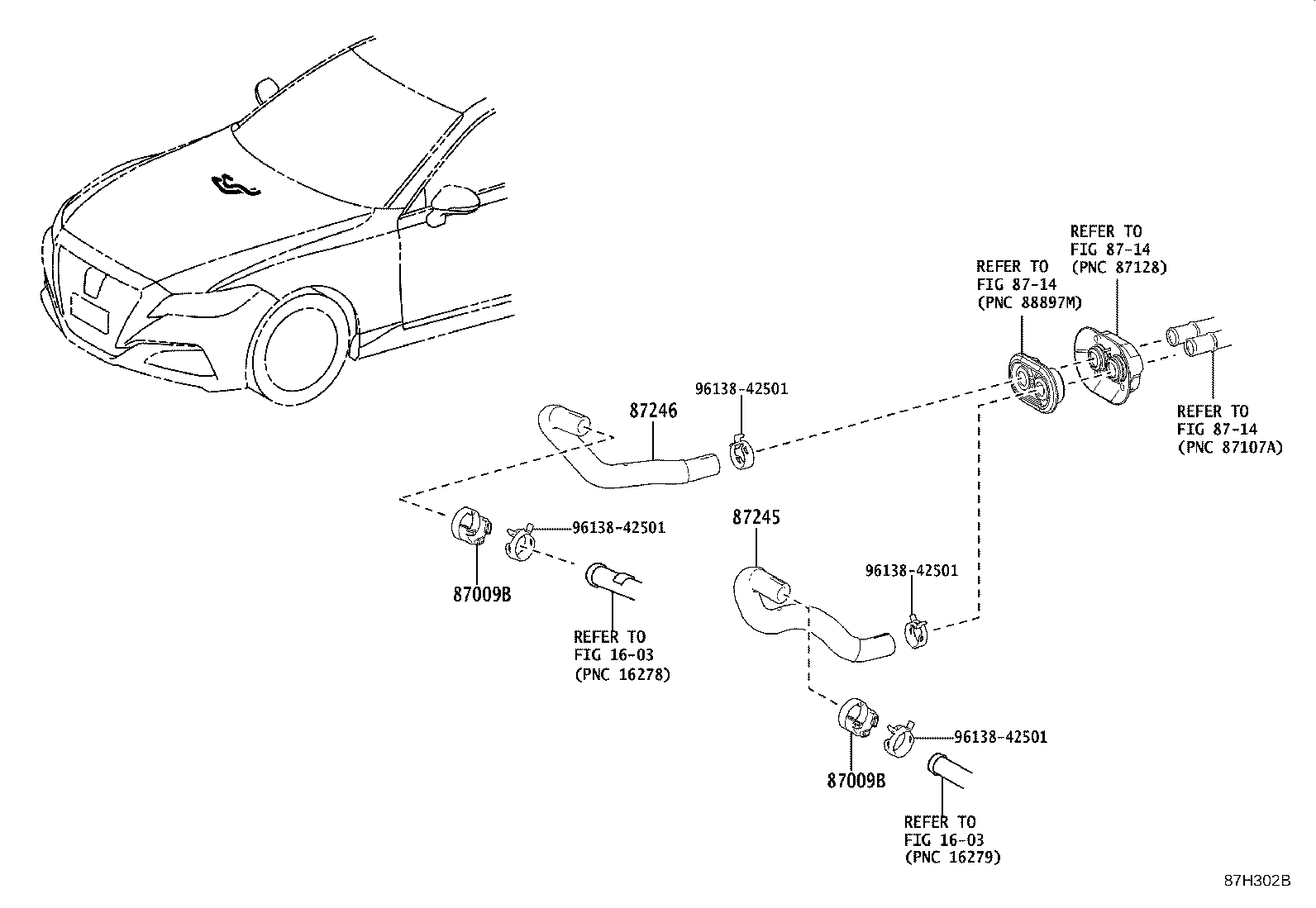

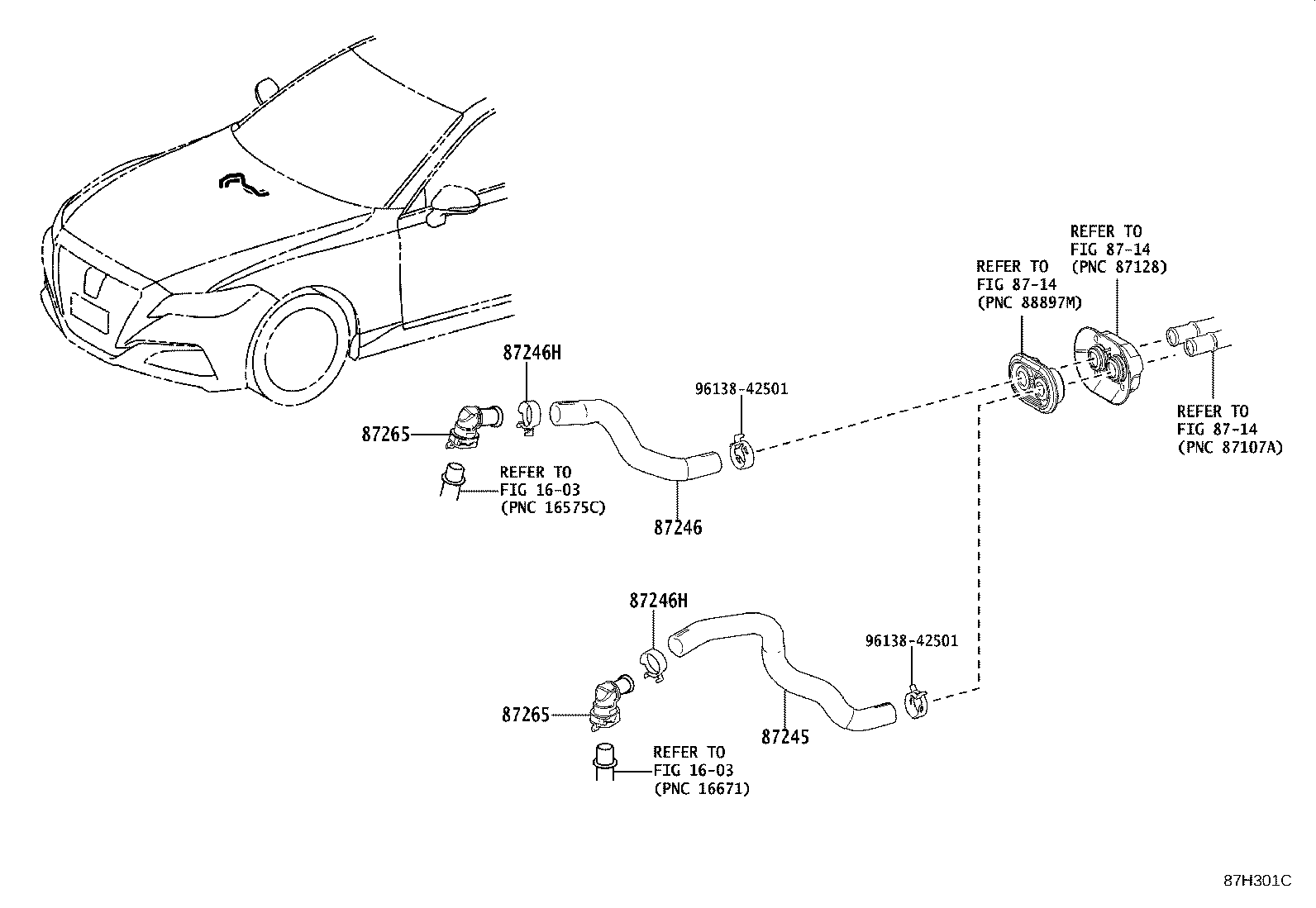

Figure 87H300A 87H300A 2018-06 → 2020-10 Figure 87H300A 87H300A 2020-11 → — Figure 87H301C 87H301C 2018-06 → 2020-10 Figure 87H301C 87H301C 2020-11 → — Figure 87H302B 87H302B 2018-06 → 2020-10 Figure 87H302B 87H302B 2020-11 → —

Part groups

PNCDescription
87009B Hose Set, Water
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
