Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 16 illustrations

Illustrations

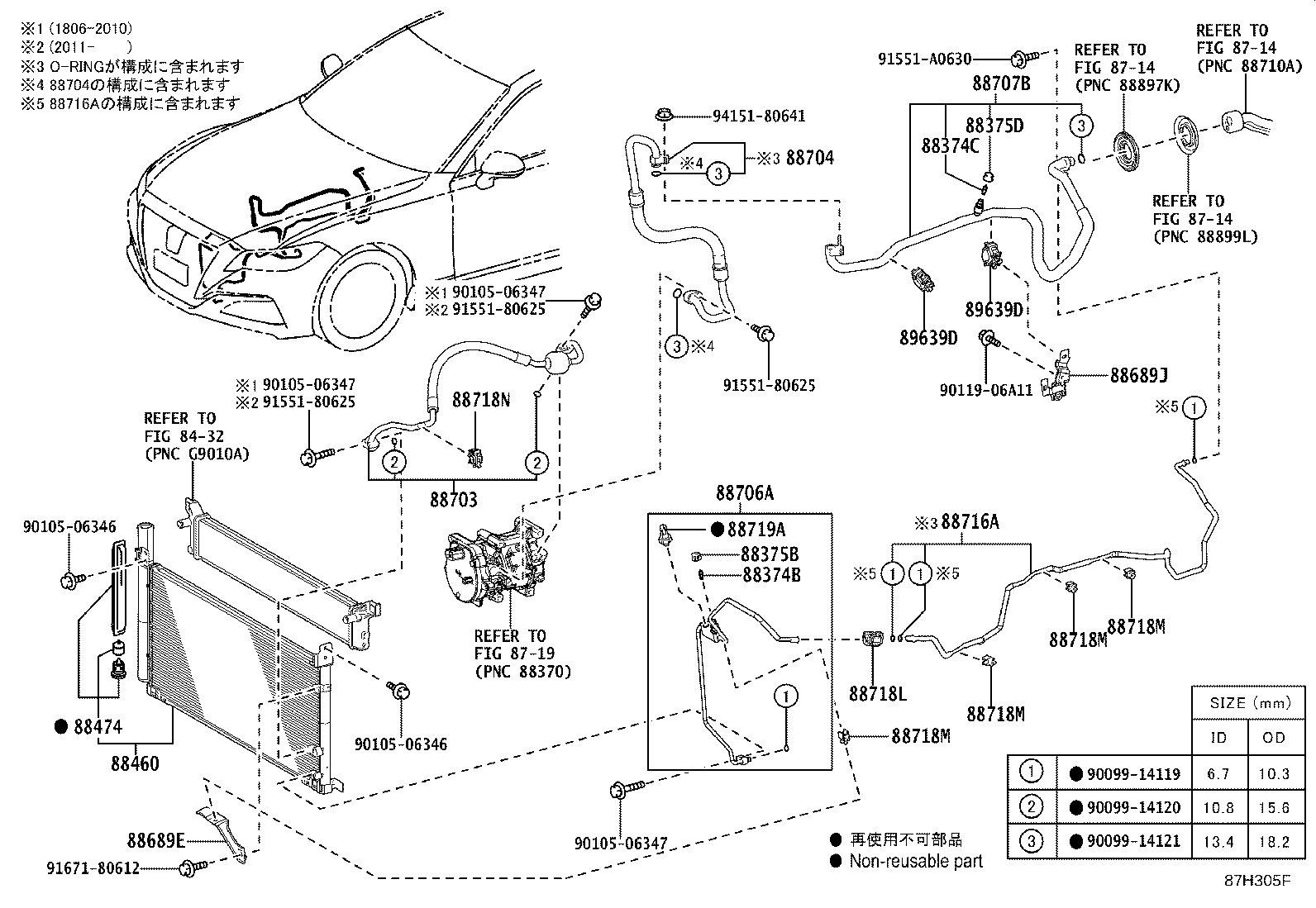

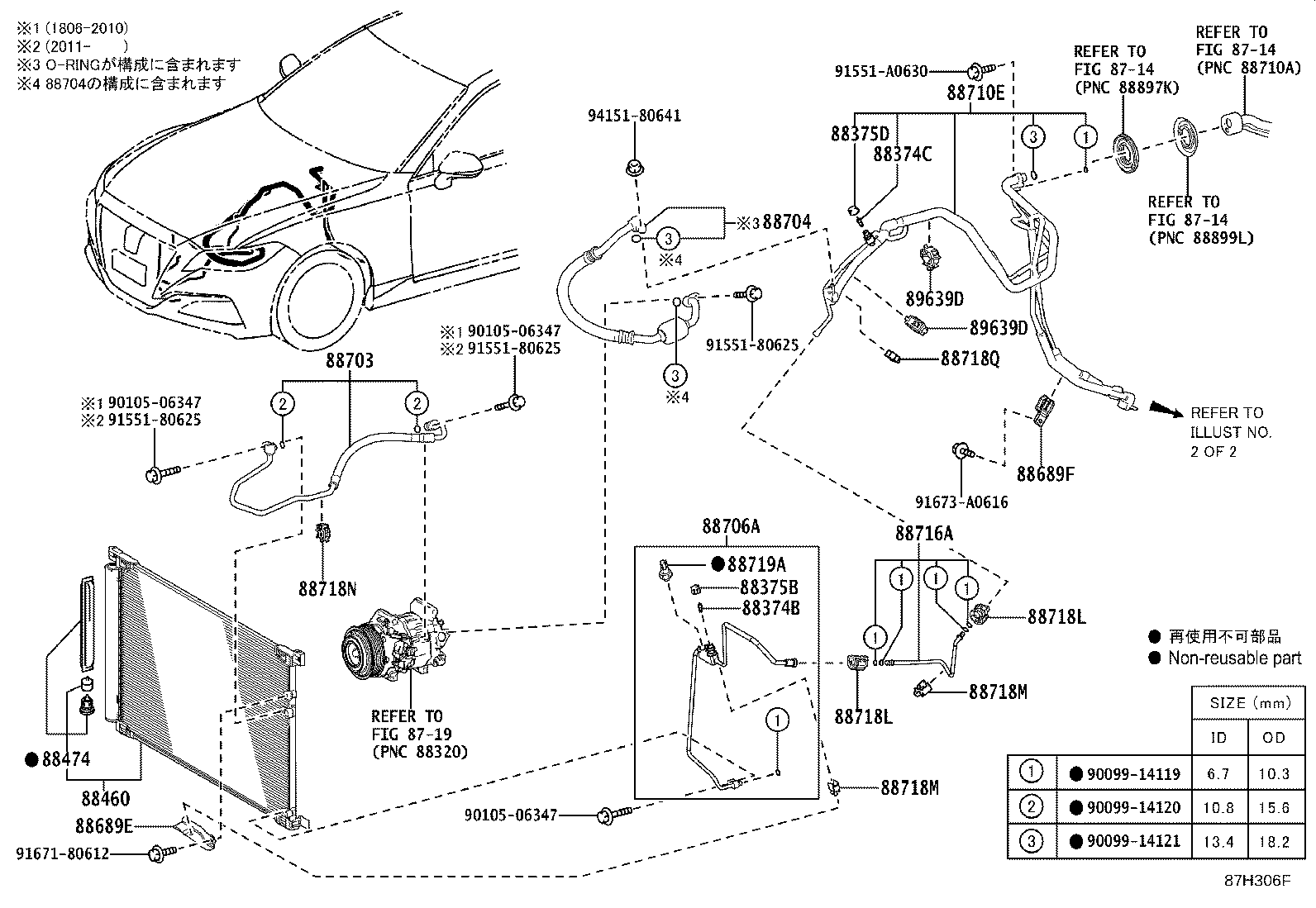

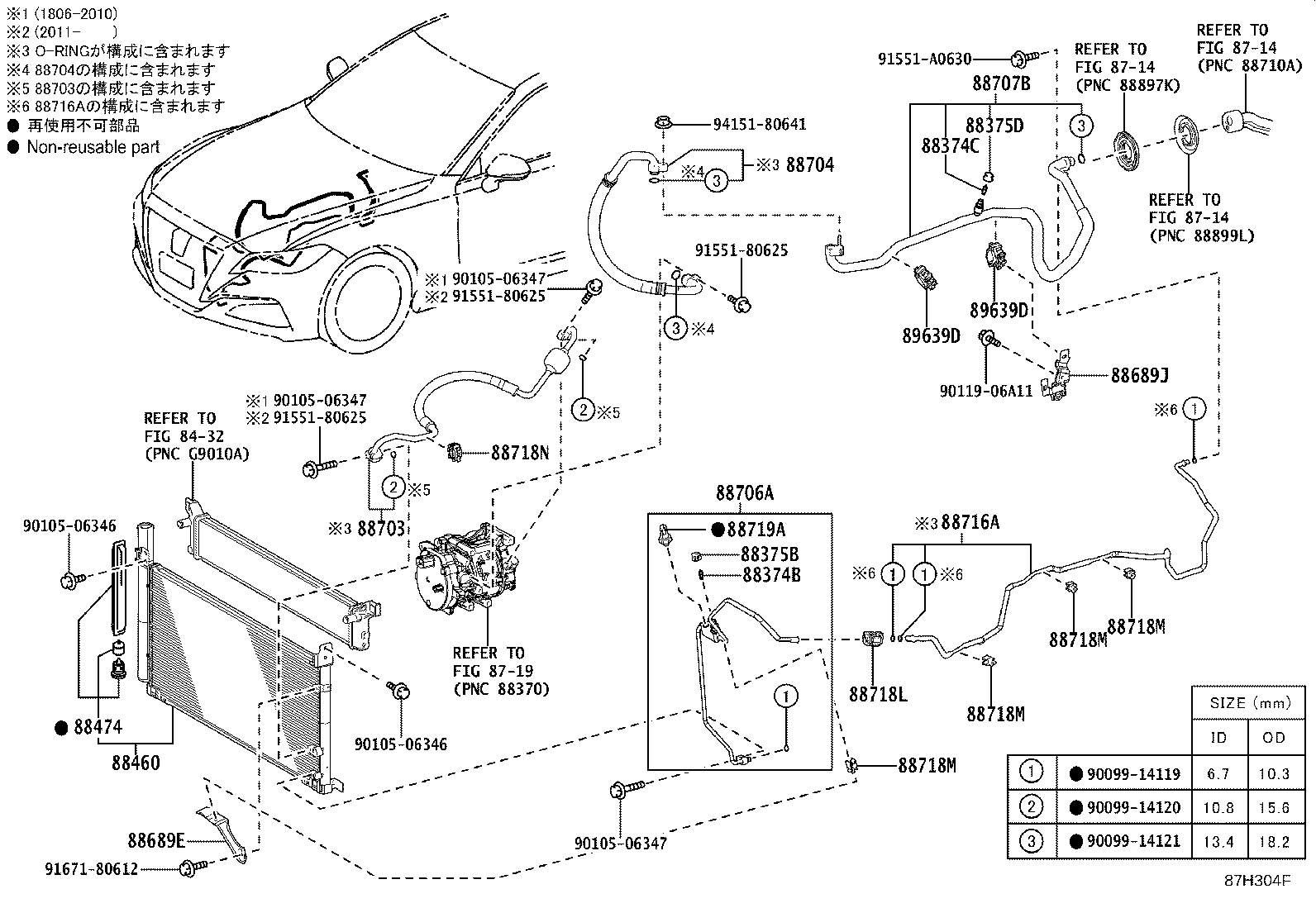

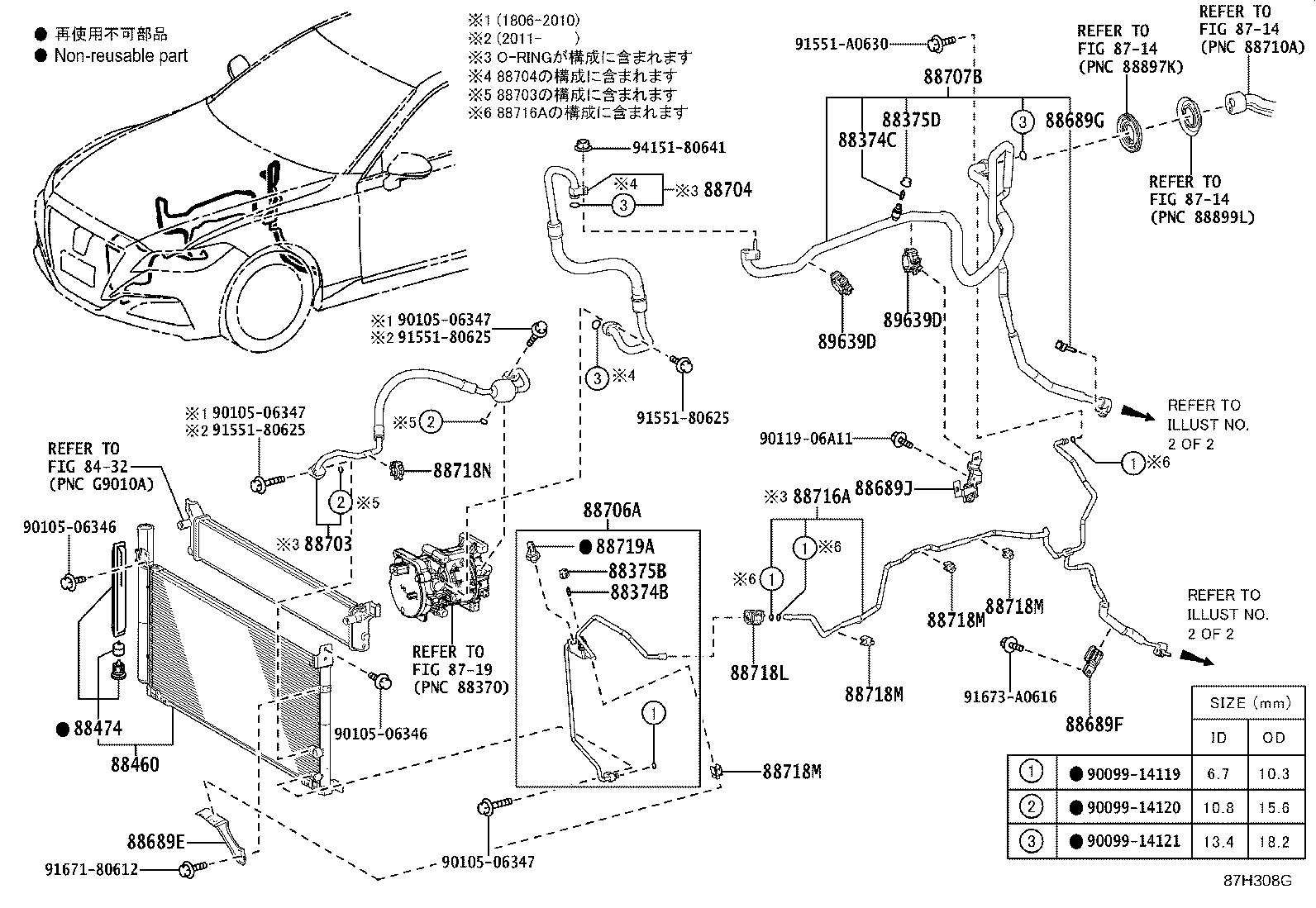

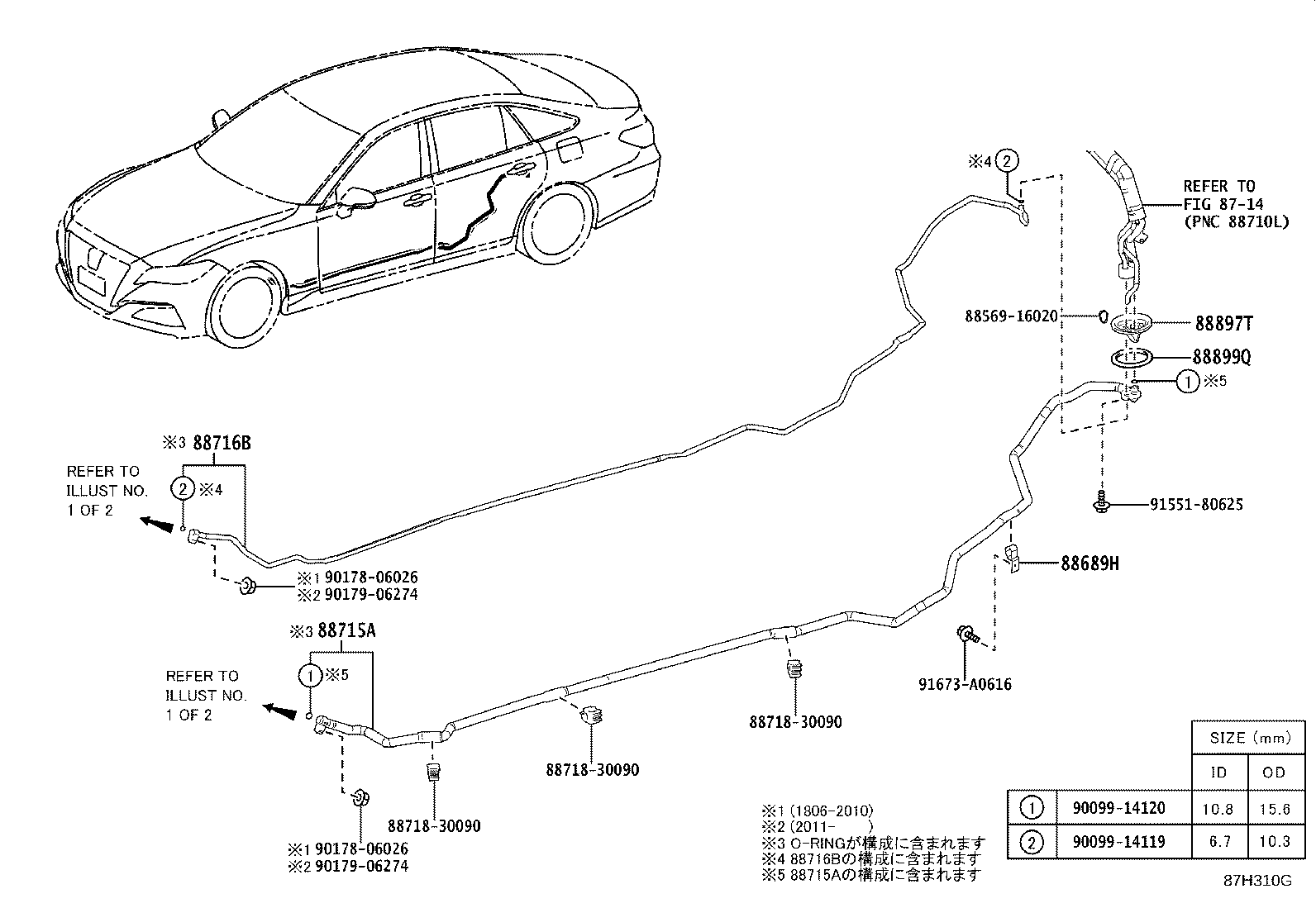

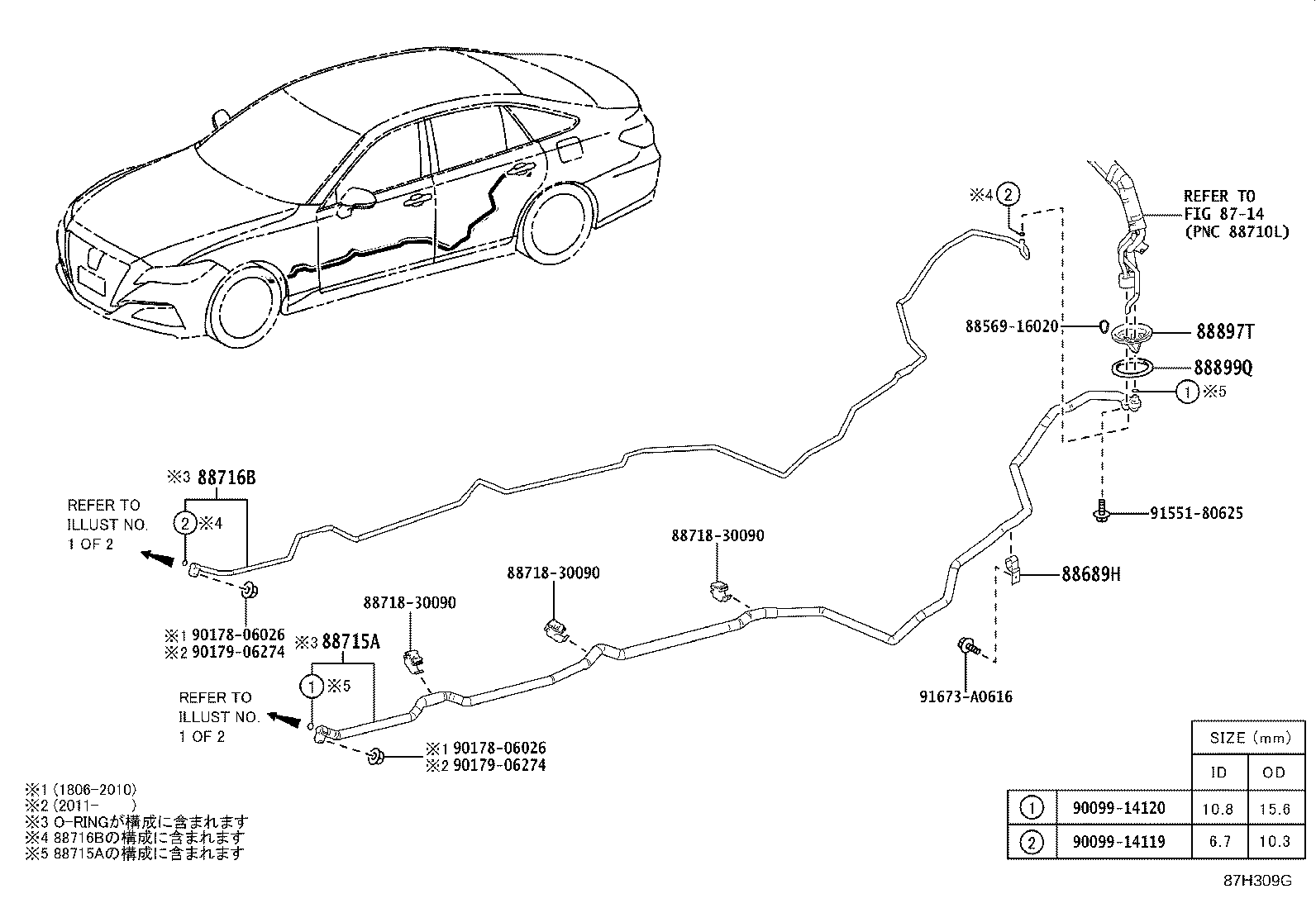

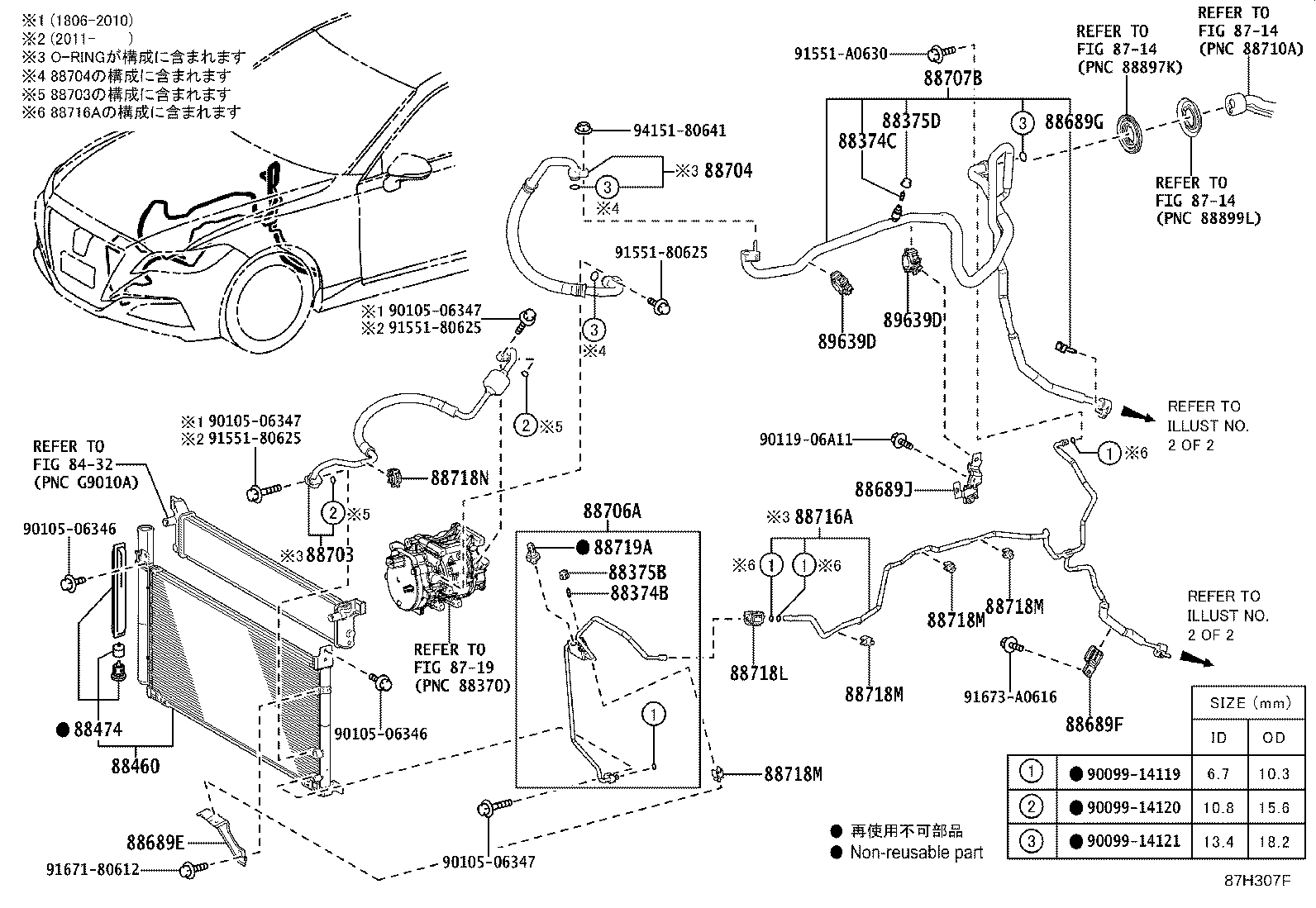

Figure 87H303F 87H303F 2018-06 → 2020-10 Figure 87H303F 87H303F 2020-11 → — Figure 87H304F 87H304F 2018-06 → 2020-10 Figure 87H304F 87H304F 2020-11 → — Figure 87H305F 87H305F 2018-06 → 2020-10 Figure 87H305F 87H305F 2020-11 → — Figure 87H306F 87H306F 2018-06 → 2020-10 Figure 87H306F 87H306F 2020-11 → — Figure 87H307F 87H307F 2018-06 → 2020-10 Figure 87H307F 87H307F 2020-11 → — Figure 87H308G 87H308G 2018-06 → 2020-10 Figure 87H308G 87H308G 2020-11 → — Figure 87H309G 87H309G 2018-06 → 2020-10 Figure 87H309G 87H309G 2020-11 → — Figure 87H310G 87H310G 2018-06 → 2020-10 Figure 87H310G 87H310G 2020-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88689J Bracket, Cooler, NO.5
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710E Tube & Accessory Assy, Air Conditioner
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88897T Grommet, Cooler
88899Q Plate, Cover
89639D Clamp, Airconditioner Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
