Toyota Crown/Hybrid

2018-06 → present · chassis ARS220,AZSH2#,GWS224 · catalogue 3311E0 · Japan

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 6 illustrations

Illustrations

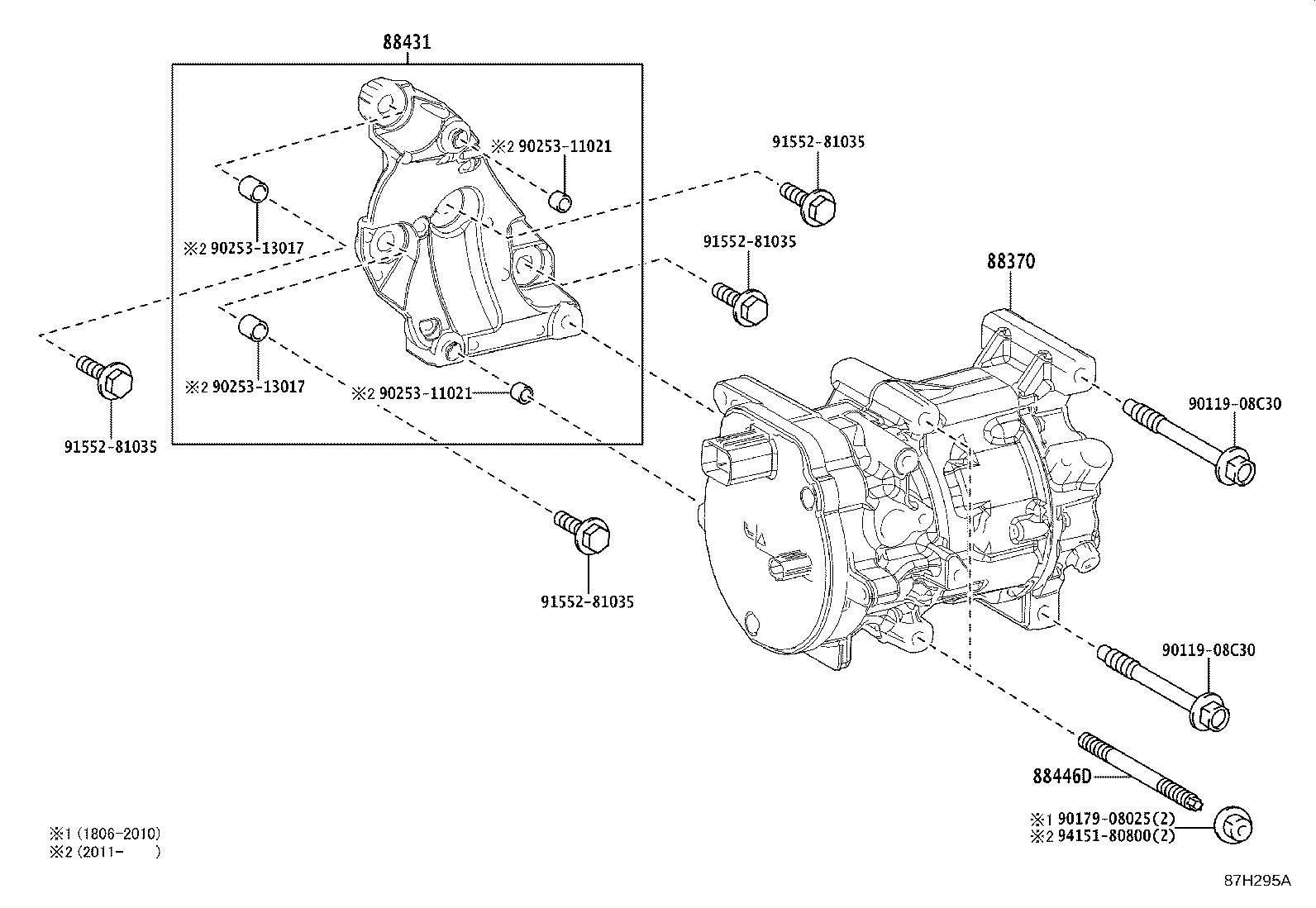

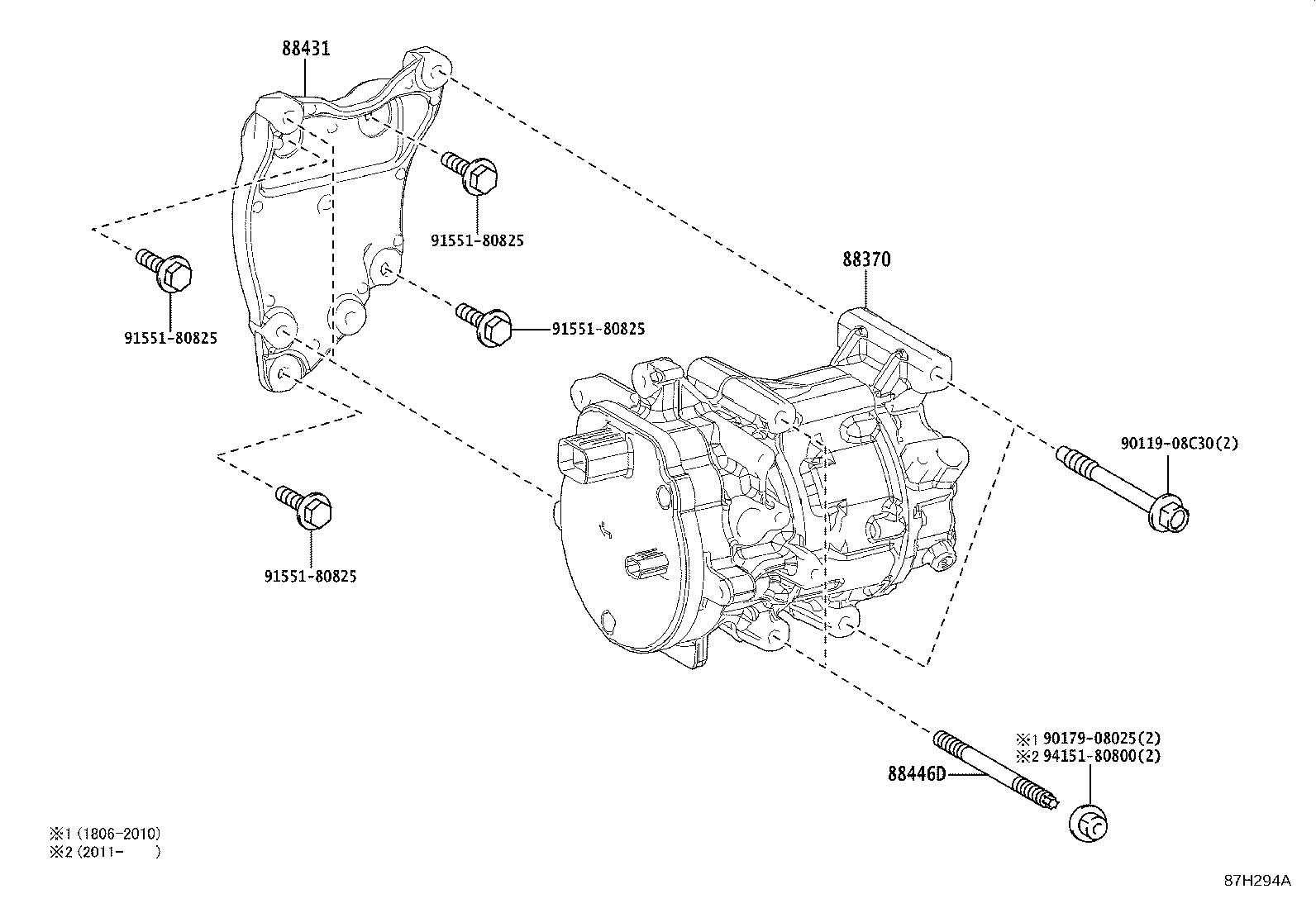

Figure 87H293B 87H293B 2018-06 → 2020-10 Figure 87H293B 87H293B 2020-11 → — Figure 87H294A 87H294A 2018-06 → 2020-10 Figure 87H294A 87H294A 2020-11 → — Figure 87H295A 87H295A 2018-06 → 2020-10 Figure 87H295A 87H295A 2020-11 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88446D Bolt, Cooler
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
