Toyota Crown Crossover
2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan
Supported model
Data version 2022-07
Standard Tool

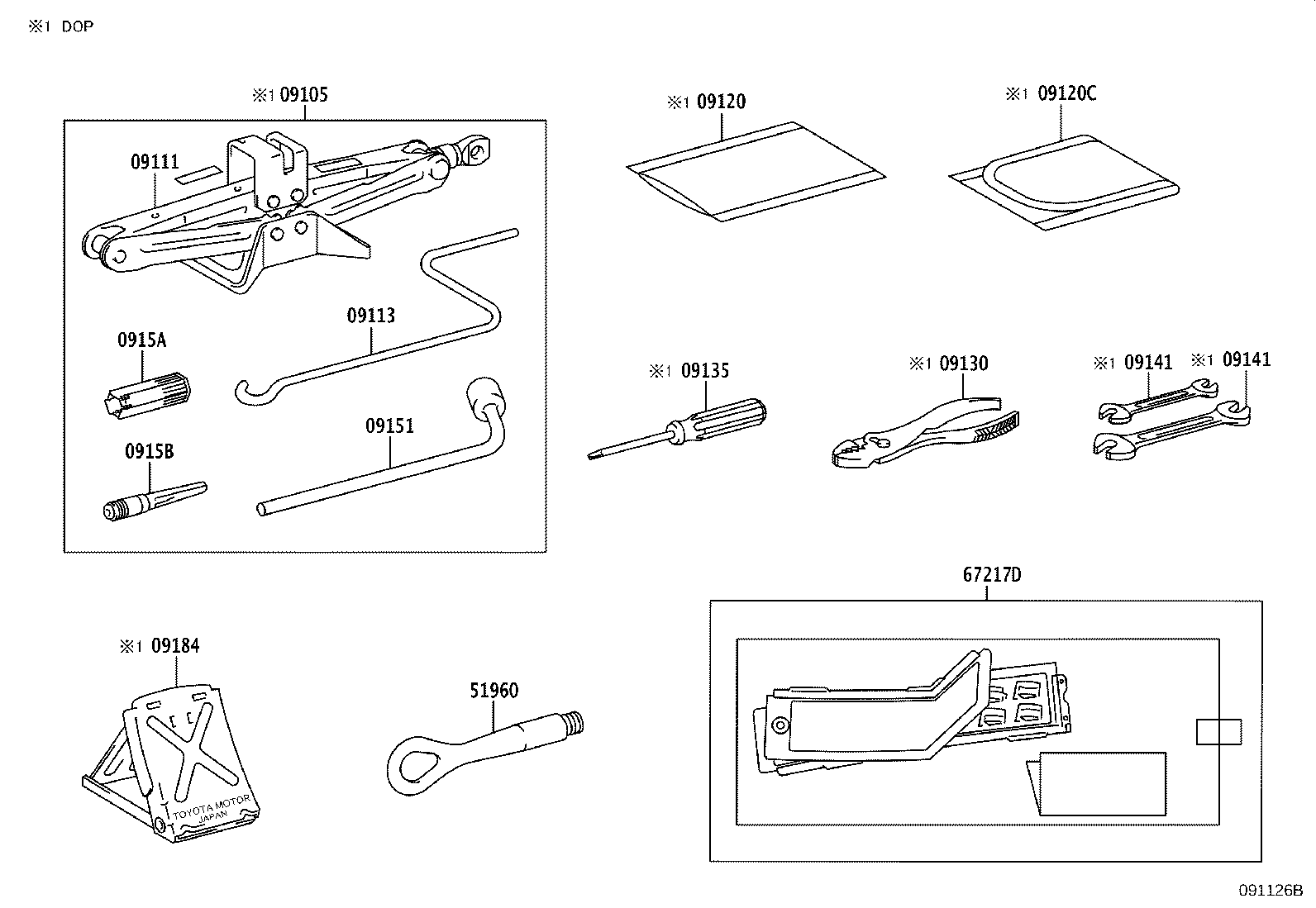

17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09105 | Box Set, Jack |
| 09111 | Jack Sub-assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09120C | Bag,Tool, NO.2 |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09151 | Wrench, Hub Bolt Box |
| 0915A | Socket, Hub Bolt Temporary Setting |
| 0915B | Pin, Wheel Guide |
| 09184 | Stopper, Wheel |
| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| 67217D | Stopper, Rear Door Glass |
| 745W1 | Case, Users Manual |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
