Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

6 part groups · 2 illustrations

Illustrations

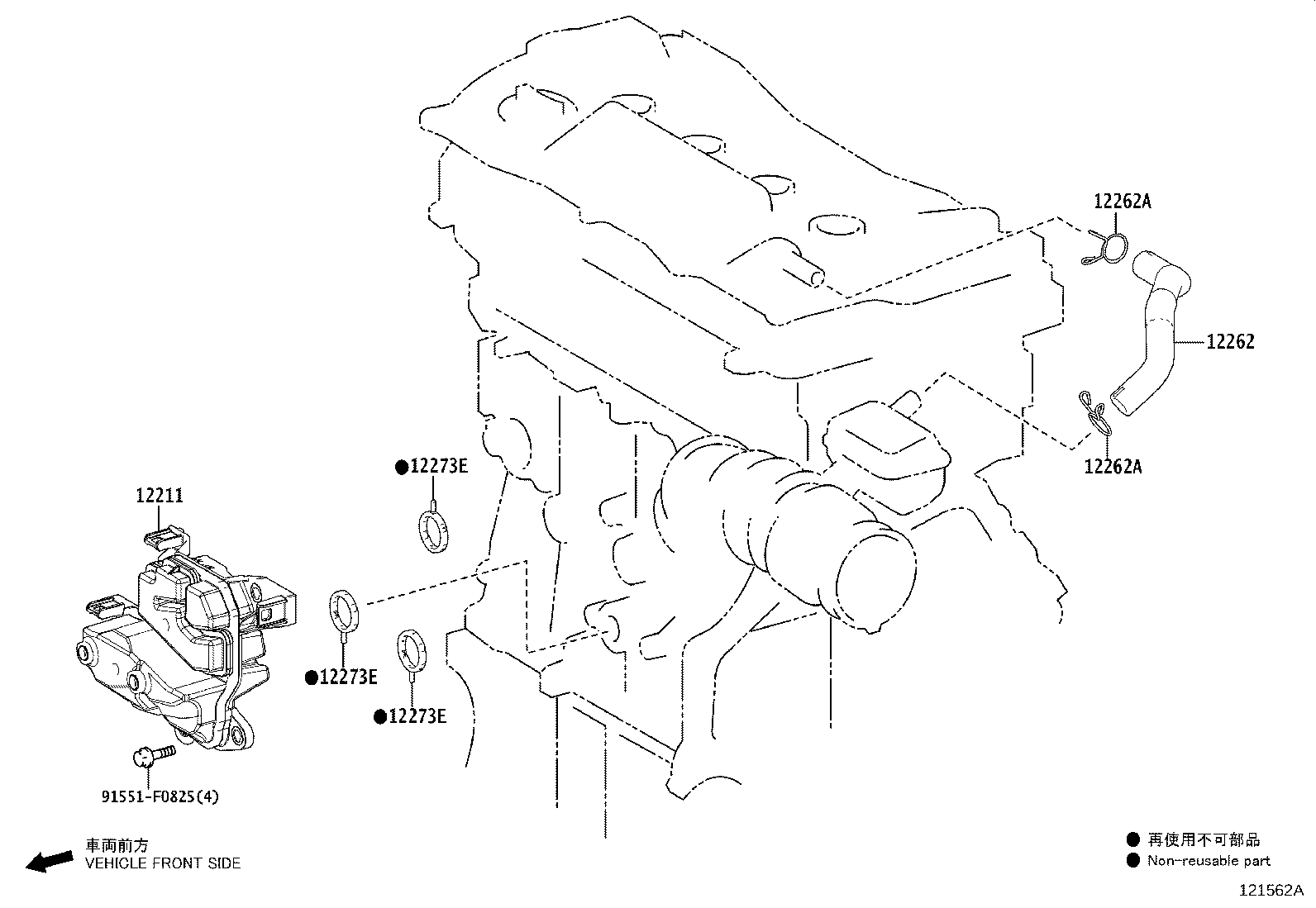

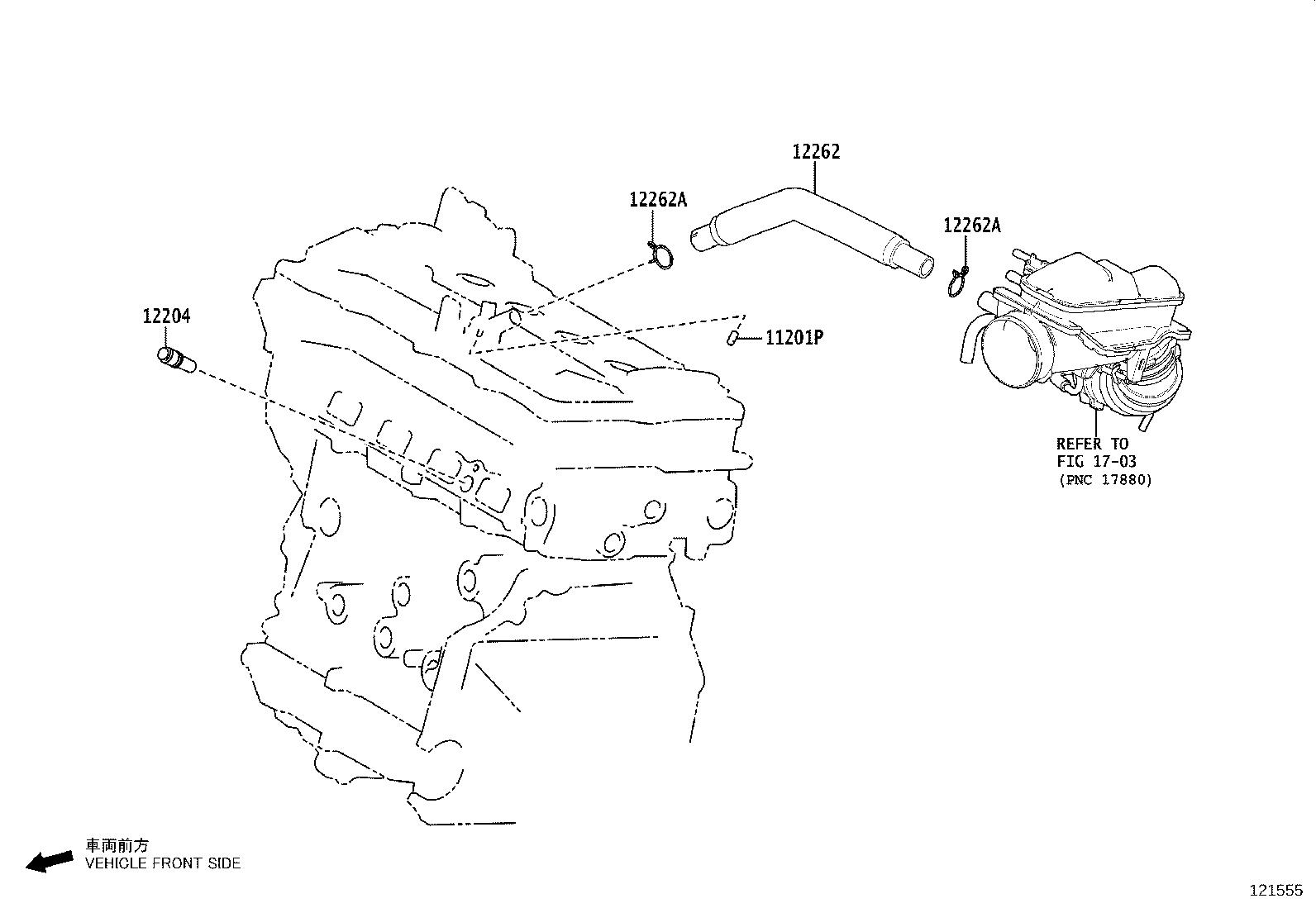

Figure 121562A 121562A 2022-09 → — Figure 121555 121555 2022-09 → —

Part groups

PNCDescription
11201P Plug(FOR CYLINDER HEAD COVER)
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
