Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

2 part groups · 2 illustrations

Illustrations

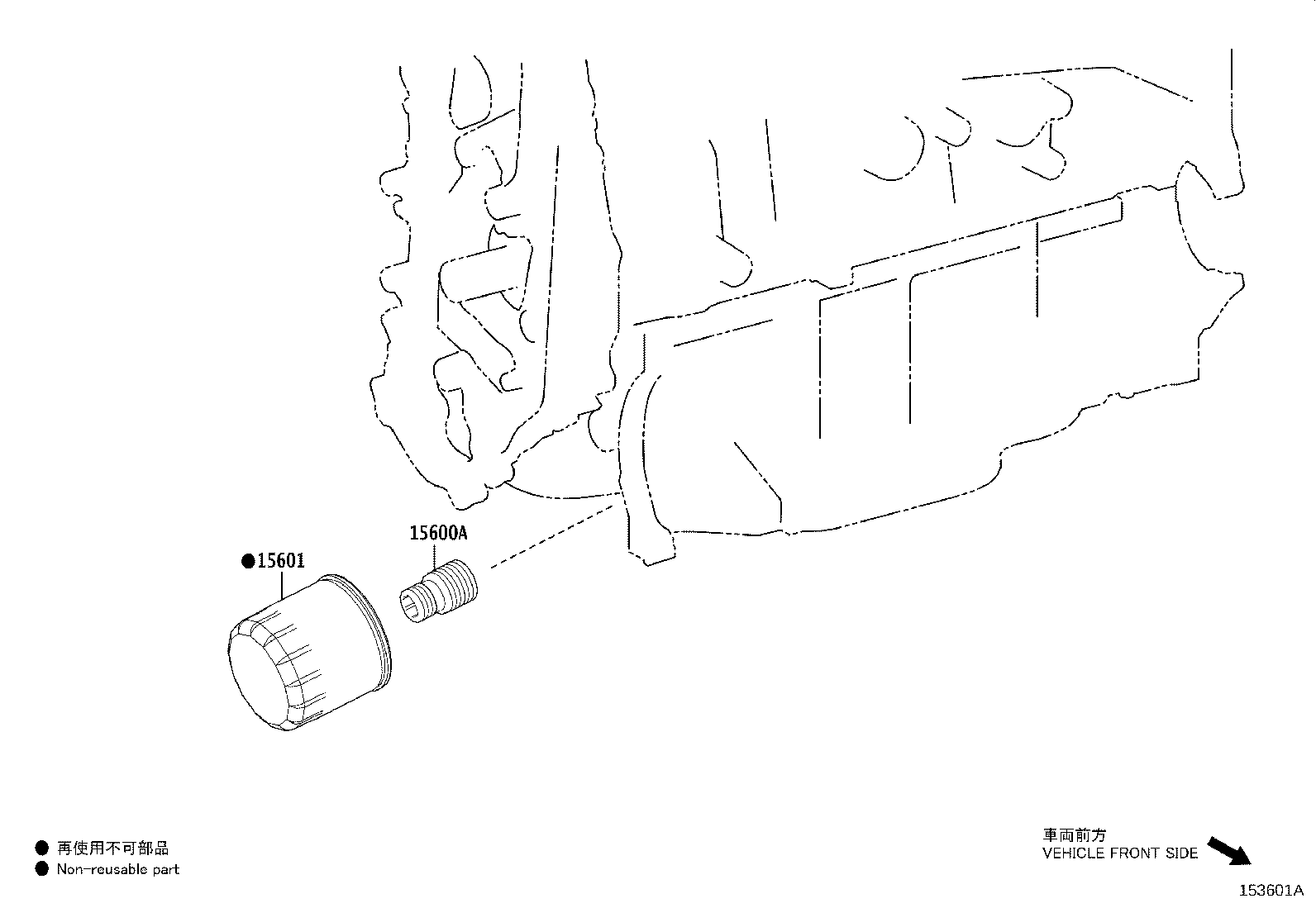

Figure 153601A 153601A 2022-09 → — Figure 153596A 153596A 2022-09 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
